Mastering the B58 Oil Filter Housing Bolt Location

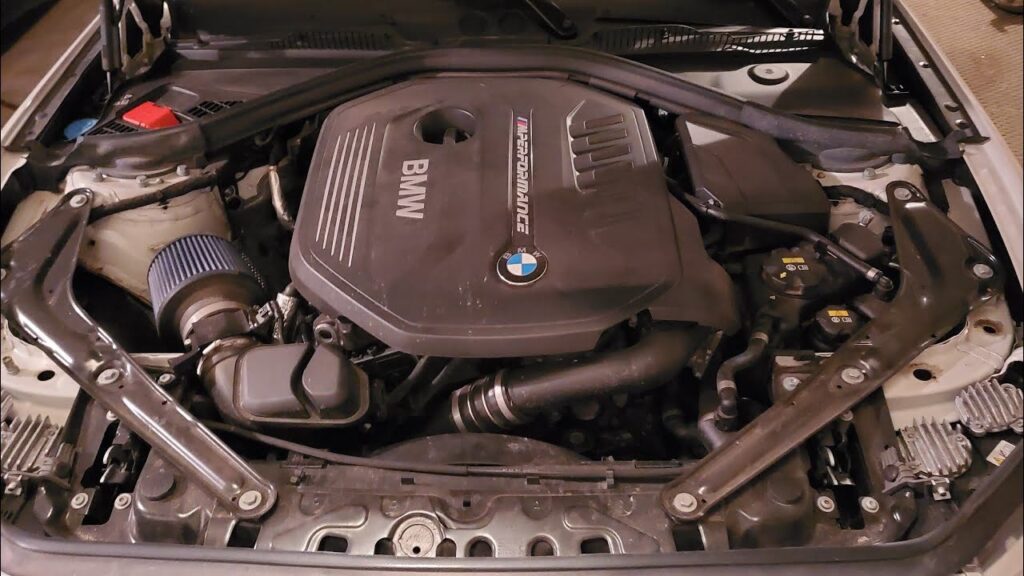

Embarking on the BMW B58 oil filter housing replacement is no small feat. It's a task that will undeniably test your patience and mechanical prowess. However, for those willing to take on the challenge, the satisfaction of a successful DIY and the significant savings on professional garage prices make it a truly worthwhile endeavour. This guide aims to complement the official ISTA procedure, providing crucial insights and addressing common stumbling blocks, particularly the notorious e-torx 10 bolt that can turn this job into a true nightmare if not approached correctly.

While the ISTA guide offers a solid foundation, some nuances and tricks are often missed, leading to frustration. Our goal here is to fill those gaps, ensuring you have the clearest possible path to success. Remember, preparation is paramount, and understanding the 'why' behind each step will empower you throughout this intricate repair.

Essential Preparations Before You Begin

Before any spanners are turned, proper preparation is key. This job requires significant access, so ensure your vehicle is safely and securely raised on all four corners. A lift is ideal, but sturdy jack stands on level ground are also acceptable. Safety should always be your top priority.

Vehicle Elevation and Initial Disassembly

Once the car is elevated, your first physical task involves removing the rear engine plastics and the structural brace. These components obstruct access to various parts that need to be disconnected later in the process. Take your time with these initial steps; a clear workspace is essential for efficiency and reducing frustration later on.

ECU Connections: Handle with Care

One of the critical early steps is to disconnect all ECU connections located on the right side of the engine. This is where meticulousness truly pays off. Before disconnecting anything, take plenty of photographs. These will be invaluable during reassembly, helping you remember which connector goes where. Furthermore, it's highly recommended to mark each connector and its corresponding port with masking tape and a marker. These connectors can be finicky, and improperly seated connections can lead to a host of electrical gremlins or even prevent the car from starting post-repair. Simply locking them into place might not be sufficient; ensure they are firmly seated.

Draining Coolant and Removing the Intake Manifold

The intake manifold needs to be removed to gain access to the oil filter housing. However, before it comes off, you must drain the coolant. Failing to do so will result in a significant, messy spill.

Coolant Drainage: A Messy Affair

Locate the coolant drain connector, typically near the front of the car. On many F30 340 models, it's situated towards the bottom of the radiator nearest to the engine on the right side. Be prepared for coolant to drip from various places even after the primary drain. Have a large drain pan ready, along with rags or absorbent pads. For stubborn coolant quick connections, a penetrant like WD-40 can be incredibly helpful in easing their release.

Intake Manifold Removal: Step-by-Step

Once the coolant is drained, you can proceed with removing the intake manifold. This involves disconnecting various hoses, wires, and sensors attached to it. Ensure you keep track of all fasteners and their locations. The intake manifold bolts are known to be quite delicate, with a low torque specification, so remember this for reassembly. Patience is a virtue throughout this entire process, but especially here.

Accessing the Oil Filter Housing: Clearing the Path

With the intake manifold out of the way, you'll begin to see the oil filter housing, but several other components still need to be moved or removed to provide adequate access.

Removing Ancillary Components

Below the intake manifold, you'll find the secondary coolant pump. This needs to be removed, though you can typically leave its bracket in place. Next, address the transmission heat exchanger and the fuel line bracket. These components, while seemingly small, can significantly impede access to the oil filter housing bolts. Furthermore, consider removing the wheel well plastic on the passenger side; this often provides a surprising amount of additional access for your hands and tools, which you'll undoubtedly appreciate later.

The Three-Way Coolant Connector

There's a three-way coolant connector on the engine block, held in place by three e-torx 8 bolts. One of these bolts can be particularly challenging to reach. A 1/4-inch socket set with thin extensions is often the only way to get to this tricky fastener. Take your time here; rushing can lead to stripped bolt heads.

The Elusive E-Torx 10 Bolt: Your Ultimate Guide to Location

This is arguably the most challenging part of the entire procedure and the primary focus of many DIYers' frustration. The bolt in question is an e-torx 10, located under the coolant nozzle on the oil filter housing. Its position makes it incredibly difficult to see and access.

Identifying the Culprit

To accurately locate this bolt, it's highly recommended to have your new oil filter housing on hand. Use it as a reference to visualise where this specific bolt sits on the housing itself. This will give you a better mental map of its position on the engine.

The Golden Rule: Remove This Bolt FIRST!

Here's a critical piece of advice that cannot be overstated: Remove this e-torx 10 bolt first! Many guides suggest loosening the easier, more accessible bolts first. However, doing so will cause the housing to shift slightly, completely obscuring any view or access you might have had to this challenging lower bolt. If you loosen the other bolts first, you will make the entire procedure tremendously harder, potentially adding hours of frustration.

Tools and Technique for Success

Accessing this bolt requires a specific approach and a good selection of tools. You'll need to experiment with a combination of extensions and a universal swivel joint on your 1/4-inch socket set. The primary access point for your hands and tools will be around the lower control arm area, utilising the 'real estate' created by the removal of the transmission heat exchanger. You'll need to carefully fish your extensions past the engine oil heat exchanger. This is where a second pair of eyes, ideally a friend watching from above, can be invaluable. They can guide your socket onto the bolt head, as you likely won't have a direct line of sight from below. This will take time, and you'll likely try several combinations of extensions. Be prepared for a slow, methodical process.

Patience is Key

This particular bolt demands a significant amount of patience. Do not rush. If you find yourself getting frustrated, take a break, gather your thoughts, and return with a fresh perspective. Remember, all the bolts on the oil filter housing are captive bolts, meaning they are designed to remain in the housing once loosened; they won't completely come out. This is a design feature to prevent them from being dropped into the engine bay.

Removing the Remaining Housing Bolts

Once the elusive e-torx 10 bolt is loosened, the remaining bolts are relatively straightforward. There are typically two more bolts located behind where the transmission heat exchanger was seated, and three easily accessible bolts near the top of the housing. With the hardest part behind you, these should come out with minimal fuss.

Installation: Reversing the Procedure

With the old housing removed, you're ready to install the new one. The installation process is largely the reverse of the removal, but with a few critical considerations.

Securing the New Housing

Carefully position the new oil filter housing. Just as with removal, it's often easier to tackle the challenging lower bolt first during installation. By tightening the easier bolts first, you might inadvertently shift the housing, making it harder to align and tighten the lower one. So, loosely secure the lower, difficult bolt first, then proceed to snug down the remaining bolts.

Critical Torque Specifications

It is absolutely essential to follow the ISTA torque specifications for all bolts, especially those related to the intake manifold. These bolts are surprisingly weak and have a very low torque requirement. Over-tightening can easily lead to stripped threads or broken bolts, which would turn a challenging job into a catastrophic one. A good quality torque wrench is indispensable here.

Pre-Intake Manifold Pressure Test

Before you bolt the intake manifold back down, a crucial step is to perform a pressure test on the cooling system. This will ensure that all cooling-related connections are secure and that you haven't missed anything, preventing leaks once the car is running. It's far easier to address a leak now than after everything is reassembled.

Post-Installation Procedures: Oil and Coolant

The job isn't done once the housing is bolted in. There are vital post-installation steps to ensure your engine is properly lubricated and cooled.

The All-Important Oil Change

During the oil filter housing replacement, you will undoubtedly have drained a significant amount of engine oil. Now is the perfect time to perform a full oil change. Refill with the correct type and quantity of fresh engine oil. It's worth noting that new oil filter housings often come with a new oil filter already installed, but always double-check this before you forget and accidentally run the engine without one!

Priming the Oil System: A Vital Step

Before starting the engine, you must prime the oil system to build sufficient oil pressure. This prevents the engine from running dry for the initial seconds, which can cause significant wear. The procedure is as follows:

• Unplug all fuel injectors and ignition coil packs. This prevents the engine from actually starting.
• Run the starter motor for approximately 15 seconds.
• Allow the starter motor to cool for about 20 seconds.
• Repeat the cranking process for another 15 seconds.
• Continue this cycle (crank 15s, cool 20s) until sufficient oil pressure has been built.

If you have access to ISTA, it will show a graph plotting engine RPM and oil pressure, indicating when adequate pressure is achieved. Without ISTA, you can typically assume that around 5 or so 'starts' (cranking cycles) should be sufficient to prime the system effectively.

Bleeding the Cooling Systems: Thoroughness Pays Off

The B58 engine has two cooling systems that require bleeding: the main engine cooling system and the low-temperature cooling circuit for the charge air cooler. Air trapped in the system can lead to overheating and poor performance. You can use a vacuum tool for a quick and efficient bleed, or utilise the car's built-in bleeding procedures. Resources like Kern's videos often provide excellent visual guides for these procedures. It's advisable to repeat the bleeding procedures a few times and consistently check your coolant levels over the next few days to ensure all air has been expelled.

Final Checks and Preventative Measures

As you near completion, a few final checks and preventative measures can save you headaches down the line.

ECU Connector Vigilance

Re-emphasising this point: ensure all ECU connectors are firmly and correctly seated. As mentioned, they can be finicky. If you encounter weird codes or trouble starting the car after reassembly, improperly seated ECU connectors are often the culprit. Double-check every single one.

Recommended Replacement Parts

While you're undertaking such a significant job, it's sensible to replace certain inexpensive components that are prone to failure or are difficult to access normally. This proactive approach can prevent future problems and save you from repeating parts of this challenging process. Note that part numbers are for Gen 1 B58; always double-check for your specific vehicle's generation and model year.

Frequently Asked Questions (FAQs)

Q: Why is the B58 oil filter housing replacement considered so difficult?
A: The difficulty stems primarily from the housing's location deep within the engine bay, requiring the removal of numerous other components, and particularly due to the extreme challenge of accessing one specific e-torx 10 bolt at the bottom of the housing.

Q: Do I absolutely need ISTA to perform this job?
A: While ISTA is highly recommended for its detailed procedures, torque specifications, and especially for monitoring oil pressure during priming, it is not strictly mandatory. This guide aims to provide enough detail to proceed without it, but having access to it will certainly make the process smoother and more foolproof.

Q: What are the most common mistakes people make during this DIY?
A: The most common mistakes include not draining coolant properly, failing to remove the difficult e-torx 10 bolt first (making it nearly impossible later), not following torque specifications (especially for intake manifold bolts), and not thoroughly bleeding the cooling systems post-installation.

Q: How long should I expect this job to take?
A: For an experienced DIYer, this job can still take a full day or even a weekend. For someone attempting it for the first time, be prepared for two full days, allowing ample time for breaks and troubleshooting. Patience is your best friend.

Q: What tools are essential beyond a standard socket set?
A: You'll definitely need a good quality torque wrench, a comprehensive 1/4-inch socket set with various extensions and a universal swivel joint, a large drain pan, and ideally, an automotive lift or sturdy jack stands. Penetrant spray for stubborn connections is also highly recommended.

Conquering the B58 oil filter housing replacement is a significant achievement for any home mechanic. By understanding the challenges, particularly the location and strategy for that elusive e-torx 10 bolt, and by following a methodical approach with ample patience, you can successfully complete this demanding repair. Best of luck with your project!
