Reattaching a Brake Caliper: UK DIY Guide

The braking system is arguably the most critical safety feature of any vehicle. When working on your car's brakes, whether it's replacing worn pads or discs, or carrying out more extensive repairs, you'll inevitably encounter the brake caliper. Reattaching this vital component correctly is not just a matter of mechanics; it's a matter of life and death, ensuring your vehicle can stop safely and reliably. This comprehensive guide will walk you through the process of reattaching a brake caliper, providing essential tips and considerations to ensure the job is done right, the first time, keeping you safe on UK roads.

Understanding Your Brake Caliper

Before diving into the reattachment process, it's helpful to understand what a brake caliper does. Essentially, it's the component that houses your brake pads and pistons. When you press the brake pedal, hydraulic pressure forces the pistons to clamp the pads against the brake disc (rotor), creating the friction needed to slow or stop your vehicle. There are generally two types: fixed calipers, which remain stationary and use pistons on both sides, and floating (or sliding) calipers, which move relative to the disc and use pistons on one side, relying on guide pins to slide and apply pressure evenly. The majority of passenger cars in the UK utilise floating calipers, which is why proper lubrication of the guide pins is so critical for their smooth operation.

Essential Tools and Materials You'll Need

To successfully reattach your brake caliper, having the right tools and materials at hand is paramount. Preparation prevents poor performance, especially when it comes to your brakes. You will need:

• Safety Glasses and Gloves: Always protect your eyes and hands.
• Torque Wrench: Absolutely crucial for tightening bolts to the manufacturer's specified settings, preventing over-tightening or under-tightening.
• Socket Set and Ratchet: For removing and reattaching caliper mounting bolts.
• Wire Brush: For cleaning rust and debris from mounting points.
• Brake Cleaner: To clean components and remove contaminants.
• Caliper Grease: Specifically designed for high-temperature brake components, used on the back of brake pads and caliper slide points.
• Silicone Grease: Ideal for lubricating guide pins, ensuring smooth caliper movement.
• Small Flathead Screwdriver or Pick Tool: For delicate work like sensor reattachment.
• Brake Fluid (if bleeding is required): Ensure it matches your vehicle's specifications (DOT3, DOT4, DOT5.1).
• Bleeder Wrench and Container/Hose: If you need to bleed the brake system.
• Jack and Jack Stands: For safely lifting and supporting your vehicle.
• Wheel Chocks: To prevent the vehicle from rolling.

Pre-Reattachment Checks: A Vital Step

Before you even think about putting the caliper back on, take a moment to inspect all related components. This is your chance to identify any issues that could compromise your braking performance:

• Brake Pads: Are they new? If not, check their remaining life. Ensure they are the correct pads for your vehicle.
• Brake Discs (Rotors): Inspect for excessive wear, deep grooves, cracks, or warping. If necessary, replace or have them machined.
• Brake Lines: Check for any signs of damage, cracks, bulges, or leaks. A compromised brake line is a serious safety hazard.
• Caliper Itself: Look for any signs of fluid leaks around the piston boot or bleed nipple. Check the condition of the dust boots on the guide pins. If the caliper itself is faulty, it might need rebuilding or replacing.
• Mounting Brackets: Ensure they are clean and free of rust or debris that could impede the caliper's movement.

The Reattachment Process: Step-by-Step Guide

With your tools ready and components inspected, you can now proceed with reattaching the brake caliper. Follow these steps carefully:

1. Clean All Contact Surfaces: Before anything else, use a wire brush and brake cleaner to thoroughly clean the caliper mounting brackets and any surfaces where the brake pads or caliper will make contact. Rust and old grease can hinder proper movement and lead to uneven wear or noise.
2. Lubricate Key Areas: This is where the specified greases come into play.
   • Caliper Grease: Apply a thin, even layer of caliper grease to the metal backing plates of your new brake pads. This helps prevent squealing and allows the pads to move freely within the caliper. Crucially, also apply this grease to the caliper brackets where the brake pads slide. These are the metal-on-metal contact points that allow the caliper to move correctly.
   • Silicone Grease: For the guide pins (also known as slider pins), apply a generous amount of silicone grease. These pins allow the floating caliper to slide smoothly, ensuring even pressure application to both sides of the brake disc. Ensure the dust boots for these pins are in good condition and properly seated to protect the grease from contaminants.
   • Critical Warning:Do not get any grease on the friction material of your new brake pads or on the surface of the brake rotors. Grease contamination will severely compromise braking performance and can be extremely dangerous. If this happens, the contaminated components must be replaced immediately.

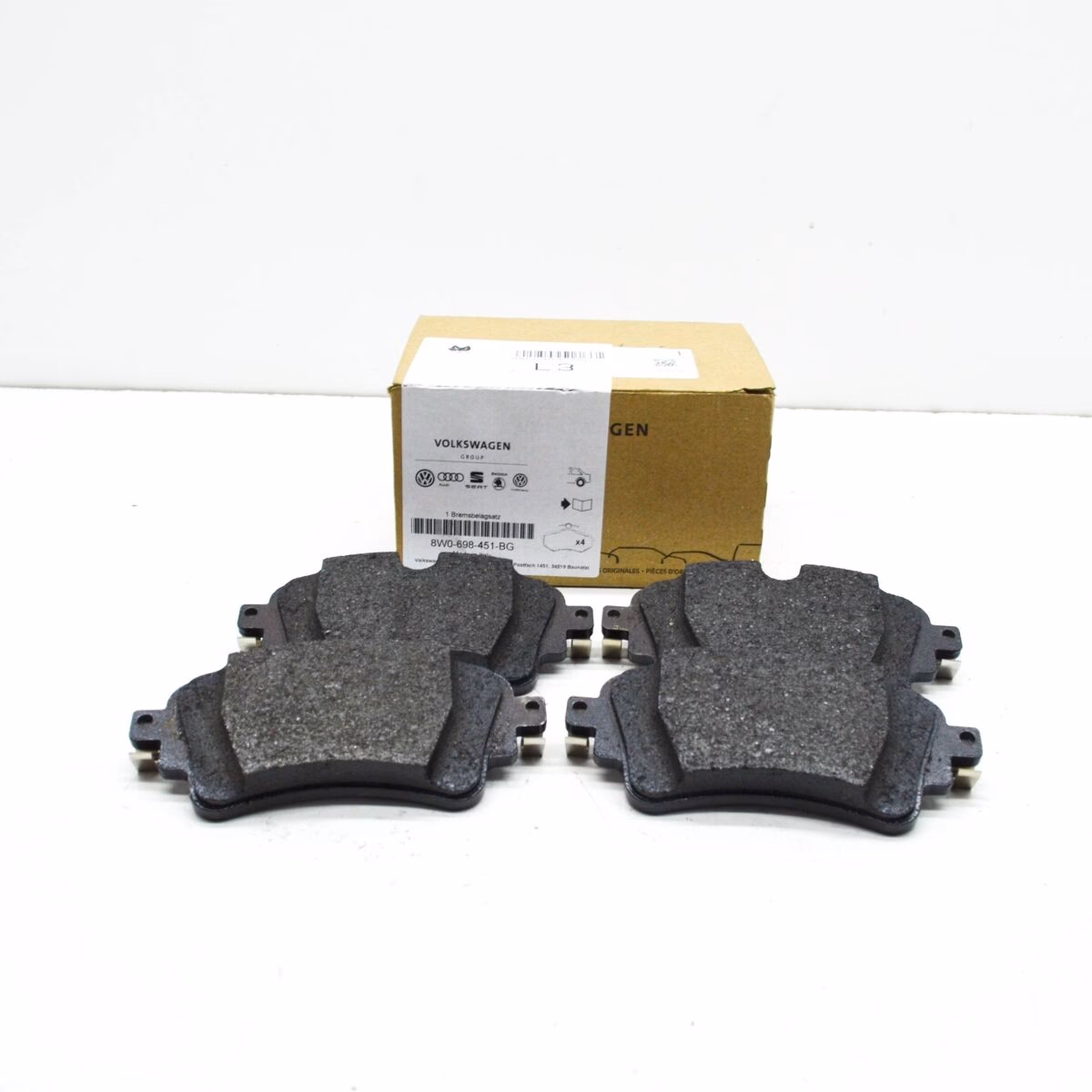

3. Install Brake Pads: Carefully insert the new brake pads into the caliper bracket. Ensure they sit correctly and can slide freely in their designated slots. Some pads have wear indicators; make sure these are positioned correctly according to your vehicle's manual.
4. Position the Caliper: Gently slide the caliper over the brake pads and onto the brake disc. It should fit snugly but without excessive force. If you had to compress the caliper piston(s) to make space for new, thicker pads, ensure it's fully retracted.
5. Reattach Caliper Mounting Bolts: Align the caliper with its mounting points and insert the caliper mounting bolts. Hand-tighten them first to ensure they are not cross-threaded.
6. Tighten Bolts with a Torque Wrench: This is a crucial safety step. Consult your vehicle's service manual for the exact torque specifications for your caliper mounting bolts. Use your torque wrench to tighten the bolts to the specified setting. Under-tightening can lead to loose components and catastrophic failure, while over-tightening can strip threads or damage bolts.

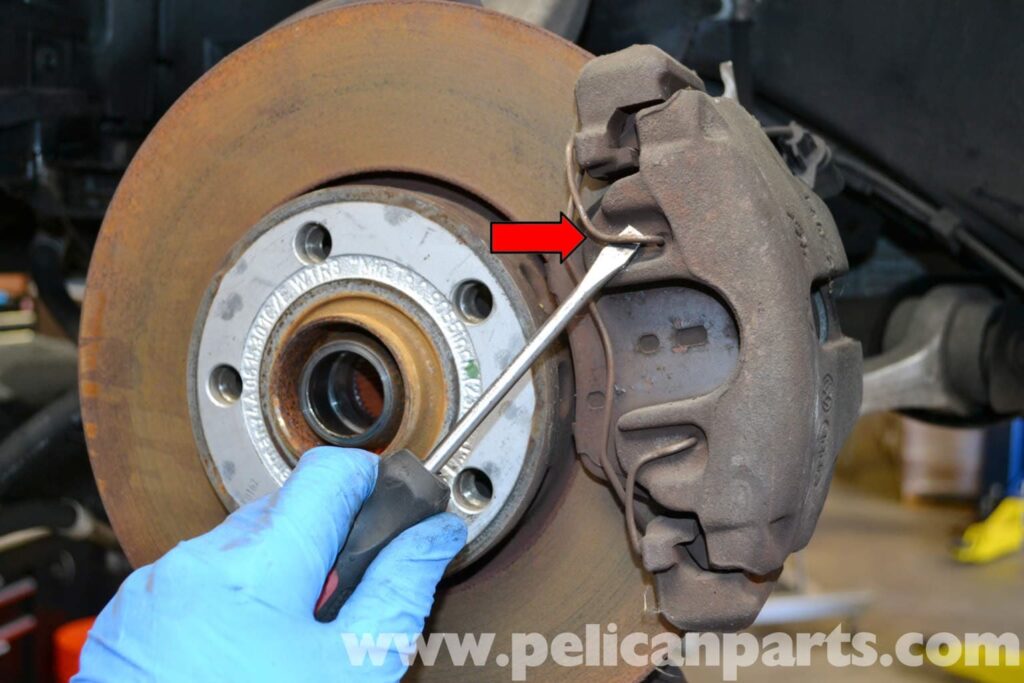

7. Reattach Brake Sensor (Fronts): If your vehicle has a brake wear sensor, typically found on the front wheels, now is the time to reattach it. This usually involves clipping it into the new brake pad and routing the wire securely away from moving parts. Ensure the connection is firm.
8. Reconnect Brake Line (if disconnected): If you disconnected the brake line from the caliper, reattach it now. Ensure the banjo bolt and new copper washers (always use new washers!) are correctly fitted. Tighten the banjo bolt to the manufacturer's specified torque.
9. Bleed the Brake System (if brake line was disconnected): If you disconnected the brake line or opened the system, air will have entered. This air must be removed through a process called bleeding the brake system. Air in the lines will result in a spongy brake pedal and severely compromised braking. Follow your vehicle's specific bleeding procedure, which typically involves opening a bleed nipple while someone slowly presses the brake pedal, then closing it before the pedal is released. Repeat until no air bubbles are seen.
10. Pump the Brake Pedal: Before starting the engine or driving, get into the vehicle and slowly pump the brake pedal several times. The pedal should become firm as the caliper pistons extend to meet the new pads and disc. Do not drive until the pedal feels consistently firm.
11. Reinstall Wheel: Reattach the wheel, ensuring the lug nuts are tightened to the correct torque specification for your vehicle.

Important Considerations and Best Practices

• Torque Specifications are Non-Negotiable: We cannot stress this enough. Every bolt in your braking system has a specific torque value. Always look up and adhere to these values in your vehicle's service manual.
• Brake Fluid Type: If bleeding, always use the correct type of brake fluid specified by your manufacturer (e.g., DOT3, DOT4, DOT5.1). Mixing incompatible fluids or using the wrong type can cause serious damage to your braking system.
• Cleanliness is Key: Contaminants like dirt, rust, or even fingerprints can affect brake performance and longevity. Keep everything as clean as possible.
• Bedding In New Pads: After installing new pads and discs, it's crucial to "bed them in." This process involves a series of controlled stops from moderate speeds to high speeds, allowing the pad material to transfer evenly onto the disc surface, optimising braking performance and reducing noise. Consult your pad manufacturer's recommendations for the specific bedding-in procedure.
• Check for Leaks: After reattaching the caliper and bleeding the system, visually inspect all connections for any signs of brake fluid leaks. Keep an eye on your brake fluid reservoir level for a few days after the repair.
• Test Drive Safely: Conduct a slow, cautious test drive in a safe area, away from traffic. Test the brakes at low speeds first, gradually increasing speed and brake pressure. Listen for any unusual noises and pay attention to the pedal feel.

Common Mistakes to Avoid

• Forgetting to Lubricate or Using the Wrong Grease: This leads to sticky calipers, uneven pad wear, noise, and reduced braking efficiency. Remember: caliper grease on pad backs/brackets, silicone grease on guide pins.
• Contaminating Brake Pads or Rotors: Even a small amount of oil or grease on the friction surfaces will ruin them, causing poor braking and requiring replacement.
• Incorrect Torque on Bolts: Too loose, and components can detach; too tight, and bolts can strip or break, or components can warp.
• Not Bleeding Air from the System: A spongy pedal means air is present, drastically reducing braking power.
• Ignoring Brake Wear Sensors: If your vehicle has them, they're there for a reason. Reattach them correctly to ensure your warning system functions.
• Rushing the Job: Take your time. Brakes are too important to rush.

Grease Application Guide

Frequently Asked Questions (FAQs)

Q: Do I always need to bleed the brakes when reattaching a caliper?

A: If you disconnected the brake line from the caliper, or if the brake fluid reservoir ran low, then yes, bleeding the brake system is absolutely essential to remove trapped air. If you simply unbolted the caliper and hung it without disconnecting the line, bleeding might not be strictly necessary, but it's often a good practice to ensure optimal pedal feel.

Q: What happens if I get grease on my brake pads or rotor?

A: Grease or oil on these surfaces will severely reduce braking friction, leading to a dangerous loss of stopping power. The contaminated components (pads and likely the rotor) must be replaced immediately. Brake cleaner might temporarily remove it, but full absorption into the pad material cannot be reversed.

Q: How do I know the correct torque for my caliper bolts?

A: The correct torque specifications are always found in your vehicle's owner's manual or a specific service/repair manual for your make and model. Never guess or rely on general values.

Q: Can I use regular multi-purpose grease on my brake components?

A: Absolutely not. Regular greases are not designed to withstand the extreme temperatures generated by braking and can break down, melt, or even damage rubber components. Always use specified caliper grease and silicone grease for brake system components.

Q: My brake pedal feels spongy after reattaching the caliper. What's wrong?

A: A spongy pedal is the classic symptom of air trapped in the brake lines. You will need to thoroughly bleed the brake system until the pedal feels firm and consistent.

Q: How often should I check my brake caliper guide pins?

A: It's good practice to inspect and re-lubricate your caliper guide pins every time you replace your brake pads, or at least during your annual vehicle service. This ensures smooth operation and prevents premature wear.

Conclusion

Reattaching a brake caliper is a task that, when performed correctly, ensures the safety and reliability of your vehicle's most crucial system. By following the detailed steps, paying close attention to lubrication, torque specifications, and bleeding procedures, you can confidently complete this maintenance task. Remember, your brakes are non-negotiable for safety. If at any point you feel unsure or encounter unexpected difficulties, do not hesitate to consult a qualified mechanic. Investing in your knowledge and using the right techniques will keep you, and others, safe on the road.
