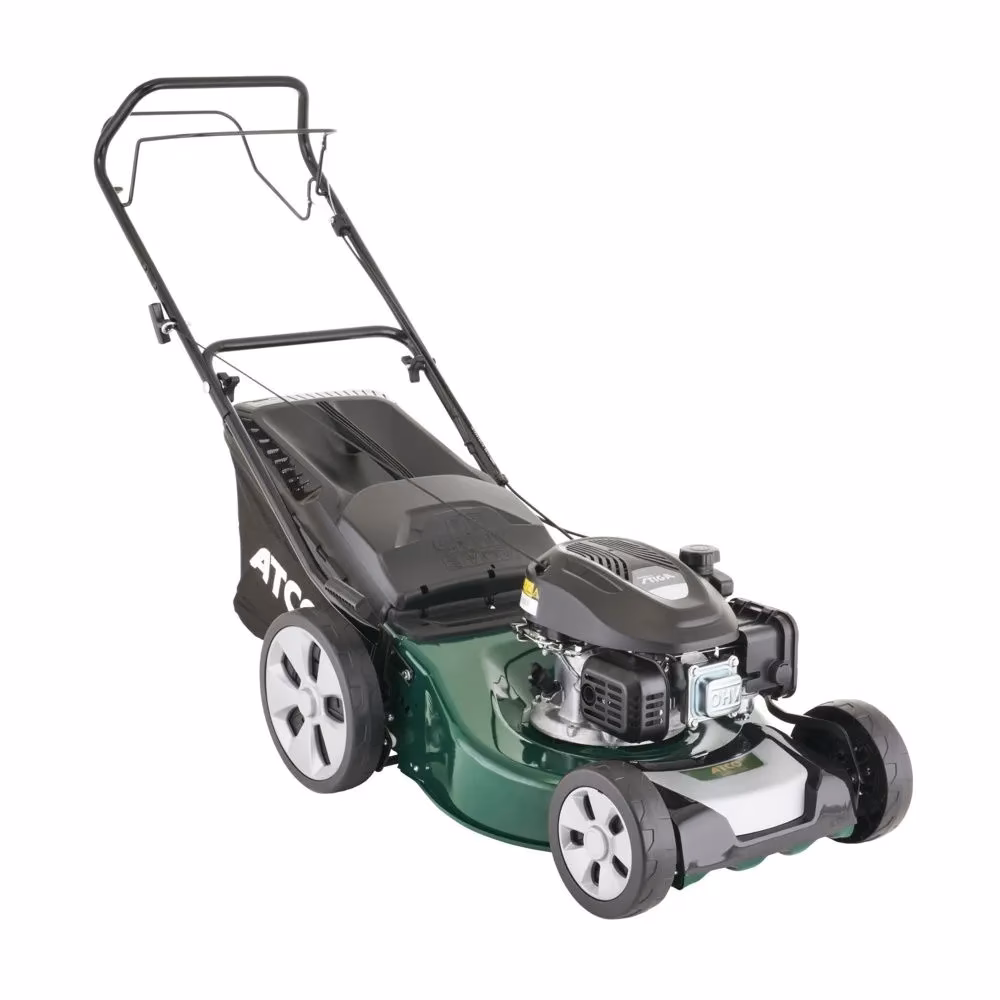

Atco Commodore Clutch Adjustment Guide

Maintaining your Atco Commodore mower is crucial for its longevity and efficient operation. One of the key components that often requires attention is the clutch system. The 'deadman's type' clutch, a vital safety feature on your Atco Commodore, ensures that both the mower and the cutters stop automatically when the control levers are released. This guide will walk you through the process of adjusting this important mechanism, ensuring your mower remains safe and performs at its best. We'll cover everything from initial preparation to the final checks, making this a comprehensive resource for Atco owners.

Understanding the Atco Commodore Clutch System

The Atco Commodore features a 'deadman's type' clutch, a sophisticated safety mechanism designed to prevent accidents. This system is integrated into the control levers. When these levers are not actively held down, a spring-loaded system engages, disengaging the drive to both the engine's propulsion and the cutting cylinder. This means that if you were to accidentally let go of the handles, the mower would come to a safe and immediate halt. While this system is robust, over time and with regular use, it may require adjustment to maintain its optimal sensitivity and effectiveness. Proper adjustment ensures that the clutch engages and disengages precisely when intended, contributing to both safety and ease of use.

When to Adjust Your Atco Commodore Clutch

Several signs might indicate that your Atco Commodore's clutch needs adjustment. The most common symptom is a feeling of looseness or excessive play in the control levers. If you find yourself having to push the levers further down than usual for the mower to engage, or if the drive seems to be slipping or not engaging fully, it's a strong indicator that an adjustment is needed. Conversely, if the clutch is too tight, you might find it difficult to disengage the drive, or the mower might creep forward even when the levers are partially released. It's also a good practice to check the clutch adjustment periodically, perhaps at the beginning of each mowing season, as part of your routine maintenance. Neglecting these signs can lead to reduced performance and, more importantly, compromise the safety features of your mower.

Tools and Preparation

Before you begin the clutch adjustment process, it's essential to gather the necessary tools and prepare your mower safely. The primary tools you'll likely need are a suitable spanner or wrench to loosen the securing screws, and possibly a screwdriver depending on the exact configuration of your clutch cover. Safety is paramount when working on any machinery, especially a lawnmower. Therefore, the first and most critical step is to remove the spark plug cap. This prevents the engine from accidentally starting while you are working on it. Once the spark plug cap is removed, ensure the mower is on a level, stable surface. Having good lighting will also be beneficial for clear visibility of the clutch mechanism.

Step-by-Step Clutch Adjustment Procedure

Adjusting the clutch on your Atco Commodore is a straightforward process if followed correctly. Here’s a detailed breakdown:

1. Accessing the Clutch Mechanism

The first physical step involves removing the clutch cover. As per the provided information, you will need to locate the securing screws, labelled as (B) in the diagram you've seen. Loosen these screws sufficiently to allow the clutch cover, labelled (A), to be slid off. Take care not to lose these screws; it's often a good idea to place them in a small container.

2. Identifying the Adjustment Point

Once the clutch cover is removed, you will be able to see the clutch mechanism. The exact nature of the adjustment point can vary slightly between different models and years of the Atco Commodore, but it typically involves a cable or a linkage that connects the control lever to the clutch engagement mechanism. Look for a nut or a screw that is designed to adjust the tension or the travel of this cable or linkage. This is the key adjustment point.

3. Making the Adjustment

The goal of the adjustment is to ensure the correct amount of tension or free play in the control lever. If the clutch is too loose, you’ll typically need to tighten the adjustment nut or screw. This will shorten the effective length of the cable or linkage, causing the clutch to engage more readily. If the clutch feels too tight, you’ll need to loosen the adjustment nut or screw, increasing the cable or linkage length and providing more free play. It’s often a process of trial and error. Make small adjustments – a quarter or half turn at a time – and then test the lever’s operation. Ensure the clutch fully disengages when the lever is released and fully engages when the lever is depressed.

4. Testing the Clutch Operation

After making an adjustment, it’s crucial to test the operation of the clutch. Re-attach the clutch cover temporarily, ensuring the spark plug cap is still removed. Operate the control levers through their full range of movement. Check that the clutch engages smoothly when the levers are pushed down and disengages promptly and completely when the levers are released. You should feel a distinct 'bite' when engaging and a clear release when disengaging. Pay attention to any excessive play or stiffness.

5. Fine-Tuning

Depending on your initial assessment and the results of your test, you may need to repeat steps 3 and 4 to fine-tune the adjustment. The ideal setting provides a positive engagement without being too stiff, and a complete disengagement without any residual drag. Achieving this perfect balance is essential for both performance and safety.

6. Final Reassembly

Once you are satisfied with the clutch operation, you can permanently reassemble the clutch cover. Secure it firmly with the screws (B) you removed earlier. Ensure all parts are correctly seated and fastened. Finally, and very importantly, re-attach the spark plug cap. Your Atco Commodore's clutch should now be properly adjusted and ready for use.

Troubleshooting Common Clutch Issues

While the adjustment process is generally straightforward, you might encounter a few common issues:

Frequently Asked Questions

Q1: How often should I check my Atco Commodore's clutch adjustment?
It's advisable to check the clutch adjustment at the beginning of each mowing season and also if you notice any changes in the lever feel or mower performance.

Q2: Can I overtighten the clutch cable?
Yes, overtightening can make the clutch difficult to disengage and potentially cause premature wear on the clutch components. Make small adjustments and test frequently.

Q3: What if the adjustment doesn't seem to make a difference?
If adjusting the cable doesn't resolve the issue, there might be a more significant problem with the clutch mechanism itself, such as worn components or a damaged cable. In such cases, it's best to seek professional advice.

Q4: Is the 'deadman's type' clutch the same as a safety clutch?
Yes, the 'deadman's type' clutch is a specific implementation of a safety clutch system, designed to stop the mower and cutters when the operator releases the controls.

Conclusion

Properly adjusting the clutch on your Atco Commodore is a vital aspect of its maintenance. By following these steps, you can ensure that this crucial safety feature functions correctly, providing you with a safe and efficient mowing experience. Remember to always prioritize safety by disconnecting the spark plug cap before commencing any work. With a little care and attention, your Atco Commodore will continue to serve you well for many seasons to come. Regular checks and minor adjustments can prevent larger issues down the line, making this a worthwhile task for any Atco owner.
