6.7L Powerstroke Oil Leaks Explained

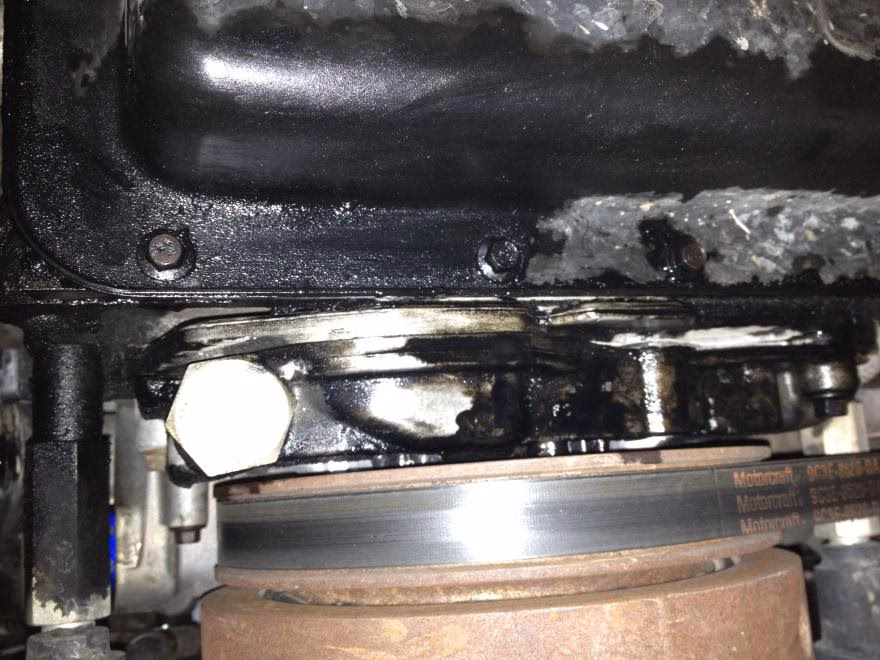

It's a common concern for many diesel truck owners: an unexpected oil leak. If you're driving a 6.7L Powerstroke and noticing puddles under your vehicle or a persistent smell of burning oil, you're not alone. Oil leaks, while unsettling, are a frequent issue across all modern vehicles, and the robust 6.7L Powerstroke is no exception. Understanding the potential culprits and how to identify them is crucial for maintaining your engine's health and preventing more significant, costly damage down the line. This guide aims to equip you with the knowledge to tackle any oil leak situation you might encounter with your Powerstroke, from simple checks to more advanced diagnostics.

Common Culprits Behind 6.7L Powerstroke Oil Leaks

Staying informed about the potential causes of oil leaks is the first step towards ensuring smooth, worry-free driving. While a variety of factors can contribute to an oil leak, several are particularly prevalent in the 6.7L Powerstroke engine. Let's delve into the most frequent offenders:

1. The Filthy Crankcase Vent Filter (CCV Filter)

Often overlooked, the Crankcase Vent (CCV) filter is a small but vital component that can be the 'ground zero' for many oil leaks. Its primary function is to efficiently remove contaminants from the crankcase oil. However, over time, this filter can become saturated. When this happens, excess pressure begins to build up within the crankcase. Eventually, this internal pressure can overwhelm the seals and gaskets, leading to a breach and subsequent oil leakage. Regularly inspecting and replacing your CCV filter according to your vehicle's maintenance schedule is a straightforward way to prevent this common issue.

2. The Faulty Oil Drain Plug

Located at the bottom of the oil pan, the oil drain plug is essential for draining old oil during an oil change. Leaks from this area can stem from several issues, including worn-out threads on the plug or the oil pan itself, a plug that hasn't been tightened sufficiently, or even a slight misalignment during installation. These problems can allow oil to seep out, often noticeable as fresh oil dripping around the plug. If you see oil pooling around this area, it’s a strong indicator that the drain plug may be the source of your leak.

3. The Oil Filler Cap and Valve Cover Gasket

Simplicity can sometimes be the cause of a leak. If the oil filler cap is not properly secured, or if its seal has degraded, engine pressure can force oil out, especially during acceleration. More commonly, the valve cover gaskets, which seal the valve covers to the cylinder heads, can deteriorate over time. Sludge buildup within the engine or excessive internal pressure can put a strain on these gaskets, eventually causing them to fail and leak oil. A leak from the valve cover gaskets might present as oil seeping down the sides of the engine.

4. Other Potential Leak Sources

Beyond the most common issues, other components can also be prone to developing leaks:

• Oil Filter Seal: A damaged or improperly installed oil filter can lead to leaks.
• Oil Cooler Lines: The lines connecting to the oil cooler can develop cracks or loose fittings.
• Turbocharger Seals: Leaks from the turbocharger can sometimes appear as oil leaks.
• Rear Main Seal: While less common, a failing rear main seal can cause significant oil loss from the back of the engine.
• High-Pressure Oil Lines (HPOP): In diesel engines, issues with high-pressure oil lines can also manifest as oil leaks.

Diagnosing the Source of Your Oil Leak

Once you suspect an oil leak, the next crucial step is to pinpoint its exact origin. Early detection can prevent minor issues from escalating into major engine problems. Here are some effective methods to help you diagnose where the oil is coming from:

Visual Inspection: The First Line of Defence

In over half of all cases, a thorough visual inspection under the bonnet (hood) can reveal the source of the leak. Look for wet or oily patches, dripping oil, or any signs of residue. Don't forget to check areas around common leak points like the oil filter, drain plug, valve covers, and the CCV system. Sometimes, a quick wipe-down of suspected areas can help you spot fresh oil more easily.

Method 1: The Talcum Powder Trick

If a visual inspection from above doesn't yield results, you might need to get underneath your truck. This method is particularly useful for identifying external leaks. The principle is simple: the powder highlights the path of the escaping oil.

1. Preparation: Ensure the engine is clean and dry.
2. Application: Generously apply talcum powder or baby powder to the suspected areas of the engine, especially around the oil pan, engine block, and any other components you suspect might be leaking.
3. Driving: Drive your truck for a short period, perhaps 15-30 minutes. The movement and heat will encourage any existing leaks to release oil.
4. Inspection: Return the truck to a level surface and carefully inspect the areas where you applied the powder. The oil will create a distinct trail through the powder, clearly indicating the origin of the leak. For very slow leaks, you may need to drive for a longer duration.

Method 2: UV Dye and UV Flashlight

For more elusive or internal leaks, a UV dye kit is an invaluable diagnostic tool. This method uses a fluorescent dye that, when mixed with the oil and exposed to UV light, makes even the smallest leaks glow brightly.

1. Add Dye: Purchase an automotive-grade UV dye specifically designed for engine oil. Following the product's instructions, add the recommended amount to your engine, typically through the oil filter cap.
2. Circulate: Drive the vehicle for at least 15-20 minutes. This allows the dye to thoroughly mix with the engine oil and circulate to all potential leak points.
3. Illuminate: Park the truck, ideally in a dimly lit area or at dusk. Using a UV flashlight (also known as a blacklight), meticulously inspect all engine components, paying close attention to areas where you suspect a leak.
4. Identify: Leaking oil will fluoresce under the UV light, appearing as a bright yellowish-green tint, making the source of the leak easily identifiable.

Understanding the Costs of Oil Leak Diagnosis and Repair

The cost associated with addressing an oil leak can vary significantly depending on the complexity of the issue and whether you opt for professional repair or a DIY approach.

Diagnostic Costs

If you take your 6.7L Powerstroke to a professional mechanic for diagnosis, you can expect to pay anywhere from £80 to £120. This fee typically covers the mechanic's labour time in identifying the source of the leak. However, by employing the DIY diagnostic methods outlined above, you can effectively save on these initial diagnostic costs.

Repair Costs

The expense of repairing an oil leak is highly dependent on the component that has failed and the severity of the leak. Minor issues, such as a loose drain plug or a faulty oil filler cap seal, might only cost around £200 to fix, including parts and labour. However, more complex repairs, like replacing a rear main seal or a cracked oil cooler line, can be considerably more expensive, potentially reaching up to £1500 or more. It is always advisable to address leaks promptly to prevent them from escalating into more costly problems.

How to Stop and Prevent Engine Oil Leaks

Once you've identified and repaired the source of the leak, you might consider using oil additives as a preventative measure or to address very minor, slow leaks. These additives are designed to condition and swell rubber seals and O-rings, which can become hardened and brittle over time, leading to leaks.

Oil Additives: A Potential Solution

Products like Lucas Oil 10278 or ATP AT-205 Re-Seal Stops Leaks are formulated to rejuvenate old seals. By improving the flexibility of these rubber components, they can effectively halt minor leaks. However, it's important to note that these additives are most effective on minor leaks and will not resolve issues caused by significantly damaged or worn-out parts.

Preventative Maintenance is Key

The most effective strategy for preventing oil leaks is diligent preventative maintenance. This includes:

• Regular Oil Changes: Adhering to the recommended oil change intervals with the correct type and grade of oil is crucial.
• Filter Replacement: Always replace the oil filter with each oil change.
• CCV Filter Maintenance: Regularly inspect and replace the CCV filter as per the manufacturer's guidelines.
• Visual Checks: Periodically perform visual inspections of your engine bay for any signs of oil residue or leaks.
• Torque Specifications: Ensure that components like the oil drain plug are tightened to the correct torque specifications.

Can You Drive with an Oil Leak?

While it might be tempting to drive with a minor oil leak, it is generally not recommended. The primary concern is the increased risk of a fire hazard, as leaking oil can come into contact with hot engine components. Furthermore, continuing to drive with an unresolved oil leak can lead to a significant reduction in the engine oil level, causing increased friction, premature wear on critical engine parts, and potentially catastrophic engine failure. Always address oil leaks as soon as they are detected.

Frequently Asked Questions (FAQs)

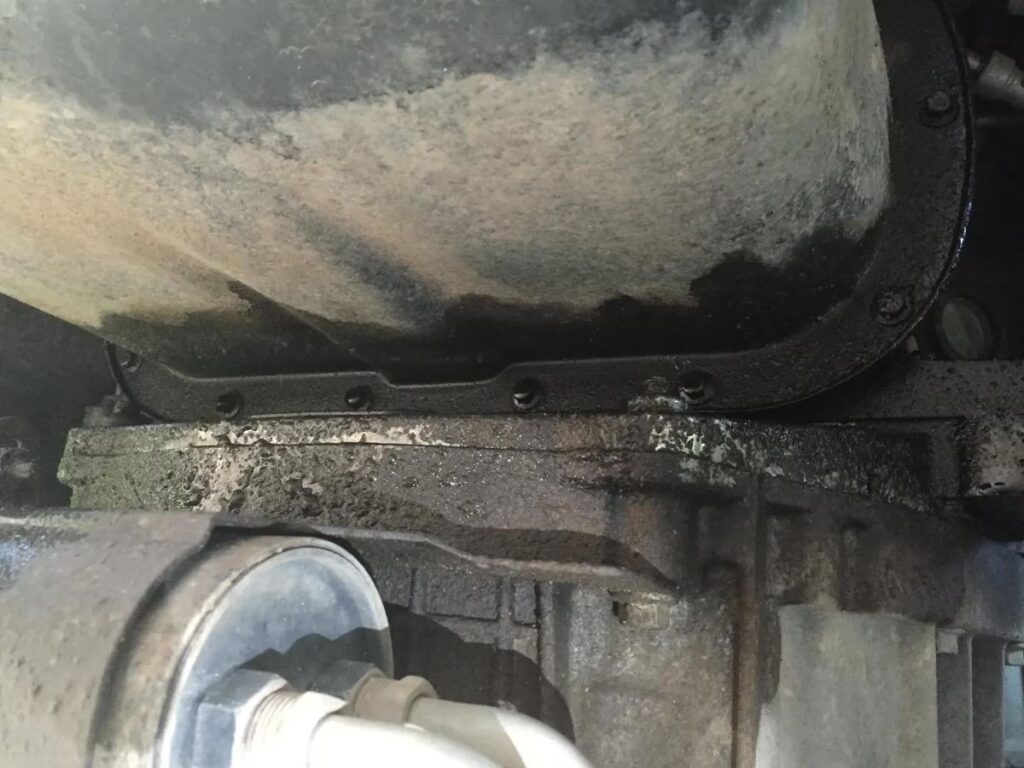

Q1: Is it normal for oil to leak after an oil change?

It can happen, especially with older vehicles. The detergents in new oil can sometimes clean away sludge or buildup that was previously sealing a minor leak. Once this buildup is removed, the fresh oil can escape through the now-exposed pathway. If you notice a leak immediately after an oil change, it doesn't necessarily mean the mechanic made a mistake; it might simply be revealing a pre-existing, minor issue.

Q2: My 6.4L Powerstroke is leaking oil from the top rear of the engine. What could it be?

For a 6.4L Powerstroke leaking from the top rear of the engine, particularly down the bell housing, common culprits include a leaking high-pressure oil pump (HPOP), or potentially a faulty rear engine seal (like the rear main seal). Issues with the valve cover gaskets or even the turbocharger oil feed lines can sometimes manifest in this area. A thorough inspection, potentially involving UV dye, would be necessary to pinpoint the exact source.

Q3: How often should I check my oil level?

It's good practice to check your engine oil level at least once a month, and before any long journeys. This habit can help you detect a leak early, before it leads to critically low oil levels.

Conclusion

Oil leaks in your 6.7L Powerstroke can stem from various sources, from simple issues like a loose drain plug to more complex failures in seals or filters. By understanding these common causes and employing effective diagnostic techniques such as visual inspections, the talcum powder method, or UV dye kits, you can confidently identify the source of the leak. Remember, consistent preventative maintenance, including regular oil changes and filter replacements, is your best defence against unexpected oil leaks. Don't delay in addressing any signs of leakage; prompt action can save you significant repair costs and ensure the longevity of your powerful 6.7L Powerstroke engine.
