The Suzuki XP Fi, like many modern motorcycles, utilises a sophisticated fuel injection system to deliver optimal performance, fuel efficiency, and emissions control. This system replaces the older carburettor technology with a more precise and electronically managed approach. Understanding how it operates can help you troubleshoot common issues and maintain your bike in peak condition. If you've encountered the dreaded 'FI' light on your dashboard, this guide will shed some light on what might be happening and how it's resolved.
The Core Components of Fuel Injection
At the heart of the Suzuki XP Fi's fuel system lies the electronic fuel injection (EFI) system. Unlike carburettors, which rely on vacuum pressure to draw fuel into the engine, EFI uses an electric pump to pressurise fuel and inject it directly into the engine cylinders or intake manifold. The key components include:
- Fuel Pump: This electric pump, usually located within the fuel tank, draws fuel from the tank and pressurises it to a specific level required by the system.
- Fuel Injector(s): These are electronically controlled valves that spray a fine mist of fuel into the engine. The amount and timing of the spray are precisely managed by the Engine Control Unit (ECU).
- ECU (Engine Control Unit): Often referred to as the 'brain' of the operation, the ECU receives data from various sensors and uses this information to calculate the exact amount of fuel to inject and when.
- Sensors: A network of sensors monitors critical engine parameters. These can include:
- Throttle Position Sensor (TPS): Tells the ECU how much the throttle is open.
- Manifold Absolute Pressure (MAP) Sensor: Measures the pressure in the intake manifold, indicating engine load.
- Air Temperature Sensor: Measures the temperature of the incoming air.
- Coolant Temperature Sensor: Measures the engine's operating temperature.
- Oxygen Sensor (Lambda Sensor): Measures the amount of oxygen in the exhaust gases, allowing the ECU to fine-tune the air-fuel mixture for optimal combustion and emissions.
- Fuel Pressure Regulator: Maintains a constant fuel pressure in the system, ensuring consistent fuel delivery.
- Fuel Filter: Removes any impurities from the fuel before it reaches the injectors, preventing blockages.
How the Fuel Injection System Works
The process is a continuous cycle of sensing, calculating, and injecting:
- The fuel pump delivers pressurised fuel to the injectors.
- Sensors constantly feed data about engine conditions (e.g., throttle position, engine temperature, air density) to the ECU.
- The ECU processes this data based on pre-programmed maps.
- Based on its calculations, the ECU sends electrical pulses to the fuel injector(s).
- Each pulse opens the injector for a precise duration, spraying a metered amount of fuel into the intake port or cylinder.
- This atomised fuel mixes with air, and the mixture is ignited by the spark plug, generating power.
- The oxygen sensor in the exhaust provides feedback to the ECU, allowing for real-time adjustments to the air-fuel ratio to maintain optimal combustion and efficiency. This closed-loop system is crucial for meeting modern emissions standards and maximising performance.

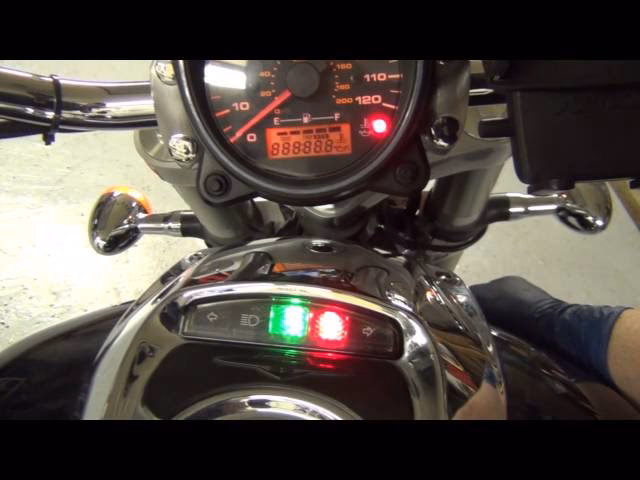

Understanding the 'FI' Light
The 'FI' light on your Suzuki XP Fi's dashboard is an indicator that the Engine Control Unit (ECU) has detected a fault within the fuel injection system or a related engine management component. It's essentially the motorcycle's way of telling you that something isn't quite right and may require attention. Common reasons for the FI light to illuminate include:
- Clogged Fuel Injector: As experienced by the user above, a build-up of deposits can restrict fuel flow, leading to poor performance, rough idling, and the FI light.
- Fuel Pump Issues: A failing fuel pump may not provide adequate pressure, impacting fuel delivery.
- Sensor Malfunctions: If a sensor like the TPS, MAP, or O2 sensor fails or provides incorrect readings, the ECU cannot accurately manage the fuel mixture.
- Wiring Problems: Damaged or corroded wiring to any of the EFI components can interrupt communication and cause fault codes.
- Air Leaks: Leaks in the intake system can disrupt the air-fuel mixture.
- ECU Faults: While less common, the ECU itself can fail.
Troubleshooting and Solutions
When the FI light comes on, it's advisable to get it checked by a qualified mechanic. However, some simple troubleshooting steps can sometimes resolve minor issues:
The Clogged Injector Scenario
The experience shared highlights a common problem: a clogged fuel injector. Here's why that happens and how it can be fixed:
Over time, deposits from fuel additives, contaminants, or even the fuel itself can accumulate on the injector nozzle. This buildup restricts the spray pattern and the volume of fuel delivered. Symptoms can range from subtle performance losses to noticeable issues like rough idling, hesitation, and the dreaded FI light.
Fuel injector cleaner is designed to dissolve these deposits. When added to the fuel tank, it circulates through the fuel system and can help to clean the injectors. The key, as the user discovered, is to allow the engine to run long enough for the cleaner to pass through the injectors effectively. Sometimes, a short ride or a few minutes of idling is sufficient for the cleaner to work its magic. If the blockage is severe, multiple treatments or professional cleaning might be necessary.
When to Seek Professional Help
If adding fuel injector cleaner doesn't resolve the issue, or if the FI light returns, it's time to consult a dealer or a mechanic experienced with Suzuki motorcycles. They have specialized diagnostic tools that can read the error codes stored by the ECU. These codes pinpoint the specific problem, whether it's a faulty sensor, a fuel delivery issue, or something else entirely.
Diagnostic tools can also monitor live data from the sensors, allowing technicians to see exactly what the ECU is receiving and how it's reacting. This is crucial for identifying intermittent faults or issues that aren't immediately obvious.
Preventative Maintenance for Your EFI System
To minimise the risk of encountering FI light issues, regular maintenance is key:
- Use Quality Fuel: Always use fuel from reputable stations.
- Regular Servicing: Follow your Suzuki owner's manual for recommended service intervals. This typically includes checking and cleaning the fuel system components.
- Fuel Filter Replacement: Ensure the fuel filter is replaced as per the manufacturer's recommendations. A clogged filter can strain the fuel pump and lead to insufficient fuel delivery.
- Occasional Injector Cleaner: Periodically using a quality fuel injector cleaner can help prevent deposit buildup.
Comparison: EFI vs. Carburettors
While your XP Fi uses EFI, it's useful to understand the differences compared to older carburetted systems:
| Feature | Fuel Injection (EFI) | Carburettor |
|---|---|---|
| Fuel Delivery | Electronically controlled spray by injectors | Vacuum-driven fuel flow |
| Precision | High - precise metering of fuel | Lower - less precise, affected by altitude/temperature |
| Fuel Efficiency | Generally better | Generally lower |
| Emissions | Lower and easier to control | Higher and harder to control |
| Performance | Smoother power delivery, better throttle response | Can be less refined, especially with changing conditions |
| Cold Starting | Excellent, automatically managed | Can be more difficult, requires manual choke |
| Maintenance | Less frequent adjustments, but requires diagnostic tools for faults | Requires periodic cleaning and adjustment |
Frequently Asked Questions
What does the FI light mean on my Suzuki XP Fi?
The FI light indicates that the Engine Control Unit (ECU) has detected a fault within the fuel injection system or a related engine management component. It signals that the bike may not be running optimally and requires attention.
Can I ride my bike with the FI light on?
While you may be able to ride your bike, it's not recommended for extended periods. The FI light often means the engine is not running efficiently, and you could potentially cause further damage. It's best to have it checked as soon as possible.
How do I reset the FI light on my Suzuki XP Fi?
In some cases, a temporary fault may cause the light to come on, and it might reset itself after a few ignition cycles if the problem is no longer present. However, if the fault persists, the light will remain on. A mechanic with a diagnostic tool can clear fault codes after the underlying issue has been resolved.
Is fuel injector cleaner safe for my Suzuki XP Fi?
Reputable fuel injector cleaners are generally safe for use in fuel-injected systems like the one on your Suzuki XP Fi. Always follow the instructions on the product packaging. Using a cleaner too frequently or an incorrect type could potentially cause issues, so sticking to recommended usage is advised.
My bike was running fine, then the FI light came on. What could have happened?
This can happen for various reasons. A sudden sensor failure, a minor blockage that worsened, or even a temporary electrical glitch could trigger the light. The scenario described by the user, where a clogged injector was suspected and resolved with cleaner, is a common example of how a seemingly sudden issue can have a solvable cause.
In conclusion, the fuel injection system on your Suzuki XP Fi is a marvel of modern engineering that provides excellent performance and efficiency. While the FI light can be concerning, understanding its potential causes and how to address them, whether through simple maintenance or professional diagnostics, will help you keep your ride running smoothly.
