Fiat 500 Gearbox Oil & Dualogic Fluid Guide

Maintaining your Fiat 500's transmission is absolutely crucial for its longevity and performance. Whether you own a model with a conventional automatic gearbox or the innovative Dualogic automated manual transmission, understanding the correct procedures for fluid changes and the specific types of lubricants required can save you a significant amount of money and prevent frustrating breakdowns. This guide will walk you through the intricacies of changing automatic gearbox oil on a Fiat 500 (2007-2021 models) and delve into the often-misunderstood world of Dualogic/Selespeed hydraulic system fluids, offering clarity and practical advice to keep your beloved cinquecento in tip-top condition.

Ignoring transmission fluid maintenance is a common oversight that can lead to premature wear, rough shifting, and ultimately, expensive repairs or even a complete gearbox replacement. Just like engine oil, gearbox oil degrades over time and loses its lubricating properties, while hydraulic fluids for automated systems need to be precisely specified to ensure proper operation of delicate components. Let's explore how to tackle these vital tasks and ensure your Fiat 500 continues to deliver that signature Italian driving experience.

Changing Your Fiat 500 Automatic Gearbox Oil (2007-2021)

For Fiat 500 models manufactured between 2007 and 2021, particularly those equipped with an automatic transmission, the process of changing the gearbox oil requires a methodical approach. It's not as straightforward as an engine oil change, primarily due to the unique location of the oil tank and the method of extraction. Always ensure you have the correct gearbox oil specifications for your specific Fiat 500 model before you begin.

Why Change Automatic Gearbox Oil?

Automatic gearbox oil, often referred to as Automatic Transmission Fluid (ATF), serves multiple critical functions: it lubricates the gears and bearings, acts as a hydraulic fluid for the torque converter and valve body, cools the transmission, and helps prevent rust and corrosion. Over time, heat, friction, and contaminants break down the fluid, reducing its effectiveness. Regular changes ensure smooth shifts, prevent overheating, and extend the life of your transmission. While some manufacturers claim 'sealed for life' transmissions, this typically refers to the expected life of the *transmission itself*, not the fluid. For optimal longevity, periodic fluid changes are highly recommended.

Tools and Materials You'll Need:

• Vehicle lift or robust jack stands (a professional bridge is ideal)
• Drain pan or large container (at least 5 litres capacity)
• Socket set/spanners for heat shield and pipe fittings
• Funnel with a long, flexible tube for refilling
• New automatic gearbox oil (ensure correct specifications for your Fiat 500)
• Clean rags or shop towels
• Gloves and safety glasses

Step-by-Step Procedure:

1. Prepare the Vehicle: Safely lift your Fiat 500 onto a vehicle lift or secure it on sturdy jack stands, ensuring ample working space underneath. It's often easier to drain the oil when it's warm (not hot), as it flows more easily. Drive the car for a short period to warm the fluid, then let it cool slightly before proceeding.
2. Locate the Gearbox Oil Tank: The automatic transmission oil tank on the Fiat 500 (312 models) is located underneath an aluminium heat shield. From above the engine bay, you may be able to see and unscrew the oil filling cap. However, it's important to note that you typically cannot suck up the used oil from this top access point. This is due to a curve on the tank's pipe immediately below the cap, which prevents the insertion of a suitably sized rubber tube.
3. Access the Drain Point: Move to the underside of the vehicle. You will need to unscrew the fixing screws of the aluminium casing (the heat shield). Carefully move this casing aside to gain full access to the transmission components.
4. Identify the Oil Connection Tube: Once the heat shield is moved, you should be able to locate a metal tube that serves as the oil connection point for draining.
5. Prepare for Drainage: Position your large drain pan directly underneath the metal tube fitting. Ensure it's stable and large enough to collect all the old oil.
6. Loosen and Drain the Oil: Carefully loosen the pipe fitting on the metal tube. As you do this, old gearbox oil will begin to flow out. Allow ample time for almost all the oil to drain into the collection tray. Visually monitor the oil level in the tank (if possible to see) or simply wait until the flow significantly diminishes to a trickle.
7. Re-secure the Connection: Once the oil has drained thoroughly, screw the tube fitting back on securely. Ensure it's tightened to the manufacturer's specified torque to prevent leaks.
8. Reassemble the Heat Shield: Carefully re-position and re-secure the aluminium casing (heat shield) by screwing its fixing screws back into place.
9. Refill with New Oil: Now, from the top of the engine bay, locate the oil filling cap you identified earlier. Using a clean funnel with a long, flexible tube, carefully top up the new gearbox oil. It is absolutely crucial to use gearbox oil with the correct specifications for your Fiat 500's automatic transmission. Refer to your vehicle's owner's manual or a reputable parts catalogue for the precise fluid type (e.g., specific ATF type or viscosity). Overfilling or underfilling can both cause severe damage.
10. Check Level and Test: Once refilled, start the engine and cycle through the gears (P, R, N, D) while the vehicle is stationary (with the brake pedal pressed). Re-check the fluid level according to your owner's manual instructions (some ATFs are checked hot, some cold, some with the engine running). Top up if necessary. Then, take the car for a short test drive to ensure smooth operation, checking for any leaks once complete.

This procedure, while detailed, requires a degree of mechanical aptitude. If you are unsure at any point, it is always best to consult a qualified mechanic.

Understanding Dualogic and Selespeed System Fluids

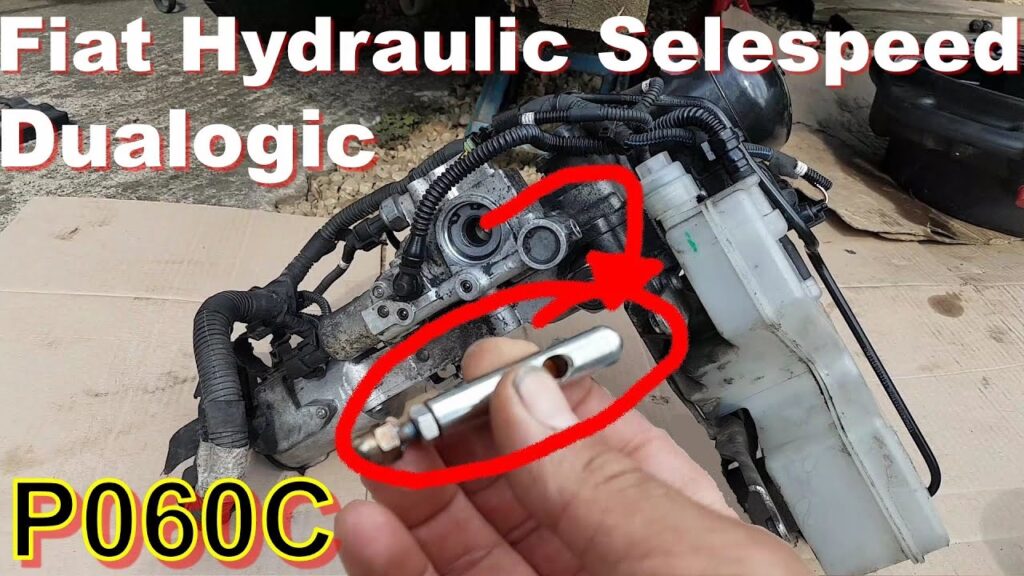

The Fiat 500, particularly certain engine variants like the 1.4 T-JET 120 HP or 1.6 Multijet 120 HP, can be equipped with the Dualogic transmission. This is an automated manual gearbox, meaning it's fundamentally a manual gearbox with an electro-hydraulic actuator system that handles clutch operation and gear changes automatically. This system is distinct from a conventional automatic transmission and relies on a specific hydraulic fluid to operate its actuators.

Dualogic/Selespeed Hydraulic Fluid vs. Gearbox Oil

It's vital to differentiate between the gearbox oil that lubricates the internal gears of the manual transmission part of the Dualogic system, and the hydraulic fluid that operates the electro-hydraulic actuator. They are not the same and are not interchangeable.

• Gearbox Oil (for Dualogic): This is the lubricant for the actual gears, bearings, and shafts within the mechanical transmission. For Dualogic systems, this is typically a manual transmission fluid (MTF) specified by Fiat, similar to what a conventional manual gearbox would use. This fluid's function is purely lubrication.
• Hydraulic Fluid (for Dualogic/Selespeed Actuator): This is the fluid that powers the hydraulic pump and actuators responsible for engaging/disengaging the clutch and selecting gears. This system is often referred to as 'Selespeed' (a term more commonly associated with Alfa Romeo, but the technology is similar). The original, highly recommended fluid for these systems is Tutela CS Speed.

The Tutela CS Speed Conundrum

There's significant discussion and confusion surrounding the Tutela CS Speed fluid. Many owners report difficulties in sourcing it, with some main dealers even suggesting alternatives like ATF 300. However, using an incorrect fluid for the Dualogic/Selespeed actuator system can lead to severe and costly problems.

The hydraulic system of the Dualogic is highly sensitive. The wrong fluid can cause:

• Premature wear or failure of the hydraulic pump.
• Malfunction or damage to the electro-hydraulic actuators.
• Erratic gear changes or complete failure to engage gears.
• Increased wear on the clutch due to incorrect engagement/disengagement.

The anecdotal evidence from owners, like the one mentioned from Egypt, highlights the risk: using an 'equivalent' like ATF 300 might lead to a shorter service interval (e.g., every 10,000 km instead of a much longer, or even 'lifetime', interval with the correct fluid) and ultimately, damage to expensive components like the gearbox pump and actuators. Fiat's handbooks for Dualogic systems typically do not recommend changing the Tutela CS Speed fluid, implying it's a 'fill for life' fluid, or at least one that only requires topping up if levels drop due to minor leaks.

Why is Tutela CS Speed so important?

Tutela CS Speed is specifically formulated for the precise hydraulic requirements of these automated manual transmission systems. It has the correct viscosity, lubricity, and chemical properties to ensure the delicate seals, valves, and pump components operate without wear or degradation. Substituting it with a generic ATF, even if seemingly similar, can have detrimental long-term effects.

Table: Gearbox Oil vs. Dualogic/Selespeed Actuator Fluid

Frequently Asked Questions (FAQs)

How often should I change my Fiat 500's automatic gearbox oil?

While some manufacturers claim 'sealed for life', a general recommendation for automatic transmission fluid changes is every 60,000 to 100,000 kilometres, or every 4-6 years, whichever comes first. However, always refer to your specific Fiat 500 owner's manual for the most accurate and manufacturer-approved service intervals, especially if your driving conditions are severe (e.g., frequent towing, stop-and-go traffic).

Can I use any automatic transmission fluid (ATF) for my Fiat 500?

Absolutely not. Automatic transmissions are highly sensitive to the type of fluid used. Using the wrong ATF can lead to severe transmission damage. Always check your owner's manual for the precise specifications (e.g., specific Fiat part number, viscosity grade, or industry standard like Dexron VI). There are many different types of ATF, and they are not interchangeable.

What happens if I use the wrong hydraulic fluid in my Dualogic or Selespeed system?

Using the wrong fluid, such as a generic ATF 300 instead of Tutela CS Speed, can lead to serious issues. The incorrect fluid might have different viscosity, lubrication properties, or chemical compositions that can damage the delicate seals, O-rings, pump, and solenoids within the electro-hydraulic actuator unit. This can result in erratic gear changes, failure to select gears, premature wear of expensive components, and ultimately, a complete system failure requiring costly repairs or replacement of the Dualogic unit.

Where can I find the correct oil specifications for my Fiat 500?

The primary source for correct fluid specifications is your Fiat 500's owner's manual. If you don't have one, you can often find digital versions online. Alternatively, reputable Fiat dealerships or specialist garages will have access to the correct service information. When purchasing oil, always double-check that the product explicitly states it meets or exceeds the required specifications for your vehicle's make, model, and year.

Is changing gearbox oil a DIY-friendly task?

For the automatic gearbox oil change on a Fiat 500, as outlined in this guide, it can be a DIY task for someone with reasonable mechanical experience and the correct tools, especially a vehicle lift. However, the requirement to access the drain point from underneath, the specific method of draining, and the absolute necessity of using the correct fluid type make it more complex than a simple engine oil change. If you are not confident, it is always recommended to have this service performed by a qualified mechanic to avoid potential damage or leaks.

Do I need to change the Dualogic/Selespeed hydraulic fluid routinely?

According to Fiat's typical recommendations, the Tutela CS Speed fluid for the Dualogic/Selespeed actuator system is often considered a 'fill for life' fluid, or one that only requires topping up if the level drops. Routine changes are generally not specified in the owner's handbook. However, if you notice issues with gear changes, or if the fluid appears contaminated, a specialist might recommend a fluid flush and refill. Always use the specified Tutela CS Speed fluid for this system.

Conclusion

Proper maintenance of your Fiat 500's transmission fluids is paramount for its long-term health and performance. Whether you're dealing with a conventional automatic gearbox or the more intricate Dualogic system, understanding the specific fluid requirements and correct procedures is key. Always use the exact fluid specified by Fiat, be it for the automatic gearbox oil or the crucial Tutela CS Speed for the Dualogic actuator. While some tasks can be undertaken by a competent DIY enthusiast, the complexity and potential for costly errors mean that when in doubt, seeking professional assistance is always the wisest course of action. Invest in the right fluids and timely maintenance, and your Fiat 500 will continue to provide reliable and enjoyable motoring for years to come.
