Dual-Plane Intake Manifolds Explained

The quest for more power and efficiency from your internal combustion engine often leads to exploring various aftermarket components. Among the most impactful upgrades you can make to the induction system is the intake manifold. While single-plane manifolds are often lauded for their high-RPM prowess, the dual-plane intake manifold offers a compelling alternative, particularly for drivers seeking a broader torque curve and improved low-to-mid-range grunt. But what exactly is a dual-plane intake manifold, and how does it differ from its single-plane counterpart? Let's dive deep into the world of engine breathing.

Understanding the Role of the Intake Manifold

Before we dissect the dual-plane design, it's crucial to understand the fundamental purpose of any intake manifold. Its primary job is to distribute the air-fuel mixture (or just air in the case of direct injection) evenly to each cylinder of the engine. A well-designed intake manifold ensures that every cylinder receives the optimal amount of air for combustion, contributing to smooth running, consistent power delivery, and overall efficiency. The manifold's internal runners, plenum volume, and port design all play a significant role in how the engine breathes.

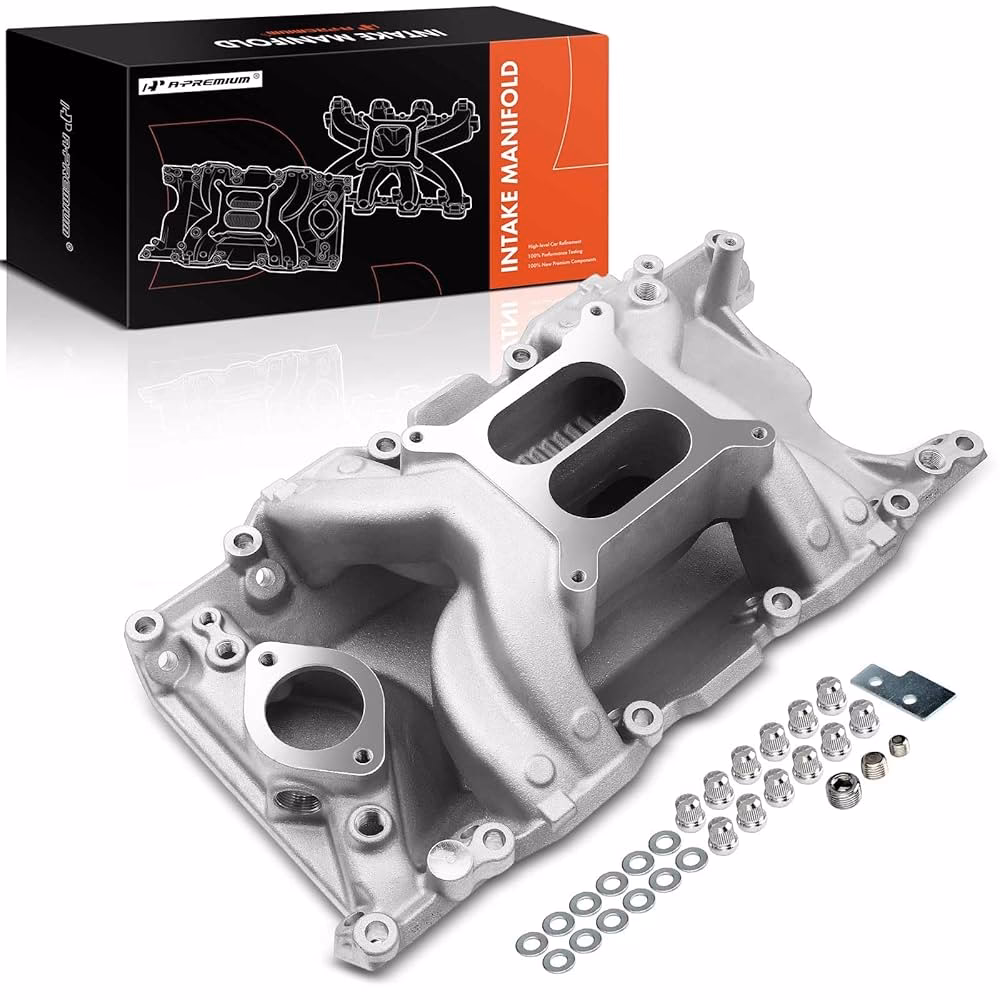

The Anatomy of a Dual-Plane Intake Manifold

The defining characteristic of a dual-plane intake manifold is its internal layout. Instead of a single, open plenum feeding all cylinders, a dual-plane design splits the intake runners into two distinct levels or 'planes'. Typically, for a V8 engine, four cylinders are fed from the upper plane, and the other four are fed from the lower plane. This separation has several key implications for engine performance:

• Improved Low-End Torque: The divided plenum creates a more restrictive environment at lower RPMs. This increased restriction actually helps to create a stronger vacuum signal and a more focused air-fuel mixture velocity. Think of it like sipping through a narrow straw versus a wide one; you get a more concentrated flow. This enhanced velocity promotes better cylinder filling at lower engine speeds, resulting in a noticeable boost in torque and throttle response from idle upwards.
• Better Cylinder Distribution: By separating the cylinders into two groups, the dual-plane design minimises the interference between incoming air pulses from adjacent cylinders. In a single-plane manifold, the air pulses from cylinders firing in close succession can collide, creating turbulence and negatively impacting the precise delivery of the air-fuel mixture. The dual-plane's separation mitigates this, leading to a more consistent and even distribution of the mixture to all cylinders.
• Optimised for Broader Powerbands: While single-plane manifolds often excel at high-RPM power, dual-plane manifolds tend to offer a more usable and flatter torque curve across a wider range of engine speeds. This makes them an excellent choice for street-driven vehicles, trucks, and muscle cars where everyday drivability and strong pulling power are prioritised over peak horsepower figures achievable only at very high RPMs.
• Plenum Volume Considerations: The overall volume of the plenum (the central chamber where air collects before entering the runners) is also a critical factor. Dual-plane manifolds often have a slightly smaller plenum volume compared to some single-plane designs, which further contributes to their effectiveness at lower and mid-range RPMs.

Dual-Plane vs. Single-Plane: A Comparative Look

The choice between a dual-plane and a single-plane intake manifold often comes down to the intended application and desired performance characteristics. Here's a simplified comparison:

What Type of Intake Does a V8 Magnum Have?

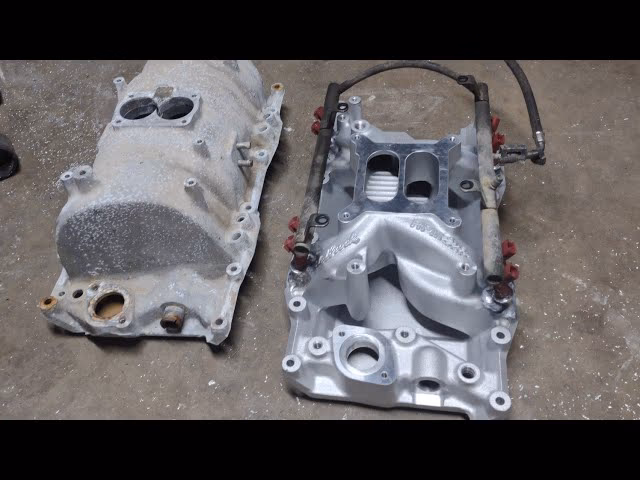

For the popular V8 Magnum engines found in Dodge and Jeep vehicles, such as the 5.2L and 5.9L variants, the factory intake manifold is typically a dual-plane design. This design choice by the original equipment manufacturer (OEM) reflects the emphasis on producing engines with good low-end torque and drivability for everyday use. While these factory manifolds perform adequately for their intended purpose, aftermarket dual-plane manifolds are available that can offer significant improvements in airflow and performance, often featuring optimized runner lengths, larger plenum volumes, and better port matching to the cylinder heads.

Benefits of Upgrading to an Aftermarket Dual-Plane Manifold

While the factory dual-plane manifold serves its purpose, upgrading to a performance-oriented aftermarket version can unlock hidden potential in your V8 Magnum or similar engine. Here are some common benefits:

• Increased Horsepower and Torque: Even a well-designed dual-plane manifold can improve the volumetric efficiency of your engine, leading to tangible gains in both horsepower and torque, particularly in the crucial mid-range.
• Improved Throttle Response: With better airflow characteristics, you'll likely notice a more immediate and satisfying response when you press the accelerator pedal.
• Enhanced Fuel Economy: By promoting more efficient combustion, an improved intake manifold can sometimes lead to better fuel economy, especially during normal driving conditions.
• Customisation for Your Build: Aftermarket manufacturers offer dual-plane manifolds designed for various engine builds, from mild street performance to more aggressive camshafts and cylinder head combinations. This allows you to tailor the induction system to complement your specific modifications.
• Aesthetic Appeal: Many aftermarket intake manifolds are crafted from polished aluminium and feature a sleek design that can significantly enhance the visual appeal of your engine bay.

Considerations When Choosing a Dual-Plane Manifold

When selecting an aftermarket dual-plane intake manifold, it's essential to consider a few factors to ensure compatibility and optimal performance:

• Engine Application: Ensure the manifold is specifically designed for your engine's make, model, and displacement.
• Intended Use: Match the manifold's design to your driving style and performance goals. A manifold designed for street use might differ from one optimised for a more aggressive, track-focused setup.
• Cylinder Head Port Shape: The intake manifold's ports should ideally match the shape and size of your cylinder head intake ports for the best flow. Porting and gasket matching might be necessary for optimal results.
• Carburettor or Fuel Injection Compatibility: Make sure the manifold is designed to accept your chosen carburettor or throttle body.
• Hood Clearance: Some aftermarket intake manifolds can be taller than stock, so it's worth checking hood clearance, especially on vehicles with limited space.

Frequently Asked Questions (FAQ)

Q1: Will a dual-plane intake manifold fit my engine?
It depends on your specific engine. Dual-plane manifolds are most common on V8 engines, especially those from the American Big Three (Ford, GM, Chrysler) and their associated brands like Dodge and Jeep. Always check product specifications for compatibility with your engine.

Q2: Can I use a dual-plane manifold with fuel injection?
Yes, many aftermarket dual-plane intake manifolds are designed to accept modern throttle bodies for fuel-injected engines. However, some are designed specifically for carburettors.

Q3: What kind of power gains can I expect from a dual-plane intake manifold?
Power gains vary significantly based on the specific manifold, the engine it's fitted to, and other modifications. Typically, you might see gains of 10-25 horsepower and a noticeable increase in torque, especially in the low-to-mid-RPM range.

Q4: Is a dual-plane manifold better than a single-plane manifold?
Neither is definitively 'better' than the other; they are designed for different purposes. A dual-plane excels at low-to-mid-range torque and drivability, while a single-plane is generally better for high-RPM horsepower. The best choice depends on your engine's intended use.

Q5: Does a dual-plane intake manifold require other modifications?
While not strictly required, a dual-plane intake manifold often works best when paired with other complementary modifications such as a performance camshaft, improved cylinder heads, and a suitable carburettor or exhaust system. This holistic approach maximises the potential of the entire induction and exhaust system.

Conclusion

The dual-plane intake manifold is a cornerstone of effective engine tuning, offering a proven path to enhanced low-end torque, improved throttle response, and a broader, more usable powerband. For owners of V8 Magnum engines and many other V8 applications, understanding the benefits of this design can lead to a more enjoyable and potent driving experience. By carefully selecting and installing an appropriate dual-plane manifold, you can help your engine breathe easier and perform at its best where it matters most – on the street.
