Embarking on an engine rebuild is often a labour of love, a commitment to restoring power and extending the life of a cherished vehicle. Whether you're breathing new life into a vintage motorcycle or rejuvenating a rugged off-roader, the question inevitably arises: how much will it truly cost? The answer, as many experienced mechanics and enthusiasts will tell you, is rarely straightforward. Engine rebuilds are complex undertakings, fraught with variables and the potential for unforeseen expenses. This article delves into the intricacies of engine rebuild costs, drawing on real-world examples from both a classic Kawasaki H2 motorcycle and a robust Toyota Land Cruiser 2H, to provide a comprehensive understanding of what you might expect to pay and why.
The Kawasaki H2 Rebuild: A Case Study in Scope Creep
When undertaking an engine rebuild, even the most meticulous planning can be derailed by unexpected discoveries. A prime example of this is a recent Kawasaki H2B engine rebuild, where what began as a planned crank and transmission overhaul escalated significantly once the engine was disassembled. The owner, Bob, had already tackled the top end the previous winter, but a mid-Ohio incident involving bad shift forks necessitated a deeper dive. His experience perfectly illustrates how the true cost of a rebuild often only becomes apparent once the engine is fully stripped down.
Upon dismantling the H2 engine, Bob discovered a host of issues beyond the faulty shift forks. Four of the six crank bearings were wasted, and the damaged shift forks had caused a crack in the engine cases – a significant and costly discovery. This highlights a crucial point: you simply don't know what you will find until you open up the engine. These unforeseen problems instantly expanded the project's scope and budget.
A Detailed Breakdown of Costs
Bob's commitment to upgrading everything to 'top notch' quality also contributed to the final figure. Here's a breakdown of his expenses, offering a realistic glimpse into a high-quality, comprehensive H2 engine rebuild:
- Wossner Pistons and Pin Kit: £380 (Opting for premium components)
- Bored and Stage 1 Port by Moo: £760 (Performance enhancement and essential machining)
- Rebuilt Crank (Charlie), new IMS Rods, KOYO Bearings, LAB Seals: £760 (Core of the bottom end rebuild)
- Undercut and Shimmed Trans, Modified Shift Claw (Mark at R&D): £1228 (Specialist transmission work for durability)
- New Trans 5th Gear: £189 (Specific replacement part)
- Redone Shift Fork (Swissclassibikes): £380 (Repairing the initial problem)
- Engine Case (1 spare): £700 (Addressing the crack and having a backup)
- New Trans KOYO and Clutch Bearings, Redline + Clutch Parts: £240 (Comprehensive bearing and clutch replacement)
- Ralf's Clutch Release: £190 (Specific performance part)
- Bead Blasting Cylinders and Cases (Tim Steele): £300 (Cosmetic and cleaning service)
- NORSTEK Seals: £50 (High-quality seal kit)
- Vesrah Gaskets: £40 (Essential sealing components)
- New VM34-168 with UFO from Niche + New Manifolds: £1000 (Carburettor upgrade and associated parts)
- Early 3 Line Oiling System with Brass Check Valves: £250 (Oiling system upgrade)
- Jim's CDI: £260 (Ignition component, if counted in the engine scope)
- Polished Side Covers (Metal Brite in Dayton): £200 (Aesthetic finish)
The grand total for Bob's comprehensive H2 rebuild came to a staggering £6547, not including significant costs for shipping, materials, and his own considerable time investment. This figure underscores that a full, high-quality rebuild, especially for a classic performance machine requiring specialist services and upgraded parts, can quickly escalate into a substantial financial outlay.
The DIY Factor
Despite the high cost of parts and services, Bob notes that with resources like 'Moo and Darth Videos' and the 'MAXRL site', a lot of studying can make it achievable to do much of the work yourself. This self-reliance can save significantly on labour costs, but it demands a considerable investment of time, patience, and a willingness to learn complex mechanical procedures. The decision to undertake a DIY rebuild versus professional assistance largely depends on one's skill level, available time, and the complexity of the specific engine.
The Toyota Land Cruiser 2H Rebuild: The Kit Approach
Moving from a classic two-stroke motorcycle to a robust diesel engine, the approach to a rebuild can differ, particularly with the availability of comprehensive rebuild kits. For the Toyota Land Cruiser HJ60/HJ75 2H engine, custom performance rebuild kits are a popular option, offering a pre-packaged solution designed for enhanced durability and performance.

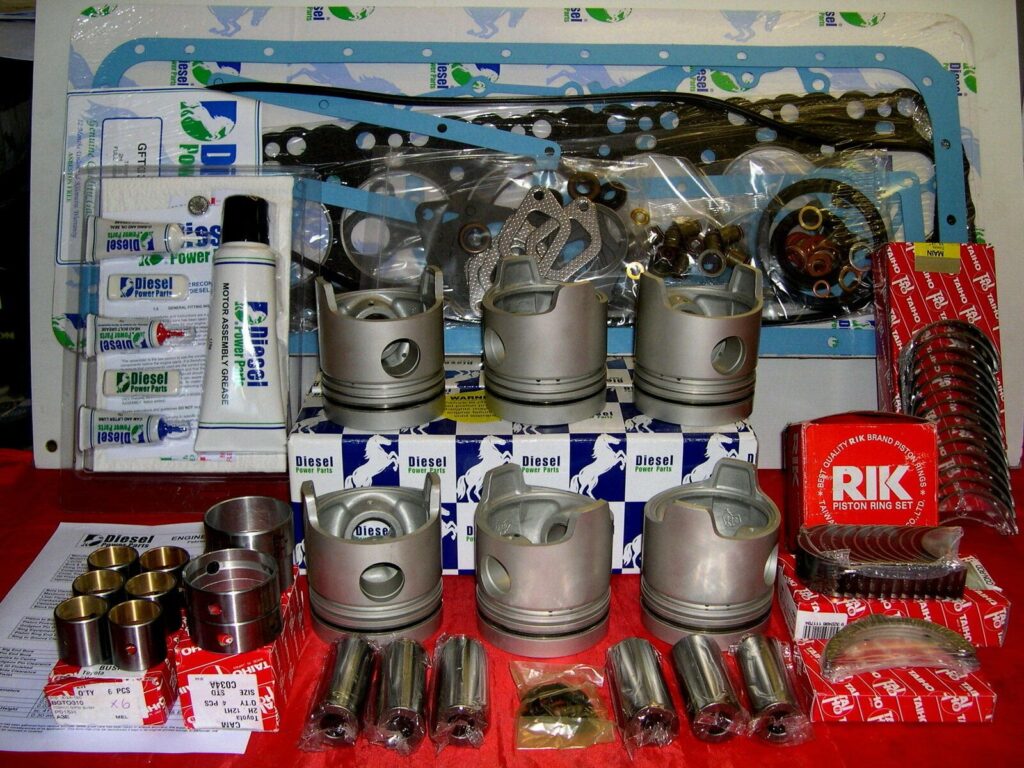

What's in a Custom Performance Rebuild Kit?
These kits, tried and tested by specialists, aim to provide all the core components needed for a thorough engine overhaul. A typical custom performance 2H rebuild kit includes:
- Ceramic Coated Pistons with Teflon Skirts & Rings: Available in standard or oversize, these are designed for reduced friction, improved heat management, and enhanced longevity, especially under increased loads.
- Con Rod Bearings: Essential for connecting rod function.
- Main Bearings: Support the crankshaft.
- Thrust Washers: Control crankshaft end play.
- Gudgeon Pin Bushes/Small End Bearings: For the piston pin.
- Full Gasket Kit: All necessary gaskets for reassembly.
- Front & Rear Oil Seals: To prevent oil leaks.
- New Head Gasket: Crucial for sealing the cylinder head.
- Cam Bearings: For the camshaft.
While comprehensive, it's worth noting that specialist items like pistons might have an estimated time of arrival (ETA) of 2-3 weeks due to custom coating processes. Additionally, performance camshafts are often sold separately, allowing owners to further tailor their engine's characteristics.
The Critical Importance of Pre-Disassembly Inspection
Even with the convenience of a kit, the advice from experienced 2H rebuilders is consistent: take the engine apart first. One rebuilder shared their experience with an '87 2H, noting glazed cylinders, cracked lifters, and indented rockers upon disassembly. These are issues that a standard kit might not fully address, or which might require additional machining (like cylinder boring/honing). Identifying such problems upfront allows you to create an accurate parts list and avoid purchasing unnecessary components or discovering critical omissions mid-rebuild.
Turbocharging the 2H: Considerations for Performance
For those considering adding a turbocharger to their 2H engine, further considerations come into play. While the 12HT (a turbocharged, direct-injection variant of the 2H) is often lauded, the venerable 2H can indeed handle a turbo. However, a standard 2H piston might be at risk of ring land damage over time with increased boost. For such applications, Alfin insert pistons are recommended, as they are designed to withstand the higher temperatures and pressures associated with forced induction. Running modest boost levels (e.g., 7 psi) can mitigate this risk, but a meticulous approach to component selection is paramount for long-term reliability.
Key Factors Driving Engine Rebuild Costs
As the H2 and 2H examples illustrate, several factors significantly influence the final cost of an engine rebuild. Understanding these can help you budget more effectively and make informed decisions.
1. Parts Quality and Upgrades
- OEM vs. Aftermarket: Original Equipment Manufacturer (OEM) parts generally offer guaranteed fit and quality but come at a premium. Quality aftermarket parts can provide a cost-effective alternative, but research is crucial to avoid inferior components.
- Performance Upgrades: As seen with the H2's Wossner pistons or the 2H's ceramic-coated pistons and performance camshaft, opting for upgraded parts for increased power, durability, or efficiency will significantly raise costs.
2. Labour and Expertise
- DIY vs. Professional: Doing the work yourself eliminates labour costs but requires significant time, tools, and mechanical aptitude. Professional shops charge for their expertise and time, which can quickly become the largest portion of the bill, especially for complex engines or intricate machining.
- Specialist Services: Some tasks, like crankshaft rebuilding, cylinder boring, head porting, or transmission undercutting, require highly specialised equipment and knowledge, necessitating outsourcing to dedicated machine shops or specialists. These services are often expensive but critical for a successful rebuild.
3. Unexpected Discoveries
- Hidden Damage: This is arguably the biggest variable. What appears to be a simple refresh can quickly uncover worn bearings, cracked cases, bent valves, or damaged journals, each adding unexpected costs for repair or replacement. This is where the concept of scope creep truly comes into play.
4. Machining Services
- Cylinder Boring/Honing: If cylinders are worn beyond specification or scored, they'll need to be bored to an oversize and honed, requiring new pistons.
- Crankshaft Grinding/Polishing: Worn crankshaft journals need regrinding and polishing, necessitating undersize bearings.
- Head Resurfacing/Valve Work: Cylinder heads often need resurfacing to ensure a proper seal, and valve guides, seats, or valves themselves may need replacement or reconditioning.
- Balancing: For high-performance or smooth-running engines, balancing the rotating assembly (crankshaft, connecting rods, pistons) adds cost but enhances performance and durability.
5. Logistics and Incidentals
- Shipping: If you're sourcing parts from various suppliers or sending components to specialist shops, shipping costs can accumulate.
- Consumables: Don't forget the cost of cleaning supplies, assembly lube, thread locker, new fluids (oil, coolant), and shop rags.
6. Vehicle Specifics
- Rarity and Availability: Parts for rare or vintage vehicles (like the Kawasaki H2) can be harder to find and significantly more expensive than for common models.
- Engine Complexity: Multi-cylinder, overhead cam, or turbocharged engines generally cost more to rebuild due to more components and intricate assembly.
Understanding the Investment: A Cost Component Breakdown
To provide a clearer picture, here's a general breakdown of where your rebuild budget typically goes:
| Cost Component | Description | Typical % of Total Cost (Varies Widely) |
|---|---|---|
| Parts & Kits | Pistons, rings, bearings, gaskets, seals, valves, oil pump, timing components. Quality and performance upgrades heavily influence this. | 30% - 60% |
| Machining Services | Cylinder boring/honing, crankshaft grinding, cylinder head work, balancing, block decking. Essential for proper fit and longevity. | 20% - 40% |
| Labour (Professional) | Time spent disassembling, cleaning, inspecting, assembling, and testing the engine. (0% for full DIY). | 20% - 50% |
| Unexpected Repairs | Costs for rectifying unforeseen damage like cracked cases, severely worn components, or damaged threads. | 5% - 20% (or more!) |
| Incidentals & Shipping | Consumables (cleaners, lubricants), specialised tools, shipping parts to specialists. | 5% - 10% |
Frequently Asked Questions (FAQs)
Is an engine rebuild always the best option?
Not always. Sometimes, especially for common vehicles, a good used engine or a factory remanufactured engine might be more cost-effective and faster. A rebuild is often preferred for classic, rare, or high-performance vehicles where originality, specific upgrades, or a known history of the engine are important.
How long does an engine rebuild typically take?
This varies massively. A professional shop might take 2-6 weeks, depending on their workload and parts availability. A DIY rebuild could take months or even over a year, especially if you're learning as you go and waiting for specialist services or custom parts.
Can I save money by doing it myself?
Yes, you can save substantially on labour costs. However, you'll need to invest in tools, manuals, and potentially make costly mistakes if you lack experience. The time commitment is also significant. For complex engines, professional assembly often ensures better long-term reliability.
What are "Alfin insert pistons"?
Alfin insert pistons are cast pistons that have a cast-in steel or iron ring carrier (the 'Alfin' insert) in the top ring groove area. This insert provides a much harder and more wear-resistant surface for the piston rings, preventing ring land wear, especially in turbocharged or high-stress applications. They are superior to standard cast pistons for durability.
When should I consider a performance rebuild?
A performance rebuild is ideal when you want to extract more power, improve reliability under harder use, or enhance the driving experience beyond stock specifications. This often involves upgraded pistons, camshafts, porting, balancing, and stronger internal components. It's a significant investment, best suited for enthusiasts or specific applications like off-roading or racing.
Conclusion
The cost of an engine rebuild is a multifaceted equation, influenced by the vehicle type, the extent of damage, the quality of parts chosen, and whether the work is performed professionally or as a DIY project. As Bob's H2 experience vividly demonstrates, the initial estimate can often be just the tip of the iceberg, with unforeseen issues significantly inflating the final bill. For vehicles like the Toyota 2H, while kits offer a structured approach, the critical first step remains thorough disassembly and inspection to accurately assess what's truly needed.
Ultimately, a successful and financially manageable engine rebuild hinges on careful planning, realistic budgeting, and a willingness to confront the unknown. Always strip down your engine and meticulously inspect every component before committing to a parts list. This proactive approach, coupled with an understanding of the various cost drivers, will help ensure your engine rebuild is a rewarding investment rather than a financial shock.
