DPF Removal & Remapping: What's the Score?

The Diesel Particulate Filter (DPF) has become a ubiquitous component in modern diesel vehicles, designed with the admirable intention of reducing harmful soot emissions. However, as with many automotive technologies, there's a growing interest, and indeed a practice, of removing or 'gutting' these filters, often in conjunction with engine remapping. This article delves into precisely what happens when you remove a DPF from a car and subsequently remap the engine control unit (ECU). We'll explore the technical ramifications, the legal implications, and the potential long-term consequences for your vehicle and the environment.

Understanding the DPF System

Before we dissect the implications of its removal, it's crucial to grasp the fundamental role of a DPF. The DPF is essentially a sophisticated filter that captures soot particles expelled from the diesel engine's exhaust. Over time, this trapped soot needs to be burned off in a process called 'regeneration'. There are two main types of regeneration: passive and active.

• Passive Regeneration: Occurs during normal driving when exhaust temperatures are high enough to burn off soot naturally.
• Active Regeneration: The ECU injects extra fuel into the exhaust stream to raise the temperature and burn off accumulated soot when passive regeneration is insufficient.

A properly functioning DPF system, coupled with regular driving conditions that allow for regeneration, can significantly improve air quality by trapping up to 99% of particulate matter. However, problems can arise, particularly with vehicles used for frequent short journeys, where the exhaust doesn't reach temperatures high enough for effective regeneration. This can lead to a clogged DPF, resulting in reduced engine performance, increased fuel consumption, and potentially costly repairs.

Why Remap After DPF Removal?

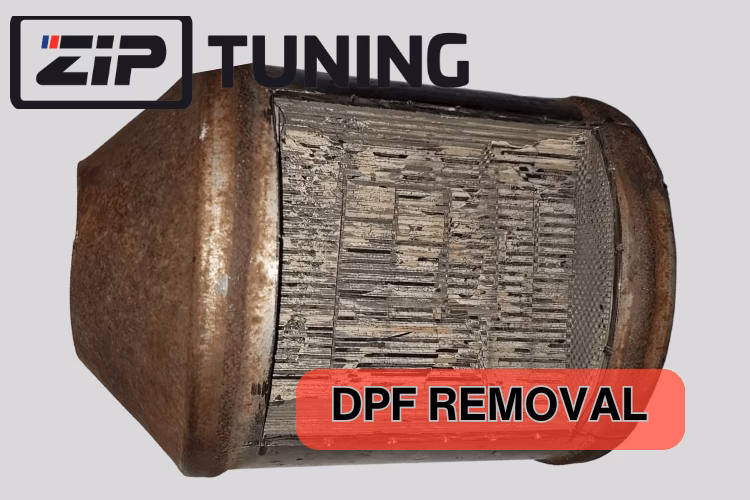

When a DPF is physically removed, the engine's ECU is still programmed to expect it. The sensors in the exhaust system will detect the absence of the filter and the altered exhaust flow, triggering warning lights and potentially putting the engine into a 'limp mode' with severely reduced power. To circumvent these issues and to potentially gain performance benefits, many opt for an ECU remap. This involves reprogramming the engine's software to:

• Ignore signals from DPF sensors.
• Disable the regeneration process.
• Potentially adjust fuel and boost parameters for increased power and torque.

This process is often referred to as 'DPF delete' or 'DPF off' tuning.

What Happens When You Remove and Remap? The Technical Side

The immediate and most obvious consequence of removing the DPF and remapping the ECU is that your vehicle will no longer filter soot particles from its exhaust. Instead, these harmful particles will be directly expelled into the atmosphere. This has several technical implications:

1. Exhaust Gas Recirculation (EGR) System Impact

In many diesel engines, the DPF and EGR systems are closely linked. The EGR system recirculates a portion of the exhaust gas back into the combustion chamber to reduce NOx emissions. When the DPF is clogged, the ECU often tries to compensate by altering the EGR operation. Removing the DPF and disabling regeneration can disrupt the delicate balance of the EGR system, potentially leading to increased soot production and further complications.

2. Sensor Malfunctions and Error Codes

The DPF system relies on several sensors, including differential pressure sensors that measure the pressure before and after the DPF to determine how clogged it is. Once the DPF is removed, these sensors will provide readings that are inconsistent with the expected operation. If the ECU isn't properly remapped to ignore these sensors, it will generate error codes, illuminate warning lights on the dashboard (such as the engine management light or the DPF warning light), and potentially trigger limp-home mode.

3. Increased Soot Output

This is the primary functional change. The DPF's job is to trap soot. Without it, the soot bypasses the exhaust system and is released into the environment. This soot is a major contributor to air pollution, with detrimental effects on respiratory health and the environment.

4. Potential for Engine Damage (If Not Done Correctly)

While the goal of remapping is often to improve performance, an improperly executed remap after DPF removal can lead to engine damage. Over-boosting, incorrect fuelling, or aggressive ignition timing can stress engine components, leading to premature wear or catastrophic failure. It's crucial that any tuning is carried out by a reputable professional who understands the specific engine's characteristics.

5. Altered Exhaust Backpressure

The DPF does create some backpressure in the exhaust system. Removing it reduces this backpressure. While this can theoretically allow the turbocharger to spool up more quickly and offer a slight performance increase, it can also alter the way the engine breathes and can sometimes lead to less efficient combustion if the ECU is not recalibrated to account for this change.

The Legal Ramifications

This is perhaps the most critical aspect for vehicle owners. In the United Kingdom, as in many other countries, removing a DPF is illegal for use on public roads. The MOT test in the UK includes checks for the presence and functionality of emissions control equipment. Specifically:

• Vehicles first registered after 1 May 2018 are subject to stricter DPF checks.
• For vehicles registered before this date, if a DPF was fitted as original equipment, it must be present and functional at the time of the MOT test. A visual inspection will be carried out, and if the DPF is missing or appears tampered with, the vehicle will fail the test.
• Tampering with or removing emissions control equipment, including the DPF, is considered an offence under the Road Traffic Act.

The consequences of being caught with a removed DPF can be severe, including:

• Failure of the MOT test.
• Issuance of an Environmental Penalty Notice (EPN) or prohibition notice, which can result in significant fines.
• Insurance invalidation if an accident occurs, as the vehicle would not be in a roadworthy condition as per its original specification.
• Potential prosecution.

Environmental Impact

The primary purpose of the DPF is to protect the environment and public health by reducing particulate matter emissions. Removing it directly contradicts this objective. Soot particles are a major component of air pollution, linked to a range of health problems, including:

• Respiratory illnesses like asthma and bronchitis.
• Cardiovascular problems.
• Potential links to certain types of cancer.

By releasing these particles unchecked, vehicles with removed DPFs contribute to poorer air quality, especially in urban areas where traffic density is high.

When is DPF Removal Considered?

Despite the legal and environmental consequences, some owners choose DPF removal for a few reasons:

• To Avoid Costly Repairs: A failed or clogged DPF can be expensive to replace. Some owners opt for removal as a cheaper alternative, though this is a false economy given the legal risks.
• To Improve Performance: While debatable, some believe removing the DPF and remapping offers a performance boost. This is often marginal and comes at a significant cost to emissions.
• To Resolve Recurring DPF Issues: For vehicles with persistent DPF problems, often due to unsuitable driving patterns (e.g., only short journeys), owners may feel they have no other option. However, addressing driving habits or ensuring the vehicle is suited to the owner's lifestyle are more responsible solutions.

Alternatives to DPF Removal

For owners experiencing DPF issues, there are more responsible and legal alternatives:

1. Professional DPF Cleaning

There are specialist services that can clean a clogged DPF, either through chemical cleaning or a high-temperature bake-out process. This can restore the filter to near-original condition without removal.

2. Driving Habit Adjustments

If your vehicle is frequently experiencing DPF issues, consider your driving habits. Longer journeys at consistent speeds (above 50 mph) for at least 20-30 minutes allow the engine to reach temperatures necessary for active regeneration. Incorporating a 'DPF clear' drive into your routine can help maintain the system.

3. DPF Reset and Regeneration

Sometimes, the DPF warning light can be triggered by minor blockages. Using a diagnostic tool, a forced regeneration can be initiated by a mechanic. This process actively burns off the soot. A simple DPF reset after a manual regeneration can also clear minor issues.

4. DPF Replacement

While costly, replacing a faulty DPF with a new, genuine, or high-quality aftermarket part is the legal and environmentally sound solution if the filter is beyond repair.

Table: DPF Removal vs. Legal Alternatives

Frequently Asked Questions (FAQs)

Q1: Will my car run better after DPF removal and remapping?

Some owners report a slight improvement in throttle response or perceived power. However, this is often due to the aggressive nature of the remap and the removal of a component that can cause restriction when partially blocked. The long-term reliability and environmental impact far outweigh any minor perceived benefits.

Q2: Can I pass my MOT with a removed DPF?

No. The MOT test specifically checks for the presence and condition of emissions control equipment. A visual inspection will reveal the absence of a DPF, leading to an automatic failure.

Q3: Is DPF removal really that bad for the environment?

Yes. Diesel engines, even with DPFs, produce particulate matter. The DPF is crucial in capturing this fine soot. Removing it means these harmful particles are released directly into the air we breathe, contributing to air pollution and associated health risks.

Q4: What are the risks of having a DPF removed?

The primary risks include failing your MOT test, incurring significant fines, invalidating your car insurance, and potentially causing damage to your engine if the associated remap is not performed correctly. You also contribute to environmental pollution.

Q5: My DPF light is on. What should I do?

Do not ignore it. Consult a qualified mechanic. They can diagnose the problem, which might be a simple blockage that can be cleared with a forced regeneration, or it may require a professional cleaning or, in the worst case, replacement. Avoid 'DPF delete' services.

Conclusion

In summary, removing a DPF and remapping an engine is a process that eradicates the vehicle's ability to control harmful soot emissions. While it might seem like a quick fix for DPF problems or a way to gain a perceived performance edge, the technical, legal, and environmental consequences are substantial and overwhelmingly negative. In the UK, it is illegal for road use, will lead to MOT failure, and carries the risk of significant fines. Responsible car ownership dictates that emissions control systems are maintained and repaired as intended. If you are experiencing DPF issues, always opt for legal and environmentally sound solutions.
