Understanding Your Car's Heater Matrix and Leak Issues

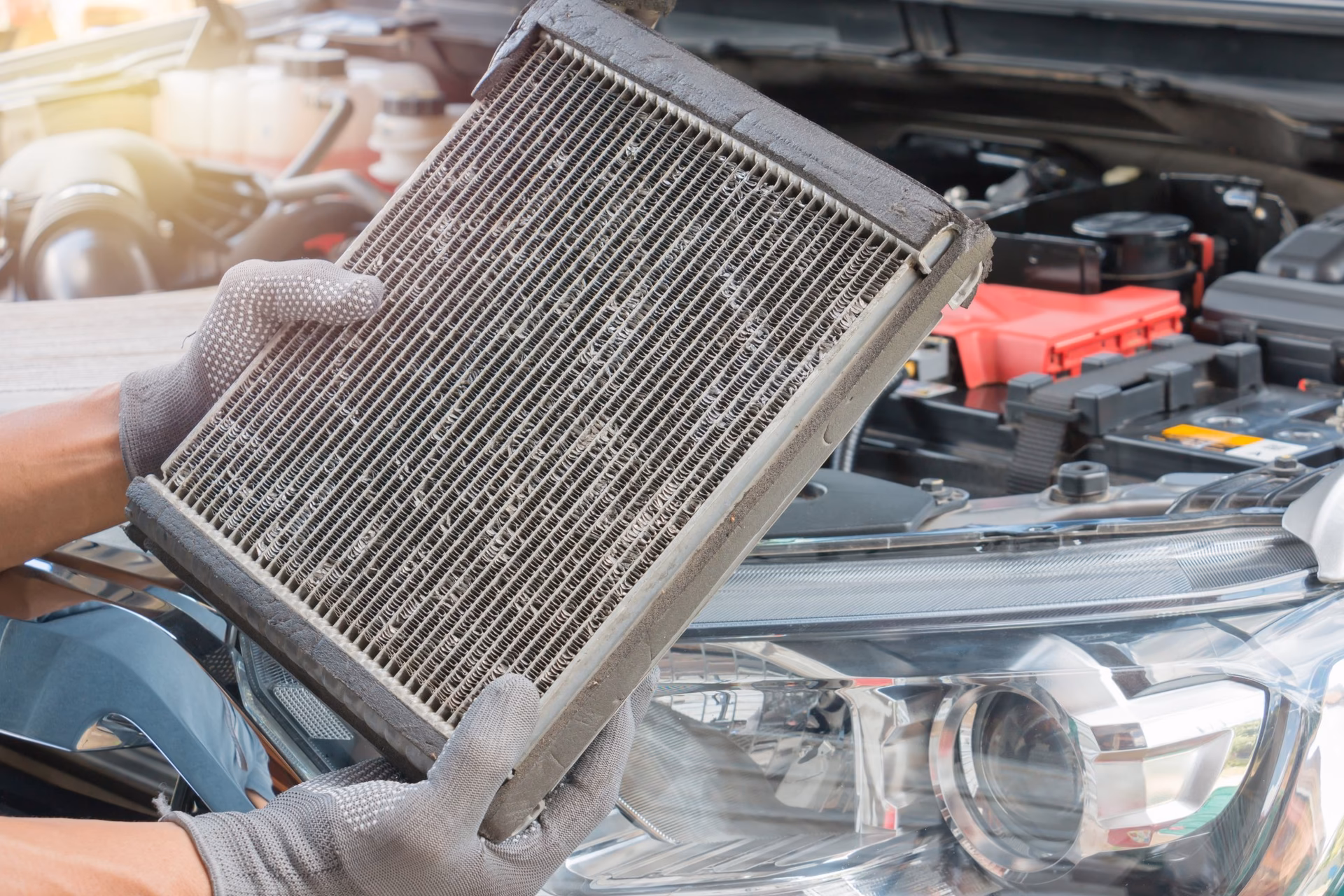

A common yet often misunderstood component of your vehicle's climate control system is the heater matrix, also known as the heater core. This vital part plays a crucial role in ensuring a comfortable driving experience, especially during the colder months. It functions much like your car's main radiator, but with a different objective. Instead of dissipating heat into the outside atmosphere, the heater matrix is designed to transfer heat from the engine's hot coolant into the cabin of your vehicle. This warmed air is then circulated by a fan, providing that essential warmth to keep both the driver and passengers comfortable during chilly journeys.
The construction of a heater matrix typically involves conductive materials like brass or metal tubing, arranged to maximise heat transfer. As hot coolant from the engine circulates through these tubes, the fan draws air across them, effectively picking up the heat and directing it into the passenger compartment. When this system malfunctions, it can lead to a noticeably cold interior, even when the heater is turned to its highest setting.
Why Do Heater Matrices Fail? The Common Culprits
Heater matrices, like many automotive components, are susceptible to wear and tear over time, and several factors can contribute to their failure. Understanding these causes is key to diagnosing and addressing the problem effectively:
1. Clogging: The Silent Killer of Heat
Over time, the intricate tubing within the heater matrix can become obstructed by accumulated dirt, sediment, and other contaminants. These impurities can enter the cooling system if the coolant is not regularly flushed and replaced. A gradual build-up of this debris can significantly reduce the heater matrix's efficiency, leading to a less effective heating system. In severe cases, a completely clogged matrix can render the heater entirely useless.
2. Electrolysis: The Corrosive Threat
A more insidious cause of heater matrix failure is electrolysis. This is a chemical process that occurs when electrical currents flow through the coolant. If the coolant's chemical balance is compromised, or if there are stray electrical currents within the cooling system, it can lead to the corrosion of the metal tubing in the heater matrix. Even a minuscule pinhole leak, often referred to as a pinhole leak, caused by electrolysis can disrupt the entire system, and these leaks have a tendency to worsen if left unattended.
Recognising the Symptoms of a Leaking Heater Matrix
Identifying a failing heater matrix isn't always straightforward, as some symptoms can be mistaken for other issues. However, being aware of these tell-tale signs can help you address the problem before it escalates:
- Fogged-up Windows: One of the most common indicators is condensation or a persistent film on the inside of your car's windows. This is often caused by coolant vapour escaping from a leak and condensing on the cooler glass surfaces.
- Damp Patches: You might notice damp or wet patches, particularly in the front footwells of your vehicle. This indicates that coolant is escaping the system and collecting in these areas.
- Sweet, Fruity Odour: A distinctive sweet, fruity smell, both inside and outside the vehicle, is a strong sign of a coolant leak. This scent is due to the glycol component of the antifreeze.
- Increased Coolant Consumption: If you find yourself topping up your coolant more frequently than usual, without any obvious external leaks, the heater matrix could be the culprit.
- Cold Interior: Despite turning up the heat, the car's interior remains unusually cold. This is a direct consequence of coolant not being able to effectively transfer heat into the cabin.
- Unusual Noises: Gurgling or hissing sounds emanating from behind the dashboard can also signal a leak or air trapped within the heater matrix system.
The Cost of a Professional Heater Matrix Replacement
While the heater matrix itself might not be an excessively expensive part, the labour involved in replacing it can significantly drive up the cost. Accessing the heater matrix typically requires the complete removal of the vehicle's dashboard. Although the actual replacement of the unit is a relatively straightforward task for a skilled mechanic, the dismantling and reassembly process can be very time-consuming, often taking several hours.
The complexity and time required can vary depending on the make and model of the car. Consequently, the total cost of a professional heater matrix replacement can easily run into hundreds, and in some cases, even thousands of pounds. This makes a reliable repair solution for a leaking heater matrix highly desirable.
Can K-Seal Fix My Heater Matrix?
For those seeking a quick fix for a leaking heater matrix, K-Seal presents a compelling solution. K-Seal is specifically formulated to seal most leaks within the heater matrix. Its advanced formula works by seeking out the leak and forming a permanent, durable seal.
How to Use K-Seal for Heater Matrix Leaks:
To ensure K-Seal effectively seals a heater matrix leak, it's crucial to follow the correct procedure:
- Ensure the Heater is On: When introducing K-Seal into your cooling system, make sure your car's heater is switched to its maximum setting. This ensures that the coolant, and therefore the K-Seal, is actively circulating through the heater matrix.
- Circulation is Key: Allowing the engine to run with the heater on maximum will facilitate the flow of K-Seal through the pipes and directly to the point of the leak.
- Permanent Seal: K-Seal works by reacting with the air and moisture at the leak site, forming a permanent seal that stops the coolant from escaping.
By following these simple steps, K-Seal can provide a reliable and cost-effective repair for your leaking heater matrix, getting you back on the road with a fully functional heating system.
Exploring Other Potential Engine Issues
While a leaking heater matrix can certainly be the source of your vehicle's problems, it's important to remember that it might not be the only component requiring attention. The cooling system is an interconnected network, and issues can sometimes stem from or affect other parts. Understanding the various components of your engine can help in a more comprehensive diagnosis.
Interactive Engine Component Guide
To aid in understanding, consider exploring an interactive diagram of your car's engine. By clicking on different components, you can gain insights into their functions and how they contribute to the overall operation of your vehicle. This can be particularly helpful if you're experiencing a combination of symptoms or are unsure about the exact cause of a problem.
Troubleshooting with a 60-Second Solver
If you're still uncertain about the exact nature of your car's issue, many resources offer quick diagnostic tools. A "60-second problem solver" can be an invaluable asset, guiding you through a series of questions based on your observed symptoms to help pinpoint the likely cause of the problem.
Frequently Asked Questions
| Question | Answer |
|---|---|
| What is a heater matrix? | The heater matrix, also known as the heater core, is a small radiator that transfers heat from the engine's coolant to the vehicle's interior, providing warmth. |
| Can K-Seal fix a heater matrix leak? | Yes, K-Seal is designed to seal most leaks in the heater matrix. |
| What are the signs of a leaking heater matrix? | Symptoms include fogged-up windows, damp footwells, a sweet smell, increased coolant use, a cold interior, and unusual noises from behind the dashboard. |
| How do I use K-Seal for a heater matrix leak? | Ensure the car's heater is on maximum and the engine is running to allow K-Seal to circulate through the matrix and seal the leak. |
| Is replacing a heater matrix expensive? | While the part itself may not be costly, the labour involved in removing the dashboard can make replacement expensive, potentially costing hundreds or thousands of pounds. |
| What causes heater matrices to fail? | Common causes include clogging from debris in the coolant and corrosion due to electrolysis. |
In conclusion, a malfunctioning heater matrix can significantly impact your driving comfort. Understanding its function, common failure points, and symptoms is the first step towards a solution. For a reliable and efficient repair of heater matrix leaks, K-Seal offers a practical and effective remedy, saving you the considerable expense and hassle of a traditional garage replacement.
