Diagnosing a Faulty Coil Pack: Misfires Explained

Ever wondered what keeps your car's engine running smoothly, providing that crucial spark for combustion? The unsung hero is often the coil pack, a vital component in your vehicle's ignition system. But what happens when this essential part starts to falter? Can a faulty coil pack truly lead to frustrating misfires, unexpected stalling, and a host of other perplexing engine issues? In this comprehensive guide, we'll delve deep into the world of coil packs, exploring their critical function, the tell-tale signs of their failure, and how you can diagnose and address these problems to keep your vehicle performing at its best.

Understanding the Coil Pack: Your Engine's Spark Producer

At the heart of your car's ignition system lies the coil pack, an electronic ignition component engineered to deliver the high-voltage spark necessary for the internal combustion process. Unlike older distributor-based systems, coil packs comprise individual coils, each meticulously designed to fire a specific spark plug in precise sequence. This sophisticated design allows for the generation of incredibly high-voltage pulses, often ranging from 50,000 to 75,000 volts, ensuring robust and consistent ignition.

The transition to coil pack technology marked a significant improvement in automotive engineering. These systems are inherently more efficient and powerful, translating directly into enhanced fuel efficiency and superior engine performance. By providing a stronger ignition spark, coil packs facilitate cleaner and more complete fuel burns within the cylinders. Furthermore, their relatively straightforward design makes them easier to maintain, often requiring simple replacement rather than complex adjustments seen in older systems. They also consume less energy compared to their distributor counterparts, contributing to reduced overall emissions. These combined advantages culminate in a highly efficient device that delivers reliable power while significantly lowering environmental impact.

The Genesis of Failure: Why Coil Packs Go Bad

A coil pack, despite its robust design, is not immune to failure. Several factors can contribute to its demise, leading to various engine woes. Common culprits include exposure to an excessively hot engine environment, constant and excessive vibrations during operation, or underlying faulty wiring within the vehicle's electrical system. When a coil pack succumbs to these stresses, its primary function – delivering sufficient voltage to the spark plugs – is compromised.

The most immediate and noticeable consequence of a failing coil pack is an engine misfire. This occurs when the spark plug doesn't receive the adequate voltage required to ignite the fuel and air mixture effectively. As a result, the unburned fuel is expelled through the exhaust system instead of being combusted in the engine's cylinders. This not only leads to a significant reduction in fuel economy but also contributes to increased harmful emissions. Moreover, if a coil pack fails completely and is left unaddressed, it can exert undue stress on other vital engine components, potentially causing premature wear on parts such as pistons and valves. It is paramount, therefore, to have any suspected coil pack issues inspected by a trusted mechanic without delay to preserve your vehicle's optimal performance and longevity.

Diagnostic Clues: Will a Bad Coil Pack Throw a Code?

Absolutely, when a coil pack becomes faulty, it almost invariably triggers the vehicle's onboard diagnostic system. Modern vehicles are equipped with an On-Board Diagnostics II (OBD-II) system, which constantly monitors various engine parameters. Should a component like a coil pack operate outside its normal parameters, the system registers this anomaly as a Diagnostic Trouble Code (DTC).

The most common indicator of a problem is the illumination, or even blinking, of the "Check Engine" light on your dashboard. A blinking light usually signifies a severe issue that requires immediate attention to prevent further engine damage. When you connect an OBD-II scanner to your vehicle's diagnostic port, it will reveal the specific codes related to the fault. A faulty coil pack can throw a variety of codes, providing precise insights into the problem's nature and location:

• P0300: This generic code indicates a "Random/Multiple Cylinder Misfire Detected." It suggests that misfires are occurring across multiple cylinders or are not specific to one cylinder, making the coil pack a strong suspect.
• P030X: Codes like P0301 (Cylinder 1 Misfire), P0302 (Cylinder 2 Misfire), P0303 (Cylinder 3 Misfire), P0304 (Cylinder 4 Misfire), and so on, pinpoint the exact cylinder experiencing a misfire. This is incredibly helpful in identifying which specific coil pack (in coil-on-plug systems) or which part of a multi-cylinder coil pack might be at fault.
• P035X: Codes such as P0351 (Ignition Coil "A" Primary/Secondary Circuit Malfunction) indicate an issue directly with the ignition coil's electrical circuit. This code directly implicates the coil pack itself.

The information retrieved from these diagnostic scans empowers mechanics to accurately identify the components that require repair or replacement, ensuring your vehicle's performance is fully restored.

The Warning Signs: Common Symptoms of a Failing Coil Pack

A failing coil pack communicates its distress through a range of distinct symptoms. Recognising these signs early can prevent more significant and costly damage down the line. Here are the most widespread indicators:

1. Engine Misfires and Rough Running

As previously mentioned, an engine misfire is arguably the most prevalent symptom of a malfunctioning coil pack. When a coil pack is damaged or failing, it cannot deliver sufficient spark energy to the corresponding spark plug. This deficiency prevents the proper ignition of the fuel-air mixture, leading to a noticeable misfire. The engine might feel like it's sputtering, jerking, or hesitating, particularly under acceleration. At idle, the misfire can cause the engine to shake and vibrate excessively, leading to a "rough idle." This symptom is often accompanied by the Check Engine Light, which may even blink if the misfire is severe enough to potentially damage the catalytic converter.

2. Difficulty Starting the Car

A compromised coil pack can significantly impede your car's ability to start. This issue can manifest in several ways: the engine might crank but fail to turn over at all, or it may require multiple attempts before it finally sputters to life. You might also notice unusual noises during startup, such as loud clicking or strange buzzing sounds, indicating electrical issues within the ignition system. Even if the car eventually starts, it might run very roughly immediately afterwards, potentially due to an incorrect firing order caused by the faulty coil pack. In such scenarios, replacing the faulty coil pack is typically the solution to restore proper vehicle operation.

3. Decrease in Power and Acceleration

One of the most frustrating symptoms of a failing coil pack is a noticeable reduction in engine power and acceleration. When the electric current flowing through the ignition coils is insufficient, the spark plugs receive inadequate electricity to ignite the combustible mixture within the cylinders. This directly translates to the engine struggling to meet normal performance expectations, leading to a palpable drop in power output and sluggish acceleration, particularly when you press the accelerator pedal firmly.

4. Stalling

Unexpected engine stalling is a clear and concerning symptom often linked to a faulty coil pack. This usually occurs due to a loss of voltage that results from damaged connections between the ignition coil and the spark plugs. The ensuing electrical interruption disrupts the energy supply to the combustion chamber, causing the engine to abruptly cut out. Furthermore, a faulty coil pack can lead to inefficient fuel distribution and inconsistent spark plug firing, exacerbating stalling issues. Because stalling can also indicate other underlying problems, it's crucial to obtain a proper diagnosis before attempting any repairs. Fortunately, with correct identification and maintenance, stalling caused by a bad coil pack can often be resolved relatively quickly.

5. Increased Emissions

A malfunctioning coil pack is a common cause of increased exhaust emissions. When the fuel-air mixture isn't completely burned due to an insufficient spark, uncombusted fuel exits the engine via the exhaust system. This leads to higher levels of harmful pollutants being expelled into the atmosphere. Car owners should regularly service their vehicles and pay attention to any signs of reduced engine efficiency, such as unusually high emissions or difficulty starting, as these could indicate a problem that impacts both performance and environmental compliance.

6. Poor Fuel Economy

Poor fuel economy is a frequently overlooked but significant symptom of a malfunctioning coil pack. As detailed above, faulty coils cause the engine to misfire and operate inefficiently, directly leading to decreased power output and fewer miles per gallon (MPG). This inefficiency can stem from loose connections, cracked or broken insulation on the coil pack, or even worn-out spark plugs that are not receiving adequate voltage. Improper spark timing due to a defective coil pack can further reduce engine efficiency and performance, while simultaneously increasing fuel consumption. Neglecting to identify and replace a bad coil pack can ultimately result in more expensive repairs down the line, making it vital for vehicle owners to monitor signs of diminished performance and lower-than-usual MPG.

7. Changed Engine Sound and Fuel Smell

A misfiring engine, often caused by a bad coil pack, can produce unusual and louder engine sounds. The engine might sound rougher, or you might hear a distinct "bucking" or "jerking" noise. In more extreme cases, the car might even backfire – a loud banging noise that occurs when unburned fuel ignites in the exhaust system. This is a clear sign of a severe ignition problem. Concurrently, if the fuel mixture isn't being burned properly, you might detect a distinct smell of unburnt petrol, particularly from the exhaust. While a fuel smell can indicate other issues with the fuel or exhaust system, when combined with other symptoms like misfires, it strongly points towards ignition system problems, including a faulty coil pack or spark plugs.

Locating Your Coil Pack: A Quick Guide

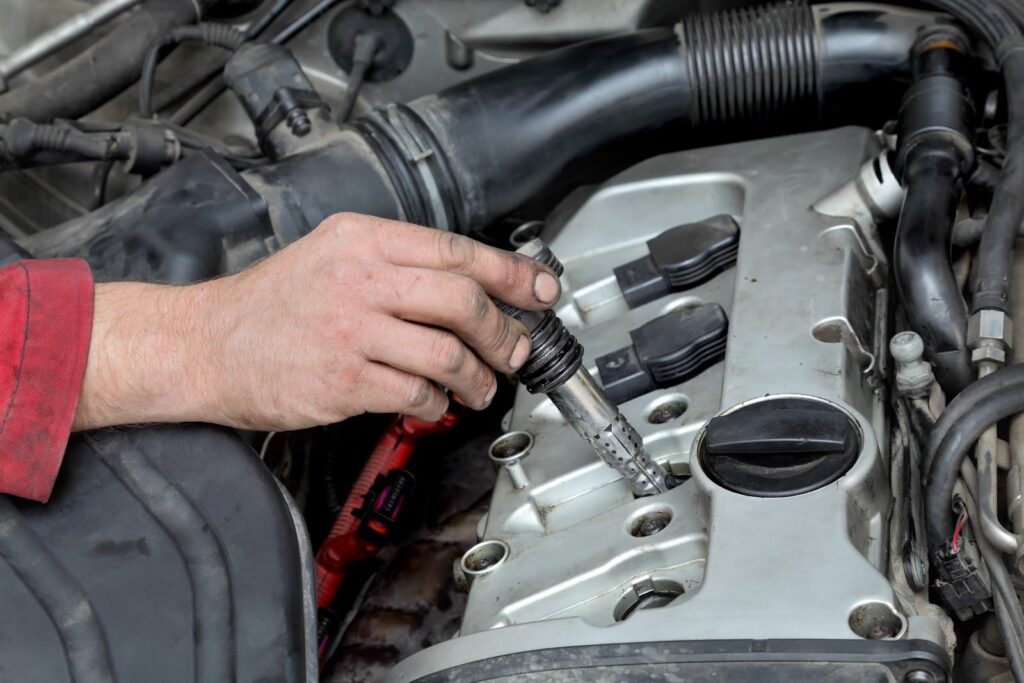

The location and configuration of coil packs vary depending on your vehicle's age and design. Modern petrol engines typically utilise independent coil systems, commonly known as "coil-on-plug" (COP) systems. In this setup, each spark plug has its own dedicated coil fitted directly over it. So, if your engine has eight cylinders and eight spark plugs, you'll likely find eight individual coils.

However, older engines often employed a different design featuring traditional coil packs. Instead of one coil per spark plug, a single coil pack would serve multiple plugs. For instance, an eight-cylinder engine might have four coil packs, with each pack responsible for two spark plugs. These coil packs are generally located elsewhere on the engine, connected to the spark plugs via high-tension spark plug wires. If you need to locate them, a good starting point is to trace the spark plug wires back from the plugs themselves – they will lead you directly to the coil pack.

One significant drawback of these older, multi-cylinder coil packs is that if just one internal coil fails, the entire pack typically needs to be replaced. They are often moulded together and cannot be separated for individual component replacement, making the repair potentially more costly than replacing a single coil-on-plug unit.

Troubleshooting a Bad Coil Pack: A Step-by-Step Approach

Diagnosing a faulty coil pack requires a systematic approach to pinpoint the exact cause of the problem. Here's how to proceed:

1. Visual Inspection

Begin with a thorough visual inspection. Look for any obvious signs of damage, such as frayed wires, cracks in the coil pack's insulation, or signs of burning or melting. Sometimes, the issue can be as simple as a loose connector or corrosion on the terminals.

2. OBD-II Scan

As discussed, the first crucial step is to connect an OBD-II scanner to retrieve any stored diagnostic trouble codes. Codes like P0300, P030X (e.g., P0304), or P035X will immediately direct you towards an ignition system issue, often pointing directly to a specific cylinder or coil circuit.

3. Multimeter Testing (Resistance Checks)

If no visible damage is apparent, and you suspect a specific coil pack, you can test its electrical resistance using a multimeter. It's highly recommended to consult your vehicle's service manual for the exact manufacturer's specifications, as values can vary. However, here are general guidelines:

Primary Resistance Test:

• Locate the coil pack and carefully remove the spark plug wires (if applicable) and the pack itself from the engine.
• Set your multimeter to the 200 Ohms range.
• Connect the multimeter probes to the appropriate primary terminals of the coil pack.
• Most coils should show a continuity reading between 0.3 Ohms and 1.0 Ohms. A reading outside this range or an "O.L." (Open Loop) reading indicates a fault.

Secondary Resistance Test:

• Adjust your multimeter to the 20,000 Ohms range.
• Place the probes on the appropriate secondary terminals. For coil packs with a protruding tower, connect one probe to the tower and the other to the secondary winding terminal.
• You should typically see a reading between 5,000 and 12,000 Ohms (or 5.0 to 12.0 kOhms on some meters). An "O.L." reading again suggests an open circuit, indicating a bad coil.

If your readings do not align with the manufacturer's specifications, the coil pack is likely faulty and requires replacement. When replacing, always opt for an original equipment manufacturer (OEM) or reputable aftermarket part to ensure compatibility and reliability.

Coil Pack Replacement: Costs and Considerations

The cost of replacing a coil pack can vary, but generally, you can expect to spend between £250 and £450 for parts and labour for a standard vehicle in the UK. This estimate can fluctuate based on several factors:

• Vehicle Make and Model: Luxury or high-performance vehicles may have more expensive parts and complex labour.
• Number of Coil Packs: If your vehicle uses individual coil-on-plug units, replacing just one faulty coil will be cheaper than replacing an entire multi-cylinder coil pack. However, if multiple individual coils are failing, the total cost can quickly add up.
• Labour Rates: These vary significantly by region and garage.
• Parts Availability: Older vehicles with traditional coil packs might find them harder to source, potentially leading to higher part costs if they need to be ordered specially.

It's often a wise decision to replace the spark plugs at the same time as the coil pack, especially if they are nearing their recommended service interval. Since the mechanic will already be accessing the ignition system components, combining these tasks can save you labour costs in the long run. For those with basic mechanical skills, replacing coil packs on some vehicles can be a relatively straightforward DIY repair, saving on labour costs.

Interestingly, the cost to replace an older-style multi-cylinder coil pack is often higher than replacing a single coil-on-plug unit in newer models. This is primarily because the multi-cylinder packs handle more spark plugs and are often harder to find due to their use in older vehicles. Always ensure you purchase the correct part for your specific vehicle model.

Frequently Asked Questions About Coil Packs

Can you drive with a faulty coil pack?

While your vehicle might still operate with a faulty coil pack, it is strongly advised against driving it for any significant distance. Not only will you experience significant performance issues, such as misfires and a lack of power, which can make the car unpredictable and potentially dangerous, but driving with a misfiring engine can cause severe and costly damage to other vital components. Most notably, unburned fuel entering the exhaust system can rapidly destroy your catalytic converter, a very expensive part to replace.

How often do coil packs need to be replaced?

Unlike some maintenance items, most manufacturers do not specify a recommended service interval for coil packs. This is largely because the older coil pack technology is less common in modern vehicles. Generally, coil packs are designed to be long-lasting components. It's expected that most coil packs will perform reliably for at least 100,000 miles, if not considerably more, before experiencing any issues. They should only be replaced when they show clear signs of failure or are diagnosed as faulty.

What causes coil pack damage?

The most common cause of coil pack failure is simply wear and tear over many years of operation. The constant exposure to high temperatures within the engine bay and the continuous vibrations from the engine can gradually degrade the coil pack's internal components and insulation. This degradation can lead to short circuits in the electrical connection or internal breakdowns, preventing the coil from producing the necessary high voltage for a strong spark.

Are coil packs the same as spark plugs?

No, coil packs and spark plugs are distinct but interdependent components of the ignition system. The coil pack (or individual ignition coil in a coil-on-plug system) is responsible for generating the high voltage required to create a spark. The spark plug then receives this high voltage and uses it to create the actual spark that ignites the fuel-air mixture in the combustion chamber. Think of the coil pack as the power generator and the spark plug as the device that uses that power to create the ignition spark. In modern engines, each spark plug often has its own coil (coil-on-plug), while older vehicles used a single coil pack to serve multiple spark plugs via wires.

Conclusion

It is abundantly clear that a malfunctioning coil pack can have profound implications for your car's functionality and overall performance. From debilitating misfires and noticeable power loss to inconvenient stalling and increased emissions, the symptoms of a failing coil pack are varied and impactful. However, the crucial step in addressing these issues lies in your ability to recognise these symptoms early and distinguish them from other potential problems your vehicle might be experiencing.

By understanding the critical role the coil pack plays in the engine's combustion process and being attuned to the warning signs of its failure, you can ensure your car remains in optimal condition. Prompt diagnosis and repair not only restore your vehicle's performance and efficiency but also help you avoid more extensive and costly repairs that could arise from neglecting the problem. Keeping your ignition system in top shape is key to smoother, more reliable journeys on the road.
