Ball Joints & Wishbones: Your UK MOT Guide

When it comes to your vehicle's suspension system, two components frequently come up in conversation: the ball joint and the wishbone. These unsung heroes work tirelessly to ensure your wheels move smoothly over bumps and allow for precise steering control. Understanding their function, how they interact, and what to look out for – especially concerning UK MOT regulations – is crucial for any car owner keen on keeping their vehicle safe and roadworthy.

A well-functioning suspension system isn't just about comfort; it's fundamental to your car's handling, stability, and braking performance. A compromised system can lead to a host of issues, from vague steering to dangerous instability at speed. Let's delve deeper into these critical parts and demystify their roles.

Understanding the Wishbone (Control Arm)

The wishbone, often referred to as a control arm, is a pivotal component of your car's independent suspension system. Shaped like a 'V' or 'A' (hence 'wishbone'), it connects the wheel hub to the vehicle's chassis. Its primary function is to allow the wheel to move up and down in response to road irregularities while maintaining its correct position relative to the car's body. There are typically upper and lower wishbones, though many modern vehicles use a single lower wishbone with other links to achieve the desired geometry.

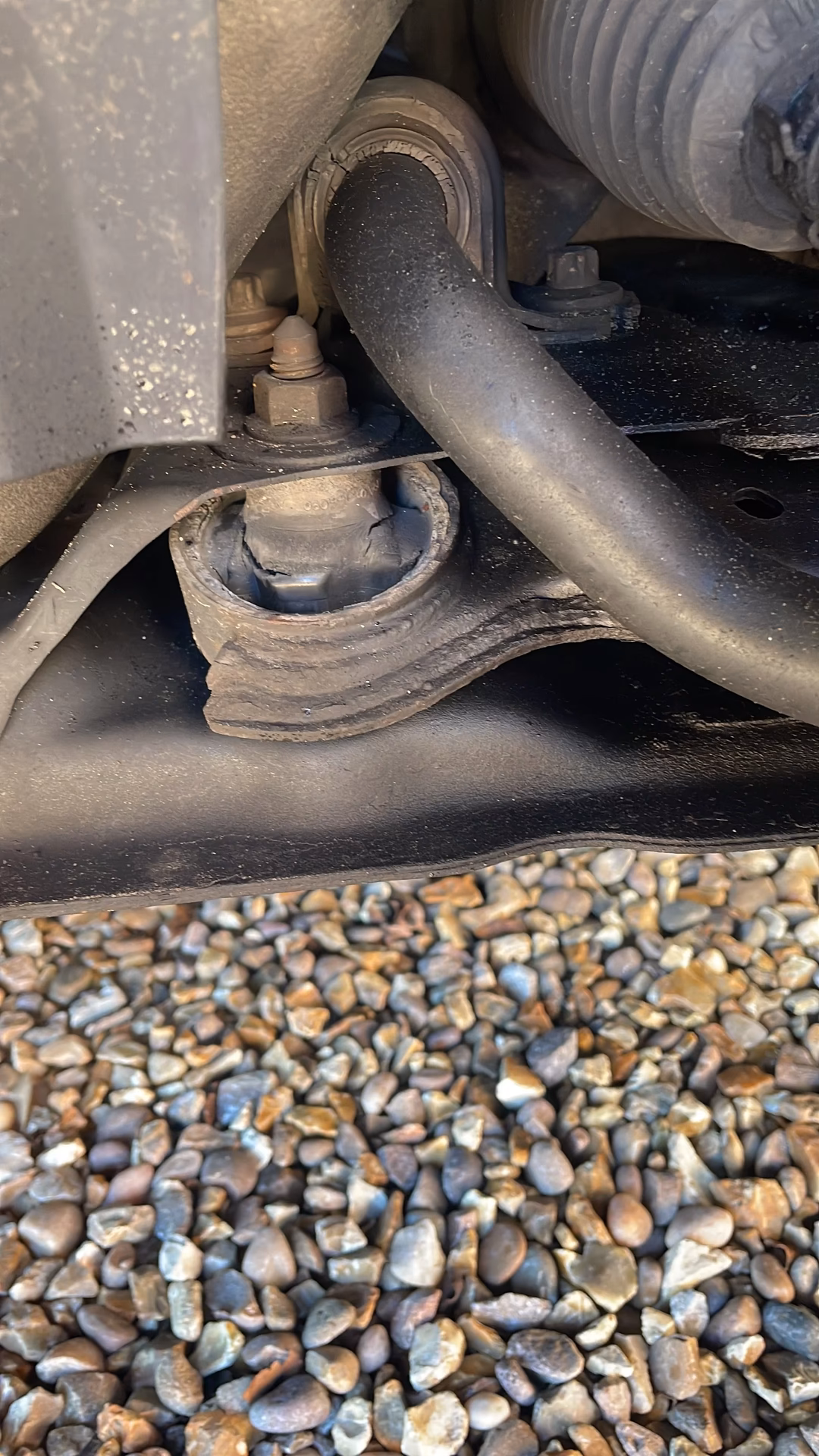

Wishbones are usually made from stamped steel, cast iron, or aluminium, designed to withstand significant forces from road impacts and vehicle weight. They house rubber bushes at their chassis connection points, which absorb vibrations and allow for controlled movement.

The Role of the Ball Joint

The ball joint acts as a flexible pivot point, allowing the steering knuckle (which holds the wheel) to move freely while keeping the wheel attached to the wishbone. Imagine your shoulder joint; a ball joint works similarly, permitting multi-directional movement. This articulation is essential for steering and for the suspension to absorb bumps without binding.

Ball joints consist of a metal housing and a stud with a ball on one end, encased in a grease-filled boot. This boot is crucial as it protects the internal components from dirt, water, and debris, while keeping the lubricating grease inside. Without this protection, the joint would quickly wear out due to contamination and lack of lubrication.

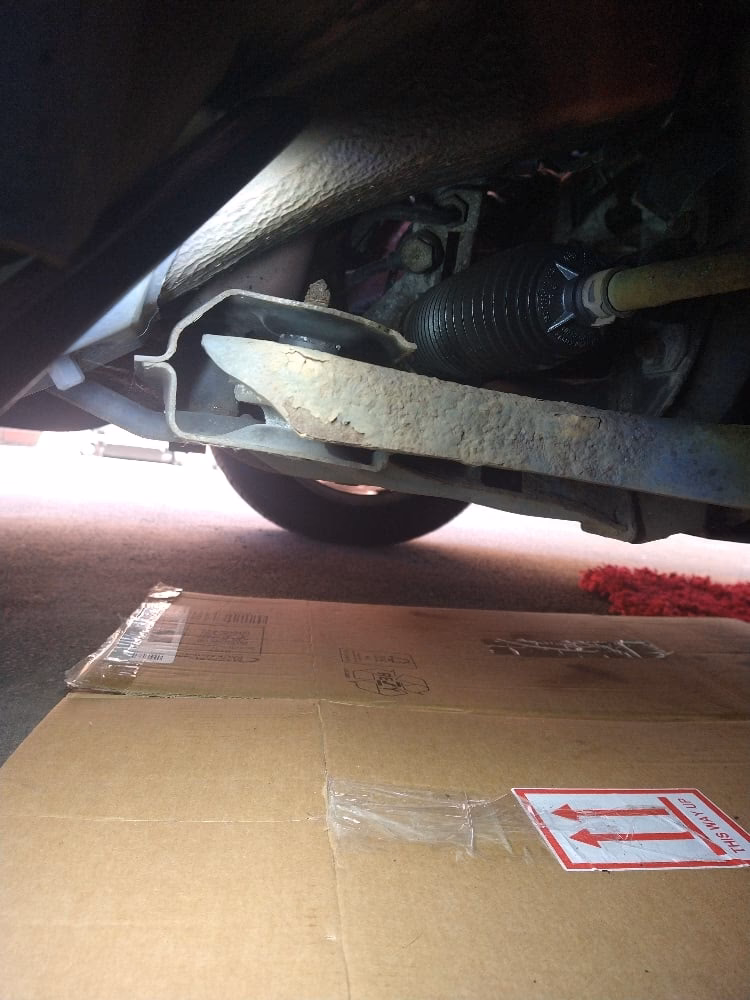

Does a Ball Joint Fit a Wishbone? The Interconnection

Absolutely, a ball joint fits a wishbone. In fact, they are intrinsically linked. The ball joint is typically pressed into or bolted onto the end of the wishbone, connecting it to the steering knuckle. This connection allows the wheel assembly to pivot as the suspension moves up and down and as the steering wheel is turned.

There are generally two configurations:

• Integrated Ball Joints: In many modern vehicles, the ball joint is permanently pressed into the wishbone and cannot be replaced separately. If the ball joint fails, the entire wishbone assembly must be replaced.
• Replaceable Ball Joints: Some wishbones are designed to have a separate, replaceable ball joint. This means that if only the ball joint fails, you can replace just that component, potentially saving on repair costs and labour compared to replacing the entire arm.

Identifying which type your vehicle has is important when diagnosing issues and planning repairs. A quick check with your vehicle's repair manual or a reputable parts supplier will clarify this.

Signs of a Failing Ball Joint

A failing ball joint can manifest in several noticeable ways, impacting driving comfort and safety. Recognising these symptoms early can prevent further damage and more costly repairs:

• Clunking or Popping Noises: One of the most common indicators is a distinct clunking or popping sound, especially when going over bumps, turning, or during sudden acceleration/braking. This noise often comes from the front suspension.
• Vague or Loose Steering: If your steering feels less precise, or if there's excessive play in the steering wheel, a worn ball joint could be the culprit. The car might wander on the road, requiring constant steering corrections.
• Uneven Tyre Wear: Worn ball joints can affect the wheel's alignment, leading to uneven or premature tyre wear, particularly on the inner or outer edges.
• Vibrations: Vibrations felt through the steering wheel or floorboards, especially at certain speeds, can indicate a worn ball joint, though this symptom can also point to other issues like unbalanced wheels.
• Vehicle Pulling: A car pulling to one side while driving straight can be a sign of a failing ball joint, as it can throw off the alignment.

If you experience any of these symptoms, it's advisable to have your suspension inspected by a qualified mechanic promptly.

The UK MOT and Split Ball Joint Boots: A Crucial Distinction

This is where many car owners get confused, and rightly so, as the rules have evolved. The critical question for UK drivers is: Is a split ball joint boot a fail in the UK MOT test?

Historically, a split boot on a ball joint would almost certainly lead to an MOT failure. The reasoning was sound: a damaged boot allows water, dirt, and grit to enter the joint, leading to rapid wear and potential failure due to corrosion and lack of lubrication. However, the rules were updated.

Under current UK MOT regulations, a split or damaged dust cover (boot) on a ball joint where there is no excessive play in the joint itself is typically an advisory, not an automatic fail. This is a significant change. The logic is that while the boot is compromised and will eventually lead to wear, the joint hasn't yet developed dangerous play.

Let's be clear: a split boot is still a problem that needs addressing. An advisory means the issue is noted and you are advised to get it fixed. It will lead to accelerated wear of the joint, and eventually, the joint *will* develop play. Once there is noticeable play in the ball joint, it becomes a major defect and will result in an MOT failure. Therefore, while you might pass your MOT with an advisory for a split boot, it's a ticking time bomb and should be rectified as soon as possible to prevent a more costly repair down the line, or worse, a dangerous failure.

Always verify the current MOT rules on the official GOV.UK website or consult your MOT test centre for the most up-to-date information, as regulations can sometimes be subject to change.

Replacing a Ball Joint: DIY or Professional?

Replacing a ball joint can range from a relatively straightforward job to a complex task, depending on your vehicle's design (integrated vs. replaceable) and your mechanical skill level. If your car has replaceable ball joints and you're comfortable with automotive repairs, it can be a rewarding DIY project. If the joint is integrated into the wishbone, the entire wishbone assembly will need replacing, which can be more involved.

Tools and Safety First

Before you even think about starting, ensure you have the right tools and prioritise safety:

• Vehicle jack and sturdy axle stands
• Wheel chocks
• Socket set and wrenches
• Torque wrench
• Hammer and punch
• Angle grinder (for riveted joints)
• Ball joint press or separator tool (optional, but highly recommended)
• Penetrating oil
• Personal Protective Equipment (PPE): Safety glasses, gloves

Never work under a vehicle supported only by a jack. Always use axle stands.

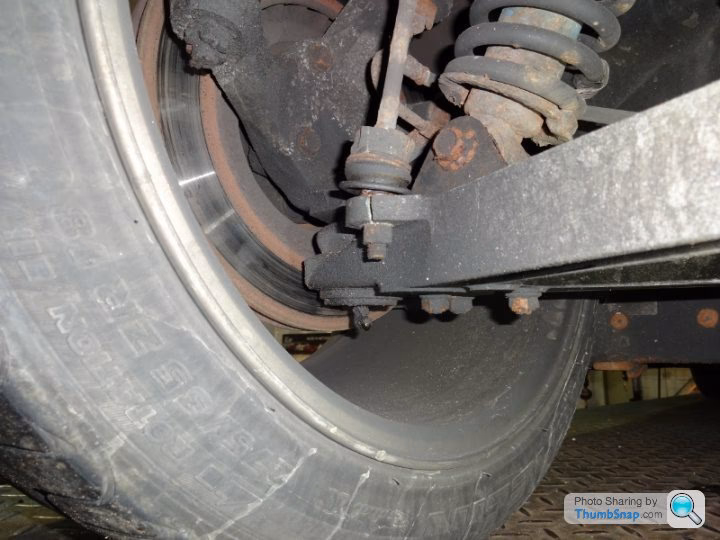

Step-by-Step Guide for Riveted Ball Joints (as per common UK models)

This guide focuses on ball joints that are riveted to the wishbone, a common scenario where the ball joint is replaceable, but its removal can be tricky:

1. Preparation: Park your car on a level surface, engage the handbrake, and chock the rear wheels. Loosen the wheel nuts on the side you're working on, then jack up the vehicle and secure it on axle stands. Remove the wheel.
2. Accessing the Wishbone: You'll likely need to gain better access to the wishbone. This often involves carefully lowering one side of the subframe slightly. When undoing the rear bolt of the subframe, it is absolutely critical to place pressure on the subframe with a jack near the rear bolt. This prevents the captive nut inside the chassis from breaking free, which is incredibly difficult and frustrating to rectify if it happens. Only lower one side at a time to maintain some structural integrity.
3. Separating the Ball Joint: Once the wishbone is accessible, you'll need to separate the ball joint stud from the steering knuckle. This usually involves removing a retaining nut and then using a ball joint separator or a large hammer to shock the joint free from its tapered seat. Be careful not to damage the boot if you're only inspecting.
4. Removing Rivets (for replaceable joints): If your ball joint is riveted to the wishbone, this is often the most challenging part. You'll need an angle grinder to carefully grind off the heads of the rivets on one side. Once the heads are off, use a hammer and a sturdy punch to drive the rivets out. This can be incredibly tough and requires patience. You might be hitting each rivet for several minutes before it budges, but then it will suddenly start to move more freely with each subsequent hit. Expect some bruised thumbs from missed hammer blows – it's a common rite of passage! A hydraulic press would make this step incredibly easy, but few home mechanics have one.
5. Extracting the Old Joint: With the rivets removed, you can now pull the old ball joint out of the wishbone arm. It might be stiff, so some wiggling and leverage may be required.
6. Installing the New Joint: Ensure the wishbone mounting surface is clean. Push the new ball joint into the arm. New replaceable ball joints typically come with new nuts and bolts to secure them to the wishbone, replacing the old rivets. Tighten these new fasteners securely, ensuring you follow any manufacturer-specified torque settings.
7. Reassembly: Reconnect the new ball joint stud to the steering knuckle, tightening its retaining nut to the correct torque. Re-secure the subframe bolt (remembering the jack support). Reinstall the wheel, lower the vehicle, and fully tighten the wheel nuts.
8. Post-Replacement: It is highly recommended to get a wheel alignment done after replacing any suspension components, especially ball joints or wishbones. Even a small change can affect your vehicle's handling and tyre wear.

New ball joints are often surprisingly inexpensive, especially compared to the cost of a full wishbone assembly. If your wishbone bushes are still in good condition, changing just the ball joint is a very cost-effective repair.

Comparative Table: Ball Joint Symptoms vs. Other Suspension Issues

Frequently Asked Questions (FAQs)

Can I drive with a split ball joint boot?

While your car might pass its MOT with an advisory for a split boot (if there's no play), it's highly unadvisable to drive with it for long. The boot protects the joint's internal components. Once compromised, dirt and water will enter, and grease will escape, leading to rapid wear and eventual failure of the joint. It's a repair that should be prioritised.

How long do ball joints typically last?

The lifespan of a ball joint varies greatly depending on driving conditions, vehicle type, and manufacturer quality. On average, they can last anywhere from 80,000 to 160,000 kilometres (50,000 to 100,000 miles). Aggressive driving, frequent off-roading, and poor road conditions can significantly reduce their lifespan.

What's the difference between a ball joint and a tie rod end?

Both are suspension components, but they serve different purposes. A ball joint connects the wishbone to the steering knuckle, allowing vertical and horizontal movement for suspension travel and steering. A tie rod end connects the steering rack to the steering knuckle, primarily responsible for translating steering wheel input into horizontal wheel movement.

Is it hard to replace a ball joint myself?

The difficulty varies. If the ball joint is bolted on and easily accessible, it can be a moderate DIY job. If it's pressed into the wishbone or riveted, it becomes more challenging, often requiring specialized tools (like a press or grinder) and a good level of mechanical aptitude. Always assess your comfort level and tool availability before attempting the repair.

Do I need a wheel alignment after replacing a ball joint?

Yes, absolutely. Replacing a ball joint or any major suspension component can alter the wheel alignment. To ensure proper handling, prevent premature tyre wear, and maintain vehicle safety, a professional wheel alignment is highly recommended after this repair.

Will a split boot fail my MOT in the UK?

As per current UK MOT regulations, a split or damaged dust cover (boot) on a ball joint is generally an advisory if there is no excessive play in the joint itself. However, if the joint exhibits excessive play, it will be a major defect and result in an immediate MOT failure. It's always best to rectify a split boot promptly to avoid future issues.

Understanding your vehicle's suspension components, particularly ball joints and wishbones, is key to proactive maintenance. While a split boot might only be an advisory on your MOT, ignoring it is a false economy that could lead to more significant repairs or, more importantly, compromise your safety. Regular inspections and timely repairs will ensure your vehicle remains a reliable and safe mode of transport for years to come.
