Beetle FI to Carb Conversion: Your Guide

The Volkswagen Beetle, an undeniable icon of automotive history, has captured hearts for generations with its distinctive shape and air-cooled charm. While many adore its classic simplicity, later models, particularly those destined for the US market from 1975 onwards, were equipped with Bosch fuel injection. This system, though advanced for its time, can become a source of frustration for modern owners due to its complexity and the scarcity of specialists capable of diagnosing and repairing it. For many enthusiasts in the UK and beyond, converting a fuel-injected Beetle back to a carburettor system offers a compelling solution, promising enhanced reliability and simpler maintenance.

Why Make the Switch? The Carburettor Advantage

The original Bosch fuel injection system on later Beetles, while functional when new, presents several challenges today. Diagnosing issues can be a labyrinthine task involving an array of sensors, vacuum lines, and an Electronic Control Unit (ECU) that few mechanics are now familiar with. Parts can be difficult to source, and even when found, their proper installation and calibration require specific expertise that is increasingly rare. This often leads to erratic running, poor fuel economy, and persistent, unresolved faults.

In contrast, the carburettor system offers a return to the Beetle's mechanical roots. Carburettors are inherently simpler devices, relying on mechanical principles rather than complex electronics. This means:

• Easier Diagnosis: Most carburettor issues can be identified visually or with basic tools, making troubleshooting far more straightforward.
• Readily Available Parts: Components for common VW carburettors are widely available and often more affordable.
• DIY Friendly: With a good workshop manual and some patience, many carburettor adjustments and repairs can be tackled by the home mechanic, fostering a deeper connection with your classic Bug.
• Proven Performance: While fuel injection offers precise fuel delivery, a well-tuned carburettor provides perfectly adequate performance for a classic Beetle, often with a more characteristic air-cooled feel.

Is Your Beetle Ready? Compatibility Check (1974 & Beyond)

A common question among those considering this conversion is whether a fuel injection to carburettor kit will fit their specific model year. The good news is that conversion kits, such as those designed to replicate the stock 1971 through 1974 Beetle components, are generally compatible with all Type 1 based, Dual Port engines. This means if you have a 1974 Beetle, the answer is a resounding yes, the kit is designed to fit.

The reason 1975 and later Beetles (and Super Beetles) were originally equipped with fuel injection, particularly for the US market, was primarily to meet tightening emissions regulations of the era. However, the underlying engine architecture of the Type 1 dual port engine remained largely consistent, making the carburettor swap a feasible undertaking for these models. The conversion kit provides virtually everything you need to make the change, from the air cleaner and carburettor itself to the manifold, boots, clamps, end castings, gaskets, and even a new alternator stand.

Crucial Considerations Before You Begin

While the conversion offers many benefits, it's essential to be aware of a few critical points before you embark on this project:

1. Legal and Emissions Compliance

This is perhaps the most vital consideration, especially for UK owners. Modifying a vehicle's fuel system can impact its emissions characteristics. While the UK's MOT (Ministry of Transport) test for older vehicles (pre-1980) has different emissions requirements than modern cars, it is crucial to check with the DVLA (Driver and Vehicle Licensing Agency) or a reputable local authority regarding any specific regulations concerning such a swap. Installing a carburettor on a car originally designed with emission controls may not be legal in all areas, or might require specific certifications. Always ensure your vehicle will remain road-legal after the conversion.

2. The Importance of the Exhaust System and Heat Risers

One of the most frequently overlooked, yet absolutely critical, aspects of this conversion is the exhaust system. The new dual port intake manifold, which is part of the carburettor conversion kit, is designed with heat risers. These risers are essential for preventing the intake manifold from "icing up," a phenomenon that can occur in colder climates or conditions of high humidity when the fuel/air mixture cools rapidly as it vaporises, causing ice to form inside the manifold. This icing can lead to poor running, stalling, and reduced performance.

For the heat risers on the new intake manifold to function correctly, they need to connect to a compatible exhaust system with corresponding heat riser pipes. A 1973 and earlier style exhaust system is highly recommended, if not an outright necessity, for optimal operation. This often means replacing your original fuel-injected exhaust system, which typically lacked these heat riser connections or had different routing. Bear in mind that swapping to an earlier carburetted style exhaust system will likely require new heater boxes or J-tubes, as the original heater boxes and intermediate pipes from the fuel-injected setup are generally not compatible.

While some in warmer climates might choose to skip connecting the heat risers, it is generally advised against, even in the UK, given our variable weather. A complete exhaust swap to a carburetted style is considered best practice for long-term performance and reliability.

3. Mechanical Aptitude

The installation of a carburettor conversion kit is an involved process that requires a good working knowledge of simple VW mechanics. It is not a job for the absolute beginner. You will be dealing with fuel lines, electrical connections, and critical engine components. If you're unsure about any step, it's always best to consult with an experienced VW mechanic or seek professional assistance.

Deconstructing the Fuel Injection System: Step-by-Step Removal

The first major phase of the conversion involves carefully removing all the existing fuel injection components. This process requires patience and methodical attention to detail.

1. Disconnect the Battery: Safety first! Always disconnect the negative terminal of your battery before working on any electrical components or fuel systems to prevent accidental shorts or sparks.
2. Drain Fuel (Optional but Recommended): While not strictly necessary to drain the entire tank, be prepared for some fuel spillage from lines. Having rags and a suitable container ready is advisable.
3. Remove Air Box and Breather Hoses: Begin by detaching the large air box that typically sits above the engine, along with any associated breather hoses.
4. Disconnect Air Flow Metre and Throttle Body: These are usually located prominently at the top of the engine. Carefully disconnect all wiring harnesses and vacuum lines leading to them.
5. Remove Intake Manifold and End Castings: The fuel injection intake manifold, which houses the fuel injectors within its end castings, will need to be unbolted from the cylinder heads. Be mindful of any remaining fuel in the lines connected to the injectors.
6. Remove Fuel Hoses and Wiring: Trace and remove all fuel hoses and electrical wiring in the engine compartment that specifically pertain to the fuel injection system. This includes the fuel pressure regulator and any sensors.
7. Unstrap Alternator and Remove Alternator Stand: The alternator is strapped to its stand. Unstrap it, and then remove the entire fuel-injected intake manifold and alternator stand assembly. This clears the upper engine area for the new components.

Building Your Carburettor System: Installation Guide

With the old system removed, you can now begin installing the new carburettor components.

1. Accelerator Cable and Fan Shroud Modification: The original fuel injection system uses a different accelerator cable routing. You'll need to either drill a new guide hole in your existing fan shroud for the carburettor cable or, for a simpler solution, install a new (or used) "doghouse" style fan shroud that is already drilled for the carburettor cable. Guide the accelerator cable through this new hole.
2. Install Oil Deflect Plate and New Alternator Stand: Position the oil deflect plate, then secure the new carburettor-specific alternator stand. Once the stand is in place, strap your alternator down securely to it.
3. Install New Oil Filler Tube: The new oil filler tube can now be screwed into the new alternator stand.
4. Position Fan Shroud and Alternator: Carefully set the modified or new fan shroud and alternator back into place, ensuring the accelerator cable is correctly guided. Strap the alternator securely.
5. Install Intake Manifold Assembly: This is a crucial step for proper sealing. Begin by installing new gaskets at both cylinder heads. Slide one of the intake end castings into place, then slide the new dual port intake manifold and its rubber boot onto it. Repeat the process for the opposite side intake end casting, manifold, and boot. Ensure all components are properly seated.
6. Connect Heat Risers (if applicable): If you have opted for the recommended carburetted style exhaust system, install the heat risers into the manifold and bolt them to the corresponding heat risers on the exhaust, using new gaskets. Tighten all nuts, bolts, and manifold boot clamps once everything is aligned and seated.

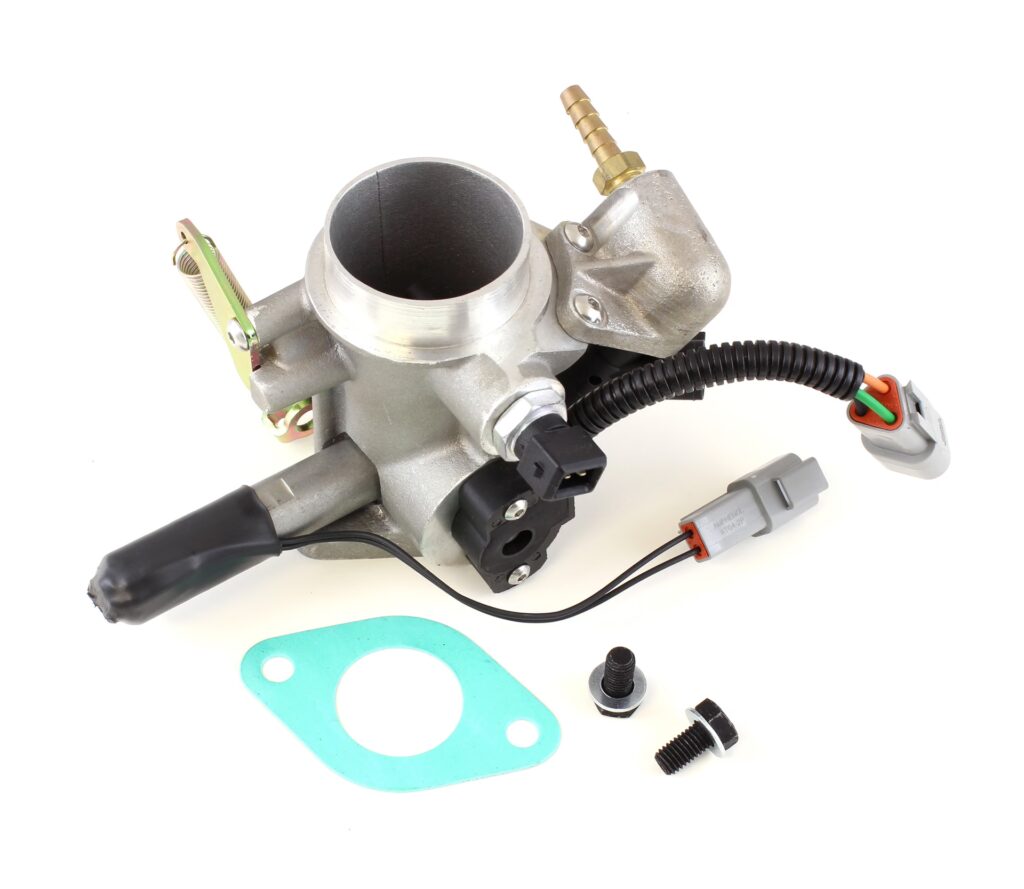

7. Mount the Carburettor: Place the new carburettor base gasket onto the manifold, followed by the carburettor itself. Secure it by tightening the mounting nuts.
8. Fuel Line Connection at Carburettor: Connect the fuel line to the inlet of the carburettor and secure it with a clamp. Route the other end of this line towards the left side of the engine where it will connect to the main fuel supply.
9. Install Air Filter and Breather Hose: Attach the new air filter assembly to the carburettor. The breather hose will route from a vent port on the bottom of the air cleaner to the vent port on the new oil filler tube.
10. Connect Accelerator Cable: Attach the re-routed accelerator cable to the carburettor's linkage, ensuring smooth operation.
11. Electrical Connections for Carburettor: The carburettor typically requires power for its idle solenoid and choke element. Run a power wire from the positive side of the ignition coil to the idle solenoid, then to the choke element. It's critical to note that this coil circuit is usually unfused, so route the wire carefully, away from any potential points of short-circuiting or abrasion.

Overhauling the Fuel Delivery: Pump & Lines

The fuel injection system's high-pressure fuel pump and associated electronics are incompatible with a carburettor's low-pressure requirements. This part of the conversion focuses on adapting the fuel supply.

1. Remove Fuel Injection System Components: The fuel injection relay, the fuel injection computer (ECU), and the high-pressure fuel pump all need to be removed from the vehicle.
2. Manage Fuel Return Lines: The fuel injection system typically has fuel return lines from the engine (at the fuel pressure regulator) back to the fuel tank. These lines can either be entirely removed or, more commonly, simply capped off. Crucially, ensure the return line at the fuel tank itself is securely capped or plugged to prevent fuel leaks.
3. Install New Low-Pressure Electric Fuel Pump: The original main fuel line from the tank can be reused up to the point where the new fuel pump will be installed. Connect this line to the inlet of a new, low-pressure fuel filter. Use a small section of hose to connect the filter to the inlet of your new electric fuel pump. Then, connect the original fuel line (or a new appropriate line) from the pump's outlet to the carburettor.
4. Mount and Wire the Fuel Pump: Securely mount the new electric fuel pump to the chassis. The black wire on the pump is typically the ground wire; ensure it's properly grounded to the chassis mount or a suitable grounding point. For power, source it from any "key-hot" fuse on the fuse box – meaning it receives power only when the ignition key is on. The pump generally draws less than 5 amps, so a suitable circuit must be chosen.

The Conversion Kit: What's Typically Included?

A comprehensive fuel injection to carburettor conversion kit is designed to provide most of the necessary components for a successful swap. While contents can vary slightly between manufacturers, a typical kit will include:

Carburettor vs. Fuel Injection: A Quick Comparison

Understanding the fundamental differences between these two fuel delivery systems can help appreciate the implications of the conversion.

Frequently Asked Questions (FAQs)

Will a fuel injection to CARB kit fit a 1974 Beetle?

Yes, absolutely. The fuel injection to carburettor conversion kits are specifically designed to fit 1971 through 1974 Beetle models, as they are based on the stock components for those years and are compatible with all Type 1 based, Dual Port engines.

What is a VW fuel injection to carburettor conversion kit?

It's a comprehensive package of parts designed to replace your Volkswagen's factory fuel injection system with a carburettor system. These kits typically include the carburettor itself, intake manifold, air cleaner, fuel pump, various lines, gaskets, and other necessary components to facilitate a complete and successful swap. The aim is to simplify the fuel delivery system and improve reliability.

Does a Beetle have a carburettor?

Historically, yes, most Volkswagen Beetles were originally equipped with carburettors. However, for the US market, Beetles from 1975 onwards (including the final sedan models in 1977) were fitted with Bosch fuel injection to comply with stricter emissions regulations. In other parts of the world, carburettors remained standard on Beetles for much longer, with some late Mexican Beetles eventually adopting fuel injection too. So, it depends on the year and market.

Is it difficult to convert from FI to carburettor?

It is an involved process, certainly not a quick bolt-on job. It requires a good working knowledge of basic VW mechanics, including understanding of fuel lines, electrical connections, and engine component removal/installation. However, with the right kit, instructions, and patience, it is a manageable project for a competent home mechanic.

Do I need a new exhaust system for the conversion?

While not strictly part of the conversion kit, a 1973 and earlier style exhaust system with heat risers is highly recommended, and in colder climates, it's virtually a necessity. The new intake manifold in the kit has heat risers that need to connect to the exhaust to prevent manifold icing. Your original fuel-injected exhaust will likely not have these connections or be compatible, necessitating a swap to an earlier carburetted style exhaust, including potentially new heater boxes or J-tubes.

Final Checks and Adjustments

Once all components are installed, the job isn't quite finished. There are crucial final steps to ensure your Beetle runs correctly:

1. Reconnect Battery: Reconnect the negative terminal of your battery.
2. Check Fuel Pump Operation: Turn the ignition key to the "on" position (without starting the engine) and listen for the new electric fuel pump to prime. This confirms it's receiving power.
3. Inspect for Fuel Leaks: Before attempting to start, thoroughly inspect all fuel line connections for any signs of leaks. Address any leaks immediately.
4. Initial Start-Up: Once you're confident there are no leaks and everything is connected, attempt to start the car. It might take a few cranks to get fuel to the carburettor.
5. Ignition Timing and Carburettor Adjustment: After the engine starts and warms up, the ignition timing will need to be double-checked and adjusted if necessary. More importantly, the carburettor will require careful adjustment (idle speed, mixture screws) to ensure smooth running, good throttle response, and optimal fuel economy. This often requires a keen ear or a vacuum gauge and can sometimes be best left to a mechanic experienced with carburettors, especially if you're aiming for peak efficiency.

Converting your beloved Volkswagen Beetle from fuel injection to a carburettor system is a significant undertaking, but one that many enthusiasts find incredibly rewarding. It strips away the complexities of an ageing electronic system, replacing it with the straightforward mechanics that define the classic Beetle experience. With careful planning, the right parts, and a methodical approach, you can breathe new life into your Bug, ensuring it continues to deliver miles of smiles with enhanced reliability and ease of maintenance for years to come. Embrace the simplicity, and enjoy the open road!
