Understanding the Exhaust Stroke

The Essential Exhaust Stroke: Clearing the Way for Power

In the intricate dance of an internal combustion engine, each stroke plays a crucial role in generating the power that propels your vehicle. While the intake, compression, and power strokes often steal the limelight, the exhaust stroke is equally vital. It's the diligent cleaner, clearing the cylinder of spent gases to make way for the next cycle of combustion. Without an efficient exhaust stroke, your engine would quickly choke on its own byproducts, leading to a dramatic loss of power and eventual failure. This article will delve into the mechanics of the exhaust stroke, its importance, and how it interacts with the other phases of the engine's cycle.

What Exactly is the Exhaust Stroke?

The exhaust stroke is the fourth and final stroke in a four-stroke internal combustion engine's operating cycle. During this phase, the piston travels upwards from the bottom dead centre (BDC) to the top dead centre (TDC). Crucially, the exhaust valve is open, while the inlet valve remains firmly shut. As the piston ascends, it acts like a plunger, forcefully expelling the burnt gases (exhaust fumes) from the combustion chamber, through the open exhaust valve, and into the exhaust system. This process effectively clears the cylinder, preparing it for the next intake of fresh air and fuel.

The Four Strokes: A Cyclic Harmony

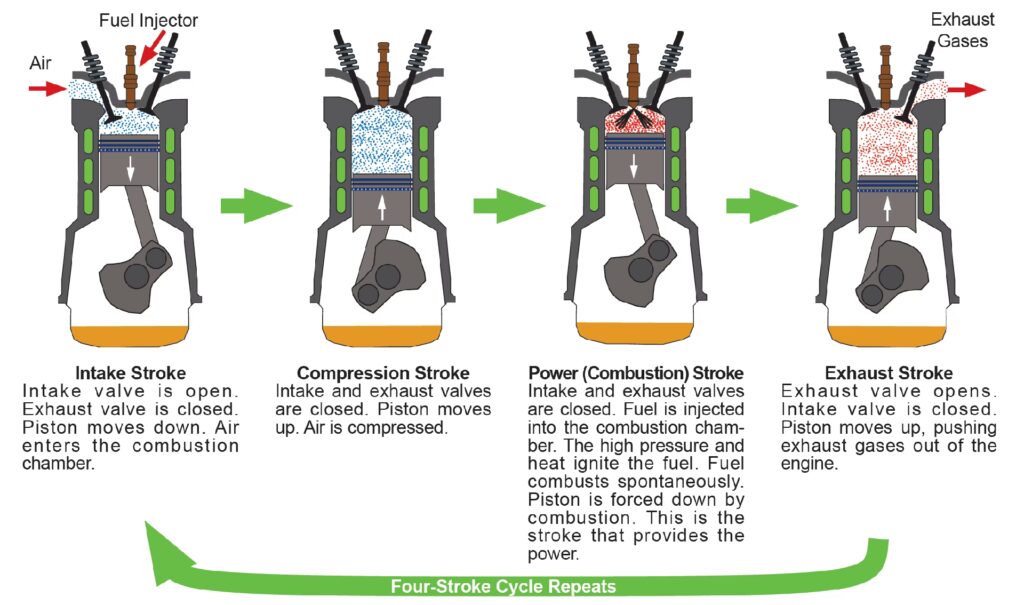

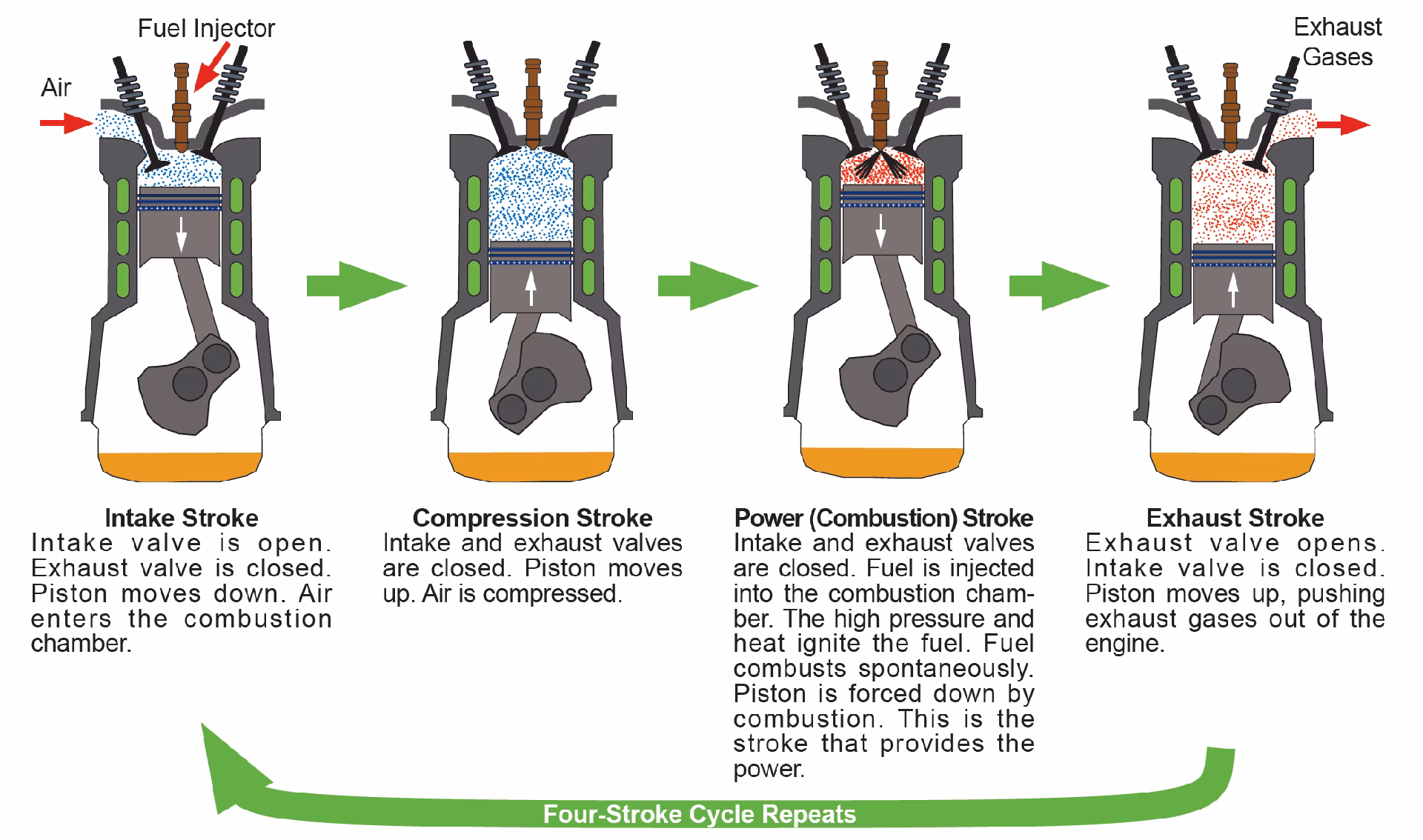

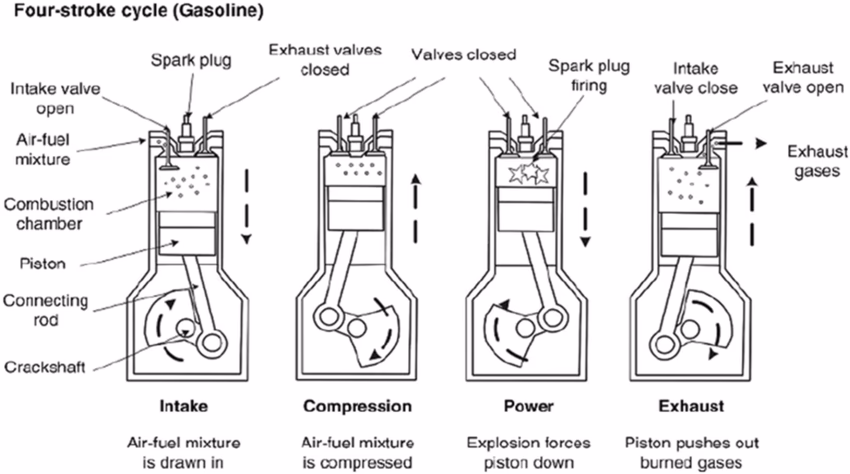

To fully appreciate the exhaust stroke, it's helpful to understand its place within the broader four-stroke cycle:

• Intake Stroke: The piston moves downwards, and the inlet valve opens, drawing the air-fuel mixture into the cylinder.
• Compression Stroke: The piston moves upwards, both valves are closed, compressing the air-fuel mixture.
• Power Stroke: The spark plug ignites the compressed mixture, causing an explosion that forces the piston downwards, generating power. Both valves remain closed during this critical phase.
• Exhaust Stroke: The piston moves upwards, the exhaust valve opens, and the burnt gases are pushed out of the cylinder.

This sequence repeats continuously, with the crankshaft revolving twice for every complete cycle of four strokes. The effective clearing of the cylinder during the exhaust stroke is what allows the engine to breathe and produce power efficiently.

Distinguishing the Exhaust Stroke from the Power Stroke

The fundamental difference between the power stroke and the exhaust stroke lies in their purpose and the action of the valves. The power stroke is all about energy generation. It begins after ignition, where the expanding gases from combustion exert immense pressure on the piston, driving it downwards. During this stroke, both the inlet and exhaust valves are closed to contain this explosive force. The exhaust stroke, conversely, is about expulsion. Its sole purpose is to remove the waste products of combustion. As the piston nears the bottom of its travel after the power stroke, the exhaust valve opens, and the piston's upward movement then pushes these gases out.

The Mechanics of Clearing the Cylinder

During the exhaust stroke, the piston's upward movement is the primary driver for expelling exhaust gases. However, the design of the engine plays a significant role. For instance, in some engines, the inlet valve may be timed to open slightly before the piston reaches Top Dead Centre (TDC) at the end of the exhaust stroke. This "valve overlap" can help scavenge residual exhaust gases by using the incoming fresh charge to help push out the last remnants of exhaust. The efficiency of this process directly impacts the amount of fresh fuel-air mixture that can enter the cylinder during the subsequent intake stroke, thereby influencing overall engine performance.

What Happens to the Gases?

As the piston completes the power stroke and begins its upward journey, the exhaust valve opens. The pressure built up inside the cylinder from the combustion process forces the hot, burnt gases to rush out through the open exhaust port. The piston's continued upward travel effectively sweeps the remaining gases out. These gases then travel through the exhaust manifold, catalytic converter (to reduce harmful emissions), muffler (to reduce noise), and finally exit the vehicle through the tailpipe. The composition of these exhaust gases is a significant environmental concern, containing pollutants like carbon monoxide, nitrogen oxides (NOx), and unburnt hydrocarbons, which modern emission control systems aim to minimise.

The Role of Valve Timing

Valve timing is absolutely critical for the efficient operation of any internal combustion engine. The precise moment the inlet and exhaust valves open and close dictates the performance and efficiency of each stroke. As mentioned, the inlet valve might open slightly before the exhaust stroke is fully completed (valve overlap). This is a deliberate design choice to optimise the scavenging of exhaust gases and ensure a full cylinder of fresh charge for the next combustion cycle. Incorrect valve timing, often due to worn timing belts or chains, can lead to a noticeable loss of power, rough idling, and increased fuel consumption.

Two-Stroke vs. Four-Stroke: A Key Difference

While the four-stroke engine is ubiquitous in modern vehicles, it's worth noting the contrast with two-stroke engines. A four-stroke engine completes one power stroke for every two revolutions of the crankshaft, utilising four distinct piston movements (intake, compression, power, exhaust). A two-stroke engine, on the other hand, achieves a power stroke for every single crankshaft revolution. It combines the intake and compression strokes into one upward movement and the power and exhaust strokes into one downward movement. This simpler design makes two-stroke engines lighter and more powerful for their size, but they are generally less fuel-efficient and produce higher emissions, often requiring oil to be mixed with the fuel for lubrication.

What About Other Engine Types?

While the four-stroke cycle is the standard for most cars and trucks, other engine configurations exist. For example, a three-stroke engine aims to complete a combustion cycle using a more complex piston arrangement. Diesel engines, while often operating on a four-stroke cycle, differ from petrol engines in that they only induct air during the intake stroke, with fuel being injected directly into the cylinder and ignited by compression heat, rather than a spark plug.

Calculating TDC on an Exhaust Stroke

Top Dead Centre (TDC) refers to the uppermost position a piston reaches within the cylinder. During the exhaust stroke, the piston is moving from BDC towards TDC. While you don't typically "calculate" TDC on an exhaust stroke in a practical sense for day-to-day maintenance, understanding piston position is crucial for engine timing. Engine timing marks on the crankshaft and camshaft pulleys are used to ensure that the valves open and close at the correct points in relation to the piston's position, especially for the start of the intake stroke and the ignition timing for the power stroke.

Why is it Called a 4-Stroke Engine?

The name "four-stroke engine" is derived from the four distinct movements, or strokes, of the piston required to complete one full operating cycle: intake, compression, power, and exhaust. Each stroke corresponds to a specific phase of the engine's operation, and together they form a continuous process of converting fuel into mechanical energy.

FAQs About the Exhaust Stroke

Q1: What is the primary function of the exhaust stroke?
The primary function is to expel the burnt gases from the cylinder after combustion, preparing it for the next intake of fuel and air.

Q2: Which valve is open during the exhaust stroke?
The exhaust valve is open during the exhaust stroke.

Q3: Does the piston produce power during the exhaust stroke?
No, the exhaust stroke is not a power-producing stroke. Power is generated during the power stroke.

Q4: What happens if the exhaust stroke is inefficient?
An inefficient exhaust stroke means that not all the burnt gases are expelled, leading to a reduced amount of fresh fuel-air mixture entering the cylinder, resulting in decreased engine power and efficiency.

Q5: Can valve overlap affect the exhaust stroke?
Yes, valve overlap, where the exhaust valve is still slightly open as the inlet valve begins to open, can aid in scavenging exhaust gases, improving the efficiency of the exhaust and subsequent intake strokes.

Q6: Where are the intake and exhaust valves typically located?
In most typical four-stroke engines, the intake and exhaust valves, along with the fuel injection nozzle, are located in the cylinder head.

Q7: What is another word for 'intake' in an engine context?
In an engine context, synonyms for intake can include 'admission', 'inlet', or 'uptake', referring to the process of drawing in the fuel-air mixture.

Understanding the exhaust stroke is key to appreciating the complex engineering that goes into making your car run. It's a testament to how each component and phase of operation must work in perfect harmony to deliver the power you need.
