Understanding Brake Pads: Your Car's Stopping Power

The braking system in any vehicle is arguably its most critical safety feature. Without effective brakes, even the most advanced engine or comfortable interior would be rendered useless. At the heart of this life-saving system lie the brake pads. These seemingly simple components are responsible for generating the friction necessary to slow down and stop your car, making their condition and quality paramount to your safety on the road. This article will delve into what brake pads are, how they function, the different types available, the tell-tale signs that indicate they need replacing, and why Al Mizan Spare Parts is your go-to supplier for reliable and high-performance brake pads.

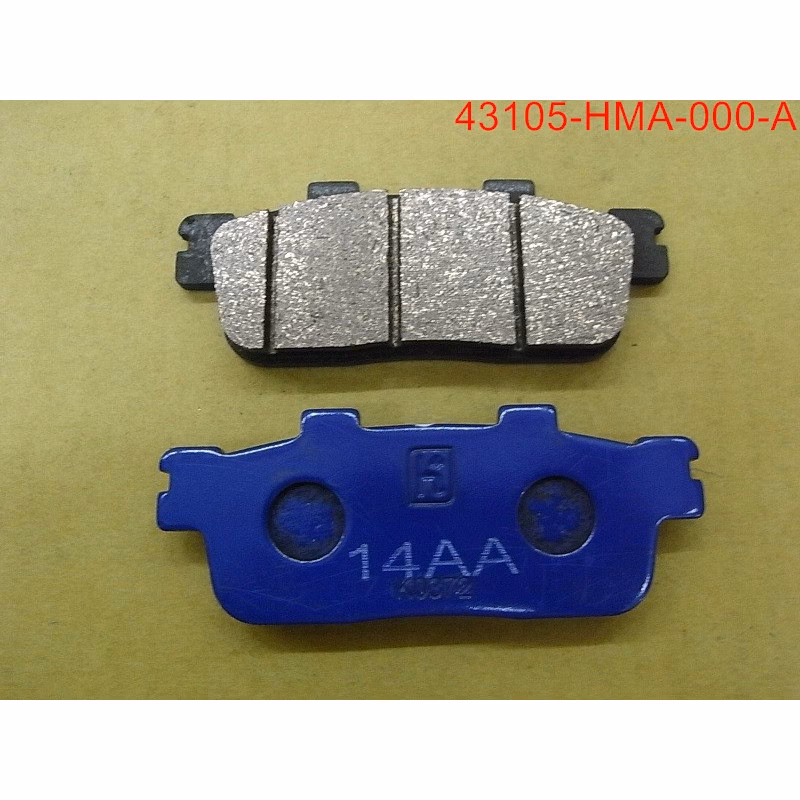

What Exactly Are Brake Pads?

Brake pads are friction material mounted to a metal backing plate. They are one of the most crucial components of a vehicle's braking system, specifically within the disc brake setup. When you press the brake pedal, hydraulic pressure is applied to a caliper, which in turn forces the brake pads to squeeze against the rotating brake disc (or rotor). This action creates friction, converting the kinetic energy of the moving vehicle into heat energy, thereby slowing down and eventually stopping the car. Think of them as the 'shoes' that grip the 'ankle' of your car's wheels. The effectiveness of this friction directly correlates to how quickly and safely your vehicle can stop.

How Do Brake Pads Work?

The operation of brake pads is a fundamental principle of physics, specifically the conversion of kinetic energy into thermal energy through friction. Here's a breakdown of the process:

1. Pedal Application: When you depress the brake pedal, you activate the master cylinder.
2. Hydraulic Pressure: The master cylinder converts the mechanical force of your foot into hydraulic pressure, pushing brake fluid through the brake lines.
3. Caliper Activation: This hydraulic pressure reaches the brake caliper. The caliper houses one or more pistons. As pressure builds, these pistons are pushed outwards.
4. Pad Engagement: The outward movement of the pistons forces the brake pads to press firmly against the rotating brake disc (rotor).
5. Friction and Heat: The contact between the brake pad material and the rotor surface generates significant friction. This friction is what slows the rotation of the wheel. The kinetic energy of the vehicle is converted into heat.
6. Stopping: As the wheel's rotation slows, the vehicle itself decelerates and eventually stops.

It's important to note that both the inner and outer surfaces of the brake disc are contacted by brake pads. For every wheel equipped with disc brakes, there will be an inner and an outer brake pad.

Types of Brake Pads

The material used in brake pads significantly impacts their performance, durability, noise levels, and cost. Here are the most common types:

1. Organic (Non-Asbestos Organic - NAO) Brake Pads

These are the most traditional and typically the most affordable type of brake pads. They are made from a composite of various materials, including recycled paper, rubber, Kevlar, and other compounds, bound together with a resin.

• Pros: Quiet operation, low rotor wear, and low initial cost.
• Cons: Tend to wear out faster than other types, produce more brake dust, and can suffer from 'brake fade' under heavy use (a reduction in braking effectiveness due to overheating).
• Best For: Everyday driving, lighter vehicles, and drivers who prioritize quietness and cost-effectiveness.

2. Semi-Metallic Brake Pads

As the name suggests, these pads are made from a blend of metallic fibers (like steel wool, copper, or iron) mixed with fillers and graphite. They typically contain between 30% and 65% metal content.

• Pros: Excellent heat dissipation, good stopping power, and durable. They perform well across a wide range of temperatures.
• Cons: Can be noisier than organic pads, produce more brake dust, and can cause slightly more rotor wear due to their metallic content.
• Best For: Most driving conditions, including spirited driving and heavier vehicles. They offer a good balance of performance and durability.

3. Ceramic Brake Pads

Ceramic brake pads are made from dense ceramic compounds mixed with non-ferrous fillers and a small amount of metal fiber for structural integrity. They are known for their high performance and clean operation.

• Pros: Very quiet, produce very little brake dust (often referred to as 'low dust'), excellent heat dissipation, and long lifespan. They also tend to be gentler on brake rotors.
• Cons: Generally the most expensive type of brake pad. They may not perform as optimally in extremely cold temperatures compared to semi-metallic pads.
• Best For: Drivers seeking a quiet, clean braking experience with excellent performance and longevity, especially for luxury or performance vehicles.

4. High-Performance / Racing Brake Pads

These are specialized pads designed for extreme conditions, such as track racing or heavy-duty towing. They are often made from sintered metallic compounds or specialized carbon-ceramic materials.

• Pros: Exceptional stopping power, extreme heat resistance, and very durable under intense loads.
• Cons: Very expensive, can be extremely noisy, produce significant dust, and may require higher operating temperatures to be effective, making them unsuitable for everyday road use. They can also cause rapid rotor wear.
• Best For: Dedicated racing applications, track days, and extremely heavy-duty use where ultimate stopping power is the absolute priority.

Signs Your Brake Pads Need Replacing

Brake pads wear down over time with normal use. It's crucial to be aware of the warning signs that indicate they are nearing the end of their service life to avoid potential brake failure and costly damage to your brake discs.

1. Squealing or Grinding Noises

Most brake pads have a small metal indicator built into them called a wear indicator. When the pad material wears down to a certain thickness, this indicator makes contact with the rotor, producing a high-pitched squealing sound whenever the brakes are applied. This is your first audible warning. If you hear a deep grinding noise, it often means the pad material has completely worn away, and the metal backing plate is grinding against the rotor. This is a serious issue that can damage the rotor and requires immediate attention.

2. Longer Stopping Distances

As brake pads wear down, their ability to generate sufficient friction diminishes. If you notice that your car is taking longer to stop than it used to, or if you have to press the brake pedal further down to achieve the same stopping power, your brake pads are likely worn.

3. Vibrations or Pulsations

If you feel vibrations or pulsations through the brake pedal or steering wheel when you brake, it can indicate that the brake pads are worn unevenly, or that the brake rotors have become warped due to excessive heat. Worn pads can contribute to rotor issues.

4. Thin Brake Pads

Visually inspecting your brake pads is the most direct way to check their condition. You can usually see the pads through the spokes of your wheels. If the friction material appears to be less than 1/4 inch (about 6mm) thick, it's time to consider replacing them. Many pads have a visible wear indicator groove; if this groove is gone, replacement is recommended.

5. Warning Light on the Dashboard

Many modern vehicles are equipped with sensors that monitor brake pad thickness. If your brake pads are equipped with these sensors and they reach a critical wear level, a warning light will illuminate on your dashboard, typically shaped like a circle with dashed lines on either side (often red or amber).

Why Choose Al Mizan Spare Parts for Your Brake Pads?

At Al Mizan Spare Parts, we understand the critical importance of reliable and high-quality braking systems. As a major player in the UAE's automobile accessories market, we supply a wide range of car brake pads and other essential components, ensuring supreme quality and high performance for your vehicle.

• Quality Assurance: We stock brake pads from all major manufacturers, guaranteeing that you receive products that meet stringent quality standards. This means you can drive with confidence, knowing your brakes are up to the task.
• Performance: Our selection focuses on brake pads that deliver optimal performance, ensuring efficient stopping power and responsiveness, crucial for safe driving, especially during heavy or prolonged driving courses.
• Affordability: We are committed to offering the best-priced brake pads without compromising on quality. We believe that essential safety components should be accessible and affordable.
• Wide Selection: With a vast stock covering numerous manufacturers, you're likely to find the exact brake pads you need for your specific make and model.
• Expertise: Having been in the industry for a considerable time, we have built a reputation for supplying reliable spare parts that drivers can depend on.

Frequently Asked Questions

Q1: How often should I replace my brake pads?

A1: The replacement interval for brake pads varies greatly depending on driving habits, driving conditions, and the type of brake pads used. However, a general guideline is to inspect them every 10,000-15,000 miles (16,000-24,000 km) and replace them when they reach a thickness of about 3-4mm. Some pads can last up to 50,000 miles (80,000 km) or more, while others might need replacing much sooner.

Q2: Can I replace brake pads myself?

A2: Replacing brake pads is a task that many DIY enthusiasts can tackle, but it requires specific tools and a good understanding of the braking system. If you're not confident or experienced, it's always best to have them replaced by a qualified mechanic to ensure they are fitted correctly and safely.

Q3: What is 'brake fade'?

A3: Brake fade is a phenomenon where the effectiveness of the brakes decreases significantly, especially after repeated or prolonged use, such as during downhill driving or spirited driving. It's typically caused by the overheating of the brake pads and rotors, which reduces the friction coefficient between them. Organic pads are more prone to brake fade than semi-metallic or ceramic pads.

Q4: Do I need to replace my brake rotors when I replace my pads?

A4: Not always. Rotors should be replaced if they are significantly worn, warped, grooved, or if the minimum thickness specification has been reached. If your rotors are in good condition and have plenty of life left, they can often be used with new pads. However, it's good practice to have them inspected by a professional.

Q5: How does Al Mizan Spare Parts ensure the quality of their brake pads?

A5: Al Mizan Spare Parts sources its brake pads from reputable manufacturers known for their quality and performance. We maintain a wide stock of products from leading brands, ensuring that our customers receive reliable and effective components for their vehicles.

Conclusion

Brake pads are indispensable components that directly impact your vehicle's safety and performance. Understanding their function, the different types available, and the signs of wear is crucial for any car owner. By ensuring you have high-quality brake pads and replacing them when necessary, you safeguard yourself, your passengers, and other road users. Al Mizan Spare Parts is dedicated to providing the UAE's automotive community with top-tier brake pads, offering a combination of supreme quality, high performance, and competitive pricing. Don't compromise on your stopping power; choose Al Mizan for your braking needs.
