MOT Type 1 Sub Base Explained

When embarking on any groundwork project, from a simple patio to a robust driveway, understanding the materials you're using is paramount. One of the most fundamental components in achieving a stable and long-lasting foundation is the sub-base. Specifically, MOT Type 1 (also known as Class 1A Fill Sub Base) is a widely specified aggregate used extensively in the UK for road construction and various civil engineering projects. This article delves into the crucial aspects of MOT Type 1, focusing on its density, how to calculate the required quantities, and its importance in creating a solid base for your construction.

What Exactly is MOT Type 1?

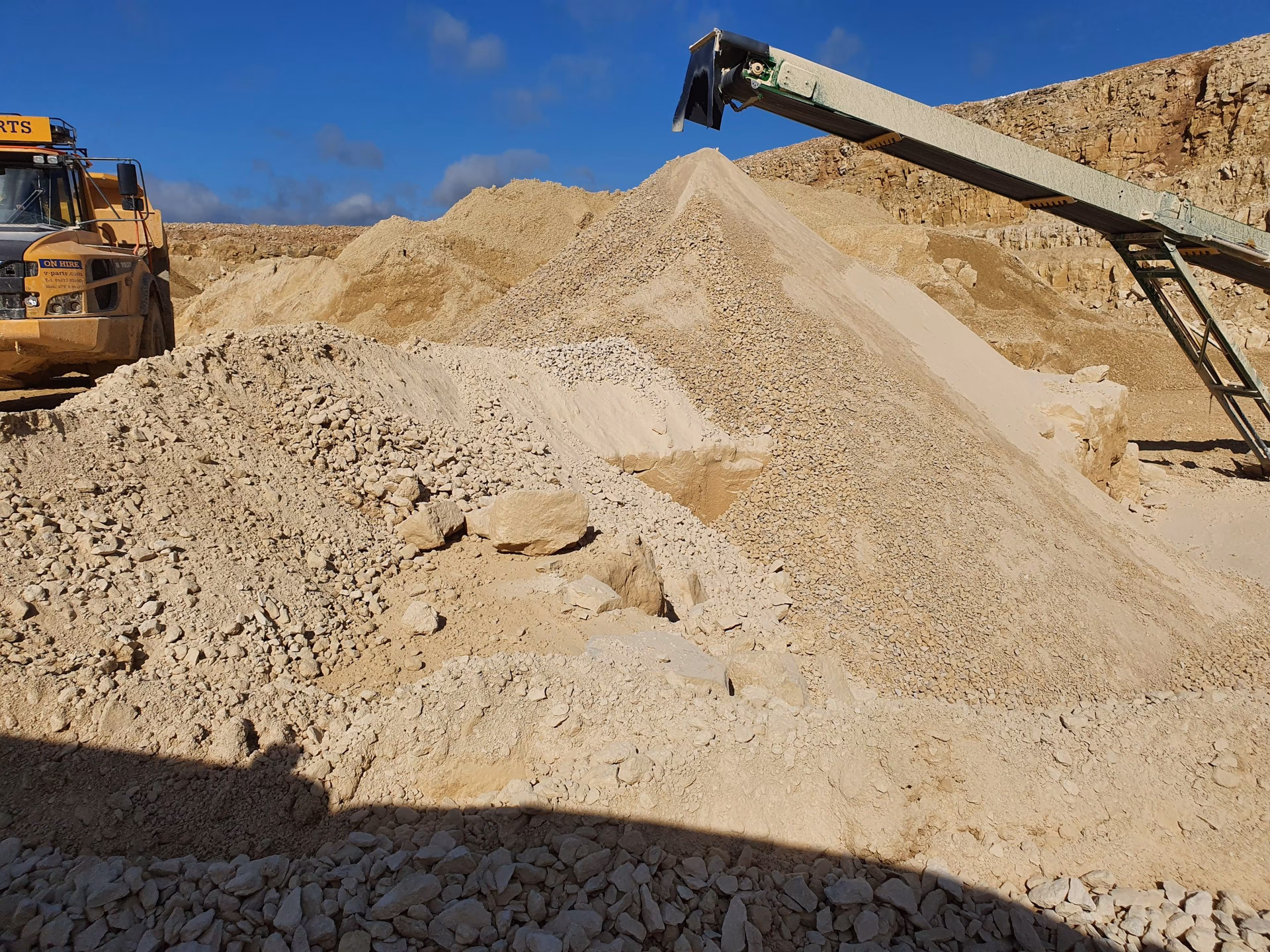

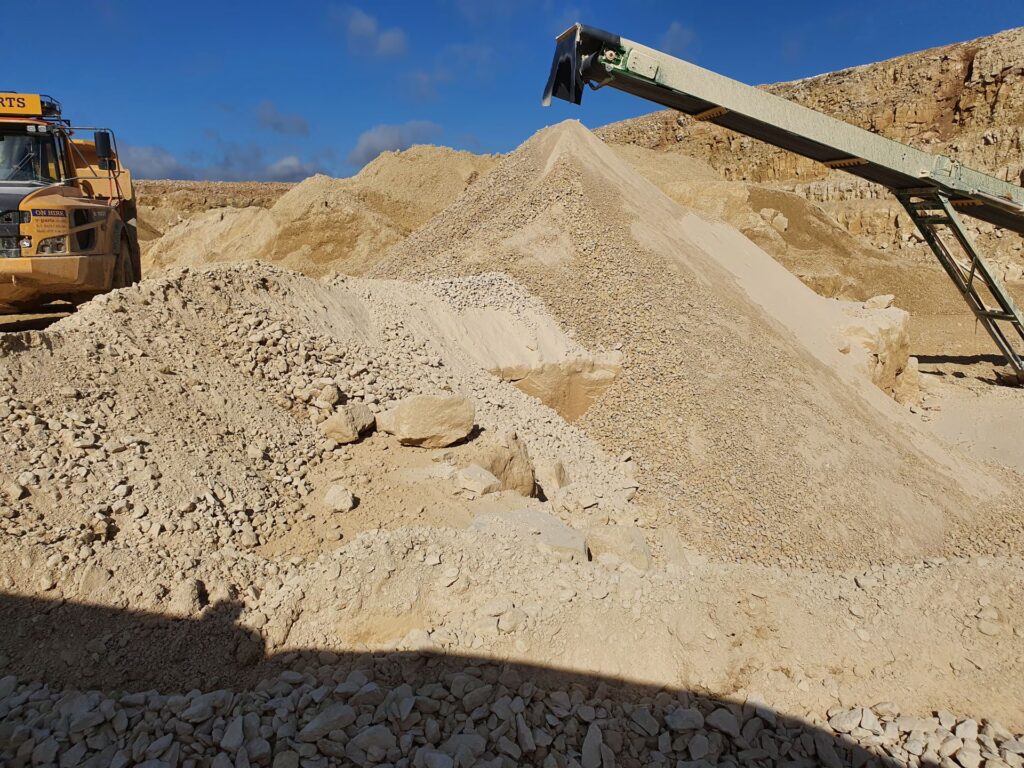

MOT Type 1 is a crushed aggregate, typically derived from limestone or granite, that has been processed to meet stringent Department for Transport (DfT) specifications. The "MOT" stands for Ministry of Transport, the precursor to the Department for Transport. Its key characteristic is that it's a well-graded aggregate, meaning it contains a good mix of particle sizes, from fine dust to larger stones. This grading is crucial for its performance.

The aggregate is crushed and screened to create a product that, when compacted, forms a dense, stable, and load-bearing layer. This inherent stability makes it ideal for use as a sub-base beneath pavements, roads, car parks, and other trafficked areas. It effectively distributes loads, prevents the movement of the underlying soil, and provides a firm platform for subsequent layers, such as asphalt or concrete.

The Crucial Factor: Density of MOT Type 1

Understanding the density of MOT Type 1 is essential for accurate quantity calculations. Density refers to the mass of a substance per unit volume. For MOT Type 1, the commonly accepted density is 1.50 tonnes per cubic metre (t/m³). This figure is based on the material in a compacted state.

It's also helpful to understand the inverse of this: the volume per tonne. If 1 cubic metre weighs 1.50 tonnes, then 1 tonne will occupy approximately 0.67 cubic metres (1 / 1.50). However, the provided information often uses a slightly rounded figure for practical purposes, stating 0.7 cubic metres per tonne (m³/t). This is a useful conversion factor when ordering materials, as suppliers often quote prices per tonne.

It's important to note that density can vary slightly depending on the specific source of the aggregate (limestone vs. granite) and its moisture content. However, 1.50 t/m³ is the standard figure used for estimations in the construction industry.

Calculating Your MOT Type 1 Requirements

Accurate quantity calculation is vital to avoid over-ordering or under-ordering materials, both of which can lead to significant cost implications and project delays. The process involves calculating the volume of the area to be filled and then converting that volume into weight (tonnes) or volume (cubic metres), considering the material's density.

Step 1: Calculate the Volume

To calculate the volume, you need three dimensions: length, width, and depth. Ensure all measurements are in the same units before performing the calculation. Common units used are metres or feet.

The formula for volume is:

Volume = Length × Width × Depth

Let's consider an example. Suppose you need to lay a MOT Type 1 sub-base for a patio with the following dimensions:

• Length: 10 metres
• Width: 5 metres
• Depth: 0.15 metres (15 cm)

Using the formula:

Volume = 10 m × 5 m × 0.15 m = 7.5 m³

Step 2: Convert Volume to Weight (Tonnes)

Now that you have the volume in cubic metres, you can convert it to tonnes using the density of MOT Type 1 (1.50 t/m³).

Weight (tonnes) = Volume (m³) × Density (t/m³)

Using our example volume of 7.5 m³:

Weight = 7.5 m³ × 1.50 t/m³ = 11.25 tonnes

Step 3: Account for Compaction

It's a well-known fact in groundwork that aggregates compact significantly when laid and vibrated. A common rule of thumb is to add an extra 10-15% to your calculated weight to account for this compression and any minor wastage. This ensures you have enough material to achieve the desired finished depth after compaction.

Adding 15% to our calculated weight:

Additional weight = 11.25 tonnes × 0.15 = 1.125 tonnes

Total estimated weight = 11.25 tonnes + 1.125 tonnes = 12.375 tonnes

Therefore, for our 10m x 5m x 0.15m patio, you would need to order approximately 12.5 tonnes of MOT Type 1 sub-base.

Using the Calculator

The provided information includes a calculator that simplifies this process. You can enter your dimensions in various units (centimetres, metres, inches, feet, or yards), and it will automatically calculate the required volume in cubic metres and the estimated weight in tonnes, including a provision for compression.

For instance, if you were to input:

• Depth: 6 inches (which is approximately 0.15 metres)
• Width: 16.4 feet (which is approximately 5 metres)
• Length: 32.8 feet (which is approximately 10 metres)

The calculator would output a volume of 7.5 m³ and an estimated weight of around 11.25 tonnes, plus the additional percentage for compression, giving you the final order quantity.

Why is a Proper Sub-Base So Important?

The MOT Type 1 sub-base is the bedrock upon which your entire construction rests. Its importance cannot be overstated for several key reasons:

• Load Distribution: It effectively spreads the weight of vehicles or pedestrians over a larger area of the sub-grade (the natural soil beneath), preventing excessive pressure on any single point.
• Drainage: The well-graded nature of MOT Type 1 allows for good drainage. Water that penetrates the surface layers can drain through the sub-base, preventing waterlogging and frost heave, which can cause significant damage.
• Stability and Strength: When properly compacted, MOT Type 1 creates a firm, stable layer that resists deformation and provides a solid platform for the overlying materials. This prevents cracking, sinking, or other failures in the finished surface.
• Frost Protection: By providing a stable, well-drained layer, MOT Type 1 helps to protect the underlying layers from the damaging effects of frost, particularly in colder climates.
• Preventing Mixing: It acts as a barrier, preventing the finer materials of the sub-grade from mixing with the overlying construction layers, which would compromise their structural integrity.

Common Pitfalls to Avoid

While MOT Type 1 is a robust material, improper installation can undermine its effectiveness. Be mindful of these common mistakes:

• Insufficient Depth: Failing to lay the sub-base to the recommended depth is a common error. The required depth depends on the expected load; heavier loads require a thicker sub-base.
• Poor Compaction: Simply dumping the material and spreading it is not enough. Adequate compaction, typically using a vibrating plate compactor or a roller, is crucial to achieve the material's full potential density and stability.
• Incorrect Material: Ensure you are using genuine MOT Type 1 aggregate that meets the specifications. Using a different type of aggregate may result in inadequate performance.
• Inadequate Drainage Planning: While MOT Type 1 aids drainage, the overall site grading and any additional drainage measures should still be considered to prevent water accumulation.

Frequently Asked Questions (FAQs)

Q1: What is the difference between MOT Type 1 and MOT Type 2?

MOT Type 1 is a well-graded aggregate suitable for sub-bases. MOT Type 2, on the other hand, is a cleaner, single-sized aggregate (typically 20mm or 40mm) used for drainage layers and capping layers where high permeability is required.

Q2: Can I use MOT Type 1 for the final surface layer?

No, MOT Type 1 is a sub-base material. It needs to be covered by a more durable surface layer such as asphalt, concrete, block paving, or tarmac for the final finish.

Q3: How thick should the MOT Type 1 layer be?

The required thickness varies depending on the application and expected load. For domestic driveways and patios, a minimum of 100mm (0.1m) after compaction is typical. For heavier loads, such as roads or commercial areas, depths of 150mm (0.15m) or more may be required.

Q4: What is the density of compacted MOT Type 1?

The commonly accepted density for compacted MOT Type 1 is 1.50 tonnes per cubic metre (t/m³).

Q5: How much extra should I order for compaction?

It's advisable to add 10-15% to your calculated quantity to account for compaction and potential wastage.

Conclusion

MOT Type 1 (Class 1A Fill Sub Base) is a cornerstone of effective groundwork and civil engineering projects in the UK. Its carefully controlled grading and inherent density, when properly compacted, provide the essential stability, load-bearing capacity, and drainage required for a durable foundation. By understanding its properties and using accurate calculation methods, whether manually or with a helpful calculator, you can ensure you order the correct amount of material, leading to a successful, long-lasting, and cost-effective construction. Always prioritize quality materials and proper installation techniques to achieve the best results.
