Fuel Pulse Dampers Explained

In the intricate world of internal combustion engines, maintaining optimal fuel delivery is paramount for performance, efficiency, and longevity. One component that often plays a crucial, yet sometimes overlooked, role in this process is the Fuel Pulse Damper (FPD). You might be asking yourself, "Do I actually need a fuel pulse damper?" The answer often lies in the behaviour of your engine, particularly when it comes to fuel pressure stability. As fuel injectors rapidly open and close, they generate pressure waves, or pulses, within the fuel rail. These oscillations can lead to unpredictable and inconsistent fuel pressure, which can manifest in various drivability issues. A Fuel Pulse Damper is designed to counteract these effects, ensuring a more consistent and reliable fuel supply to your engine.

Understanding Fuel Pressure Instability

The primary function of a fuel injection system is to deliver a precise amount of fuel to the cylinders at the right time. This precision relies heavily on stable fuel pressure. When the injectors fire, they momentarily draw fuel from the rail, causing a slight drop in pressure. As they close, the fuel pump and regulator work to restore this pressure. This continuous cycle of pressure drops and increases, especially with modern, high-flow injectors that cycle very rapidly, can create resonance within the fuel rail. These pressure waves, or pulses, can propagate through the fuel system, leading to fluctuations in the actual fuel pressure delivered to the injectors. These fluctuations can be particularly problematic under varying engine loads and RPMs.

The Role of a Fuel Pulse Damper

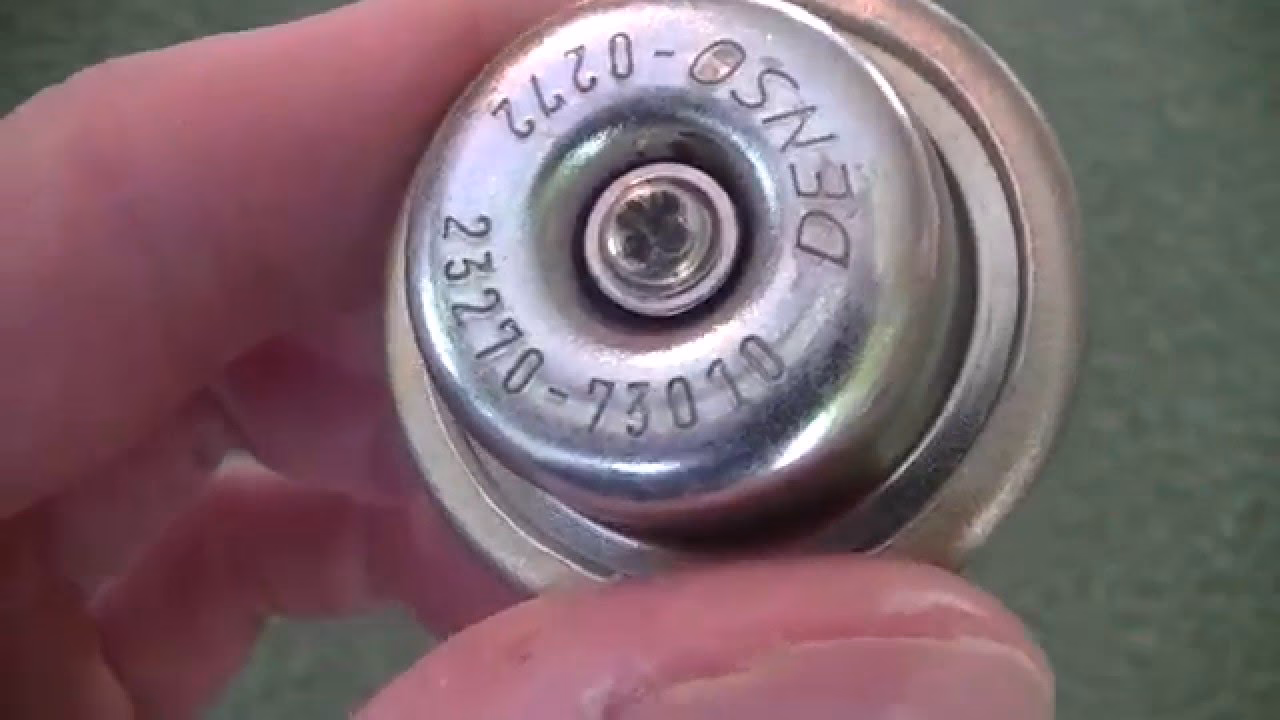

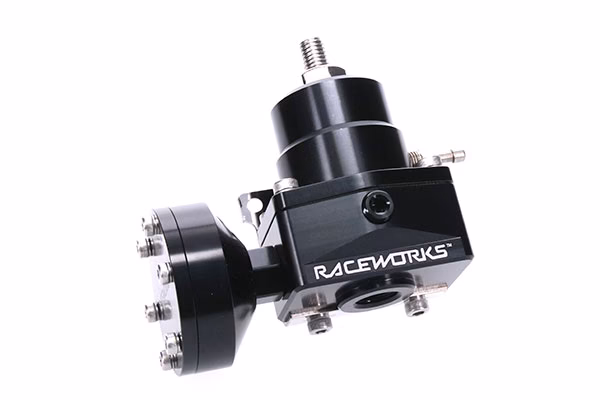

A Fuel Pulse Damper acts as a sophisticated shock absorber for your fuel rail. Internally, it typically features a diaphragm or a similar flexible membrane, often coupled with a small chamber filled with air or an inert gas. When pressure pulses occur in the fuel rail, the diaphragm flexes, absorbing the energy of these oscillations. This absorption effectively smooths out the pressure fluctuations, maintaining a more consistent and stable fuel pressure throughout the entire operating range of the engine. Think of it like a miniature hydraulic accumulator specifically designed to dampen these high-frequency pulses.

Benefits of Installing a Fuel Pulse Damper

The benefits of a properly functioning FPD can be quite significant:

• Improved Idle Stability: Unstable fuel pressure can often lead to an erratic idle, causing the engine to surge or feel rough. By stabilising pressure, an FPD can help resolve these symptoms, leading to a smoother and more consistent idle.
• Better Air/Fuel Ratio Control: Fluctuating fuel pressure directly impacts the air/fuel ratio. If the pressure drops unexpectedly, the mixture can become lean, and if it spikes, it can become rich. An FPD helps maintain the target air/fuel ratio, which is crucial for optimal combustion, emissions, and performance.
• Resolution of "Stumbling" or Hesitation: Many drivers experience sudden, brief moments of hesitation or stumbling, particularly during acceleration. These can often be attributed to erratic lean air/fuel ratio spikes caused by fuel pressure instability. An FPD can effectively mitigate these issues, providing a more responsive and predictable throttle input.
• Enhanced Tunability: For those who tune their vehicles, particularly with aftermarket modifications like high-flow injectors or forced induction, an FPD can simplify the tuning process. It removes a variable – fuel pressure instability – that can be difficult to tune out through software adjustments alone.
• Protection of Fuel System Components: While not its primary function, a consistent fuel pressure can also contribute to the longevity of fuel pumps and injectors by reducing stress caused by pressure spikes.

What Makes Radium FPDs Unique?

Radium Engineering has developed a range of Fuel Pulse Dampers that offer several distinct advantages, making them a popular choice for enthusiasts and tuners:

• Versatile Fittings: Radium FPDs are designed to be compatible with common aftermarket fuel line fittings, offering flexibility in installation. They typically feature selectable threaded male fittings, such as 8AN ORB or 3/8" NPT, allowing for easy integration into various fuel systems.
• Vacuum/Boost Reference Port: This is a key differentiator. Radium FPDs incorporate a vacuum/boost reference port. This allows the damper to be connected to the engine's intake manifold vacuum or boost pressure. This connection is vital for ensuring the FPD functions correctly, especially in boosted applications that utilise a 1:1 rising rate fuel pressure regulator. In such systems, fuel pressure increases in proportion to boost pressure, and the FPD needs to be referenced to this to maintain optimal stability across the entire boost range.

Choosing the Right Radium Fuel Pulse Damper: FPD-R vs. FPD-XR

Radium offers two main variations of their Fuel Pulse Dampers: the FPD-R and the FPD-XR. The primary difference lies in their operating pressure range, dictated by their internal design and the base static fuel pressure requirements.

FPD-R (Fuel Pulse Damper-Range)

• Description: The FPD-R features a green top and is slightly shorter than its XR counterpart.
• Application: Its shorter profile makes it ideal for installations where space is at a premium.
• Base Pressure Requirement: 40 - 70 psi (static)

FPD-XR (Fuel Pulse Damper-Extra Range)

• Description: The FPD-XR has a black top.
• Application: This model is designed for applications requiring a wider range of stable fuel pressure.
• Base Pressure Requirement: 40 - 120 psi (static)

Understanding Base Static Fuel Pressure

It is crucial to understand what "base static fuel pressure" means. This is the fuel pressure measured when the fuel pump is running, but *without* any vacuum or boost line connected to the fuel pressure regulator. This is the fundamental pressure setting of your fuel system.

Important Considerations for Pressure Ranges

The specified pressure ranges for both the FPD-R and FPD-XR refer *only* to the base static fuel pressure. Dynamic fuel pressure, which is the pressure that rises with boost (when using a 1:1 rising rate fuel pressure regulator), can fall outside these ranges. However, for the FPD to function correctly, the base static pressure *must* be set within the recommended range for the chosen damper, and the vacuum/boost reference line *must* be connected to the FPD.

Example Scenarios:

Example 1: Mitsubishi EVO

OEM Base Static Fuel Pressure: 43.5 psi
Boost Pressure: 20 psi
Rising Rate Pressure Regulator?: Yes

In this scenario, the fuel pressure at full boost would be approximately 43.5 psi (base) + 20 psi (boost) = 63.5 psi. Since the base static pressure of 43.5 psi falls within the requirement for both the FPD-R (40-70 psi) and the FPD-XR (40-120 psi), either damper could be used. The key is to ensure the vacuum/boost reference line is connected to the FPD.

Example 2: BMW E46 M3

OEM Base Static Fuel Pressure: 72.5 psi
Boost Pressure: 20 psi
Rising Rate Pressure Regulator?: Yes

Here, the fuel pressure at full boost would be around 72.5 psi (base) + 20 psi (boost) = 92.5 psi. The base static pressure of 72.5 psi is within the requirements for the FPD-XR (40-120 psi), making it a suitable choice. However, it exceeds the upper limit of the FPD-R's requirement (40-70 psi), meaning the FPD-R cannot be used in this specific application. Again, connecting the vacuum/boost reference line to the FPD is essential.

Installation and Features

Radium's FPDs are typically constructed with an anodized aluminium housing for durability and a premium look. As mentioned, they feature selectable threaded male fittings, commonly offering:

• 8AN ORB: Features 3/4"-16 UNF threads and seals using a Viton O-ring, providing a robust and leak-free connection.
• 3/8" NPT: Utilises tapered pipe threads for sealing, a common standard in many fuel systems.

The inclusion of a vacuum/boost reference port, usually a smaller fitting, allows for the crucial connection to the engine's intake manifold or boost source.

Frequently Asked Questions

Q1: How do I know if my car has fuel pressure instability?

Signs of fuel pressure instability can include idle surge, hesitation or stumbling during acceleration, inconsistent power delivery, and difficulty in tuning, particularly with aftermarket modifications. If you're experiencing these symptoms, investigating your fuel pressure stability is a good idea.

Q2: Can I install a Fuel Pulse Damper on a naturally aspirated car?

Yes, absolutely. While the benefits are often more pronounced in boosted applications or with high-flow injectors, naturally aspirated engines can also experience fuel pressure oscillations, especially with aggressive camshafts or high-revving engines. An FPD can still contribute to smoother operation and improved throttle response.

Q3: Do I need to replace my fuel pressure regulator if I install an FPD?

Not necessarily. An FPD is a supplementary component designed to work with your existing fuel pressure regulator. However, if your current regulator is faulty or inadequate for your performance needs, it might be beneficial to upgrade both.

Q4: What happens if I choose the wrong FPD for my fuel pressure?

If you select an FPD whose base static pressure requirement is outside your system's actual base static pressure, it may not function optimally. If the base pressure is too high for the damper, it could lead to premature diaphragm failure or reduced effectiveness. If the base pressure is too low, the damper may not be able to adequately dampen the pressure oscillations.

Q5: Is a Fuel Pulse Damper a mandatory component?

No, it's not mandatory for all vehicles. Many stock vehicles do not require one as their fuel systems are designed to manage pressure fluctuations adequately. However, for modified vehicles, or those experiencing specific drivability issues related to fuel delivery, an FPD can be a highly beneficial, and sometimes necessary, addition.

Conclusion

A Fuel Pulse Damper is an effective solution for mitigating fuel pressure instability, a common issue that can lead to a range of drivability problems. By absorbing pressure oscillations, it contributes to a more consistent air/fuel ratio, smoother idle, and improved throttle response. Radium Engineering's FPD-R and FPD-XR models offer specific solutions tailored to different fuel pressure requirements, with the XR model providing a broader operating range and the R model being ideal for space-constrained applications. Crucially, understanding your vehicle's base static fuel pressure and ensuring the correct FPD is selected, along with proper installation including the vacuum/boost reference connection, is key to unlocking the full benefits of this valuable engine component. If you're looking to fine-tune your engine's performance and resolve nagging drivability issues, a Fuel Pulse Damper is certainly worth considering.
