Understanding Your Mercedes W124 Front Brakes
Front brake pad replacement on your Mercedes-Benz W124 is a relatively straightforward maintenance task that can significantly improve your vehicle's stopping performance and safety. This guide will walk you through the process, highlighting key components and considerations. The W124 model, known for its robust engineering, typically features a fixed four-piston caliper system on the front wheels. This design is advantageous as it allows for brake pad replacement without the need to remove the brake rotors, saving you valuable time and effort. A crucial aspect of this job is to avoid damaging the dust boots on the pistons, which are vital for protecting the caliper's internal components from dirt and moisture.
When to Replace Your Brake Pads
It's generally recommended to inspect your brake pads approximately every 25,000 miles. However, the most common indicator that replacement is due is the illumination of the brake warning lamp on your dashboard. This light often signifies that the friction material on the brake pads has worn down to a critical level, potentially triggering the pad replacement sensor. Another tell-tale sign is when the pad material is less than a quarter of an inch thick. Ignoring these warnings can lead to a dangerous situation where the metal backing of the brake pads comes into direct contact with the brake discs. This metal-on-metal contact not only results in significantly reduced braking efficiency but also causes irreparable damage to your brake discs. Grooves worn into the discs may be too deep to be safely resurfaced, necessitating their replacement, which is a far more costly repair. Therefore, addressing brake pad wear promptly is essential for both safety and economy.
Project Overview
This DIY project is estimated to take around 2 hours to complete and the cost for parts typically ranges from $65 to $85, making it a cost-effective maintenance task.
Tools and Parts You'll Need
To successfully replace your front brake pads, you will require the following:

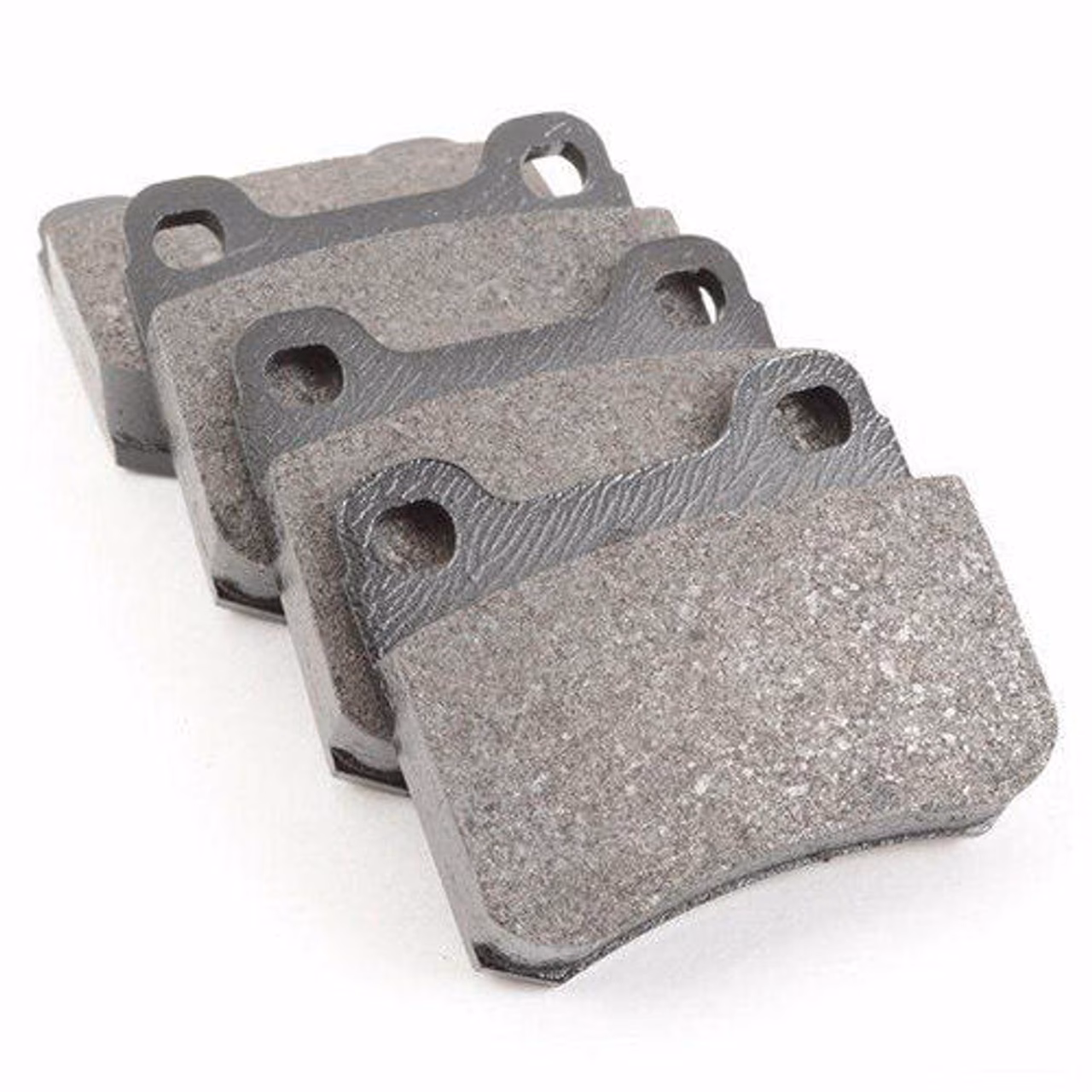

- New Brake Pads: Ensure you purchase the correct pads for your specific W124 model.
- Punch
- Hammer
- Flathead Screwdriver
- Turkey Baster: Useful for siphoning excess brake fluid if needed.
Complementary Modifications
While you're replacing the brake pads, it's an excellent opportunity to inspect your brake rotors or discs. If the rotors show signs of significant wear, glazing, or grooving, it's highly advisable to replace them simultaneously. This ensures optimal braking performance and longevity of your new brake pads. Replacing worn rotors along with new pads is a common and recommended practice.
The Process: Step-by-Step
Here's a breakdown of how to replace your front brake pads on a Mercedes W124:
1. Preparation and Safety
Before you begin, ensure your vehicle is parked on a level surface and engage the parking brake. It's also a good idea to chock the rear wheels for added safety. If you haven't bled your brake system in over a year, this would be an opportune time to do so. However, if you do not disconnect any brake lines, bleeding the system is not required for a simple pad replacement. For detailed instructions on bleeding brakes, please refer to our dedicated article on the subject.
2. Accessing the Brake Calipers
You will need to remove the front wheels to access the brake calipers. Loosen the lug nuts on the wheel you'll be working on while the car is still on the ground. Then, use a jack to lift the vehicle and support it securely with jack stands. Once the wheel is removed, you will see the brake caliper assembly enclosing the brake rotor.
3. Removing the Caliper Bolts
On a fixed caliper design, you'll typically find two caliper mounting bolts, often located on the rear of the caliper. These bolts secure the caliper to the brake bracket. Use the appropriate wrench or socket to remove these bolts. You might need to use a punch and hammer to gently tap out the caliper slide pins if they are seized. Be careful not to damage the rubber boots covering the slide pins.
4. Removing the Old Brake Pads
Once the caliper mounting bolts are removed, you can usually pivot the caliper upwards or slide it off the brake rotor. If you are unable to pivot it or slide it off easily, you may need to remove the caliper completely from the bracket. The old brake pads will now be exposed. They are typically held in place by clips or simply sit within the caliper housing. Carefully pry out the old pads using a flathead screwdriver or a dedicated brake pad spreader tool. Note the orientation of the old pads, as the new ones will need to be installed in the same manner.
5. Compressing the Piston(s)
Before installing the new pads, you'll need to retract the brake caliper piston(s) to make room for the thicker new pads. You can do this using a C-clamp or a dedicated brake piston compression tool. Place the old brake pad against the piston and gently screw the C-clamp or tool to push the piston back into the caliper bore. Crucially, monitor the brake fluid reservoir under the bonnet as you do this. The fluid level will rise as the piston retracts. If the reservoir is full, you may need to use a turkey baster to remove some excess fluid to prevent overflow. Be careful not to over-compress the piston, as this could damage the caliper seals.
6. Installing the New Brake Pads
With the piston(s) retracted, install the new brake pads into the caliper bracket or housing. Ensure they are seated correctly and oriented as the old pads were. Some new brake pads come with new anti-squeal shims or hardware; ensure these are installed if provided.
7. Reassembling the Caliper
Position the caliper back over the new brake pads and rotor. Reinstall the caliper mounting bolts and tighten them to the manufacturer's specified torque. If you removed the slide pins, lubricate them with a high-temperature brake lubricant before reinserting them, and ensure the rubber boots are properly seated and undamaged. This is a critical step to prevent seized calipers in the future.
8. Reinstalling the Wheel and Final Checks
Once the caliper is securely reassembled, reinstall the wheel and hand-tighten the lug nuts. Lower the vehicle and then torque the lug nuts to the manufacturer's specifications in a star pattern. Before driving, it is essential to pump the brake pedal several times to ensure the brake pedal feels firm and the pads are properly seated against the rotor. This process reseats the caliper pistons.
9. Bedding-In the New Brake Pads
For optimal performance, new brake pads need to be 'bedded-in'. This involves a series of moderate to firm stops from a moderate speed (e.g., 30-40 mph) without coming to a complete halt, followed by a period of cooling without stopping. This process transfers a thin layer of pad material to the rotor surface, creating a more uniform and effective braking surface. Consult your new brake pad manufacturer's instructions for specific bedding-in procedures, as they can vary.
Important Considerations and Hot Tips
- Dust Boots: As mentioned, be extremely careful not to damage the rubber dust boots on the caliper pistons or slide pins. Damaged boots will allow contaminants to enter the caliper, leading to premature wear and potential failure.
- Brake Fluid: Always use the correct type of brake fluid specified for your Mercedes-Benz. Check the brake fluid level regularly and top it up if necessary.
- Brake Noise: New brake pads can sometimes produce noise during the initial bedding-in period. This is often normal. However, persistent or loud squealing or grinding could indicate an issue.
- Professional Help: If you are uncomfortable with any part of this process or lack the necessary tools, it is always best to consult a qualified mechanic.
Common Issues and Troubleshooting
| Symptom | Possible Cause | Solution |
|---|---|---|
| Brake pedal feels spongy | Air in the brake lines | Bleed the brake system |
| Squealing brakes | New pads bedding in, or worn/damaged hardware | Bed in pads, check hardware, or consider different pads |
| Brakes pulling to one side | Uneven pad wear, seized caliper, or contaminated rotor | Inspect caliper, check pad material, clean or replace rotor |
| Brake warning light remains on | Pad replacement sensor issue, or still low pad material | Check sensor wiring, re-inspect pads, or check fluid level |
Frequently Asked Questions (FAQs)
Q: How often should I check my brake pads?
It's recommended to inspect them every 25,000 miles, or whenever you notice any unusual brake behaviour or dashboard warning lights.
Q: Do I need to bleed my brakes after changing pads?
Not necessarily. If you do not open any brake lines and only retract the caliper pistons, bleeding is usually not required. However, if the brake pedal feels soft afterwards, bleeding is advisable.
Q: What happens if I don't replace my brake pads when they are worn?
Metal-on-metal contact will occur, damaging your brake discs, reducing braking effectiveness, and potentially leading to a brake failure. It also makes rotors much more expensive to repair or replace.
Q: Can I replace just the brake pads without replacing the rotors?
Yes, you can, provided the rotors are still in good condition, without excessive wear, grooving, or warping. However, it's best practice to replace them if they show signs of wear.
Q: What is 'bedding-in' brake pads?
It's a process of applying heat to the new pads and rotors through a series of controlled stops to create an optimal, uniform friction surface for maximum braking performance.
Disclaimer: This guide is for informational purposes only. Always refer to your vehicle's service manual for specific procedures and torque specifications. If you are unsure about any aspect of this procedure, seek professional assistance.
