Brake Pad Wear Indicator: Fixing and Understanding

The brake pad wear indicator is a crucial component of your vehicle's braking system, designed to alert you when your brake pads are nearing the end of their service life. Ignoring these warnings can lead to compromised braking performance and potentially costly damage to other braking components. This article will delve into the function of the wear indicator, common problems, and a detailed guide on how to address a faulty or incorrectly installed indicator, drawing on specific procedural information to provide a comprehensive understanding for vehicle owners and aspiring mechanics alike.

Understanding the Brake Pad Wear Indicator

Brake pads are friction materials that press against the brake discs (rotors) to slow down or stop your vehicle. Over time, this friction causes the pads to wear down. The wear indicator is a small metal tab or wire that is either integrated into the brake pad itself or attached to it. As the brake pad wears down, this indicator makes contact with the brake disc, producing a distinctive high-pitched squealing or scraping sound. This sound is your signal that it's time to inspect and likely replace your brake pads. Some vehicles also utilize electronic wear indicators, which consist of a small sensor embedded in the brake pad. When the pad wears down to a certain point, this sensor is severed, completing a circuit and triggering a warning light on your dashboard.

Why is the Wear Indicator Important?

The primary importance of the brake pad wear indicator lies in its role as an early warning system. By alerting you to worn brake pads before they become critically thin, it helps to:

• Prevent Reduced Braking Performance: Severely worn brake pads can significantly reduce your vehicle's stopping power, increasing stopping distances and potentially leading to accidents.
• Avoid Damage to Other Components: If brake pads wear down completely, the metal backing plate can come into contact with the brake disc. This can cause severe damage to the disc, leading to more expensive repairs.
• Ensure Safety: Properly functioning brakes are paramount for your safety and the safety of others on the road. The wear indicator is a key part of ensuring your braking system is always in good condition.

Common Issues with Brake Pad Wear Indicators

While the concept is simple, wear indicators can sometimes present issues that require attention:

• False Alarms: Occasionally, a wear indicator might produce a squealing sound even when the brake pads have plenty of life left. This can be due to dirt, debris, or corrosion on the indicator itself or the brake disc.
• Indicator Not Functioning: Conversely, a faulty wear indicator might fail to produce a sound when the pads are worn, leaving you unaware of the problem.
• Incorrect Installation: As highlighted in the provided information, incorrect routing of the sensor cable can lead to premature wear of the cable or sensor, or even cause a false warning.

Fixing a Brake Pad Wear Indicator: A Step-by-Step Guide

The provided information offers specific guidance on addressing issues related to the electronic brake pad wear indicator, particularly concerning cable routing. Let's break down the process based on this.

1. Identify the Type of Wear Indicator:
First, determine whether your vehicle uses a mechanical (metal tab) or electronic (sensor wire) wear indicator. This guide focuses on the electronic type, as per the provided instructions.

2. Access the Brake Assembly:
This typically involves removing the road wheel to gain access to the brake caliper and pads. Ensure your vehicle is safely supported on jack stands.

3. Inspect the Wear Indicator and Cable:
Carefully examine the brake pad wear indicator sensor and its associated wiring. Look for any signs of damage, fraying, or corrosion on the connector and the wire itself. Check if the sensor is properly seated within the brake pad.

4. Address Cable Routing (Crucial Step):
This is where the specific instructions become vital. The positioning of the speed sensor cable relative to the hydraulic brake tubing is critical for proper function and to prevent damage. The instructions state:

• Ensure that the speed sensor cable at point A passes behind the hydraulic brake tubing.
• Ensure that the cable at point B passes in front of the hydraulic brake tubing.

This precise routing prevents the cable from being pinched, chafed, or otherwise damaged by the movement of suspension components or the brake tubing itself. Incorrect routing can lead to the sensor being prematurely severed or giving false readings.

5. Reconnect the Wear Indicator Connector:

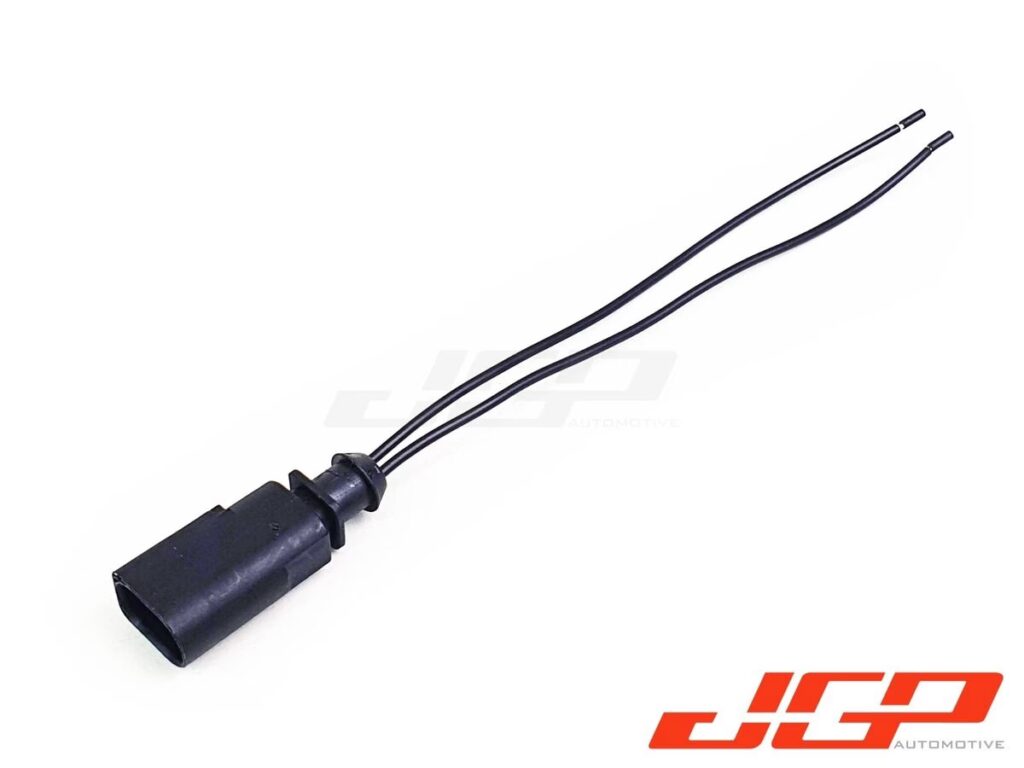

The wear indicator connector needs to be securely attached to the suspension support. The instructions mention placing the brake pad wear indicator connector on the suspension support and then inserting the contact into the plug. Ensure a firm and positive connection.

6. Insulate the Cable (If Necessary):
If the wiring shows signs of damage or if you want to ensure maximum protection, the instructions mention using the Harness repair set -VAS 1978-. This set is used to push the individual cable insulation to the stop, providing a secure and protected connection.

7. Reassemble the Brake Components:
Once the wear indicator and its wiring have been checked and correctly positioned, reassemble the brake caliper and wheel. Ensure all bolts are torqued to the manufacturer's specifications.

8. Test the Brakes:
After reassembly, perform a careful test of the braking system. Start with gentle braking at low speeds and gradually increase the intensity to ensure the brakes are functioning correctly and that there are no unusual noises.

Table: Mechanical vs. Electronic Wear Indicators

| Feature | Mechanical Wear Indicator | Electronic Wear Indicator | | :------------------ | :----------------------------------------------------------- | :------------------------------------------------------------ | | Warning Mechanism | Metal tab contacts disc, causing a squealing sound. | Sensor wire is severed as pad wears, triggering dashboard light. | | Detection | Auditory (squealing). | Visual (dashboard warning light). | | Complexity | Simpler, less prone to electrical faults. | More complex, requires electrical connection. | | Cost of Replacement | Generally less expensive. | Can be more expensive, especially if wiring is damaged. | | Troubleshooting | Check for debris, rust, or proper seating. | Check wiring, connectors, sensor integrity, and dashboard light. |
Frequently Asked Questions (FAQs)

Q1: How often should I check my brake pads?
A1: It's recommended to visually inspect your brake pads at every oil change, or at least every 6 months. If you hear any unusual noises, such as squealing or grinding, inspect them immediately.

Q2: Can I drive with a worn brake pad wear indicator?
A2: While the indicator itself is not a critical component for braking, the sound it makes signifies that your brake pads are worn. Driving with severely worn brake pads can be dangerous and lead to further damage. It's best to replace the pads as soon as you notice the warning.

Q3: What if the wear indicator light stays on after replacing the brake pads?
A3: This could indicate that the new wear sensor was not properly installed, the connector is loose, or there's an issue with the wiring or the warning light system itself. Consult a qualified mechanic.

Q4: Does the routing of the speed sensor cable really matter?
A4: Yes, absolutely. As the provided instructions highlight, incorrect routing can lead to the cable being damaged, resulting in a non-functional indicator or even a false alarm. Proper routing ensures the longevity and accuracy of the system.

Conclusion

The brake pad wear indicator, whether mechanical or electronic, is a vital safety feature in your vehicle. Understanding its function and knowing how to address potential issues, such as incorrect cable routing, is essential for maintaining your braking system's integrity. By following the correct procedures and paying attention to the warning signs, you can ensure your vehicle stops effectively and safely, protecting both yourself and others on the road. Regular inspection and prompt attention to any anomalies will contribute significantly to the overall reliability and performance of your vehicle's braking system, giving you greater confidence during every journey.
