Servicing Electronic Parking Brake Calipers

Modern vehicles are increasingly equipped with sophisticated Electronic Parking Brake (EPB) systems, a significant departure from the traditional mechanical handbrake. While offering enhanced convenience and safety features, these systems demand a precise and methodical approach when it comes to maintenance. Unlike their cable-operated predecessors, EPB calipers are electronically controlled, meaning routine tasks like changing brake pads require specific diagnostic tools and adherence to manufacturer-prescribed electronic procedures. Attempting to service these calipers without the correct knowledge or tools can lead to significant damage, system malfunctions, and potentially unsafe driving conditions.

This comprehensive guide details the crucial steps involved in preparing your Electronic Parking Brake calipers for service, specifically focusing on engaging and disengaging the 'lining change mode'. This mode electronically retracts the caliper pistons, allowing for the replacement of brake pads. Please note, this guide focuses on the electronic procedure and the necessary precautions, not the physical removal and installation of the caliper unit itself, as the provided information pertains to the former. Adhering strictly to these instructions is paramount to ensuring the integrity and proper functioning of your vehicle's braking system.

Crucial Warnings and Safety Measures

Before embarking on any work involving your Electronic Parking Brake, it is absolutely vital to understand and respect the inherent complexities and potential dangers. Neglecting these warnings can lead to serious complications, including irreparable damage to the system or, more critically, compromised vehicle safety.

• Never operate on disassembled brakes: It is an absolute cardinal rule: do not perform any of these Basic Settings, or indeed any electronic cycling of the Electronic Parking Brakes, while the brake components are disassembled. This means the pads and calipers must be properly installed on the rotors before you initiate any opening, closing, or functional tests. Operating the system without all components correctly in place can cause severe damage to the caliper mechanism, the electronic motor, or the control unit, leading to expensive repairs and potential safety hazards.
• Precision is paramount: The procedures outlined for EPB service are not merely suggestions; they are precise, step-by-step instructions designed to protect the integrity of the system. There is a specific reason for every single step, and skipping any prerequisites or subsequent stages dramatically increases the likelihood of encountering 'issues' for which there are often no documented resolutions. This could leave you with a non-functional EPB system, trapped calipers, or persistent fault codes that are incredibly difficult to diagnose and rectify. Follow the procedures exactly as described.
• Prioritise diagnostics: Before you even think about putting your vehicle into service mode, it is strongly recommended to run a full Auto-Scan. This diagnostic check will identify any pre-existing fault codes within your vehicle's systems, particularly those related to the braking or parking brake modules. Knowing about existing faults beforehand prevents confusion later, ensuring that any new issues arising during the service can be correctly attributed and addressed.

Preparing for EPB Caliper Service Mode

Proper preparation is the cornerstone of any successful automotive maintenance task, and working with an EPB system is no exception. Ensuring all prerequisites are met will streamline the process and mitigate potential problems.

• All rear brake components assembled: As reiterated in the warnings, ensure that all rear brake components – including the brake pads, rotors, and the caliper itself – are fully and correctly assembled. This is a fundamental safety and functional requirement before initiating any electronic service mode.
• Connect a battery charger: The Electronic Parking Brake system relies on a stable and sufficient power supply to operate its motors and control modules. Fluctuations or insufficient voltage during the electronic procedure can interrupt the process, leading to errors or incomplete basic settings. Therefore, connecting a battery charger as per your vehicle's repair manual is not optional; it's a critical prerequisite to maintain system voltage throughout the process.
• Cycle the Parking Brake ON, then OFF first: Before connecting your diagnostic tool, perform a manual cycle of the parking brake. Engage the parking brake using the in-car switch, then disengage it. This ensures the system is in a known, active state before you attempt to interface with it electronically.

Opening the Rear Parking Brake Calipers (Lining Change Mode)

Once all preparatory steps are complete, you can proceed to electronically open the calipers, putting them into 'lining change mode'. This is achieved using a compatible diagnostic tool.

Here’s the precise sequence of operations:

1. Select Control Module: On your diagnostic tool, navigate to the main menu and select the 'Select' option.
2. Access Parking Brake Module: From the list of available control modules, choose '53 - Parking Brake'. This connects your tool to the electronic control unit responsible for the EPB system.

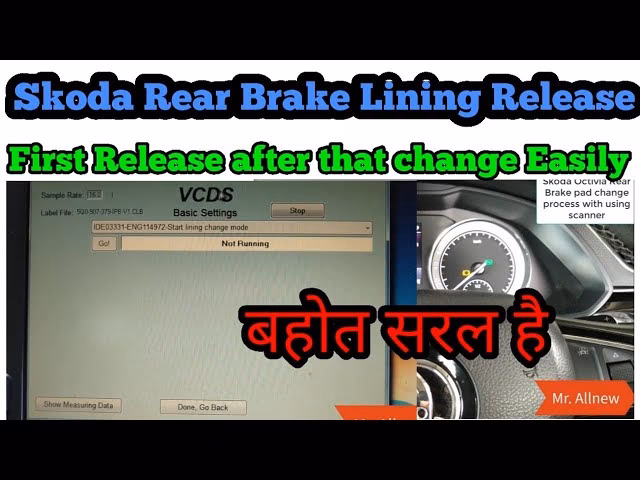

3. Enter Basic Settings: Within the Parking Brake module, select 'Basic Settings - 04'. Basic Settings are pre-programmed routines that allow the control unit to perform specific functions or adaptations, in this case, preparing the calipers for service.
4. Initiate Lining Change Mode: From the list of Basic Settings, select 'Start lining change mode'. This command instructs the EPB control unit to retract the caliper pistons electronically.
5. Activate the Setting: Click the '[Go!]' button on your diagnostic tool to activate the Basic Setting. You may hear the EPB motors operate as the calipers open.
6. Verify Completion: Allow the process to run. Once the diagnostic tool displays the result of 'Finished Correctly', it indicates that the calipers have successfully opened and the system is in the correct service mode. Click '[Stop]' to conclude this step.
7. Exit Control Module: Select '[Done, Go Back]' to exit the Basic Settings menu, and then '[Close Controller, Go Back - 06]' to disconnect from the Parking Brake control module. This ensures a clean exit from the diagnostic session.
8. Power Down: Turn the ignition off, but importantly, leave the battery charger connected. This maintains the system's state while you proceed with the mechanical work.

At this point, the electronic motors within the EPB calipers have retracted, allowing the caliper body to move freely away from the pads. However, a crucial mechanical step remains.

Important Considerations During Service

With the calipers electronically opened, you can now proceed with the physical work, typically replacing brake pads. During this phase, keep the following in mind:

• Manual Piston Retraction: Unlike some traditional brake calipers where the piston might be pushed back with a simple clamp, EPB caliper pistons do not automatically move fully back into the caliper. After the electronic retraction, they must still be physically pushed in using a suitable hand tool designed for brake piston compression. This is essential to create enough space for the new, thicker brake pads.
• Flashing Parking Brake Light: It is entirely normal for the parking brake warning light on your dashboard to flash while the calipers are in this service mode. This flashing serves as an important indicator that the parking brake system is currently disabled and cannot be used. Do not attempt to operate the EPB switch during the mechanical work.
• Reassembly is Crucial: Under no circumstances should you operate the EPB switch or proceed to the 'Close Rear Parking Brake' step until all rear brake components – new pads, reassembled calipers, etc. – are fully and correctly reassembled. Operating the EPB with disassembled components will cause severe damage.

Closing the Rear Parking Brake Calipers

Once you have completed the mechanical work (e.g., replacing brake pads), the calipers must be electronically closed and reset to their operational state. This process mirrors the opening procedure, but with a different Basic Setting.

Prerequisites for closing:

• All rear brake components reassembled: Confirm that everything is back in its correct place and torqued to specification.
• Connect a battery charger: Again, ensure the battery charger remains connected throughout this electronic procedure to guarantee stable voltage.

Here’s how to close the calipers:

1. Select Control Module: On your diagnostic tool, select 'Select'.
2. Access Parking Brake Module: Choose '53 - Parking Brake'.
3. Enter Basic Settings: Select 'Basic Settings - 04'.
4. Initiate End Lining Change Mode: From the list of Basic Settings, select 'End lining change mode'. This command instructs the EPB control unit to extend the caliper pistons and return the system to normal operation.
5. Activate the Setting: Click the '[Go!]' button to activate the Basic Setting. You will again hear the EPB motors operate as the calipers close onto the pads.
6. Verify Completion: The diagnostic tool should display 'Not Running' or 'Finished Correctly'. Both results indicate that the Basic Setting has concluded successfully. Click '[Stop]' to finish this step.
7. Exit Control Module: Select '[Done, Go Back]' to exit the Basic Settings, and then '[Close Controller, Go Back - 06]' to disconnect cleanly from the Parking Brake control module.

Post-Service Checks and Final Steps

After successfully closing the calipers electronically, a few final critical steps are required to ensure the system is fully operational and safe for driving.

• Cycle the Parking Brake Manually: With the ignition on, operate the Parking Brake ON and then OFF again using the switch in the vehicle. Crucially, ensure you are holding the brake pedal down firmly while performing this cycle. This action helps to seat the new pads and re-calibrate the system.
• Check for Fault Codes: Before attempting a test drive, it is imperative to perform another diagnostic scan. Check for any fault code(s) that may have appeared during or after the procedure. Any active fault codes must be investigated and resolved before the vehicle is deemed safe for road use. A clear system indicates a successful service.
• Test Drive with Caution: Once all checks are complete and no fault codes are present, perform a careful test drive in a safe area. Gently apply the brakes and test the parking brake function at low speeds to confirm proper operation.

Frequently Asked Questions (FAQs)

Working with Electronic Parking Brakes can raise several questions. Here are answers to some common queries based on the procedure outlined:

Q: Can I change my EPB brake pads without a diagnostic tool?

A: No, absolutely not. The information provided clearly states the need to 'Select' a control module and perform 'Basic Settings' to open and close the calipers. This requires a compatible diagnostic tool to interface with the vehicle's electronic system. Attempting to force the pistons back without this electronic procedure will damage the EPB motor and internal mechanisms.

Q: Why do I need to connect a battery charger during the process?

A: The Electronic Parking Brake system relies on precise voltage to operate its motors and control unit during the 'Basic Settings' procedures. A battery charger ensures a stable and sufficient power supply, preventing voltage drops that could interrupt the process, lead to errors, or even damage the control module.

Q: What happens if I skip one of the steps in the procedure?

A: Skipping steps is highly discouraged. The instructions explicitly warn that if you 'skip any prerequisites or other steps here, you are likely to experience "issues" for which no documented resolutions exist'. This could mean a non-functional parking brake, persistent warning lights, or even damage to the EPB system that is difficult and costly to repair.

Q: My parking brake light is flashing after I put it into service mode. Is this normal?

A: Yes, it is perfectly normal for the parking brake light to flash while the calipers are in 'lining change mode'. This flashing indicates that the brake cannot be used and the system is in a service state. Do not attempt to use the parking brake switch until the full procedure is complete and the system has been reset.

Q: Do the EPB caliper pistons retract automatically once 'Start lining change mode' is activated?

A: While the electronic system retracts the motor to allow movement, the text states, 'The caliper pistons do not move back into the caliper, they must be pushed in using a hand tool.' This means you will still need to manually compress the piston using a suitable brake piston tool to create enough room for new, thicker brake pads.

Q: What does 'Finished Correctly' or 'Not Running' mean when closing the calipers?

A: Both 'Finished Correctly' and 'Not Running' are acceptable results when ending the 'lining change mode'. They indicate that the Basic Setting procedure has completed successfully and the calipers have returned to their normal operational state.

Q: Can I drive the car with the EPB in 'lining change mode'?

A: No. The parking brake light flashes to indicate the brake cannot be used. Driving with the EPB in service mode would be unsafe as the parking brake would not function correctly, and the primary braking system might also be compromised.

Conclusion

Servicing Electronic Parking Brake calipers is a task that demands respect for modern automotive technology. Unlike traditional braking systems, the EPB integrates complex electronic controls that necessitate the use of specific diagnostic tools and an unwavering commitment to following precise procedural steps. By adhering to the warnings, fulfilling all prerequisites, and executing each stage of the 'lining change mode' with meticulous care, you can ensure the safe and effective maintenance of your vehicle's braking system. Remember, precision and patience are your most valuable tools when working with EPB systems.
