Understanding Your Volvo V70's Electronic Brains
It's a common predicament for Volvo owners, particularly those with the V70 model, to encounter a veritable minefield of dashboard warnings after significant electronic component replacements. The scenario you've described, with the 'BRAKE FAILURE / STOP SAFELY' message accompanied by illuminated Brake, ABS, and DSTC lights, is a classic indicator that the car's intricate electronic systems are not communicating effectively. The fact that you've recently had a new ECM (Engine Control Module), TCM (Transmission Control Module), and ABS module installed, all with fresh software, adds a layer of complexity but also provides crucial clues. Let's delve into what might be causing these persistent warnings and how to approach diagnosing them.
The Role of ECM and TCM Modules
The ECM, or Engine Control Module, is essentially the central computer for your engine. It manages everything from fuel injection and ignition timing to emissions control. A faulty or incorrectly programmed ECM can lead to a myriad of performance issues, including the limp mode you suspect your V70 might be in, restricting engine RPMs to prevent further damage.
The TCM, or Transmission Control Module, governs the automatic gearbox. It dictates gear changes, torque converter lock-up, and overall transmission performance. When the TCM isn't functioning correctly, you might experience rough shifting, delayed engagement, or an inability to select certain gears. In severe cases, it can also trigger warning lights related to the powertrain.
The ABS and DSTC Connection
The ABS (Anti-lock Braking System) and DSTC (Dynamic Stability and Traction Control) systems are heavily reliant on each other and on other vehicle sensors. The ABS module itself is critical for preventing wheel lock-up during braking, ensuring you maintain steering control. DSTC builds upon ABS by using wheel speed sensors, steering angle sensors, and yaw rate sensors to detect and correct skids, helping to keep the car stable.
The mention of a code for the 'Side Accelerometer' is particularly important. This sensor is indeed a key component of the DSTC system, providing crucial data about the car's lateral acceleration. If this sensor is malfunctioning or not properly calibrated after module replacement, it can certainly trigger DSTC and potentially other related warnings, including ABS and the general brake failure message, as the systems interpret a loss of critical data as a safety issue.

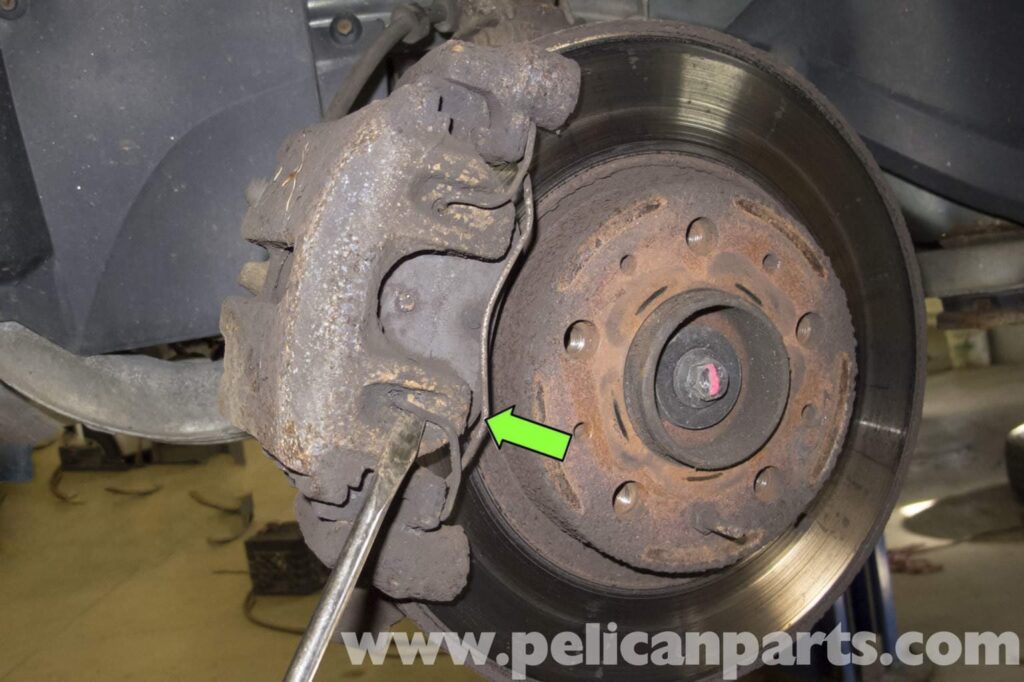

Could Worn Brakes Cause These Warnings?
While it's good that you're proactively replacing your brake pads and rotors, worn brakes themselves are unlikely to directly cause the 'BRAKE FAILURE / STOP SAFELY' warning in conjunction with ABS and DSTC lights, especially after module replacements. The brake fluid level being correct also rules out a common cause for a low brake fluid warning. However, worn brakes can sometimes trigger a specific brake pad wear warning light. The more severe, all-encompassing warning you're experiencing, coupled with ABS and DSTC illumination, points more towards a systemic electronic fault rather than simple mechanical wear.
It's possible that the shop identified worn pads as a secondary issue or a contributing factor to the overall braking system's health. But the primary cause of the complex warning light display is almost certainly electronic in nature, related to the modules and sensors.
Diagnosing the Electronic Gremlins
Given that the ABS module is brand new from a reputable supplier like Xemodex, it's less likely to be the culprit, although not entirely impossible. The fact that the ECM and TCM are also new or recently replaced means that their integration and correct programming are paramount. Here's a breakdown of potential issues and diagnostic steps:
1. Software and Configuration Issues
Even with new modules, if the software isn't correctly flashed or if the modules aren't properly configured to your specific V70's VIN and options, communication errors can occur. This is especially true for Volvo systems where modules often need to be 'married' to the car via diagnostic software. Ensure the shop performed a full software update and configuration process specific to your vehicle's requirements.
2. Sensor Malfunctions or Wiring Problems
The 'Side Accelerometer' code is a significant lead. While the sensor itself could be faulty, it's also common for wiring harnesses connected to these sensors to become damaged, corroded, or loose, especially during module replacement work. A thorough inspection of the wiring loom for the ABS, DSTC, and accelerometer sensors is crucial. Check for:
- Corrosion: Particularly in connectors, which can impede signal transmission.
- Pinched Wires: Wires can be accidentally pinched or cut during installation.
- Loose Connections: Ensure all sensor connectors are securely seated.
Other sensors that feed into the ABS/DSTC system include wheel speed sensors. If one of these is faulty or its wiring is compromised, it will definitely affect both ABS and DSTC, and can trigger the broader brake warning.
3. Communication Bus Errors
Modern cars use a network of communication buses (like CAN bus) for modules to 'talk' to each other. If there's an issue on this bus – perhaps a short circuit, an open circuit, or interference – it can cause multiple modules to report errors or stop communicating altogether. The ECM, TCM, and ABS/DSTC systems all communicate on these networks. A diagnostic tool can often identify communication errors between modules.
4. Incorrect Module Part Numbers
While you mentioned new modules, it's worth double-checking that the part numbers are indeed the correct ones for your specific V70 model year and engine/transmission combination. Even minor variations can lead to incompatibility and communication issues.
5. Brake System Pressure Sensor
The 'BRAKE FAILURE' message can sometimes be triggered by a faulty brake pressure sensor, which is part of the hydraulic system. While less common to directly affect ABS/DSTC lights, it's another component within the broader braking system that could potentially be involved.
What to Do Next
Given the complexity, the best course of action is to return to the workshop that performed the module replacements. Provide them with the specific error code you obtained ('Side Accelerometer') and explain the symptoms clearly. Request that they:
- Perform a full diagnostic scan: This should identify all active and pending fault codes, and importantly, check for communication errors between modules.
- Inspect wiring harnesses: Pay close attention to the ABS, DSTC, and accelerometer sensor wiring.
- Verify module software and configuration: Ensure they are correctly programmed and married to the vehicle.
- Test the accelerometer sensor: If the wiring is sound, the sensor itself may need testing or replacement.
Troubleshooting Table: Potential Causes vs. Symptoms
| Potential Cause | Likely Symptoms | Action Required |
|---|---|---|
| Incorrect ECM/TCM Programming | Limp mode, transmission issues, general warning lights | Re-flash/configure modules with correct software for VIN. |
| Faulty Side Accelerometer | DSTC, ABS, and 'BRAKE FAILURE' warnings, DSTC malfunction | Test sensor; inspect wiring; replace if necessary. |
| Compromised ABS Sensor Wiring | ABS, DSTC, and 'BRAKE FAILURE' warnings | Inspect and repair wiring loom for ABS sensors. |
| CAN Bus Communication Error | Multiple modules reporting errors, erratic behaviour | Diagnostic scan to identify bus faults, check for shorts/opens. |
| Incorrect Module Part Number | Communication errors, module not functioning | Verify all module part numbers against vehicle specifications. |
| Worn Brake Pads/Rotors | Potential brake pad wear warning (less likely for this complex fault) | Replace worn components as per maintenance schedule. |
Frequently Asked Questions
Q1: Can a single faulty sensor cause all these lights (Brake Failure, ABS, DSTC)?
A1: Yes, absolutely. Modern cars have integrated systems. A critical sensor like the accelerometer or a wheel speed sensor provides data vital to multiple systems. If that data is missing or incorrect, the car's safety systems will often default to a warning state, illuminating multiple related lights as a precaution.
Q2: I'm replacing my brakes myself. Should I be worried about disconnecting the ABS module?
A2: When working on the braking system, particularly near the ABS unit, it's crucial to be gentle with connectors and wiring. Avoid yanking on wires. Ensure the battery is disconnected before starting any work on the ABS system to prevent accidental shorts.
Q3: How can I be sure the new ECM and TCM are correctly installed?
A3: Correct installation involves not just physically fitting the modules but also programming them to your vehicle. This is typically done using specialized diagnostic software. If you're unsure, have a Volvo specialist or a reputable independent garage perform a diagnostic check after installation to confirm proper communication and function.
Q4: Is the 'limp mode' behavior definitely related to the warning lights?
A4: It's highly probable. Many vehicle control modules are programmed to enter a 'limp home' or 'limp mode' when critical errors are detected. This is a safety feature to protect the engine or transmission from further damage by reducing power and limiting functionality.
Q5: If the shop replaced the modules, aren't they responsible for ensuring it works correctly?
A5: Generally, yes. If the issue arose directly after their work, they should be able to diagnose and rectify it. However, they may argue that the underlying fault was with the wiring or another component they didn't initially address. Clear communication and a detailed diagnostic report from them are key.
Hopefully, this detailed breakdown provides a clearer picture of the potential issues plaguing your Volvo V70. Tackling these complex electronic systems requires patience and a systematic approach. Good luck!
