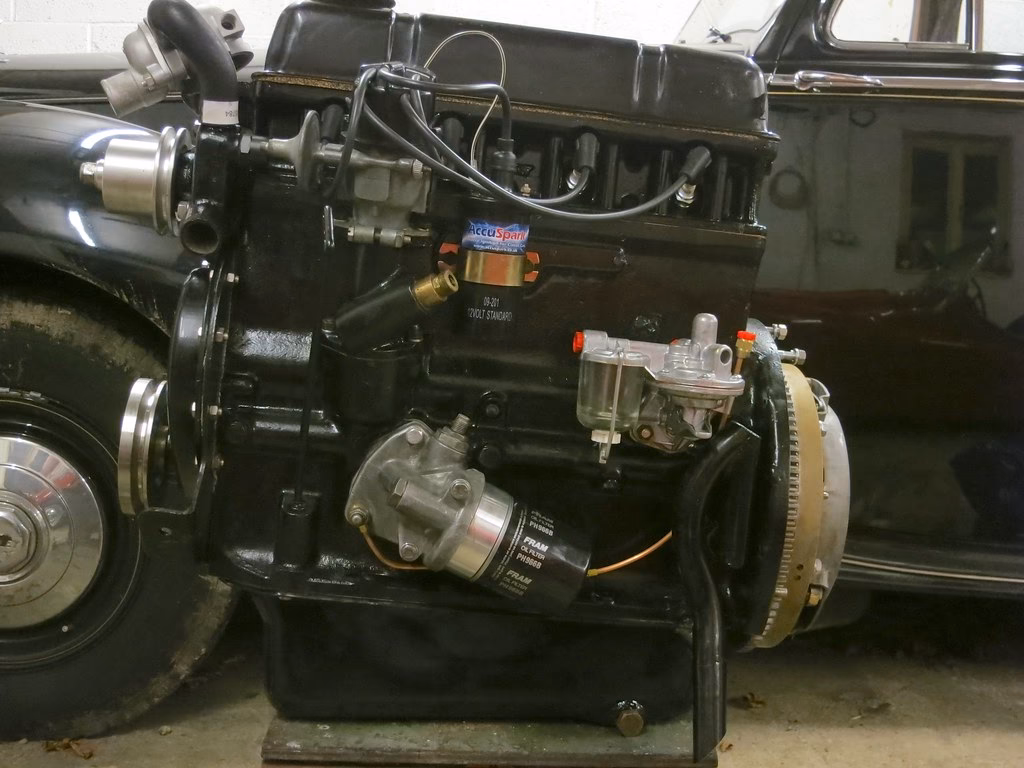

The TR Engine: Demystifying Its Unique Design

The heart of many a classic Triumph sports car, the TR engine, is a marvel of mid-20th century British engineering. While undertaking an engine rebuild might seem a daunting task, understanding the fundamental principles and unique design elements of this particular powerplant can transform it into a highly rewarding endeavour. Far from being an overly complex modern engine, the 4-cylinder unit found in models like the TR4 boasts a remarkably simple and straightforward design, rooted in a robust heritage that predates its sports car application.

Originally based on an engine used by Triumph in their 1950s Vanguard saloon cars, the TR engine benefits from a legacy of durability and practicality. Many of its basic mechanical components were cleverly borrowed from Triumph's regular saloon car business, ensuring a degree of reliability and parts availability that was crucial for its time. However, one specific design element truly sets the TR engine apart and significantly contributes to its longevity and ease of maintenance: the innovative wet liner design.

The Ingenious Wet Liner Design

Unlike the conventional approach where cylinder bores are cast directly into the engine block, the TR engine employs individual sleeves, often described as looking like jugs with their bottoms removed. These 'wet liners' slot directly into the open water jacket section of the block and are securely held in place by the cylinder head. This distinctive design offers several significant advantages, making the TR engine particularly amenable to repeated rebuilds and offering a degree of versatility rarely seen in other powerplants.

Firstly, the wet liner system simplifies the rebuild process considerably. Instead of re-boring an integrated block, which has finite limits, worn liners can simply be swapped out for new ones. This allows the engine to be rebuilt over and over again, extending its operational life almost indefinitely. Secondly, this design facilitates a straightforward method for altering the engine's displacement. By simply installing new liners and larger pistons, the engine's capacity can be increased, offering a performance boost without needing an entirely new block. This adaptability was leveraged by Triumph itself; the base Vanguard engine, initially at 1991cc, was used in the TR2 and TR3, before being uprated to 2138cc for the TR4, achieved primarily through this very method.

The original TR2 and TR3 models typically utilised an 83mm piston/liner set, while the stock TR4 moved to an 86mm set. Today, a popular upgrade amongst enthusiasts is to fit an 87mm piston/liner set. This is essentially a .040-inch oversize piston and liner, bored to ensure a perfect match. This approach provides a solid foundation for a refreshed engine, particularly when its history is unknown or significant wear is evident. The inherent durability and long-life qualities of this wet liner design also made the engine a sensible choice for use in Ferguson Tractors. This unexpected crossover means that, even today, in a pinch, certain engine parts can surprisingly be sourced from a local farm tractor dealer, a testament to the design's robust and widespread application.

Rebuild Approaches: Honing vs. Replacement

When approaching a TR engine rebuild, particularly concerning the pistons and liners, there are a couple of paths one might consider. While a more conservative and less costly approach involves reusing existing pistons, honing the liners, and merely replacing the piston rings, this option is generally only recommended for engines with genuinely low mileage and meticulous maintenance history. It requires extremely precise measurements of all tolerances. Many who opt for this route often report issues such as rings failing to seat correctly, piston slap, or other performance problems down the line. Given the significant effort involved in disassembling the engine, it's often more prudent to invest in new components.

For a truly solid foundation, especially if the engine's past is uncertain or it shows signs of heavy wear, it is highly advisable to at least replace the pistons with .010 oversize units and have the liners re-bored and honed to match. This ensures optimal fitment and sealing. The most comprehensive and recommended approach, particularly for engines with unknown high mileage and visible wear on internal parts, is to replace both the pistons and liners entirely. This eliminates any lingering doubts about component integrity and provides the best possible starting point for a reliable, long-lasting engine.

Embarking on the Engine Disassembly Journey

The first significant task in any TR engine rebuild is its careful disassembly. Ideally, the engine and gearbox assembly should be resting securely on a robust mover's dolly or a similar stable setup. Before the 'engine pull' team departs, ensure the gearbox is separated from the engine block. Following this, the flywheel should be removed. Crucially, loosen or completely remove the bolts securing the rear seal halves at this stage; they become notoriously difficult to access once the block is mounted on an engine stand.

With these initial steps complete, the engine can be safely mounted onto a sturdy engine stand. This provides a secure and convenient platform for all subsequent disassembly, thorough inspection, and eventual reassembly work. If the cylinder head was merely loose for the engine pull, now is the opportune moment to remove it entirely. This process is typically eased by rotating the engine block to a horizontal position on the stand. A rubber hammer can be gently employed to encourage the head to move up the studs and lift clear of the engine block.

Upon removal, immediately inspect the piston tops and the condition of the valves. In most cases, the cylinder head will require professional attention. It is highly recommended to have a reputable machine shop rebuild the head, which typically involves fitting new valves, bronze guides, and springs. While this work is being carried out, it is a wise investment to also have modern valve seals and hardened valve seats installed. Although some enthusiasts might attempt this work themselves, the precision required usually means sending it out to specialists, ensuring optimal performance and longevity.

Accessing the 'Serious Bits': Oil Pan and Internal Components

The next logical step is to remove the oil pan, providing access to the critical lower internal components of the engine. Begin by carefully turning the block over on the engine stand. Systematically remove all oil pan bolts, bagging them and noting the positions of any longer bolts to aid reassembly. The interior of the block should ideally be oily but clean and free from any metallic debris. The presence of loose bits here signifies a serious underlying problem that must be meticulously traced and resolved.

Inspect the crankshaft and connecting rods for any visible signs of damage or scoring. The oil pump and its associated screen are usually the first components to be removed from this area. Bag them and set them aside for later measurement and inspection. The oil pump is a vital component, and depending on its condition, it may require rebuilding or, as is often the case with high-mileage units, complete replacement.

Unveiling the Engine's Core: Rods, Pistons, and Crankshaft

With the oil pan removed, you can now proceed to remove the rod bearing caps. It is absolutely essential to verify that these caps are numbered; they must be reinstalled in their exact original positions to maintain correct alignment and clearances. This area is where significant wear is frequently observed. The bearing shell may or may not detach with the cap; if it adheres to the crankshaft surface, gently push it off using a wooden dowel or another non-metallic tool to avoid damage. Heavily worn or scored rod bearing faces indicate substantial engine wear, highlighting the necessity of a rebuild.

Often, the pistons can be pushed out from the top of the engine without needing to 'ream the ridge.' This ridge is a lip that forms at the top of the cylinder bore due to the piston rings riding within it. However, if a significant ridge is present, it will need to be carefully ground off with a 'ridge reamer tool,' readily available at auto parts stores, before the pistons can be removed. If you plan to replace the pistons and liners, a little more force can be applied, or you might even attempt to pop the liner out of the block with the piston still inside.

Before attempting to remove the liners, whether with or without pistons, the crankshaft must be removed. Begin by loosening the main bearing caps. A long breaker bar and socket are typically required for this task. The middle cap often comes off with relative ease. The rear cap, however, can be a tight fit, often sealed from previous rebuilds. This will require persistence. While a specialised tool exists for 'pulling' the cap up, a common method involves gently tapping away at the bearing cap with a rubber mallet, rocking it back and forth and upwards. This can take considerable time (15 minutes or more), but patience is key to avoid damaging these factory line-bored caps, which are unique to their specific block.

The front bearing cap is located beneath the front seal bridge. To fully access and remove it, the front timing chain cover must first be removed, which in turn necessitates the removal of the front pulley. Use a robust pulley puller for this job, and be careful not to lose the small double keyways on the crankshaft end. Once the timing cover is off, remove the two slotted screws of the front seal and carefully rock the seal out of position. These screw heads can strip easily, so ensure you use a wide, thick screwdriver. With the front bearing cap exposed, it can now be removed by rocking it back and forth and upwards. Once off, both the main bearings and the journal surfaces of the crankshaft should be meticulously inspected for any scoring or visible damage. Finally, the crankshaft can be carefully removed and set aside, ready for its trip to the machine shop.

With the crankshaft removed, you now have unobstructed access to the bottom of the piston liners. If you intend to reuse your liners, extreme caution is paramount during their removal. The bottom skirt of these liners is notoriously brittle and can chip off if subjected to excessive force. In such cases, it might be sensible to entrust this delicate task to the machine shop. If, however, you are replacing the liners, a soft piece of wood and a rubber mallet can be used to pound them out. Even with care, it's not uncommon to crack a skirt on a particularly stubborn liner, and finding pieces of skirt material in the oil pan is not unheard of.

The Camshaft and Timing Components

Once the main rotating assembly is out, attention turns to the camshaft and timing components. The timing chain, sprockets, and camshaft can now be removed. Before doing so, it is crucial to locate and note the factory or previous rebuild alignment marks on the timing sprocket gears. These marks, often chiseled into a tooth on each gear, indicate the correct alignment when the camshaft and crankshaft are properly timed, typically aligning at the 2 o'clock and 7 o'clock positions. These marks will be invaluable during the reassembly phase to ensure correct engine timing.

Unless there is clear evidence of very low mileage since the last rebuild, it is generally a sound practice to replace the timing chain, its tensioner, and the timing gears. These components are critical for precise valve timing and wear out over time. Next, remove the two bolts securing the front camshaft bearing and carefully remove the bearing itself. Unless it shows visible damage, this bearing can often be reused. The camshaft can then be carefully backed out, ensuring it skips smoothly from bearing to bearing. Once out, inspect the camshaft lobes and journals for any signs of wear or scoring. A heavily scored camshaft will require replacement, whereas a good camshaft might be refurbished. Any new camshaft bearings will need to be 'pressed' into the block, a task best left to the expertise of a machine shop.

The Machine Shop: Precision Work for Longevity

With the engine thoroughly disassembled, it’s time to gather all the components destined for the machine shop. This crucial step ensures that all critical surfaces are within specification, perfectly true, and ready for a long, reliable life. The engine block itself will undergo a comprehensive cleaning, often including reaming the oil galleries to ensure unrestricted flow, and perhaps an optional exterior paint job.

The crankshaft is sent for meticulous cleaning, precise measurement of all journals, and regrinding if wear exceeds specified tolerances. The cylinder head receives a thorough cleaning and a complete overhaul, involving new valves, guides, and springs. As mentioned earlier, opting for hardened valve seats and modern valve stem seals is a highly recommended upgrade for increased durability and oil control, especially with modern fuels. The machine shop will also skim the head surface to ensure it is perfectly flat, critical for proper sealing with the block.

Connecting rods are sent for measurement to confirm they are straight and true, and for the fitting of new small end bushings. The rocker arms, often overlooked, also benefit immensely from professional attention. They can be sent for new bushings and to have their worn surfaces refaced and re-hardened. The part of the rocker that rides on top of the valve can suffer significant wear over tens of thousands of miles, developing indentations that need to be ground smooth and re-hardened. This is usually a far more cost-effective solution than purchasing eight new rockers.

Finally, the flywheel and the new clutch housing should also accompany these components to the machine shop. It is essential to have these two parts balanced together, and the flat surface where the clutch disc rides should be refurbished. For those seeking the ultimate in smoothness, having all the engine's moving components balanced is an option, though it comes at an additional cost. A skilled machinist can assess if a full balancing job would yield a significant benefit based on the initial balance of your components.

Productive Waiting: What to Do While the Machine Shop Works

The time spent waiting for your engine components to return from the machine shop can be substantial, often much longer than initially anticipated. Machine shops, particularly those with a diverse clientele, may prioritise more exotic V8 or racing engines over classic, 'old-fashioned' LBC (Little British Car) engines. Patience, combined with regular, polite follow-ups, is key. It's often beneficial to request the 'short block' components back first, allowing you to begin the initial stages of reassembly.

This waiting period, though potentially frustrating, offers a valuable opportunity to tackle other projects that complement the engine rebuild. It’s an ideal time for thorough parts cleaning, identifying and sourcing all the necessary new components and consumables for the rebuild. Many enthusiasts use this interval to work on other aspects of their vehicle, such as refurbishing the dashboard, rebuilding the gearbox, or addressing other mechanical systems that are more accessible with the engine out.

For instance, one might use this time to research and implement modifications or retrofits. A common example for TR engines is reverting the engine breather system to its original open breather setup, common on earlier models. This might involve sourcing a valve cover without the PCV valve hose port and a breather siphon pipe for the bottom rear right side of the engine. Such a change can resolve issues like random idle problems or positive pressure from a faulty PCV design, while also contributing to a more original appearance, even if the engine has been upgraded with components from a later model like the TR4A. Utilising this downtime effectively ensures that once your meticulously machined parts return, you are fully prepared to begin the exciting process of reassembling your revitalised TR engine.

Frequently Asked Questions About TR Engine Rebuilds

How much does a TR engine rebuild typically cost?

The cost can vary significantly based on the extent of wear, whether you do some work yourself, and the cost of parts and machine shop services. Replacing all pistons, liners, bearings, and having professional machine work done on the head, crank, and block can run into several thousand pounds. Reusing more components can reduce the cost, but often at the expense of long-term reliability.

Can I rebuild a TR engine myself, or do I need a professional?

While the TR engine is relatively simple, a full rebuild requires specific tools, precise measurements, and a good understanding of engine mechanics. Disassembly is manageable for a skilled DIY enthusiast, but critical steps like crankshaft grinding, cylinder head work, and balancing are best left to a professional machine shop. Reassembly also requires careful attention to torque specifications and clearances.

What are the benefits of the wet liner design?

The wet liner design offers several key benefits: ease of repeated rebuilds (liners can be replaced without re-boring the block), flexibility in changing engine displacement (by swapping liners and pistons), and superior cooling due to direct contact with the coolant. It also makes the block less prone to cracking from overheating compared to integrated bore designs.

What common problems should I look for during a TR engine inspection?

Common issues include worn crankshaft and connecting rod bearings (often indicated by low oil pressure or knocking sounds), worn piston rings and liners (leading to oil consumption and low compression), worn camshaft lobes and followers, and valve train wear (valves, guides, springs). Oil leaks from seals and gaskets are also common.

How long does a TR engine rebuild take?

The hands-on disassembly and reassembly can take a dedicated enthusiast several weeks of evenings and weekends. However, the largest variable is the time your components spend at the machine shop, which can range from a few weeks to several months, depending on their workload. Sourcing parts can also add to the timeline.
