Tektro HD-M290 Brakes: A UK Cyclist's View

For any keen cyclist in the UK, whether you're touring the countryside, commuting through city streets, or tackling challenging trails, the importance of a reliable braking system cannot be overstated. Brakes are not merely a component; they are a critical safety feature, often the deciding factor between a smooth, controlled stop and a hazardous incident. A mere second of inadequate stopping power or brake fade can lead to serious consequences, particularly in high-speed or demanding situations like racing or aggressive mountain biking. In this detailed article, we'll delve into the world of hydraulic disc brakes, with a particular focus on the Tektro HD-M290, a popular choice for its balance of performance and affordability.

Understanding Hydraulic Disc Brakes

Hydraulic disc brakes have become the go-to choice for many cyclists, especially in disciplines like all-mountain biking and XC, largely due to their superior performance characteristics. Unlike their mechanical counterparts, hydraulic systems operate through a sealed, fluid-filled line. When the brake lever is pressed, this non-compressible fluid transmits the force directly to the brake pads, pushing them against a rotor. This mechanism ensures that for the same amount of input at the lever, hydraulic brakes deliver significantly more stopping power and allow for finer modulation compared to mechanical disc brakes. The sealed nature of the system also means they require very little maintenance once installed and adjusted, protecting against ingress from dirt and mud, which helps maintain consistent braking performance even in the notoriously wet and muddy conditions often encountered across the UK.

Key Components of a Hydraulic Disc Brake System

To fully appreciate the Tektro HD-M290, it's helpful to understand the various components that make up a hydraulic disc brake system:

• Brake Pads: These are crucial for creating friction against the rotor. They come in various materials, typically organic (resin bonded with metallic & organic compounds) or metal sintered (metals bonded at high pressure and temperature). Organic pads offer a softer bite and quieter operation, while metal sintered pads excel in wet and muddy conditions and offer greater durability. The friction generated can be either 'adherent' (a thin layer of pad material transfers to the rotor, creating friction through bonds) or 'abrasive' (wear of pad or rotor surface).
• Rotor: The disc itself, located at the centre of the wheel. Its size directly influences braking power; a larger diameter provides more leverage against wheel rotation, leading to greater stopping force. Rotors also manage heat dissipation. They come in different designs (width, hardness, rubbing area) and types, most commonly 6-bolt (more compatible with various hubs) and CenterLock (single locking ring, often heavier and pricier). Two-piece rotors, featuring an aluminium carrier and stainless steel rubbing area, offer better heat dissipation and lighter weight.
• Caliper: This component houses the brake pads and pistons. Pistons are cylindrical elements that push the pads towards the rotor when the lever is engaged. Calipers can be 'Monobloc' (cast from a single piece) or '2-piece' (bolted together, more cost-effective). They are either 'fixed' (mounted, pistons push pads from both sides) or 'floating' (slides sideways, pulling the frame that holds the pad on the opposite side). Floating calipers are often more compact and budget-friendly. The number of pistons (2, 4, or 6) influences the contact area and force distribution, with 4-piston calipers generally offering better modulation control.
• Lever (Master Cylinder): Mounted on the handlebars, the lever and master cylinder generate the initial force to push fluid to the slave cylinder in the caliper. Levers can have a radial (perpendicular to handlebar) or inline (parallel to handlebar) design, affecting ergonomics. Key adjustments include 'reach adjustment' (distance from lever to handlebar grip, crucial for hand comfort and reducing forearm fatigue) and 'contact point adjustment' (when the brakes begin to engage during the lever's stroke).
• Brake Hose: This forms the vital connection between the caliper and the lever, designed to withstand high internal pressure (over 2000 psi) without stretching, ensuring a consistent lever feel.
• Hydraulic Fluid: Systems typically use either DOT fluid (poly-glycol based, common) or mineral oil (hydrophobic, absorbs little water, environmentally friendly). The choice of fluid can influence performance and maintenance. Systems can be 'closed' (constant fluid volume, prone to drag when overheating) or 'open' (surplus fluid reservoir with a flexible bladder, offering consistent performance across temperature changes).

Spotlight on the Tektro HD-M290

The Tektro HD-M290 emerges as a noteworthy option in the hydraulic disc brake market, particularly for riders seeking a reliable and budget-friendly solution. Positioned as an entry-level to mid-range hydraulic brake, it aims to deliver consistent performance across a broad spectrum of cycling activities.

The HD-M290 features a cast aluminium, two-finger blade lever, designed for a comfortable grip and effective power transfer. Notably, it offers tool-free reach adjustment, a convenient feature allowing riders to quickly tailor the lever's position to their hand size and preference without needing an Allen key. This adjustability is key to reducing rider fatigue, especially on longer rides or technical descents.

Paired with the TR160-8 rotor, which boasts a drilled braking surface for enhanced heat dissipation and tolerance, the HD-M290 aims to minimise brake fade during descents while maintaining strong stopping power. The caliper itself is a forged aluminium, dual-piston open system design. This dual-piston configuration ensures consistent braking power by applying even pressure to both sides of the rotor. The brake pads utilise a high-performance metal ceramic compound, chosen for its consistent braking performance in various conditions, including wet weather and downhill descents. Tektro specifies the use of their own mineral oil, which is non-corrosive and exhibits excellent heat expansion properties.

In practical application, the Tektro HD-M290 is remarkably versatile. It's listed as suitable for a wide array of bicycle types, including MTB, Road, Cyclocross, TT / Triathlon, Recreation, BMX, and E-Bikes. This broad compatibility makes it an attractive option for cyclists with diverse needs.

Real-World Performance and Value

Initial impressions of the Tektro HD-M290 often highlight a noticeable difference in feel compared to basic mechanical systems. Riders report minimal resistance in the lever until the pads make contact with the rotor, at which point resistance builds instantly and firmly. This characteristic allows for intuitive modulation of braking force, enabling riders to control their speed effectively by adjusting lever pressure. The opposing pistons in the caliper contribute to this consistent and predictable braking power. The straightforward mounting of the caliper and rotor, often requiring minimal modification, adds to its appeal as a hassle-free upgrade or replacement.

Given its price point, typically around £30-£40 per brake, the Tektro HD-M290 is often cited as offering excellent value. While some users might note it can be a bit noisy, its overall braking power and consistent performance for its cost make it a strong contender for cyclists on a tighter budget seeking the benefits of a hydraulic system.

Tektro HD-M290 vs. Other Budget Hydraulic Brakes

To provide context, let's see how the Tektro HD-M290 stacks up against some other popular budget-friendly hydraulic disc brakes mentioned in broader discussions, using a simplified comparison of key features:

As seen, the Tektro HD-M290, with its dual-piston design and metal ceramic pads, positions itself as a versatile all-rounder, particularly appealing for its inclusion of a rotor at a very competitive price. While higher-end options like the Shimano Deore BR-M6100 or SRAM Code R offer more advanced features like Servo Wave technology or 4-piston calipers for greater power and modulation, the HD-M290 provides a solid entry into the world of hydraulic braking without breaking the bank.

Maintenance and Longevity of Hydraulic Brakes

One of the significant advantages of hydraulic disc brakes is their generally low maintenance requirements. Because they are sealed systems, they are less susceptible to external contamination than cable-actuated brakes. However, like any precision component, they do require occasional attention:

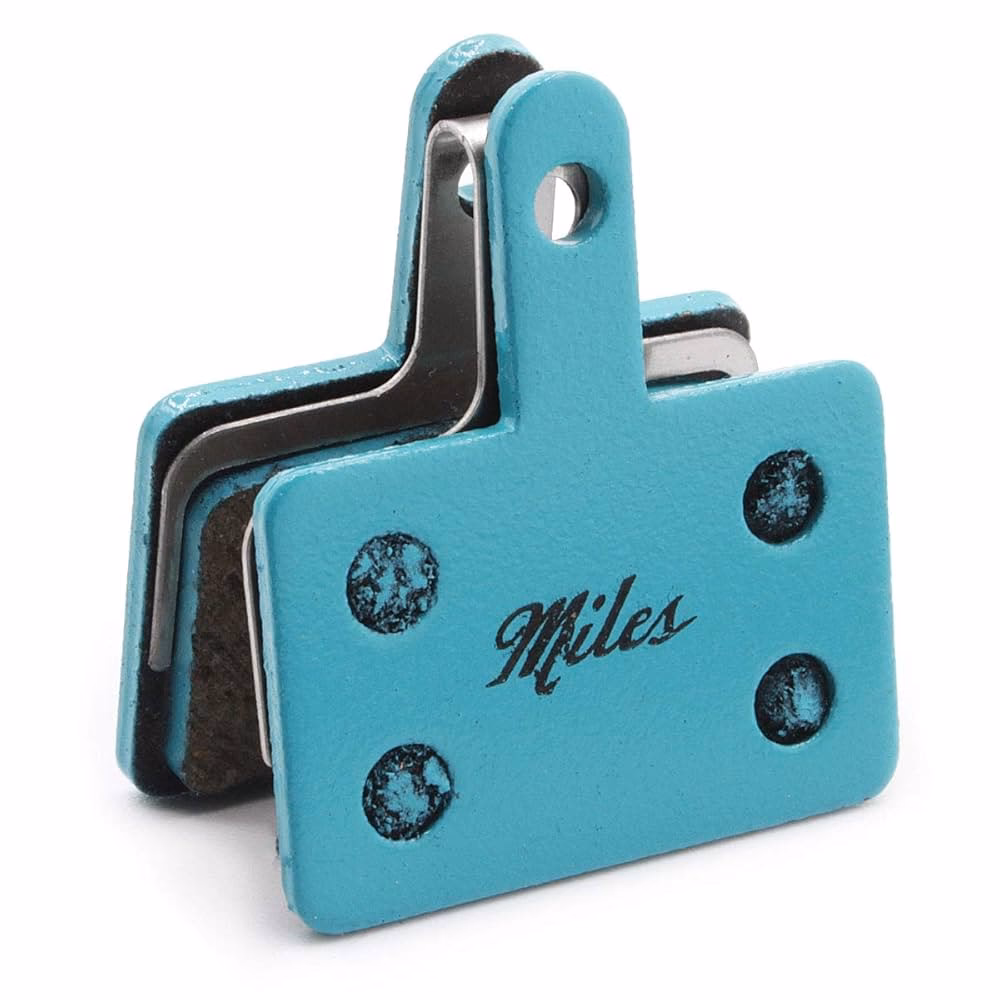

• Brake Pad Replacement: Pads will wear down over time and need replacing. The ease of replacement varies by caliper design, but many, including the Tektro HD-M290, use a screw-retained system for relatively straightforward changes.
• Bleeding: If your hydraulic brakes begin to feel 'spongy' at the lever, it typically indicates air has entered the system or the fluid has degraded. Bleeding involves removing old fluid and air and replacing it with fresh hydraulic fluid. While some systems are easier to bleed than others (e.g., Shimano's One-Way-Bleeding, SRAM's Bleeding Edge), it's a manageable task for the home mechanic with the right tools and supplies. Tektro's open system design and use of mineral oil generally contribute to easier maintenance.

Pad Compatibility for Tektro HD-R290 Brakes

While the primary focus of this article is the HD-M290, there's a specific query regarding pad compatibility for the related Tektro HD-R290 brakes. It's crucial to note that the HD-R290 is a different model, often found on road bikes or urban commuters, and typically specifies resin pads. For the Tektro HD-R290, the stock pads are often the F10BS. When seeking substitutes, compatibility charts and user manuals indicate that the following options are generally suitable:

• Shimano K03S: This is a resin pad, succeeding the K02S, and is widely compatible with various Shimano road disc calipers. Its resin compound provides good initial bite and quiet operation, ideal for road conditions.
• Swisstop Disc 34: Swisstop offers their Disc 34 series pads, which are designed to be compatible with a range of calipers that also take the Shimano K-type pads. These are available in different compounds (e.g., RS for performance) to suit rider preferences.

Always double-check the specific model and manufacturer's recommendations for pad compatibility to ensure optimal performance and safety for your HD-R290 system. Using the correct pad type (resin, as specified for HD-R290) is paramount.

Frequently Asked Questions

Q1. Are hydraulic disc brakes from Shimano any good?

Shimano is undoubtedly one of the leading manufacturers of hydraulic disc brakes, renowned for their innovation and quality. They have significantly pushed the adoption of hydraulic systems across various cycling disciplines, including road biking, where overheating during long, fast descents was a concern. Shimano addressed this with technologies like Ice-Tech rotors, which feature a three-layer sandwich structure of aluminium and stainless steel to improve heat transfer. They also offer a range of rotor sizes (140, 160, 180, 203mm) and have been instrumental in popularising the Flat Mount standard, now widely adopted across the industry. Shimano hydraulic brakes are often seen as an excellent first option for those transitioning to hydraulic systems due to their reliability, performance, and wide availability of parts.

Q2. Are hydraulic disc brakes worth it?

For many riders, the answer is a resounding yes, especially for technical riding at high speeds or in challenging conditions. Here’s how they compare to other brake types:

• Vs. Mechanical Disc Brakes: Hydraulic brakes offer significantly enhanced modulation from minimal lever effort. This means less strain on your hands and fingers, even during prolonged braking. They generally provide more consistent performance, are less affected by cable stretch, and pads can be replaced easily. While bleeding is occasionally required, some systems can go for extended periods without it.
• Vs. Rim Brakes: Hydraulic disc brakes provide far more consistent braking, particularly in wet or adverse weather conditions, and during long downhill stretches where rim brakes can overheat or lose efficiency. Without cables to stretch or get contaminated, maintenance is lower, and lever pull remains consistent. The inherent power multiplication within a hydraulic system means that a light touch can generate substantial stopping force, offering finer control and a more direct, responsive feel at the lever. This enhanced control allows riders to brake later and with greater confidence.

Conclusion

Navigating the myriad of braking options available on the market, especially when seeking the best budget hydraulic disc brakes, can indeed be a challenging endeavour. The Tektro HD-M290 presents itself as a compelling choice for UK cyclists looking to upgrade from mechanical systems or for those building a new bike on a sensible budget. Its robust construction, reliable dual-piston performance, and versatile application across various cycling styles make it a strong contender. While it might not boast the advanced features of top-tier systems, the HD-M290 delivers consistent stopping power and good modulation, offering significant value for money. Equipping your bike with capable brakes like the Tektro HD-M290 ensures safer, more controlled rides, allowing you to focus on enjoying the journey ahead.
