Weber to Fuel Injection Conversion Guide

The allure of the classic Weber carburettor is undeniable for many classic car enthusiasts. Its mechanical simplicity, distinct aesthetic, and the satisfying rumble it produces have cemented its place in automotive history. However, as technology advances, many are considering the switch to modern electronic fuel injection (EFI) for its improved efficiency, emissions control, and drivability. A common question that arises is whether a Weber throttle body can be converted to fuel injection. The short answer is no, not directly. A Weber carburettor, by its very design, is a mechanical device that relies on the Venturi effect to draw fuel into the airstream. It does not possess the electronic controls, fuel pumps, injectors, or sensors required for a modern EFI system. However, this doesn't mean you can't achieve the benefits of fuel injection on an engine originally equipped with Weber carburettors. The conversion involves replacing the entire carburettor setup with a dedicated EFI system, which often includes a new throttle body, fuel rails, injectors, a fuel pump, and an electronic control unit (ECU).

Understanding the Difference: Carburettor vs. Fuel Injection

To understand why a direct conversion isn't feasible, it's crucial to grasp the fundamental differences between carburettors and fuel injection:

Carburettors (e.g., Weber)

• Mechanical Operation: Relies on vacuum and airflow to draw fuel through jets and mix it with air.
• Simplicity: Fewer electronic components, making them generally easier to understand and repair for those familiar with them.
• Fuel Delivery: Fuel and air are mixed externally before entering the intake manifold.
• Less Precise: Can be less precise in fuel metering, especially under varying atmospheric conditions or engine loads.
• Tuning: Requires manual adjustment of jets, needles, and idle screws.

Fuel Injection (EFI)

• Electronic Control: Uses an ECU to precisely control fuel delivery based on sensor inputs.
• Efficiency: Optimises air-fuel ratios for better fuel economy and performance.
• Emissions: Significantly cleaner emissions due to more precise fuel control.
• Drivability: Smoother idle, better throttle response, and easier cold starts.
• Adaptability: Automatically adjusts to changes in altitude, temperature, and engine load.

The EFI Conversion Process: What's Involved?

Converting an engine from Weber carburettors to a full EFI system is a significant undertaking. It's not simply a case of bolting on a new throttle body; it requires a comprehensive approach. Here's a breakdown of the typical components and steps involved:

1. Fuel System Upgrade

Carburettors operate at very low fuel pressures (around 3-5 PSI). EFI systems, on the other hand, require much higher pressures (typically 30-60 PSI). This necessitates:

• High-Pressure Fuel Pump: An electric fuel pump designed for EFI systems needs to be installed. This might involve replacing the existing mechanical pump or adding an in-tank or external electric pump.
• Fuel Pressure Regulator: To maintain the correct and consistent fuel pressure for the injectors.
• Fuel Lines: Upgraded fuel lines capable of handling the higher pressure are often required.
• Fuel Rails: These are the manifolds that distribute fuel to each injector.

2. Throttle Body and Injectors

This is where the core of the "conversion" happens. You will need to replace the Weber carburettor(s) with:

• EFI Throttle Body: A throttle body designed for EFI, which houses the throttle plate and a throttle position sensor (TPS), but crucially, has provisions for mounting fuel injectors. These can be standalone units or part of a manifold replacement.

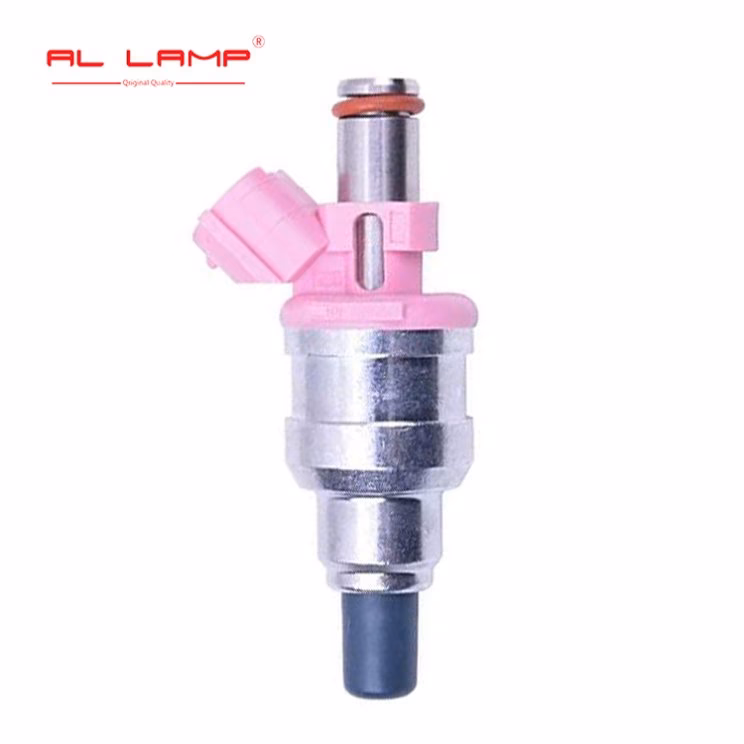

• Fuel Injectors: These electronically controlled valves spray fuel directly into the intake manifold or cylinder head. The size and flow rate of the injectors will depend on the engine's requirements.

3. Airflow Measurement

The ECU needs to know how much air is entering the engine to calculate the correct amount of fuel to inject. This is typically achieved through:

• Mass Airflow (MAF) Sensor: Measures the mass of air entering the engine.
• Manifold Absolute Pressure (MAP) Sensor: Measures the pressure within the intake manifold. Many modern systems use MAP sensors, which can be more discreet.

4. Engine Management System (ECU)

The brain of the operation. The ECU receives data from various sensors and controls the fuel injectors, ignition timing, and sometimes other engine functions.

• ECU Selection: Choosing an appropriate ECU is critical. Options range from universal aftermarket ECUs to manufacturer-specific systems that can be adapted.
• Wiring Harness: A new wiring harness will be needed to connect all the sensors, injectors, fuel pump, and ECU.
• Tuning: Once installed, the ECU needs to be programmed (tuned) to match the specific engine's characteristics for optimal performance and drivability. This is a crucial step that often requires a professional tuner.

5. Ignition System Integration

While not strictly part of the fuel system, EFI often integrates with the ignition system for more precise timing control. This might involve replacing traditional points or electronic distributors with a fully sequential ignition system, or at least ensuring compatibility with the new ECU.

Common EFI Conversion Kits for Weber Setups

Fortunately, the popularity of Weber carburettors means that several aftermarket companies offer conversion kits specifically designed to help you transition to EFI. These kits often aim to simplify the process by providing:

• Manifold Adapters: To fit a new EFI throttle body onto the existing intake manifold designed for Webers.
• Fuel Rail Kits: Designed to mount onto the manifold or adapter.
• Injector Bosses: If the manifold doesn't have integrated injector bungs.
• Sensors: Often include TPS, MAP, and sometimes wideband O2 sensors.
• Basic Wiring: For the essential sensors.

However, even with a kit, you'll still need to address the fuel pump, regulator, and ECU/tuning aspects separately. Some comprehensive kits may include these, but it's important to check the specifics.

Benefits of Converting to EFI

While the conversion is a significant project, the benefits can be substantial:

• Improved Fuel Economy: EFI systems precisely meter fuel, leading to less waste and better MPG.
• Enhanced Performance: Optimal air-fuel ratios across the rev range result in better power delivery and throttle response.
• Easier Starting: Especially in cold weather, as the ECU can enrich the mixture as needed.
• Smoother Idle and Drivability: Eliminates the quirks and fluctuations sometimes associated with carburettors.
• Reduced Emissions: A cleaner engine is better for the environment and can help pass modern emissions tests.
• No More Carb Tuning: Once tuned, the ECU handles fuel delivery, reducing the need for frequent manual adjustments.
• Altitude/Temperature Compensation: The system automatically adjusts for changing conditions.

Potential Challenges and Considerations

It's not all plain sailing. Be prepared for:

• Cost: EFI conversion kits and components can be expensive.
• Complexity: The electrical and plumbing aspects can be daunting for DIYers.
• Tuning Expertise: Proper tuning is critical and often requires professional help.
• Aesthetic Changes: The classic look of Weber carburettors will be lost.
• Fabrication: Some level of customisation or fabrication might be necessary.

Can I use my Weber throttle body *as part* of an EFI system?

This is a nuanced question. A Weber carburettor itself cannot be adapted. However, there are some highly specialized, custom solutions where the body of a Weber carburettor might be modified to house modern fuel injectors and sensors, essentially turning it into a unique EFI throttle body. This is an extremely advanced fabrication project, typically undertaken by highly skilled custom builders, and is not a practical or common conversion for the average enthusiast. It defeats the purpose of using a Weber for its mechanical simplicity and often involves significant compromise.

Frequently Asked Questions

Q1: Is it worth converting from Weber to EFI?
It depends on your priorities. If you value peak performance, fuel economy, and modern drivability, then yes. If you cherish the original mechanical feel and simplicity, and are adept at tuning carburettors, you might prefer to stick with your Webers.

Q2: How much does an EFI conversion typically cost?
Costs can vary wildly, from around £800 for a basic DIY kit to several thousand pounds for a fully professional installation with a high-end ECU and custom tuning.

Q3: Can I use my existing fuel pump with an EFI system?
Generally, no. Weber carburettors use low-pressure mechanical or low-pressure electric pumps. EFI systems require higher pressure, so a dedicated EFI fuel pump is almost always necessary.

Q4: What's the easiest way to convert?
Look for comprehensive EFI conversion kits designed for your specific engine or vehicle model. These kits often include most of the necessary components and detailed instructions, simplifying the process.

Q5: Do I need to change my intake manifold?
Not always. Many kits are designed to adapt to existing intake manifolds, often using adapter plates. However, some conversions might benefit from, or require, a manifold designed specifically for EFI with integrated injector bosses.

Conclusion

While a Weber throttle body itself cannot be directly converted to fuel injection, the engine it's attached to absolutely can be. The process involves a comprehensive upgrade of the fuel system, the addition of sensors, a new throttle body, injectors, and a sophisticated ECU. The benefits in terms of performance, efficiency, and drivability are significant, making it a popular upgrade for many classic and modified vehicles. However, it's a project that requires careful planning, a good understanding of automotive systems, and often, professional tuning to achieve the best results. If you're looking to modernise your classic's performance and efficiency, an EFI conversion is a compelling option, but be prepared for the investment in time and resources.
