13/01/2020
The Yamaha SR400 is a motorcycle that defies easy categorisation. It’s a machine that has been in continuous production, in one form or another, for over four decades. Born from the rugged XT500 trail bike, the SR series has carved out a unique niche, appealing to riders who appreciate simplicity, reliability, and the endless possibilities of customisation. This article delves into the history, evolution, and enduring charm of the Yamaha SR400, exploring what makes this unassuming single-cylinder machine a modern classic.
A Legacy Forged in Simplicity
The story of the SR400 begins in the mid-1970s with the development of the XT500. Yamaha’s engineers, tasked with creating a competitive off-road machine, opted for a thumping, air-cooled, four-stroke single-cylinder engine. This choice was influenced by the success of British singles in various motorsports, offering a slim profile and a robust power delivery. The XT500, launched in 1975, was a resounding success, proving the viability of the large-displacement single in the modern era.
Three years later, in 1978, Yamaha introduced the SR500, a road-focused derivative of the XT500. While sharing the same fundamental engine architecture, the SR500 featured numerous modifications to suit its intended purpose. These included a revised crankshaft with larger webs, a longer piston skirt for improved stability, and larger inlet valves (34mm compared to the XT’s 32mm) to enhance gas flow at higher road speeds. The SR500 also benefited from a CDI ignition system and 12-volt electrics, addressing some of the starting quirks common to big singles. Despite these improvements, the SR500, like many large singles of its era, could be a bit temperamental to start, often requiring a specific starting ritual detailed in the owner's manual.
The SR400 Arrives
Recognising the importance of local market regulations and licensing, Yamaha also developed a 400cc version for its domestic market. The SR400, introduced alongside the SR500, offered a slightly reduced displacement achieved through a shorter stroke. This made it more accessible to riders with specific licence restrictions in Japan and other markets. While the SR500 saw a more varied global distribution and eventually ceased production in 1999, the SR400 continued to be a strong seller in Japan.
Evolution and Modernisation
The SR400’s design ethos remained remarkably consistent for decades. Early models featured wire-spoked wheels, a front disc brake, and a rear drum brake. Over the years, minor updates addressed evolving emissions standards and consumer preferences. For instance, some models saw the disc brake migrate to the right side of the front wheel, a subtle nod to aesthetic preferences. The front wheel size also changed, with some models adopting an 18-inch front wheel for improved handling and tyre choice, while others retained the original 19-inch setup.
A significant turning point for the SR400 came in 2010 when it was updated with fuel injection. This move was crucial for meeting increasingly stringent global emissions and noise regulations. The fuel-injected system, coupled with a catalytic converter, allowed the SR400 to remain compliant while retaining its air-cooled, single-cylinder character. This technological leap effectively breathed new life into the venerable machine, ensuring its continued relevance in the 21st century.
The SR400 Today

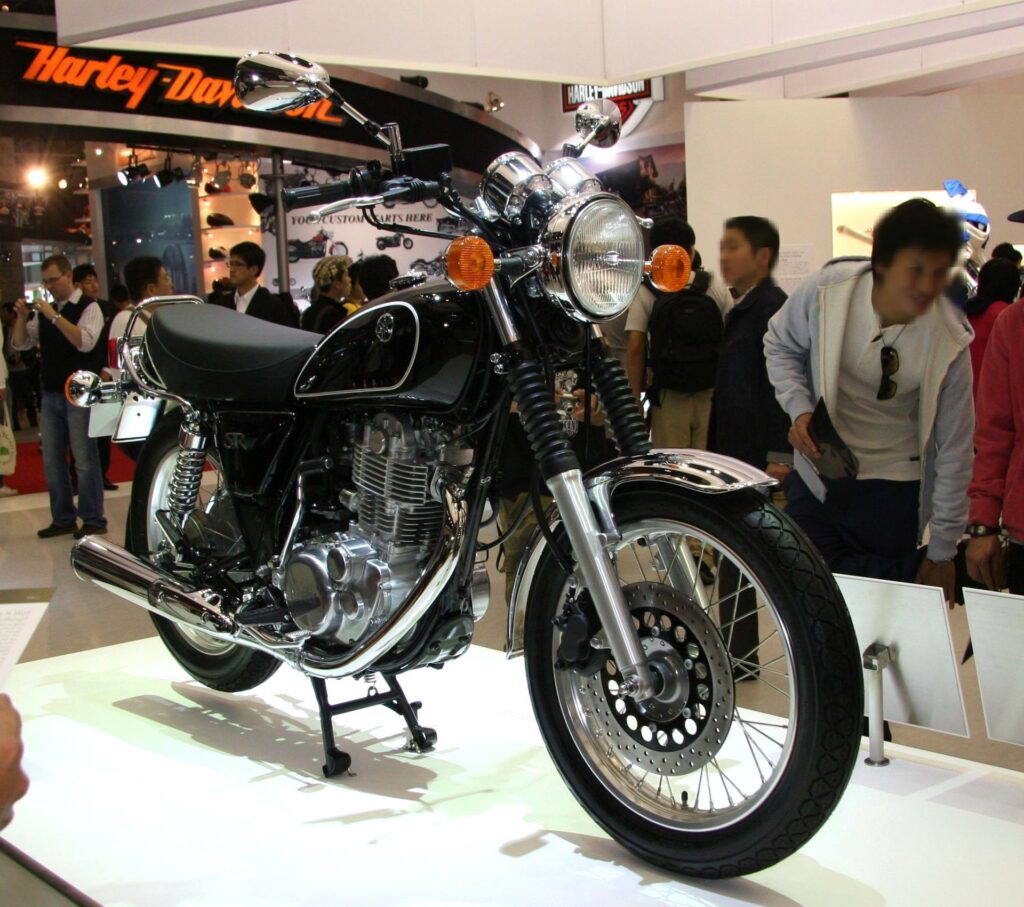

In 2014, Yamaha reintroduced the SR400 to Western markets, including the UK and the US. This modern iteration, still featuring the distinctive single-cylinder engine and kick-start-only operation, offered a blend of classic styling and contemporary engineering. Despite its modest power output (around 23 hp), the SR400’s appeal lies in its accessibility, user-friendliness, and the sheer joy of its uncomplicated riding experience. Its lightweight chassis, slim profile, and predictable handling make it an ideal machine for urban commuting, leisurely rides, and, importantly, customisation.
The Customisation Canvas
Perhaps the most significant aspect of the SR400’s enduring popularity is its role as a blank canvas for customisation. The Japanese market, in particular, fostered a thriving ecosystem of specialist parts manufacturers. From custom fuel tanks and exhaust systems to bespoke seats and performance upgrades, virtually every aspect of the SR400 can be tailored to individual taste. This has led to the creation of countless café racers, bobbers, flat trackers, and other unique builds, cementing the SR400’s status as a darling of the custom scene.
The simplicity of the SR400’s engine makes it exceptionally easy to modify. Common upgrades include performance air filters, aftermarket exhaust systems, and carburettor re-jetting, which can significantly enhance power delivery. More ambitious builds might involve engine transplants, big-bore kits, and suspension upgrades, transforming the stock machine into a potent and personalised ride. The high degree of parts interchangeability across different model years further simplifies the customisation process, making it accessible even for novice mechanics.
Key Differences: SR400 vs. SR500
While sharing a common ancestry, the SR400 and SR500 have distinct characteristics:
| Feature | Yamaha SR400 | Yamaha SR500 |
|---|---|---|
| Engine Displacement | 399cc | 499cc |
| Crankshaft | Shorter stroke | Longer stroke, larger webs |
| Inlet Valves | 32mm | 34mm |
| Market Focus | Primarily Japanese Domestic Market (JDM), later global | Global, including North America and Europe |
| Fueling (Later Models) | Fuel Injection | Carburettor (ceased production before FI adoption) |
| Starting | Kick-start only | Kick-start only |
Common Modifications and Upgrades
Owners often seek to enhance the SR400’s performance and aesthetics. Popular modifications include:
- Exhaust Systems: Replacing the restrictive stock exhaust with a free-flowing aftermarket unit for improved sound and performance.
- Air Filters: Swapping the stock airbox for a performance filter to increase airflow.
- Carburettor Tuning: Re-jetting or replacing the stock carburettor (on pre-FI models) to optimise fuelling after other modifications.
- Suspension: Upgrading rear shocks and front fork springs for better handling and ride comfort.
- Seating: Installing custom seats, such as café racer or bobber styles.
- Handlebars: Replacing stock handlebars with clip-ons or different rise bars for a changed riding position.
- Lighting: Upgrading headlights, taillights, and indicators for improved visibility and aesthetics.
- Fuel Tanks: Swapping the stock tank for custom-designed units, though care must be taken due to the oil-in-frame design.
Frequently Asked Questions
Does the SR400 have fuel injection?
Yes, models from 2010 onwards are equipped with electronic fuel injection to meet emissions standards.
Is the SR400 kick-start only?
Yes, all SR400 and SR500 models are kick-start only, a characteristic that many owners embrace as part of the bike’s authentic riding experience.
Are the SR400 and SR500 the same?
They share a common design but differ primarily in engine displacement (400cc vs. 500cc), with the SR500 having a longer stroke and larger inlet valves.
Is the SR400 good for long-distance touring?
While capable of covering distances, the SR400 is best suited for shorter trips and urban riding due to its relatively modest power and the physical demands of kick-starting. It excels in agility and ease of handling.
What are the common faults with the SR400/SR500?
Generally robust, common issues can include worn valve guides, cam chains, or tappets if maintenance is neglected. Early models could be challenging to start, but later fuel-injected versions are much more tractable. Oil leaks from the crankcases or cylinder head can also occur on older, high-mileage examples.
Conclusion
The Yamaha SR400 is more than just a motorcycle; it's a testament to enduring design and engineering. Its ability to adapt and remain relevant for over four decades, from its carburetted beginnings to its modern fuel-injected form, speaks volumes about its fundamental strengths. Whether ridden stock or transformed into a unique custom creation, the SR400 offers a pure, engaging riding experience that continues to captivate a dedicated following. Its blend of classic aesthetics, mechanical simplicity, and customisation potential ensures that the legacy of this remarkable single-cylinder machine will continue for years to come.
