Mastering Your Sled's Stopping Power: A UK Guide

Snowmobiling offers an exhilarating experience, allowing riders to traverse vast snowy landscapes at incredible speeds. While the thrill of acceleration is undeniable, the ability to stop safely and effectively is paramount. Snowmobiles, by law, must be equipped with brakes, and for good reason. Imagine hurtling across snow and ice at speeds that can easily exceed 120 miles per hour, with some high-powered machines pushing past 150 mph. Without a robust and reliable braking system, such speeds would be incredibly dangerous, turning a thrilling ride into a hazardous gamble. Understanding how these vital safety mechanisms function is not just for mechanics; it's essential for every rider. This guide will demystify the inner workings of your sled's braking system, explaining its components, how they interact, and crucial maintenance insights in a way that’s easy for anyone to grasp.

How Snowmobile Brakes Work: The Power of Friction

At its core, a snowmobile brake operates on the principle of friction. When you squeeze the brake lever on your handlebar, you initiate a chain of events designed to bring your powerful machine to a controlled halt. This action transmits force, typically through a hydraulic system (though mechanical cable systems exist), to a component called the brake caliper. Inside the caliper are pistons which, under pressure, press the brake pads against the spinning rotor. This rotor is directly linked to the drive system that propels your snowmobile's track forward. The forceful contact between the pads and the rotor generates immense friction, effectively slowing down and eventually stopping the rotor's rotation. This cessation of the rotor's movement then halts the forward motion of the track, bringing your snowmobile to a standstill.

However, it's crucial to remember that stopping the track's motion doesn't instantly eliminate all kinetic energy. Especially when navigating icy or slippery surfaces, your snowmobile may continue to slide forward for a short distance due to inertia. This highlights why anticipating stopping distances and understanding your environment are just as important as having well-maintained brakes. The efficiency of this friction-based system is what allows riders to maintain control and ensure their safety, even at high speeds and in challenging conditions.

Anatomy of a Snowmobile Brake: Components and Their Synergy

A snowmobile braking system, while seemingly simple in operation, is a meticulously engineered assembly of several interconnected parts, each playing a critical role in its overall function. Understanding these components and how they fit together provides a clearer picture of your sled's stopping capabilities. There are five primary components that form the backbone of this essential system: the brake lever, the brake line, the brake caliper with its pistons, the brake pads, and the rotor. Let's delve into each part sequentially:

Brake Levers

Positioned conveniently on your handlebar, the brake lever is your direct interface with the braking system. It's securely attached by a bolt and clamp, ensuring it remains stable and responsive as you ride. Engaging the brakes is as intuitive as squeezing the lever, much like operating the brakes on a bicycle. This initial squeeze is the trigger that sends the signal through the brake line, initiating the braking process.

Brake Line

The brake line acts as the conduit for the braking force. In most modern snowmobiles, this is a hydraulic line, filled with a specialised brake fluid. When you squeeze the lever, it increases the pressure within this fluid, and this hydraulic pressure is then transmitted to the brake caliper. Alternatively, some mechanical brake systems utilise a cable inside the brake line. In this setup, squeezing the lever pulls the cable taut, which in turn directly activates the caliper. Regardless of whether it's hydraulic or mechanical, the ultimate result is the same: the caliper is activated to apply pressure on the rotor.

Brake Caliper and Pistons

The brake caliper is the heart of the braking action, fitting snugly over the spinning rotor. It functions much like a sophisticated clamp. As Haynes Explains succinctly puts it, “The brake caliper fits over the spinning rotor and works much like a clamp – step on the brake pedal or pull the brake lever, and the caliper acts like a clamp, pressing the brake pads onto each side of the spinning rotor. The friction generated when the rotor rubs on the pads is what slows you down.” Inside the caliper, pistons are strategically positioned to exert this clamping force, pushing the brake pads against the rotor with considerable pressure.

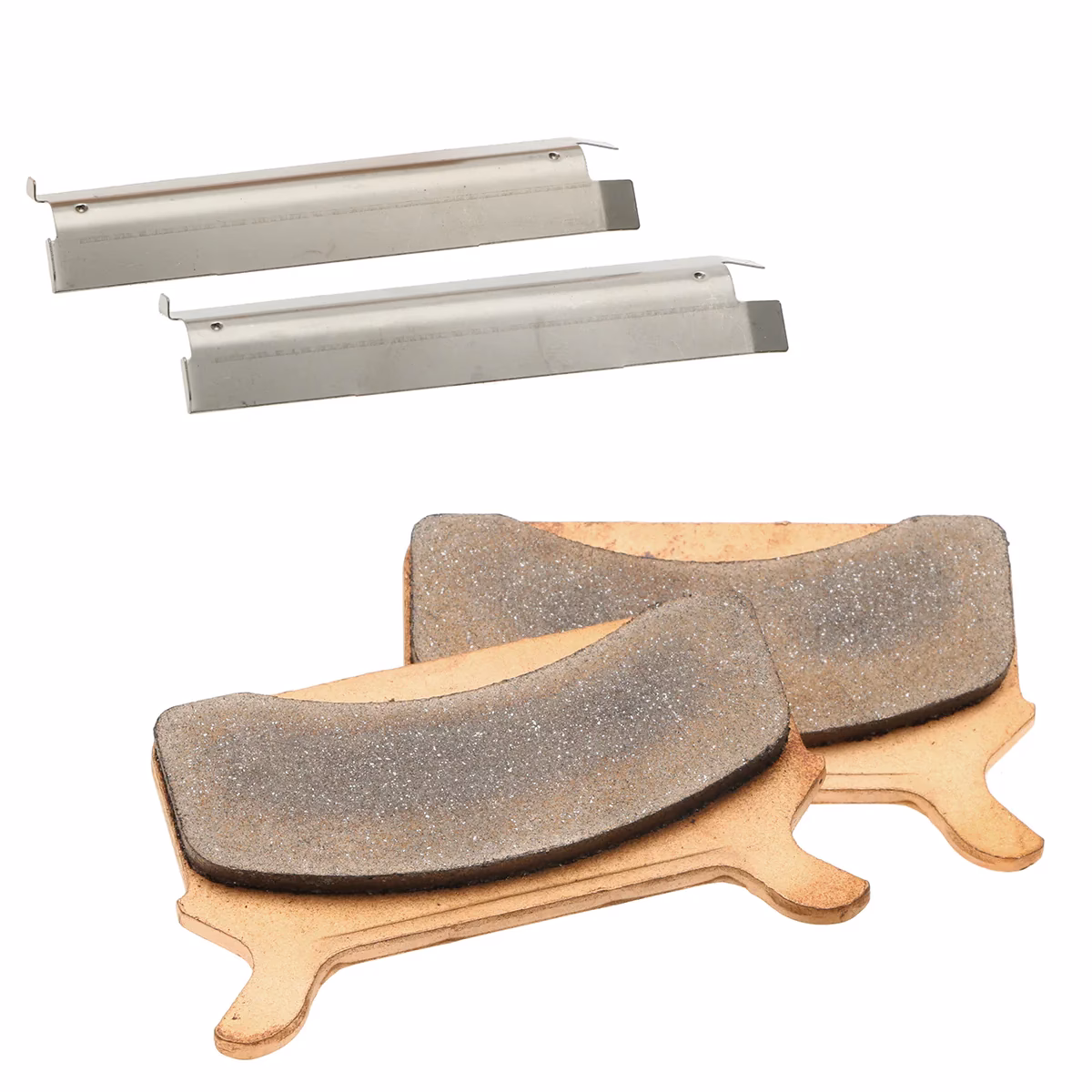

Brake Pads

Nestled between the caliper and the rotor, brake pads are crucial for both padding and generating friction. Their primary role is to provide a sacrificial, high-friction surface. Without them, the metal components of the caliper and rotor would grind directly against each other, leading to rapid wear, severe damage, and an array of unpleasant, loud noises. Such direct metal-on-metal contact could also produce metallic debris, potentially harming other critical components within the system. Beyond preventing damage, the material composition of the brake pads is specifically designed to create the necessary friction that converts the rotor's kinetic energy into heat, thereby slowing and stopping its rotation.

Rotor

The rotor can be envisioned as a large, flat disc or gear that is securely fixed around a rotating hub. This hub is directly connected to the snowmobile's drive system. As the hub turns to propel the track, the rotor spins along with it. When the brake pads, propelled by the caliper, apply pressure to the rotor, this friction acts to slow down and eventually halt the rotor's rotation, which in turn stops the movement of the hub and the snowmobile's track.

How a Snowmobile Parking Brake Works

A snowmobile parking brake, often a secondary yet invaluable feature, functions by effectively locking a moving part of the main braking system in place. This mechanism ensures that even when you release the primary brake lever, the calipers maintain pressure on the pads, thereby keeping the rotor locked down and preventing any unwanted forward or backward movement of the snowmobile.

Typically, the parking brake is integrated into the main brake lever assembly. It involves a spring-loaded mechanism. When you engage it, usually by squeezing the main brake lever and then activating a smaller, secondary lever or button, a specifically designed notch in the metal components slots into place. This securely holds the brake lever in its "on" position, maintaining the clamping force on the rotor. To release the parking brake, you simply apply a little more pressure to the main brake lever, which moves the spring and allows the stop to disengage from the notch, freeing the brake. This simple yet effective locking mechanism provides peace of mind when stopping on inclines or when you need to secure your sled for a short period.

Adjusting Your Snowmobile Brakes: Hydraulic vs. Mechanical

The process of adjusting snowmobile brakes differs significantly depending on whether your system is hydraulic or mechanical. Understanding these differences is key to proper maintenance and troubleshooting.

Hydraulic Snowmobile Brakes

Modern hydraulic systems are often designed to be self-adjusting. This means they automatically compensate for minor wear on the brake pads. If you experience issues with a hydraulic system, a simple adjustment isn't typically the solution. Instead, problems usually indicate a more significant underlying issue, such as air in the lines requiring a "bleed-out" procedure, or brake pads that are severely worn down and need complete replacement. These tasks often require specific knowledge and tools, and if you're unsure, it's best to consult a professional.

However, it's worth noting that even hydraulic systems can have specific quirks. For instance, as Rex from Ty4stroke points out regarding parking brakes: "On one of my sleds, the chaincase cover wasn’t quite machined right, and the parking brake couldn’t float properly. This led to a rapidly worn-out parking brake. I’ve also seen worn parking brake pads on a few other of these sleds – even without the chaincase cover issue. I believe these wear when the brake rotor becomes too loose, causing it to rattle against the parking brake pads at speed. To tighten up, the brake rotor shims can be installed under the circlip." This illustrates that while hydraulic systems are generally robust, specific mechanical tolerances can still affect their performance, particularly with the parking brake mechanism.

Mechanical Snowmobile Brakes

In contrast, mechanical (cable-type) brakes are generally straightforward to adjust, making it a task that many riders can perform with minimal mechanical knowledge. The adjustment process typically involves manually tightening or loosening the cable tension. Here's a simple step-by-step guide:

• Locate the Cable: Follow the brake cable from the handle down to the caliper assembly.
• Find the Adjustment Point: On the bottom of the caliper assembly, you'll typically find a bolt with a nut attached to the cable. This is your adjustment point.
• Loosen the Nut: Carefully loosen or remove this nut.
• Tighten the Bolt: Turn the bolt clockwise to tighten it down. This action will increase the tension in the brake cable, bringing the pads closer to the rotor and making the brake more responsive.
• Secure the Nut: Once you've achieved the desired brake lever feel and engagement, securely replace and tighten the nut to lock the adjustment in place.

Always test your brakes at low speed after any adjustment to ensure they are functioning correctly and safely.

Helpful Tips for Snowmobile Braking Systems

Understanding the intricacies of your snowmobile's brakes extends beyond just how they stop the machine. Here are a few additional insights that can be incredibly helpful for any rider:

• The Unsung Role of Brake Pads: While we've discussed their role in providing friction and padding, brake pads have a crucial third function that is often overlooked: centering the rotor within the caliper. Without properly dimensioned and positioned brake pads, the rotor would not remain perfectly centred. An off-centre rotor can lead to uneven tension and friction application, which not only affects braking performance but also causes premature and uneven wear on the pads and rotor itself. Furthermore, it can potentially cause damage to other components due to misalignment and excessive vibration.
• Parking Brake Nomenclature: If you're searching for information on your snowmobile's parking brake in the user manual, be aware that it might go by other names. Common alternative terms include "emergency brake" or simply "e-brake." Adding to the confusion, some older models of snowmobiles may not be equipped with parking brakes at all. Generally, this is less of a concern with newer models, which often include this convenient safety feature.
• Locating the Bleed Screw: For those with hydraulic brakes who might attempt to bleed their system (a process to remove air from the brake lines), locating the bleed screw is paramount. This vital component also has several aliases; you might find it listed as a "bleeder valve" or a "bleed nipple." Regardless of the name, you will consistently find this part strategically located at the top of each caliper. Its position allows for efficient air expulsion from the highest point of the hydraulic system.

Leading the Way: Hayes Brakes

When it comes to powersports braking systems, certain manufacturers stand out for their commitment to quality and performance. Hayes Brakes is a prime example. Riders of snowmobiles, motorcycles, ATVs, and Side-by-Sides/UTVs rely on their vehicles not only to perform powerfully but also to stop reliably. Hayes has built a long-standing reputation for control, protection, and excellence in this critical area.

Trusted by major industry brands such as Polaris and Arctic Cat, Hayes brakes have set the standard in powersports for decades. Their manufacturing operations are based in the United States, underscoring a commitment to quality control and innovation. Their success stems from a singular focus: braking systems have been their specialty since their inception in 1946. This targeted experience, combined with deep insights and knowledge, is powered by a passionate team of brilliant engineers who are themselves powersports enthusiasts. This unique combination ensures that both riders and their customers receive superior braking power, a testament to Hayes's unwavering dedication to safety and performance.

Brake Maintenance Schedule: How Often is Enough?

Like any critical system on a vehicle, the brakes on your snowmobile require regular maintenance to ensure optimal performance and longevity. While the exact frequency can vary based on usage and manufacturer recommendations, leading manufacturers generally suggest performing brake maintenance once every year or two. This proactive approach helps to identify and address potential issues before they become serious safety hazards.

A typical brake maintenance process for a snowmobile encompasses several key steps:

• Visual Inspection: A thorough visual check for any signs of wear, damage, leaks, or loose components.
• Brake Fluid Change: For hydraulic systems, replacing the brake fluid periodically is essential as it can absorb moisture over time, reducing its effectiveness and potentially leading to corrosion.
• Bleeding the Lines: Removing any air bubbles that may have entered the hydraulic lines, which can cause a spongy brake feel and reduced braking efficiency.
• Component Replacement: Replacing worn brake pads, rotors that show excessive wear or warping, and any deformed rubber seals to maintain system integrity and performance.

Adhering to a regular maintenance schedule not only ensures your safety but also helps to extend the lifespan of your braking components, saving you money on costly emergency repairs in the long run.

Comparative Table: Hydraulic vs. Mechanical Snowmobile Brakes

Frequently Asked Questions (FAQs)

Navigating the world of snowmobile maintenance can bring up many questions. Here are some of the most common queries about snowmobile brakes:

Q: What is the primary function of snowmobile brakes?
A: The primary function of snowmobile brakes is to safely and effectively slow down or stop the snowmobile by generating friction against a spinning rotor, which in turn halts the motion of the drive track. This is crucial for rider safety and control, especially at high speeds.

Q: Can I adjust hydraulic snowmobile brakes myself?
A: Hydraulic snowmobile brakes are often self-adjusting for minor pad wear. If you're experiencing issues, it's typically not a simple adjustment but rather an indication of worn pads or the need for a brake system bleed-out to remove air. While some experienced mechanics might do this themselves, it often requires specific tools and knowledge, so professional assistance is recommended if you're unsure.

Q: What are the key components of a snowmobile braking system?
A: The five main components of a snowmobile braking system are the brake lever (on the handlebar), the brake line (hydraulic or mechanical), the brake caliper (with pistons), the brake pads, and the rotor.

Q: Why are brake pads important beyond just creating friction?
A: Besides generating friction to stop the rotor and providing padding between metal parts, brake pads also play a vital role in keeping the rotor centred within the caliper. An off-centre rotor can lead to uneven wear, reduced braking efficiency, and potential damage to other components.

Q: How often should I service my snowmobile brakes?
A: Leading manufacturers generally recommend servicing your snowmobile brakes once every year or two. This typically includes a visual inspection, brake fluid change (for hydraulic systems), bleeding the lines, and replacing worn components like pads, rotors, or seals.

Q: Are all snowmobiles equipped with parking brakes?
A: While many modern snowmobiles feature parking brakes (sometimes called emergency brakes or e-brakes), some older models may not have this feature. It's always best to consult your snowmobile's user manual to confirm its specific features.

Final Thoughts

Understanding how your snowmobile's brakes operate is far more than just a technical curiosity; it's a fundamental aspect of responsible riding and personal safety. You don't need an engineering degree to grasp the basic principles of these friction-based stoppers and how they apply pressure to moving parts to bring your sled to a halt. More importantly, gaining this insight into the internal workings of your snowmobile brakes can be incredibly empowering. It equips you to more effectively troubleshoot issues if they arise, allows you to perform basic adjustments on mechanical systems, and helps you recognise when professional intervention is required for hydraulic systems.

Just as brakes are indispensable on a car for road travel, they are absolutely essential for wintertime safety on a snowmobile. Without them, you'd be forced to cut the engine and simply hope you've accurately gauged the stopping distance every time you wished to halt your vehicle – an inefficient, unreliable, and frankly, dangerous method. Knowing how your snowmobile brakes work, how to maintain them, and how to make minor adjustments can save you both money and precious time. In a challenging situation out on the trail, this knowledge could even be the critical factor that helps you safely navigate an unexpected emergency, potentially saving your life, preventing injuries, and minimising damage to your cherished machine. Invest the time to understand your brakes; it's an investment in your safety and enjoyment of snowmobiling.
