Understanding Multi-Point Fuel Injection (MPFI)

The automotive landscape has undergone a profound transformation since the 1980s, marking the definitive end of the carburetor era. This shift ushered in a new standard: fuel injection. This advanced method of fuel delivery brought with it a host of benefits, including significantly lower maintenance requirements, improved fuel economy, reduced emissions, and far more precise fuel metering, all thanks to the sophisticated control of the powertrain control module (PCM). Among the pioneering fuel injection technologies, Multi-Point Fuel Injection (MPFI) stands out as a crucial development that paved the way for the efficient engines we rely on today.

The Evolution: From Carburettors to Fuel Injection

For decades, carburetors were the undisputed champions of fuel delivery in internal combustion engines. They were mechanical devices that mixed air and fuel in a fixed ratio, relying on the Venturi effect to draw fuel into the engine. However, as environmental regulations tightened and demand for greater efficiency grew, the limitations of carburetors became increasingly apparent. They were prone to issues like inconsistent fuel delivery across cylinders, poor cold-start performance, and a general lack of precision, making them inefficient in managing emissions and fuel consumption. The advent of fuel injection systems addressed these shortcomings head-on, offering a more controlled and adaptable approach to engine fuelling.

What is Multi-Point Fuel Injection (MPFI)?

Multi-Point Fuel Injection, often abbreviated as MPFI, represents a significant leap forward from earlier single-point injection systems. In an MPFI system, each individual cylinder of the engine is supplied with fuel by its own dedicated injector. These injectors are strategically mounted in the intake manifold, positioned slightly upstream of the intake valve for each cylinder. This precise placement ensures that fuel is delivered directly to the intake port of each cylinder, allowing for a much more even and accurate distribution of the air-fuel mixture compared to a single injector feeding multiple cylinders. The result is improved combustion efficiency, better throttle response, and more consistent power output across all cylinders.

How MPFI Systems Operate

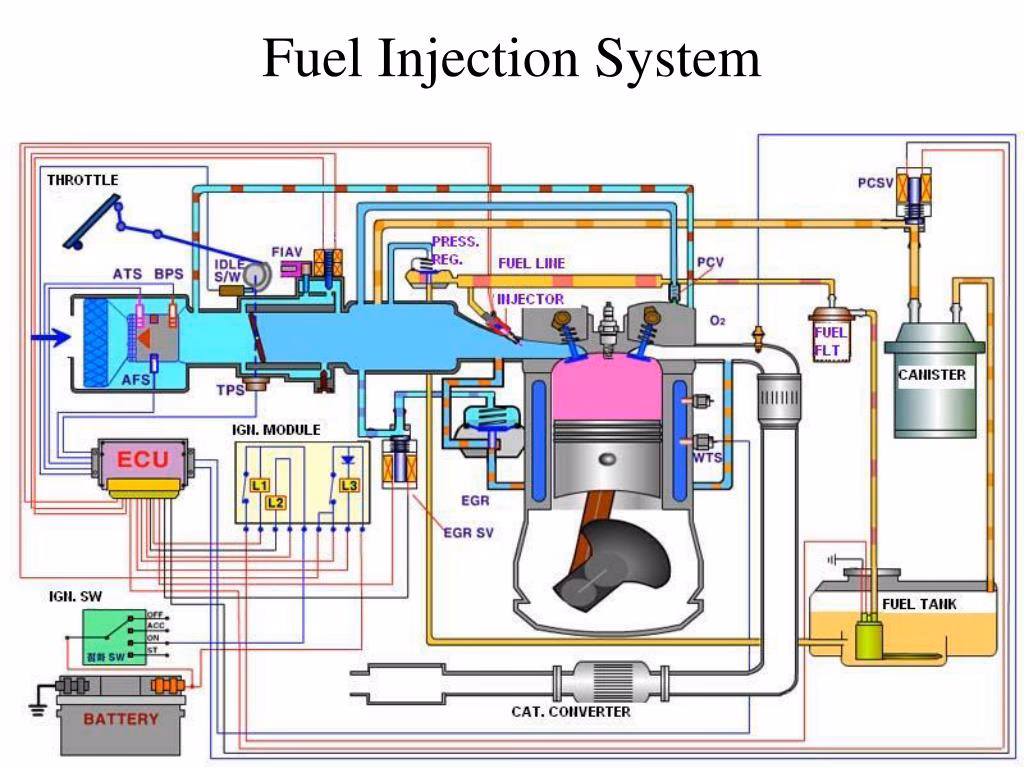

The fundamental operation of an MPFI system revolves around the precise control of fuel delivery to each cylinder. Fuel is drawn from the vehicle's tank by an electric fuel pump and sent under pressure to a fuel rail. This rail acts as a reservoir, distributing the pressurised fuel to each of the individual injectors. Each injector is essentially an electronically controlled valve, typically operated by a solenoid. When the solenoid receives an electrical pulse from the PCM, it opens, allowing a finely atomised spray of fuel to enter the intake manifold.

The timing and duration of these pulses are critical. The Powertrain Control Module (PCM) is the brain of the operation, constantly monitoring various engine parameters through an array of sensors. These sensors provide data on engine speed, load, throttle position, ambient air temperature, engine coolant temperature, and oxygen levels in the exhaust. Based on this real-time information, the PCM calculates the optimal amount of fuel required for combustion and precisely controls when and for how long each injector opens. This dynamic adjustment ensures that the engine always receives the ideal air-fuel mixture for current driving conditions, maximising performance and minimising emissions.

Types of Multi-Point Fuel Injection Systems

MPFI systems are not monolithic; they can operate in several different modes, each offering varying degrees of precision and complexity. The primary classifications based on timing are sequential, batched, and continuous. Additionally, the underlying control mechanism can be hydraulic-mechanical or electronic.

Sequential Multi-Point Fuel Injection

Sequential MPFI represents the most advanced form of multi-point injection. In this setup, the PCM precisely times each pulse of fuel to coincide with the opening of the intake valve for its specific cylinder. This means that each injector fires individually and in sequence, just as its cylinder is ready to receive the fuel. This highly synchronised delivery ensures maximum efficiency, as fuel is introduced at the optimal moment for atomisation and mixing with air, leading to superior combustion, excellent fuel economy, and minimal emissions.

Batched Multi-Point Fuel Injection

In a batched MPFI system, fuel is delivered to the cylinders in groups rather than individually. For example, half of the injectors might fire simultaneously, followed by the other half. While less precise than sequential injection, batched MPFI still offers significant advantages over single-point systems. It's a compromise that balances cost-effectiveness with improved fuel delivery compared to older technologies.

Continuous Multi-Point Fuel Injection

As the name suggests, continuous MPFI systems spray fuel into the intake manifold all of the time, rather than in timed pulses. The amount of fuel delivered is regulated by varying the pressure or the duration of the spray, but the injection itself is constant. One common example of this is the hydraulic-mechanical fuel injection system.

Hydraulic-Mechanical vs. Electronic Fuel Injection Systems

Beyond the timing of injection, MPFI systems can also be categorised by their control mechanisms:

• Hydraulic-Mechanical Fuel Injection System: This type of system is typically a continuous injection system. It relies on mechanical and hydraulic principles to deliver fuel. Fuel pressure and distribution are managed through mechanical components, often without the direct electronic control of a PCM. While robust, these systems tend to be less precise and adaptable to varying engine conditions compared to electronic systems. They spray fuel into the intake manifold continuously, rather than intermittently.
• Electronic Fuel Injection System: This is the predominant type of MPFI today. It leverages the power of the PCM and a network of sensors to precisely control fuel delivery. The electronic nature allows for real-time adjustments based on engine load, speed, temperature, and other factors, leading to unparalleled precision, efficiency, and emissions control. The solenoid-controlled injectors are at the heart of this electronic precision.

MPFI vs. GDI: A Comparative Look

While MPFI systems have been a standard for decades, another prominent fuel injection technology, Gasoline Direct Injection (GDI), has become increasingly common in newer vehicles. Understanding the differences is key to appreciating MPFI's continued relevance.

While GDI offers the potential for even greater fuel metering precision and can contribute to higher power output from smaller displacement engines, it does come with increased complexity and higher operating temperatures for components. MPFI, on the other hand, often provides a more straightforward and robust solution with its injectors positioned outside the direct combustion environment, which historically contributes to its reputation for lower maintenance on certain aspects.

Advantages of Multi-Point Fuel Injection

The widespread adoption of MPFI over carburetors and its continued presence alongside GDI systems are testament to its significant advantages:

• Improved Fuel Economy: The precise metering of fuel by the PCM ensures that the engine receives exactly the right amount of fuel for optimal combustion, reducing waste and improving miles per gallon.
• Reduced Emissions: By maintaining an ideal air-fuel ratio, MPFI systems allow the catalytic converter to operate more effectively, significantly reducing harmful exhaust emissions. This precision was crucial in meeting stringent environmental standards.
• Better Performance and Drivability: The ability to deliver fuel accurately to each cylinder results in smoother engine operation, more consistent power delivery, and better throttle response. This translates to a more enjoyable and predictable driving experience.
• Lower Maintenance: Compared to the intricate mechanical nature of carburetors, electronic MPFI systems often require less routine adjustment and cleaning. Furthermore, unlike GDI, the fuel spray in MPFI systems passes over the intake valves, which helps to keep them clean and reduces the risk of carbon buildup, a common issue in some GDI engines.
• Reliability: MPFI systems are well-understood and have been refined over decades, leading to highly reliable components and established diagnostic procedures.

The Indispensable Role of the Powertrain Control Module (PCM)

The PCM is truly the nerve centre of any modern fuel injection system, and particularly so for electronic MPFI. It's a sophisticated computer that constantly processes data from dozens of sensors located throughout the engine and vehicle. These sensors provide vital information:

• Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) Sensor: Measures the amount of air entering the engine.
• Throttle Position Sensor (TPS): Indicates how much the accelerator pedal is pressed.
• Oxygen (O2) Sensors: Monitor the oxygen content in the exhaust gases, providing feedback on combustion efficiency.
• Engine Coolant Temperature (ECT) Sensor: Reports the engine's operating temperature, crucial for cold-start enrichment and warm-up cycles.
• Crankshaft Position (CKP) and Camshaft Position (CMP) Sensors: Determine engine speed and the position of the pistons and valves.

Using this deluge of data, the PCM performs complex calculations in real-time to determine the exact fuel pulse width (how long the injector stays open) and timing for each injector. This ensures that the engine always operates at its peak efficiency, whether idling in traffic, cruising on the motorway, or accelerating hard. The PCM’s ability to adapt to changing conditions is what makes MPFI systems so incredibly effective at balancing power, economy, and emissions.

Maintaining Your MPFI System

While MPFI systems are known for their robustness and relatively low maintenance, a few practices can help ensure their longevity and optimal performance. Regular fuel filter replacement is crucial to prevent contaminants from reaching and clogging the delicate injectors. Using high-quality fuel can also minimise the accumulation of deposits. Although MPFI injectors are less prone to carbon buildup than GDI injectors because the fuel washes over the intake valves, occasional use of a reputable fuel system cleaner can still be beneficial to keep the injectors free from varnish-type deposits and ensure an optimal spray pattern. Adhering to your vehicle manufacturer's recommended service intervals for all components related to the fuel system will help maintain its efficiency and reliability for years to come.

Frequently Asked Questions About Multi-Point Fuel Injection

What are the main advantages of MPFI over older systems?

MPFI offers significant advantages including improved fuel economy due to precise metering, reduced exhaust emissions, better engine performance and smoother drivability, and generally lower maintenance requirements compared to carburetors. Its design also naturally helps prevent carbon buildup on intake valves, a potential issue with GDI systems.

How does MPFI differ from Single-Point Fuel Injection (SPI)?

In Single-Point Injection (also known as Throttle Body Injection), a single injector or cluster of injectors is located in the throttle body, much like a carburetor. This means fuel is delivered to a central point and then distributed to all cylinders. MPFI, by contrast, uses a dedicated injector for each cylinder, located in the intake manifold near the intake valve, allowing for much more precise and even fuel distribution to each cylinder.

Are there different types of MPFI systems?

Yes, MPFI systems can be categorised by their timing (sequential, batched, or continuous) and by their control mechanism (hydraulic-mechanical or electronic). Electronic sequential MPFI is the most common and advanced type, offering the highest precision.

Why did cars switch from carburetors to fuel injection, including MPFI?

The transition was driven by the need for better fuel economy, lower emissions to meet stricter environmental regulations, and improved engine performance and reliability. Carburetors simply couldn't offer the precision and adaptability that electronic fuel injection systems, like MPFI, could.

Is MPFI still used in modern cars?

While Gasoline Direct Injection (GDI) has become increasingly prevalent in newer vehicle designs, particularly for performance and extreme efficiency, MPFI systems are still widely used in many modern vehicles, especially in less complex or cost-sensitive applications. Many engines also utilise a combination of both MPFI and GDI (known as 'port and direct injection') to leverage the benefits of both technologies, such as reducing carbon buildup on valves while maintaining high efficiency.

In conclusion, Multi-Point Fuel Injection systems represent a pivotal moment in automotive engineering. By offering precise, cylinder-specific fuel delivery, they dramatically improved engine efficiency, reduced environmental impact, and enhanced vehicle performance. While newer technologies continue to emerge, the principles and benefits of MPFI remain a cornerstone of modern internal combustion engine design, proving its enduring value in the pursuit of efficient and reliable motoring.
