Replacing Worn Rim Brake Pads on Your Bike

There's nothing quite like the feeling of confidence and control that comes with perfectly functioning brakes on your bicycle. Whether you're navigating busy city streets or descending a challenging country lane, reliable stopping power is paramount for your safety and enjoyment. Over time, however, the constant friction of braking takes its toll on your rim brake pads, leading to wear and a noticeable decline in performance. Ignoring worn pads can not only compromise your ability to stop effectively but also damage your wheel rims, leading to far more costly repairs. Fortunately, replacing your bicycle's rim brake pads is a straightforward maintenance task that most cyclists can accomplish with a few basic tools and a bit of patience. This comprehensive guide will walk you through each step, ensuring your bike is back to stopping powerfully and safely in no time.

Why Replace Your Brake Pads? The Importance of Stopping Power

Brake pads are the unsung heroes of your bicycle's braking system, converting kinetic energy into heat through friction to slow and stop your bike. As they wear down, their ability to generate sufficient friction diminishes, leading to longer stopping distances and a spongy, unresponsive feel at the brake levers. This isn't just an inconvenience; it's a significant safety concern. Worn pads can also cause damage to your wheel rims, as the worn material can expose metal or abrasive particles that grind against the rim surface. Regular inspection and timely replacement are crucial for maintaining optimal performance and preventing more extensive repairs down the line.

When to Replace Your Brake Pads: Spotting the Signs

Knowing when to replace your brake pads is key. Here are the tell-tale signs:

• Visible Wear: Most rim brake pads have wear indicator lines or grooves. If these are no longer visible, or if the pad material is very thin (less than a few millimetres), it's time for a replacement.
• Reduced Braking Performance: If you find yourself pulling the brake levers harder to achieve the same stopping power, or if braking feels sluggish and inefficient, your pads are likely worn.
• Squealing or Grinding Noises: While squealing can sometimes be due to contamination or misalignment, it often indicates worn pads. A grinding noise almost certainly means the pad material is completely gone, and the metal shoe is rubbing against the rim – this requires immediate attention!
• Hardened or Glazed Pads: Over time, the pad surface can become hard and shiny, reducing friction. Even if there's material left, performance will be poor.

Tools You'll Need for the Job

Before you begin, gather the following essential tools:

• Allen Key Set: Typically, a 5mm or 6mm Allen key will be needed for the retaining bolt.
• Small Flat-Head Screwdriver: Useful for prying out stubborn old pads and general adjustments.
• Clean Cloths: For cleaning rims and brake components.
• Rubbing Alcohol or Disc Brake Cleaner (optional but recommended): For cleaning rims and new pads to ensure optimal contact.
• Grease (small dab): A tiny amount of anti-seize or assembly grease can help with inserting new pads, but absolutely keep it away from the brake surface!
• New Rim Brake Pads: Ensure they are compatible with your brake calipers and rim type (e.g., carbon specific for carbon rims).

Step-by-Step Guide: Replacing Your Bicycle's Rim Brake Pads

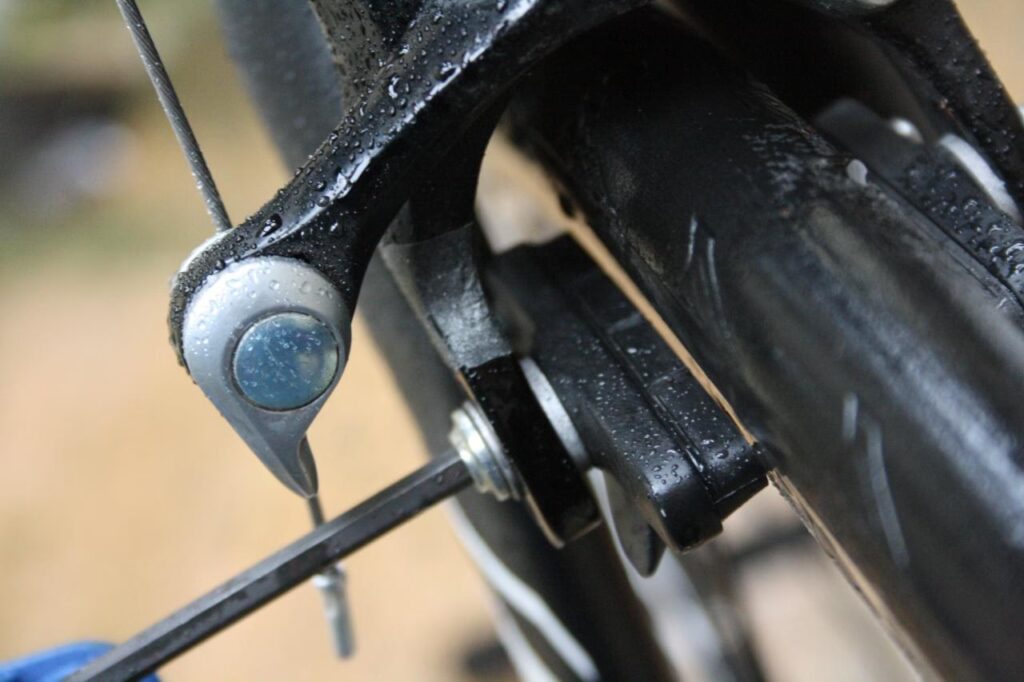

1. Unscrewing the Retaining Bolt

Your journey to better braking begins with the retaining bolt. This small but crucial fastener holds the brake pad securely within its metal cartridge. Locate the retaining bolt, usually on the side of the brake pad holder, and select the appropriate Allen key – typically a 5mm or 6mm. Carefully insert the Allen key and turn it anti-clockwise to loosen and remove the bolt. It's important to apply steady, firm pressure to avoid rounding off the bolt head, especially if it's been in place for a long time. If you notice any signs of the bolt head rounding, it's wise to replace it when securing the new pad.

Pro Tip: Sometimes, these bolts can be quite tight or corroded. A small amount of penetrating oil applied beforehand can help immensely, but be sure to clean any residue thoroughly before reassembly to prevent contamination of the brake surface.

2. Removing the Wheel

To gain unrestricted access to the brake pads and their cartridges, the wheel needs to be removed. Begin by flipping the quick-release mechanism on your brake caliper. This will open the caliper arms wider, creating enough clearance to easily remove the wheel from the dropouts. If your bike has a through-axle, you'll need to unscrew that instead. Removing the wheel provides the necessary space to work comfortably, ensuring you can properly remove the old pads and accurately install the new ones without obstruction.

Safety Note: Always ensure your bike is stable, either in a work stand or inverted on a soft surface, to prevent it from toppling over during this process.

3. Out with the Old Pads

With the wheel out of the way, you can now focus on extracting the worn brake pads from their cartridges. Most rim brake pads slide out backwards from the open end of the cartridge. This can sometimes be a bit stiff, especially if the pads have been in place for a long time and accumulated grime. If you find it challenging to push them out with your thumb, a small flat-head screwdriver can be used to gently pry them out. Insert the screwdriver into the gap at the back of the cartridge and apply a bit of leverage to push the pad forward. Be careful not to damage the cartridge itself. Once the old pads are removed, take a moment to inspect the cartridges for any dirt, grit, or debris and clean them thoroughly with a clean cloth. A clean cartridge ensures the new pad slides in smoothly and sits correctly.

4. In with the New Pads

Now for the satisfying part: installing the fresh brake pads. Before you slide them in, take a close look at the new pads. Many pads are directional, meaning they have a specific orientation for optimal performance and wear. Look for an arrow, "L" for left, or "R" for right, or an indication of which way the pad should face relative to the wheel's rotation. Ensure the new pad is oriented correctly before insertion. If the pad feels stiff going into the cartridge, you can apply a tiny dab of grease to the non-braking surface (the back and sides of the pad that slide into the cartridge). Crucially, ensure no grease whatsoever gets onto the braking surface of the pad or the rim, as this will severely impair braking performance and can be very difficult to remove completely.

Slide the new pad firmly into the cartridge until it's fully seated. It should sit flush and securely without wobbling.

Understanding Brake Pad Compounds:Not all brake pads are created equal. They come in various compounds designed for different conditions and rim materials. Choosing the right pad is vital for performance and safety.

Always ensure you are using the correct pad type for your rim material, especially if you have expensive carbon fibre wheels.

5. Secure with the Retaining Screw

Once the new pad is correctly seated in the cartridge, it's time to secure it with the retaining screw. Re-insert the screw through the designated hole in the cartridge and into the brake pad, then use your Allen key to turn it clockwise. Tighten the screw until it feels secure and "nips up." It's important not to overtighten this screw, as doing so can strip the threads or damage the pad or cartridge. However, it must be tight enough to prevent the pad from working loose during braking. A firm, hand-tight feel is usually sufficient. Give the pad a gentle tug to confirm it's firmly held in place.

6. Centring the Wheel and Caliper Adjustment

With the new pads installed, it's time to re-mount the wheel. Carefully slide the wheel back into the dropouts, ensuring it's fully seated. Close the quick-release mechanism on the brake caliper by pushing it down. Now, you need to centre the wheel within the brake caliper arms and ensure the brake pads are correctly aligned with the rim. Spin the wheel to check for any rubbing. If the wheel isn't centred, you'll need to adjust the caliper's position. Most calipers have a centring screw or can be nudged into position by loosening the main mounting bolt slightly, centring the caliper, and then re-tightening. The goal is to have an even gap between both brake pads and the rim when the brakes are disengaged.

Additionally, check the alignment of the brake pads themselves. They should be parallel to the rim surface and contact the rim fully without touching the tyre or dipping below the rim's braking track. Some brake pad holders allow for angle adjustment using spherical washers; adjust these if necessary to ensure perfect alignment. A slight 'toe-in' (where the front edge of the pad touches the rim slightly before the back edge) is often recommended to prevent squealing, but this is a fine-tuning step once the basic alignment is correct.

Post-Installation Checks and Bedding In

After installing your new brake pads, a few final checks are essential:

• Lever Feel: Squeeze the brake levers. They should feel firm and responsive, not spongy. If they feel too loose, you may need to adjust the cable tension.
• Clearance: Ensure there's adequate clearance between the pads and the rim when the brakes are not applied.
• Test Ride: Take your bike for a short, cautious test ride in a safe area. Gradually apply the brakes to "bed in" the new pads. This process helps the pad material conform to the rim surface, optimising braking performance and reducing noise. Repeatedly accelerate to a moderate speed and then brake firmly but smoothly (without skidding) until almost stopped. Do this 15-20 times for each brake.

Common Pitfalls and Troubleshooting

Maintenance Tips for Longer Pad Life

• Keep Rims Clean: Regularly wipe down your rims to remove dirt and grit. This prevents abrasive particles from embedding in your pads and wearing them down prematurely.
• Avoid Contamination: Be extremely careful when lubricating other bike parts (e.g., chain) not to get oil or grease on your rims or brake pads.
• Proper Braking Technique: Avoid dragging your brakes unnecessarily. Use both brakes, feathering them to control speed rather than constant heavy application.
• Inspect Regularly: Make a habit of checking your brake pads for wear and alignment before rides.

Frequently Asked Questions About Rim Brake Pads

How often should I replace my bicycle brake pads?

It depends heavily on your riding style, terrain, and weather conditions. Aggressive riders in hilly or wet areas will wear pads faster. As a general rule, inspect them every few hundred miles or every few months. Replace them as soon as you see the wear indicators disappearing or feel a decline in performance.

Can I use car brake pads on my bike?

Absolutely not. Car brake pads are entirely different in design, material, and function. This article specifically addresses bicycle rim brake pads. Using car parts on a bicycle's braking system would be incredibly dangerous and could lead to catastrophic failure.

What's the difference between rim brake pads and disc brake pads?

Rim brake pads press against the rim of the wheel to create friction, while disc brake pads clamp onto a dedicated rotor mounted to the wheel hub. They are fundamentally different systems requiring specific pad types. This guide focuses exclusively on rim brake pads.

Why are my new brake pads squealing?

Squealing, even with new pads, is a common issue. It's often caused by poor alignment (lack of toe-in), vibration, or contamination. Try cleaning the rims and pads thoroughly, ensuring the pads are correctly toed-in, and check for any loose components in the brake system.

Do I need a bike mechanic to replace brake pads?

No, replacing rim brake pads is one of the most accessible and fundamental bike maintenance tasks. With this guide and a few basic tools, most individuals can successfully perform the replacement themselves. However, if you're unsure or encounter persistent issues, a professional mechanic can always help.
