The roar of a race engine is a symphony for motorsport enthusiasts, and at its heart lies the critical task of fuel delivery. For decades, carburettors reigned supreme, meticulously mixing air and fuel to power roaring beasts. However, the relentless pursuit of performance has seen a significant shift towards fuel injection systems, particularly in the demanding world of motorsport. But why this evolution? What makes fuel injection the preferred choice for modern race cars, and what were the limitations of the carburettor systems of yesteryear?
The Dawn of Fuel Injection: Early Experiments
The concept of fuel injection isn't entirely new. Even during World War II, manufacturers like Rolls-Royce explored direct fuel injection systems, inspired by German designs. However, these early iterations faced significant hurdles. The primary reasons for their limited adoption were complexity and a reluctance to sacrifice the benefits of existing technologies. Early carburettors and simpler pressure injection systems were considerably easier to manufacture, requiring hundreds fewer components. Furthermore, the evaporative cooling effect of fuel within early superchargers, like those in the Merlin engines, provided a crucial 25-degree Celsius drop in intake mixture temperature. While mixture distribution wasn't always perfect with simpler systems, this cooling advantage was a significant factor. It's important to distinguish these early mechanical systems from the sophisticated electronic fuel injection (EFI) we see today. The WW2 German systems were entirely mechanical, relying on similar sensors to carburetted engines and offering limited adjustability, often pre-set for specific conditions rather than dynamically adapting.
The Carburettor Era: Strengths and Weaknesses
For many years, the battle between fuel injection and carburettors continued, extending well into the 1950s and 1960s for road cars. In certain scenarios, fuel injection could indeed outperform less sophisticated carburettor setups, especially where one carburettor fed multiple cylinders. However, when engines were designed to accommodate a dedicated carburettor per cylinder, the performance gap often narrowed considerably. In these cases, differences in drivability and power delivery might favour carburettors, offering a more nuanced feel for some drivers.
Carburettors operate on a relatively simple principle: the Venturi effect. As air is drawn through a narrowed section of the carburettor (the venturi), its speed increases, creating a low-pressure area. This low pressure draws fuel from a jet, atomising it into the incoming airflow. The amount of fuel is regulated by the throttle butterfly valve and the size of the fuel jets. While effective, this system is inherently less precise than fuel injection.
Carburettor vs. Fuel Injection: A Comparative Look
Let's break down the key differences:
| Feature | Carburettor | Fuel Injection |
|---|---|---|
| Fuel Delivery | Mechanical mixing of air and fuel using vacuum and jets. | Electronically controlled injectors spray atomised fuel directly into the intake manifold or cylinder. |
| Precision | Less precise, susceptible to changes in temperature, altitude, and atmospheric pressure. | Highly precise, electronically controlled for optimal air-fuel ratio under all conditions. |
| Performance | Can be tuned for specific conditions but less adaptable. | Optimises performance across a wide range of RPMs, loads, and temperatures. |
| Efficiency | Generally less fuel-efficient due to less precise mixture control. | More fuel-efficient due to precise mixture management. |
| Emissions | Higher emissions due to less controlled combustion. | Lower emissions due to precise control and efficient combustion. |
| Complexity | Mechanically simpler, fewer electronic components. | More complex, reliant on sensors, ECU, and injectors. |
| Tuning | Requires manual adjustment of jets and settings, often on a rolling road. | Can be tuned via ECU remapping, offering greater flexibility. |
The Rise of Electronic Fuel Injection (EFI) in Motorsport
The advent of sophisticated electronic control units (ECUs) and precise fuel injectors marked a turning point. Modern race cars overwhelmingly utilise electronic fuel injection (EFI) for several compelling reasons:
- Precise Fuel Control: EFI systems use sensors to monitor various parameters like engine speed (RPM), throttle position, manifold air pressure, air temperature, and even exhaust gas oxygen content. The ECU processes this data in real-time to calculate the exact amount of fuel needed for optimal combustion. This precision leads to a more consistent and powerful performance.
- Adaptability: Unlike carburettors, which are often tuned for a specific set of conditions, EFI systems can dynamically adjust the fuel mixture as conditions change. This means consistent performance whether the car is at sea level or high altitude, in cold or hot weather, or under varying engine loads.
- Improved Power and Torque: By maintaining the ideal air-fuel ratio across the entire rev range, EFI systems maximise the power and torque output of the engine. This is crucial in motorsport where every fraction of a horsepower counts.
- Better Fuel Economy: While not always the primary concern in racing, the precise fuel delivery of EFI systems also leads to more efficient fuel consumption, allowing for longer race stints or smaller fuel tanks.
- Enhanced Drivability and Throttle Response: EFI provides a much sharper and more immediate throttle response. The engine feels more connected to the driver's inputs, which is vital for precise control during racing.
- Reduced Emissions: While emissions are a secondary concern in pure racing, the controlled combustion facilitated by EFI generally results in cleaner exhaust gases.
- Ease of Tuning (Electronic): While the initial setup might be complex, remapping the ECU allows for rapid and precise tuning adjustments without the need for physically changing components like jets, as would be required with carburettors. This saves significant time during testing and race weekends.
The Debate: Can you 'Improve' a Rolls-Royce?
The discussion around modifying classic vehicles, such as fitting carburettors to a car originally equipped with fuel injection, often sparks passionate debate. One perspective highlights the reliability and efficiency of modern EFI systems. Proponents argue that converting a perfectly functional fuel-injected car to carburettors is a step backward, akin to replacing modern tyres with solid ones. They point to the fact that many older fuel-injected cars, even from the 1980s, remain remarkably reliable with minimal maintenance beyond routine filter or pump changes.
The argument is that a modern, mapped EFI system can offer superior power, better mixture control, and greater overall performance compared to even a well-tuned carburettor. The idea of "improving" a system designed by renowned engineers like Bosch by replacing it with a less sophisticated one is often met with scepticism. The complexity of EFI systems is often misunderstood; they are not simply "black boxes" with no adjustment or moving parts. Rather, they are sophisticated, integrated systems that offer significant advantages when properly maintained and tuned.
Frequently Asked Questions
Do all race cars use fuel injection?
The vast majority of modern competitive racing cars across various disciplines, from Formula 1 and endurance racing to NASCAR and drag racing, utilise sophisticated electronic fuel injection systems. While some historical racing classes might still mandate carburettors, fuel injection is the de facto standard for maximising performance and reliability in contemporary motorsport.
Why are carburettors still used in some applications?
Carburettors are still found in some older vehicles, classic cars, and certain entry-level or specific racing classes where regulations may dictate their use. Their mechanical simplicity and lower initial cost can be attractive for certain applications. However, for peak performance and adaptability, fuel injection is generally superior.
Is it possible to convert a carburetted car to fuel injection?

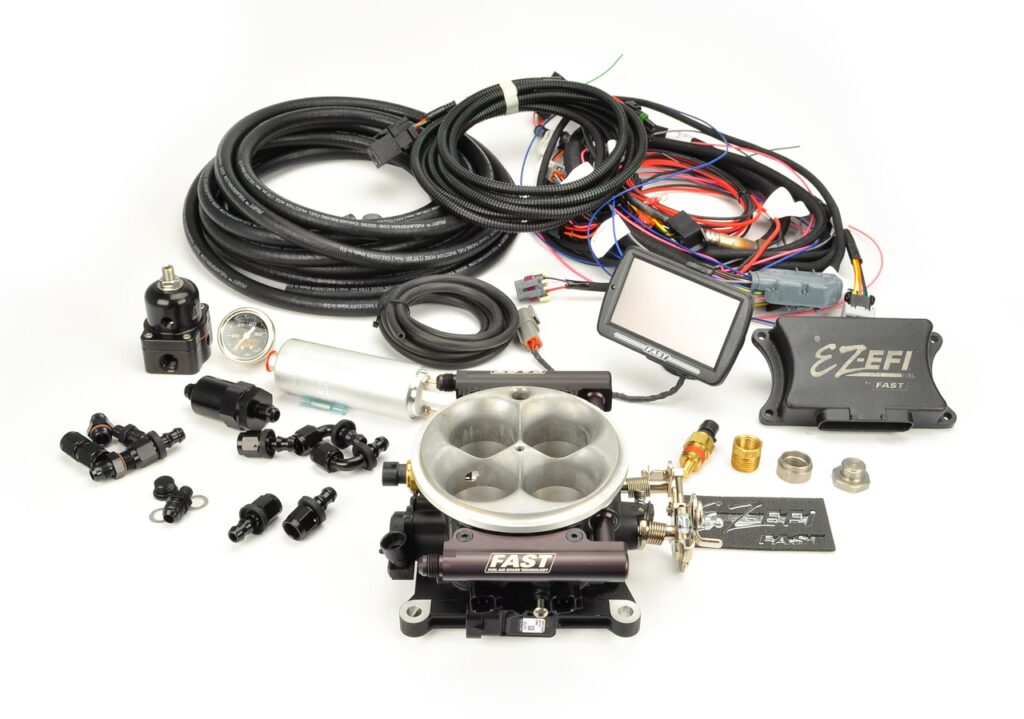

Yes, it is possible to convert a carburetted car to fuel injection. This is often referred to as an EFI conversion. It typically involves installing a fuel pump, fuel rails, injectors, an ECU, and various sensors. While it can be a complex and costly modification, it can significantly improve performance, fuel efficiency, and drivability.
What are the downsides of fuel injection?
The primary downsides of fuel injection are its complexity and cost. EFI systems have more components that can potentially fail, and troubleshooting can be more challenging. The initial cost of an EFI system and its installation is also generally higher than that of a carburettor.
Conclusion
The evolution from carburettors to fuel injection in motorsport is a testament to the continuous drive for enhanced performance, efficiency, and control. While carburettors played a vital role in automotive history, modern electronic fuel injection systems offer unparalleled precision and adaptability, making them the undisputed choice for race cars striving for victory on the track. The ability to fine-tune and adapt to changing conditions, coupled with superior power delivery, ensures that fuel injection will remain at the forefront of automotive performance technology for the foreseeable future.
