Revitalising Concrete Bridges: A Comprehensive Guide

Bridges are the arteries of our transportation networks, and like any vital structure, they require meticulous care and maintenance to ensure their longevity and safety. Over time, the relentless forces of traffic, coupled with the unforgiving nature of environmental exposure, can take a toll on even the most robust reinforced concrete bridges. This can manifest as cracking, spalling, deflection, and corrosion, all of which compromise the structural integrity and performance of these critical assets. Addressing these issues isn't a one-size-fits-all scenario; rather, it demands a nuanced approach, employing a variety of specialised techniques tailored to the specific ailment of the bridge. This article delves into the common repair and retrofitting methods used to breathe new life into aging concrete bridges, ensuring they continue to serve us safely and efficiently.

Understanding Bridge Deterioration

Modern bridges predominantly rely on concrete, often reinforced or pre-stressed, and steel. The continuous cycle of dynamic vehicular loads, coupled with environmental aggressors like moisture, de-icing salts, and pollution, leads to material fatigue and wear. For pre-stressed concrete bridges, a gradual loss of pre-stress over time can significantly reduce their load-carrying capacity. Compounding these natural processes are potential issues arising from the initial construction quality and a lack of consistent maintenance, which can necessitate substantial retrofitting interventions. Even crucial components like expansion joints and bearings, which manage movement and load transfer, require periodic rehabilitation or replacement. The visible signs of this deterioration can range from superficial cracking and spalling of concrete to more severe structural issues like excessive deflection and the corrosion of steel reinforcement.

Repairing Reinforced and Pre-stressed Concrete Bridges

The arsenal of techniques available for ordinary reinforced concrete structures is largely applicable to bridges. These methods aim to either repair existing damage or enhance the structure's capacity. Key repair techniques include:

• Crack Injection: For dormant cracks, injecting a low-viscosity epoxy resin can effectively seal them, restoring structural continuity and preventing further ingress of water and aggressive substances.
• Patch Repair: Spalled or damaged concrete areas can be repaired using specialised materials like polymer-modified mortars or non-shrink grouts, which offer excellent adhesion and durability.

When the goal is strengthening, several methods can be employed:

Concrete Jacketing

This involves increasing the cross-sectional area of a deficient member by adding more concrete and reinforcing steel. There are several ways to achieve this:

1. Conventional Concrete Jacketing: This method involves encasing the existing member with new concrete and reinforcement. It requires formwork and a longer curing period, and achieving a dense mix in confined spaces can be challenging. Adhesion to the existing concrete can also be an issue, particularly in overhead applications.
2. Sprayed Concrete (Shotcrete): Here, concrete is pneumatically projected onto a prepared and reinforced surface. This technique is faster, doesn't require formwork, and is ideal for large areas. However, it can be messy, result in material wastage, and lead to a rough surface finish. The aggregate grading is crucial for its success due to the absence of external vibration.
3. Pre-Packed Aggregate Grouting: Washed coarse aggregates are placed within a formwork around the member, along with reinforcement. A cementitious grout is then pumped into the aggregate. This method yields a dense concrete with a good surface finish and is a superior jacketing technique.

A significant consideration with concrete jacketing is the increase in the member's dimensions and its dead weight, which must be accounted for in the structural analysis.

Steel Plate Bonding

This technique enhances the flexural, shear, or compressive strength and stiffness of concrete members by bonding steel plates to their external surfaces using adhesives and anchors. Steel plates not only act as external reinforcement but also increase the moment of inertia of the composite section. While effective, this method can be labour-intensive, requiring hacking and drilling of the existing concrete. The plates need to be custom-fabricated, and the resulting finish can be aesthetically unpleasing. Furthermore, the steel plates themselves are susceptible to corrosion over time, necessitating protective coatings.

FRP Strengthening

Fibre Reinforced Polymer (FRP) systems offer a modern and highly effective solution for strengthening. These systems consist of high-tensile fibres, such as carbon, glass, or aramid, embedded in a polymer resin matrix. They are bonded to the external surface of the concrete member in the direction of tensile stress or as confining reinforcement. FRPs can significantly enhance shear, flexural, and compressive capacity, as well as ductility.

FRP systems come in various forms, including wet lay-up (where fibres are saturated with resin on-site), pre-preg (pre-impregnated fibres), and pre-cured (pre-fabricated composite shapes). The key advantages of FRP include their high strength-to-weight ratio, resistance to corrosion, and relatively quick and neat application, resulting in an aesthetically pleasing finish. However, careful selection of the appropriate FRP system, considering its performance characteristics under expected service conditions and environmental exposure, is crucial. Protective coatings may be necessary to shield the FRP from adverse conditions like UV radiation, chemicals, and fire.

External Post-Tensioning

For pre-stressed concrete bridges that have experienced a loss of pre-stress or need increased load capacity, external post-tensioning is a viable retrofitting technique. New pre-stressing tendons or bars are strategically placed and anchored to the external surfaces of the members. Hydraulic jacks are then used to tension these elements, restoring or increasing the pre-stress. This method is effective but requires the existing concrete to have sufficient strength to handle the transferred stresses. The exposed tendons and anchorages must also be adequately protected against corrosion and vandalism.

Steel and Composite Bridges: Specific Considerations

Steel bridges, and their composite elements like concrete decks, require dedicated maintenance strategies. Protection against environmental corrosion is paramount for steel components. Concrete decks, subjected to constant dynamic loading, often require rehabilitation or replacement. Traditional methods for deck repair can be time-consuming. Innovative solutions like the Exodermic™ Bridge Deck offer a faster and lighter alternative. This modular system integrates a steel grid with a concrete slab, optimising the use of material strengths and reducing dead load, which is particularly beneficial for older structures or those requiring increased load capacity. The panelised nature of such systems allows for rapid installation, even enabling overnight redecking projects.

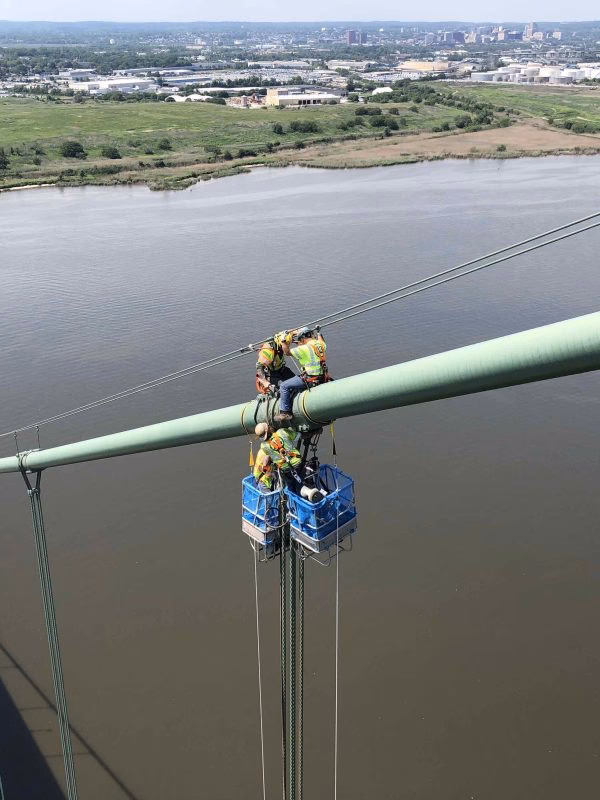

Protecting critical components like suspension cables is also vital. Systems like Cableguard™ Elastomeric Wrap provide a seamless, impermeable barrier against moisture and corrosion. Applied directly over existing coatings, these wraps fuse to create a watertight seal, extending the life of the cables without requiring extensive surface preparation or generating hazardous waste.

Rehabilitation of Expansion Joints and Bearings

Expansion joints and bridge bearings are critical for managing movement and transferring loads. Both are susceptible to wear and tear from traffic and environmental factors.

Expansion Joints

These components accommodate thermal expansion and contraction, as well as other movements. Over time, sealing elements can degrade, and anchorage can loosen, impairing their function and ride quality. Rehabilitation often involves replacing worn components or the entire joint assembly. The challenge lies in performing this work with minimal disruption to traffic. Modern systems, such as strip seal expansion joints, are designed for shallow installation, lane-by-lane application, and rapid curing, minimising traffic downtime.

Bridge Bearings

Bearings support the superstructure and allow for controlled movement and rotation. Defects in elastomeric bearings can include cracking or delamination, while mechanical bearings may suffer from excessive movement or component failure. In many cases, replacing the entire bearing assembly is the most effective solution. Therefore, designing for ease of bearing replacement from the outset is crucial. The process typically involves using hydraulic jacks to lift the superstructure, allowing for the removal and replacement of the bearing, with careful attention paid to load transfer, stability, and jacking procedures.

The Importance of a Proactive Maintenance Approach

Bridge maintenance and repair are not mere afterthoughts; they are essential for preserving load-carrying capacity, ensuring correct functioning, maintaining aesthetic appeal, and guaranteeing safety. Rehabilitation restores a structure to its former service level, while improvements can upgrade its capacity or width. Replacement becomes necessary when a structure or its major components are beyond economic repair. A systematic approach involves:

1. Damage Analysis: Identifying the cause and extent of damage through visual inspections, record studies, and testing.
2. Condition Assessment: Evaluating the risk of failure, potential for further deterioration, and the feasibility of repair options.
3. Maintenance Plan: Developing a strategy based on the assessment, which could range from minor repairs to complete component replacement.

Foundation protection, particularly against scour in bridges with shallow foundations, is also a critical aspect of maintenance. For substructures, addressing issues like weathering, leaching, and cracking through methods like plastering, grouting, or jacketing is essential.

Common Repair Techniques in Detail

Cement and Epoxy Grouting

Cement Pressure Grouting is used for dormant cracks and honeycomb concrete. The process involves drilling holes, inserting pipes, sealing cracks, and injecting cement grout under pressure until clear water emerges from adjacent holes, indicating complete filling. Epoxy Grouting, using a quick-setting, low-shrinkage epoxy formulation, is ideal for active cracks and offers excellent adhesion. The process involves preparing the crack surface, injecting epoxy through strategically placed nipples, and allowing it to cure.

Shotcreting/Guniting

This technique is excellent for repairing large areas of spalled concrete on decks, piers, or abutments. Concrete or mortar is pneumatically projected at high velocity onto the surface, compacting the material and creating a dense repair, even in vertical or overhead applications.

Bridge Maintenance Approach

The overarching goal of bridge maintenance is to ensure continuous operation and user safety. Given the increasing age of bridge stock and growing traffic demands, a proactive and robust maintenance strategy is indispensable. This involves regular inspections, timely repairs, and strategic upgrades to address issues like corrosion and material degradation in critical components. A well-executed maintenance plan not only preserves the structural integrity of bridges but also significantly extends their service life, ensuring the continued flow of commerce and people.
