F1 Suspension: The Science of Speed

The Heartbeat of a Racing Machine: Formula 1 Suspension

The suspension system of a Formula 1 car is a marvel of engineering, designed to withstand colossal forces and provide the driver with the ultimate connection to the track. At speeds exceeding 200 mph, the aerodynamic downforce can effectively quadruple a car's perceived weight. This immense pressure, coupled with the need for razor-sharp handling during braking and cornering, demands a suspension system that is both incredibly strong and remarkably responsive. Unlike road cars, F1 suspension is a finely tuned instrument, adjusted meticulously before every race to optimise performance and safety.

What Makes a Good F1 Suspension?

A good Formula 1 suspension system is defined by its ability to manage extreme loads while maintaining precise control. The primary challenge is to cope with the immense downforce generated at high speeds. At 180 mph, the car effectively quadruples in weight due to this aerodynamic pressure. As a car accelerates and its speed increases, it also tends to lower itself closer to the ground. This dynamic behaviour necessitates extremely stiff springs to prevent bottoming out and to keep the car's aerodynamic profile consistent. Rigidity is paramount; the suspension components must resist deformation under these significant forces to ensure predictable handling and prevent loss of downforce. This balance between strength, stiffness, and the ability to absorb track imperfections is what separates a championship-winning suspension from a mediocre one.

Key Components of a Formula One Suspension

While the fundamental principles are similar to road cars, F1 suspension systems are far more sophisticated and purpose-built. The core components include:

• Springs: These are engineered to be incredibly stiff, often using lightweight yet robust materials. They are crucial for maintaining ride height and managing the energy from bumps and aerodynamic loads.
• Dampers (Shock Absorbers): These control the oscillation of the springs, dissipating the energy absorbed. F1 dampers are highly adjustable, allowing teams to fine-tune the car's response to track conditions and driver preferences.

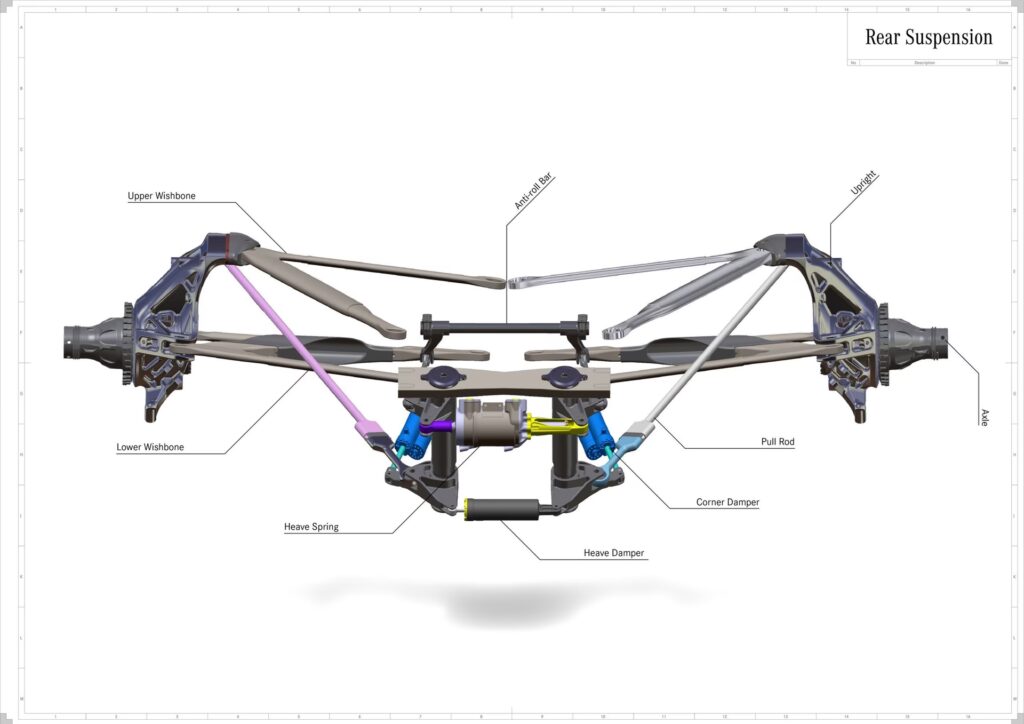

• Wishbones (Arms): Typically, F1 cars utilise a double wishbone suspension setup. These A-shaped arms connect the wheel hub to the chassis, controlling the vertical and lateral movement of the wheel. The geometry of these arms is critical for maintaining consistent tyre contact and controlling camber and toe angles during cornering.
• Anti-Sway Bars (Anti-Roll Bars): These bars connect opposite wheels, helping to reduce body roll during cornering. By transferring forces between the wheels, they keep the car flatter and improve tyre contact.

The Critical Role of Tyres

It's impossible to discuss suspension without acknowledging the pivotal role of tyres. As the only point of contact with the track, tyres are the ultimate arbiters of a car's performance. The engine, brakes, and suspension all rely on the tyres to translate their efforts into motion and grip. F1 tyres are highly regulated, with specific dimensions and tread patterns mandated to control speeds and enhance competition. Modern F1 cars feature slick tyres with longitudinal grooves, designed for maximum contact and grip. These tyres are made from very soft rubber compounds that perform best at high temperatures, providing immense gripping power. However, this performance comes at the cost of durability, with a typical F1 tyre lasting only about 125 miles. Therefore, the suspension must work in harmony with the tyres, ensuring they are kept within their optimal operating window.

Braking Brilliance: Carbon Fibre Stopping Power

The braking systems in Formula 1 are equally as extreme as the suspension. F1 brakes must be capable of stopping cars travelling at over 200 mph, generating immense heat. To cope with these demands, F1 cars utilise carbon fibre discs and pads. These advanced materials are incredibly lightweight yet can withstand temperatures up to 750°C (1,382°F). Holes around the brake discs allow heat to dissipate rapidly, and air intakes mounted on the wheel hubs actively cool the brakes, with different configurations used for varying track requirements.

The Driver's Command Centre: The Steering Wheel

The F1 steering wheel is a far cry from its road-going counterpart. It serves as the driver's primary interface with the car's complex systems. Packed with buttons, toggles, and switches, it allows the driver to control everything from gear changes and fuel mixture to brake balance. This intricate control hub is surprisingly compact, typically half the diameter of a standard car's steering wheel, and features a snap-on connector to allow the driver to exit the car quickly in emergencies.

A Look Back: Banned Technologies in F1

Formula 1 has a rich history of technological innovation, often pushing the boundaries to gain a competitive edge. However, this pursuit of performance has also led to the banning of certain technologies that were deemed too advantageous or unsafe:

Active Suspension: A Double-Edged Sword

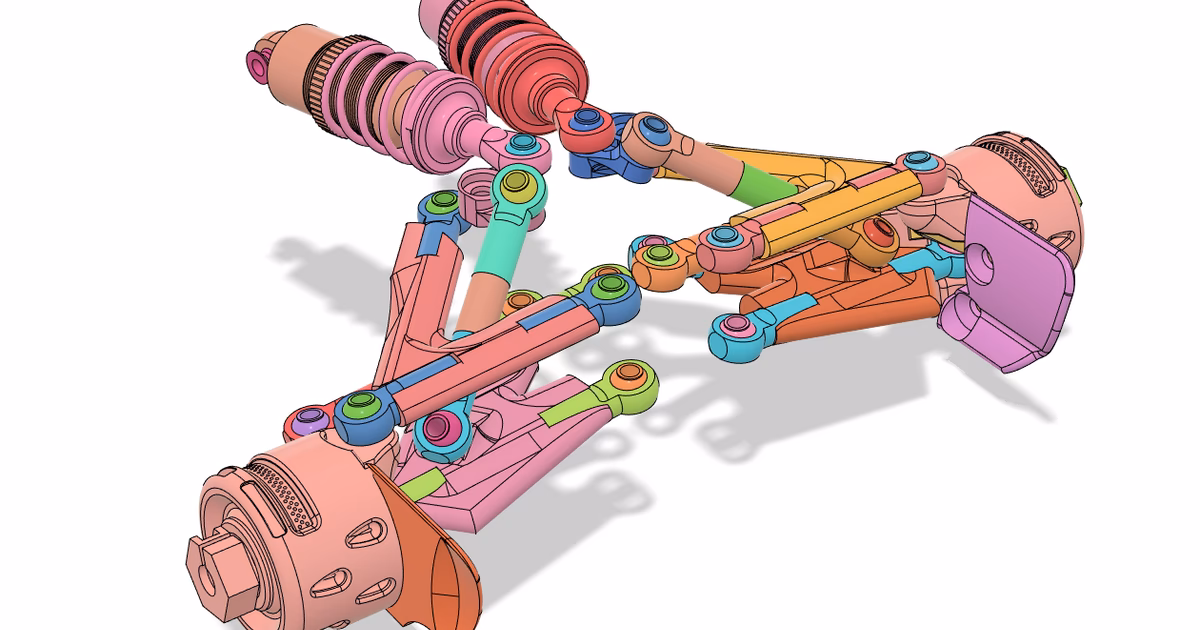

Active suspension, which automatically adjusts the car's ride height and damping based on real-time data, was a significant innovation in F1. Pioneered by teams like Lotus and famously used by Williams in the early 1990s to win championships, it allowed for unprecedented control over the car's dynamics. However, critics argued that it made the cars too easy to drive and created an unfair advantage for well-funded teams. Consequently, active suspension, along with most electronic driver aids, was banned at the end of the 1993 season. While common in modern road cars, its complexity and the regulatory challenges it presented meant it couldn't survive in F1.

Traction Control: The Electronic Guardian

Traction control systems, designed to prevent wheelspin and maintain grip, were also a prominent feature in F1. While beneficial for driver control and tyre longevity, they were also banned alongside active suspension in 1993 to increase the challenge for drivers and level the playing field. Despite the ban, accusations of illegal traction control usage, notably involving the Benetton team in 1994, highlighted the ongoing technological arms race. The FIA eventually reintroduced traction control in 2001 but banned it again in 2008 with the introduction of a standardized ECU.

Ground Effect: The Era of Aerodynamic Suction

In the late 1970s and early 1980s, ground effect dominated F1 design. By shaping the car's underbody and using sliding skirts to create a seal with the track, teams generated massive downforce, effectively sucking the car onto the circuit. This era, championed by teams like Lotus, led to incredibly high cornering speeds. However, safety concerns arose regarding the potential for a sudden loss of downforce if the seal was broken. Rule changes mandating flat floors from 1983 onwards effectively ended the ground-effect era.

Other Notable Banned Innovations:

• Brabham BT46B "Fan Car": Utilised a large fan to extract air from under the car, creating immense downforce. Despite its dominance, it was withdrawn due to controversy over its legality.
• Six-Wheeled Cars: Concepts like the Tyrrell P34 explored the advantages of multiple wheels for increased grip and aerodynamic benefits, but ultimately failed to achieve lasting success and were banned.
• McLaren "Brake Steer": A system that allowed the driver to brake individual rear wheels to aid cornering. It was banned in 1998 after being discovered by rivals.
• Lotus 88 "Twin Chassis": A complex design attempting to circumvent ground-effect bans by using two separate chassis. It was banned before it could race.
• Williams CVT: An experimental continuously variable transmission that was banned by new regulations requiring fixed gear ratios.

The Evolution of F1 Suspension

The journey of F1 suspension technology reflects the sport's relentless pursuit of performance. From the early days of relatively simple mechanical systems to the highly sophisticated, electronically controlled (though now banned) active suspension, the goal has always been to maximise tyre contact, manage aerodynamic forces, and provide the driver with precise control. While active suspension is no longer permitted, the fundamental principles of managing extreme forces with lightweight, rigid components continue to drive innovation in the passive suspension systems used today. The intricate dance between suspension, aerodynamics, and tyre dynamics remains a cornerstone of Formula 1 success.

Frequently Asked Questions

Q: What is the primary function of F1 suspension?
A: To maintain optimal tyre contact with the track surface under all conditions, manage aerodynamic forces, and allow the driver precise control.

Q: Why are F1 springs so stiff?
A: To counteract the immense downforce generated at high speeds, which effectively increases the car's weight, and to prevent the car from bottoming out.

Q: Does F1 use active suspension today?
A: No, active suspension systems have been banned in Formula 1 since the end of the 1993 season.

Q: What type of suspension is most common in F1?
A: Most F1 cars feature a double wishbone suspension setup.

Q: How does F1 suspension differ from road car suspension?
A: F1 suspension is far more robust, lightweight, and adjustable, designed to handle extreme forces and provide a much higher level of performance and driver feedback.
