Precision Timing: The Laser 4020 for Renault dCi

In the intricate world of automotive mechanics, precision is not just a virtue; it's an absolute necessity. Modern engines, with their sophisticated designs and tight tolerances, demand exact alignment of their internal components to operate efficiently and reliably. At the heart of this precision lies engine timing – the synchronisation of the crankshaft and camshafts. Without this perfect ballet of moving parts, an engine simply cannot function as intended, and in many cases, can suffer severe, irreversible damage. This is where specialised tools, like the Laser Tools 4020 timing pin set, become indispensable.

The Laser Tools 4020, specifically designed for various Renault models, serves a singular, critical purpose: to lock the crankshaft and camshaft in their correct positions during essential engine maintenance, particularly when replacing timing belts or chains. This ensures that the engine's valves open and close at precisely the right moment in relation to the pistons, preventing mechanical interference and guaranteeing optimal performance. Let's delve deeper into why this little pin is such a big deal for your Renault.

Understanding Engine Timing: The Heartbeat of Your Car

Every internal combustion engine operates on a precise cycle, typically a four-stroke process: intake, compression, power, and exhaust. For this cycle to work flawlessly, the crankshaft, which controls the pistons' up and down motion, must be perfectly synchronised with the camshafts, which control the opening and closing of the engine's valves. Imagine a finely tuned orchestra where every instrument must play its note at the exact right second; that's your engine's timing.

The crankshaft dictates when the pistons are at Top Dead Centre (TDC) or Bottom Dead Centre (BDC). The camshafts, driven by the crankshaft via a timing belt or chain, ensure that the intake valves open to let the air-fuel mixture in, and the exhaust valves open to let the burnt gases out, all at the optimal moment for each piston's position. This intricate synchronisation is fundamental to the engine's power output, fuel efficiency, and emissions control.

Why Are Timing Pins Essential?

While some older engines might have relied on simple marks for timing, modern engines, especially diesel units like Renault's dCi range, demand far greater accuracy. Even a fraction of a degree out of alignment can lead to significant problems. Timing pins provide a positive, unyielding lock on the crankshaft and camshaft, ensuring they cannot move while the timing belt or chain is being replaced or other related repairs are carried out. Without these pins, relying solely on visual marks or guesswork is an open invitation to catastrophic engine failure.

When a timing belt or chain is replaced, the tension is released, and the components are free to rotate independently. If the crankshaft or camshaft shifts even slightly, the engine's timing will be incorrect upon reassembly. This can lead to various issues, from poor running and reduced performance to severe internal engine damage where pistons collide with valves.

Introducing the Laser Tools 4020 Timing Pin Set

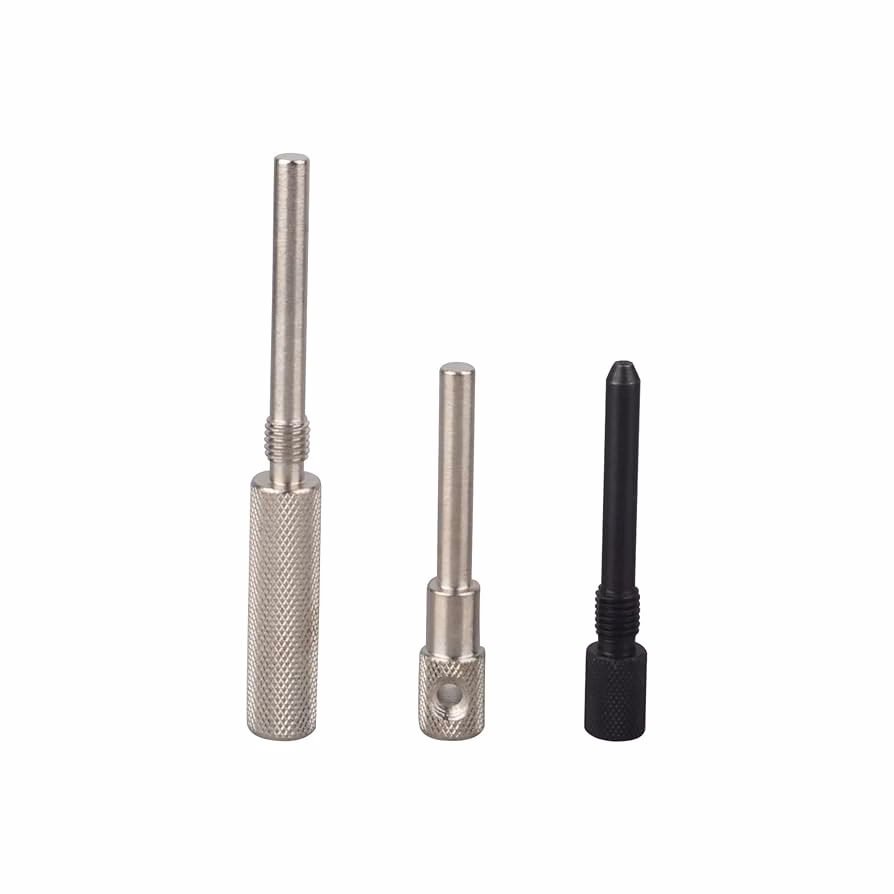

Laser Tools, a reputable name in the automotive special tools market, has developed the 4020 timing pin set specifically to address the precise timing requirements of certain Renault dCi engines. This set is engineered to facilitate accurate crankshaft and camshaft positioning, ensuring that the critical engine components remain perfectly aligned during crucial service procedures.

According to Laser Tools, the 4020 set is designed for use on a range of popular Renault models, including the Clio, Laguna, and Kangoo, specifically those fitted with either the 1.5DCi or 1.9DCi engines. These are common diesel powerplants found across many European markets, known for their efficiency but also their reliance on precise timing for optimal operation.

Specific Applications and OEM Equivalents

The Laser Tools 4020 set typically includes multiple pins, each designed to correspond to specific OEM (Original Equipment Manufacturer) timing tools required for different engine variants. This ensures that mechanics have the correct tool for the job, matching the exact specifications laid out by Renault.

Let's look at the specific OEM codes mentioned and their corresponding engine applications:

The distinction between MOT 1489 and MOT 1430 for the 1.5DCi engine highlights the subtle differences that can exist even within the same engine family, often due to variations in engine code, year of manufacture, or specific vehicle application. Always consult the vehicle's specific workshop manual to confirm the exact OEM tool required for your particular engine code and model year before commencing any work.

The Procedure: How Timing Pins Are Used (General Overview)

While specific steps will vary depending on the exact engine and vehicle, the general principle of using timing pins remains consistent:

1. Preparation: Disconnect the battery, remove any components obstructing access to the timing belt/chain, and ensure the engine is cold.
2. Engine Positioning: Carefully rotate the crankshaft, usually clockwise, until the engine is at its Top Dead Centre (TDC) on the compression stroke for cylinder 1. This is typically indicated by marks on the crankshaft pulley and engine block, or by a specific engine rotation procedure outlined in the workshop manual.
3. Inserting the Pins: Once at TDC, the engine's timing holes (for both crankshaft and camshafts) should align. The Laser Tools 4020 pins are then inserted into these designated holes, locking the components in place. The pins fit snugly, preventing any rotational movement.
4. Belt/Chain Removal: With the components locked, the old timing belt or chain can be safely removed, along with any tensioners or idlers.
5. New Component Installation: The new timing belt or chain is installed, ensuring it is correctly routed and tensioned according to manufacturer specifications.
6. Removing the Pins: Once the new timing belt/chain is securely in place and tensioned, and all other components are reassembled, the timing pins are carefully removed.
7. Engine Rotation & Verification: The engine should then be rotated manually (usually two full revolutions of the crankshaft) to ensure the timing marks realign and that there is no mechanical interference. This also allows the new belt/chain to settle.
8. Final Assembly: Reassemble all removed components and reconnect the battery.

It is paramount to follow the vehicle manufacturer's workshop manual meticulously. These manuals provide exact torque settings, specific procedures, and crucial safety warnings. Attempting this procedure without the correct tools and knowledge can lead to severe engine damage.

Consequences of Incorrect Engine Timing

Ignoring the need for precision and attempting timing belt replacement without the correct timing pins can lead to a host of problems, ranging from minor annoyances to total engine write-off:

• Poor Performance: The engine will run rough, lack power, and have reduced throttle response. This is because the valves are opening or closing at the wrong time, leading to inefficient combustion.
• Increased Fuel Consumption: Inefficient combustion directly translates to more fuel being consumed for less power output.
• Increased Emissions: Incomplete combustion due to incorrect timing can lead to higher levels of harmful emissions, potentially causing your vehicle to fail emissions tests.
• Engine Misfires: The engine may misfire frequently, leading to a rough idle and stumbling acceleration.
• Engine Warning Lights: The 'Check Engine' light will almost certainly illuminate, indicating a timing-related fault code stored in the engine control unit (ECU).
• DPF Issues (Diesel Particulate Filter): Incorrect timing in diesel engines can lead to incomplete combustion and excessive soot production, rapidly clogging the DPF and leading to costly regeneration issues or replacement.
• Catastrophic Engine Damage: This is the most severe consequence. If the timing is significantly off, the pistons can collide with the open valves. This typically results in bent valves, damaged pistons, camshaft damage, and potentially even crankshaft damage. Such an event usually necessitates a complete engine rebuild or replacement, which is incredibly expensive and often financially unviable for an older vehicle.

The cost of a proper timing pin set like the Laser Tools 4020 pales in comparison to the potential repair bill resulting from an incorrectly timed engine.

The Value of Quality Tools

The information provided highlights that the Laser Tools 4020 is 'Manufactured to the highest standards'. This isn't just marketing fluff; it's crucial. Timing pins need to be precisely machined to fit their designated holes without play, ensuring an exact lock. Substandard or poorly manufactured pins can have incorrect dimensions, leading to a loose fit that allows movement, or worse, can damage the engine's timing holes.

Investing in quality tools from reputable manufacturers like Laser Tools ensures that the job is done correctly the first time, providing peace of mind and protecting your engine from costly errors. Precision tools are an investment in your vehicle's longevity and reliability.

Frequently Asked Questions About Timing Pins

Why can't I just mark the pulleys with paint or a marker?

While marking pulleys might seem like a quick solution, it's highly unreliable for modern engines. Paint marks can be inaccurate, rub off, or be difficult to align perfectly. Timing pins provide a positive, physical lock, eliminating any guesswork and ensuring absolute precision, which is vital given the tight tolerances in today's engines. A tiny misalignment can have huge consequences.

What happens if I don't use timing pins when replacing my timing belt?

If you don't use the correct timing pins, the crankshaft and camshafts can shift out of their synchronised positions during belt removal or installation. When the engine is started, this incorrect timing can lead to poor performance, misfires, reduced fuel economy, and, most critically, severe internal engine damage (e.g., bent valves, piston damage) due to components colliding. This often results in a very expensive engine rebuild or replacement.

Are these timing pins universal for all cars?

Absolutely not. Timing pins are highly specific to engine make, model, and even specific engine codes. The holes and locking points for the crankshaft and camshaft vary significantly between manufacturers and engine designs. The Laser Tools 4020, for instance, is specifically designed for certain Renault 1.5DCi and 1.9DCi engines. Always use the correct tool specified by the vehicle manufacturer or a reputable aftermarket tool supplier that matches the OEM specifications.

When do I need to re-time my engine?

The primary reason to re-time an engine is when the timing belt or chain is replaced, or when major engine work that affects the crankshaft or camshaft position (e.g., cylinder head removal, camshaft replacement) is performed. Timing belts have a recommended replacement interval (e.g., every 5 years or 60,000 miles, whichever comes first), which is a critical maintenance item.

Can I perform a timing belt replacement myself using these pins?

While having the correct tools like the Laser Tools 4020 is essential, timing belt replacement is a complex procedure that requires significant mechanical knowledge, experience, and adherence to specific workshop manual procedures. Incorrect tensioning, routing, or component reassembly can lead to failure. If you are not an experienced mechanic, it is strongly recommended to have this work performed by a qualified professional.

Conclusion

The Laser Tools 4020 crank and camshaft timing pin set is far more than just a collection of metal rods; it's a vital component in ensuring the longevity and optimal performance of specific Renault dCi engines. Its purpose is singular: to provide unwavering precision during critical timing belt or chain replacement procedures. By locking the crankshaft and camshaft in their exact positions, it eliminates the guesswork and the enormous risk of costly engine damage that comes with incorrect timing. For any mechanic working on the specified Renault Clio, Laguna, or Kangoo models with 1.5DCi or 1.9DCi engines, this tool is not merely a convenience but an absolute necessity for carrying out professional, reliable, and safe engine maintenance. Investing in such specialised, high-quality tools is an investment in the engine's future, ensuring that your vehicle continues to perform precisely as its designers intended.
