Mastering the Austin 7 Engine Rebuild: A Guide to Reliability
Embarking on a journey to rebuild an Austin 7 engine is a rewarding endeavour, steeped in the rich history of motoring. However, it's not a task for the faint-hearted or the unprepared. Success hinges on a combination of acquired knowledge, practical skills, and the right tools. This guide aims to equip you with the essential understanding needed to bring a classic Austin 7 engine back to life, focusing on building reliability and longevity into your project.
Essential Knowledge and References
Before you even think about reaching for a spanner, immerse yourself in the collective wisdom of those who have gone before. Several key resources are invaluable:
- The Austin Seven Companion from the 750 Motor Club: A cornerstone for any Austin 7 enthusiast.
- The Austin Seven Manual by Doug Woodrow: Provides in-depth technical guidance.
- Austin Seven Specials by Bill Williams: Crucial for understanding specific assembly nuances, like the correct orientation of conrods and pistons.
- Austin Seven Engine Rebuild (Seven-part series on DA7C website): Offers practical insights from fellow restorers.
While numerous articles exist online, these distilled resources offer the most pertinent information for a successful rebuild. Don't underestimate the learning curve; many experienced mechanics recall early failures that ultimately paved the way for future successes – this is a natural part of the learning process.
Fundamental Skills Required
A successful Austin 7 engine rebuild demands more than just enthusiasm. You'll need to cultivate and demonstrate a degree of confidence and possess a solid foundation in basic engineering principles. Key skills include:
- Precision Measurement: The ability to accurately measure bores, crankshaft journals, bearing clearances, and other critical components using tools like micrometers and vernier calipers.
- Component Cleaning: Meticulous cleaning of all parts is paramount. This involves understanding how to use solvents effectively to remove old oil, carbon, and debris from oilways and passages.
- Thread Knowledge: Understanding thread types, correct bolt usage, and the importance of proper thread engagement, especially for critical components like big end bolts and tappet screws.
- Torquing Procedures: The ability to correctly apply torque settings using a torque wrench is vital for ensuring components are secured without being over or under-tightened, preventing premature failure.
- Gasket Management: Knowing how to prepare mating surfaces and correctly install gaskets, understanding the role of sealants when necessary.
- Component Matching: The skill to select and fit bearings, pistons, and rings that are correctly sized and matched to the engine's specifications.
- Patience and Meticulousness: Perhaps the most crucial skills. Rushing any stage of the rebuild can lead to costly mistakes. Attention to detail is non-negotiable.
Essential Tooling
While a comprehensive list can be extensive, here are some fundamental tools you'll likely need:
- Engine rebuild stand
- Comprehensive socket and spanner set (Imperial sizes are common)
- Torque wrench
- Micrometer and Vernier caliper set
- Dial indicator
- Piston ring compressor
- Valve spring compressor
- Feeler gauges
- Scrapers and gasket removal tools
- Cleaning brushes and solvent baths
- Pliers (various types)
- Hammers (soft-faced and ball-peen)
- Engine assembly lube
Critical Checks and Measurements for Reliability
The foundation of a reliable engine lies in thorough inspection and accurate measurement of each component. Deviations from specifications can lead to premature wear and failure.
| Component/Area | Check/Measurement | Importance | Action if Out of Spec |
|---|---|---|---|
| Crankcase | Front bearing lip integrity | Crucial for crankshaft retention | Fit new retaining ring or source a sound crankcase |

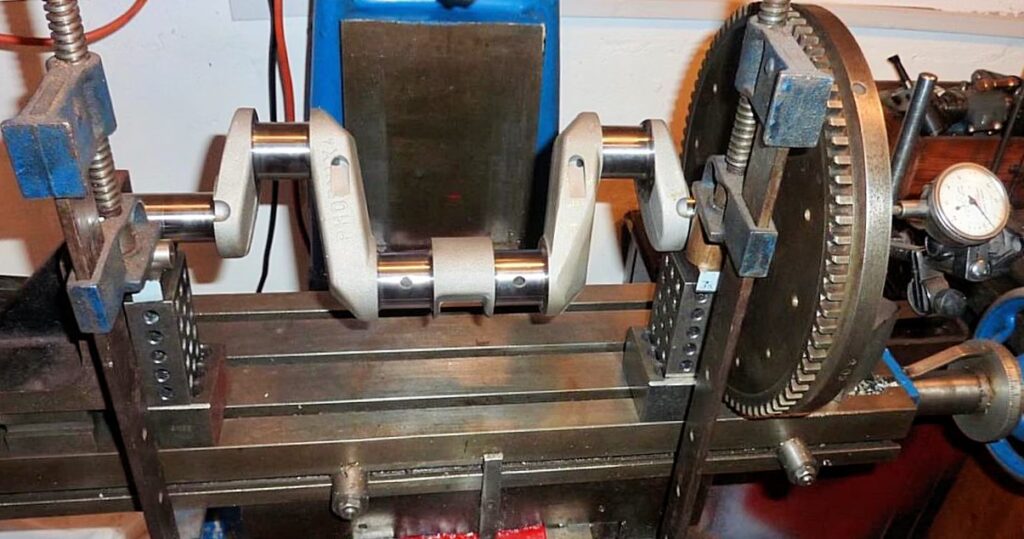

| Crankshaft | Straightness, crack testing, oilway cleanliness | Ensures smooth rotation and lubrication | Straighten if slightly bent, crack test, thoroughly clean oilways |
| Conrods | Straightness, little end bolt thread condition | Affects engine balance and reliability | Straighten, chase threads or fit new bolts |
| Big End Bolts | Check for necking, condition of threads | Critical for connecting piston to crankshaft | Replace with quality new bolts, use new Nyloc nuts |
| Little End Bolts | Use new HT bolts, correct spring washers | Prevents piston pin wear and failure | Always use new high-tensile bolts and appropriate washers |
| Main Bearings | Correct size and fit | Supports crankshaft rotation | Ensure correct clearance with crankshaft journals |
| Pistons & Rings | Quality, ring gap | Affects compression and oil control | Use best quality available, meticulously set ring gaps |
| Oilways | Pressure test oil jet streams | Ensures adequate lubrication to critical areas | Clean thoroughly, use pressure to verify flow |
| Camshaft | Condition, end float, front bush locking | Controls valve timing and operation | Resurface lobes if worn, set end float, secure bush with modified bolt |
| Flywheel | Condition, ring gear integrity, lapping to crank | Ensures smooth power delivery and starting | Repair/replace ring gear, lap flywheel to crankshaft |
| Tappet Screws | Facing | Ensures proper valve adjustment | Face off all tappet screw ends |
| Critical Nuts | Torque settings | Prevents component loosening or damage | Torque all critical nuts to specification |
Performance Enhancing Modifications
While originality is often prized, certain modifications can significantly enhance the performance and reliability of an Austin 7 engine:
- Conrod Balancing: After any work on the white metal, balance your conrods to ensure smoother running and reduced vibration.
- Piston Balancing: Similarly, balance your pistons for optimal engine equilibrium.
- Camshaft Bearing Security: Tap a locking thread into the front camshaft bearing to prevent it from working loose, a common failure point.
- Cylinder Head and Block Joint: Check the head-to-block joint and re-surface if necessary. Countersinking new crankcase and head studs can prevent pull-up distortion during tightening.
- Gasket Sealants: If using sealants on the block-to-crankcase joint, research the best modern practices. For silicone sealants, ThreeBond TB1215 Grey is often recommended for its reliability.
- Big End Side Clearance: Ensure adequate side clearance on re-metalled rods. Gently easing the outer edges of the white metal can accommodate crankshaft flex, preventing binding. This is a delicate procedure best undertaken by experienced individuals, using a sharp blade like a Stanley knife at a right angle to the white metal.
- Engine Mounting: Avoid rigidly bolting the engine to the chassis. Employ a combination of rubber mountings, bolts, and valve springs to allow the engine to flex, thereby reducing stress on the crankcase. This is a subtle but important aspect of ensuring the crankcase integrity.
Assembly Approaches: Conventional vs. Modern
There are broadly two ways to approach the physical assembly of an Austin 7 engine:
- Conventional Method: This involves fitting the piston and conrod assemblies into the cylinder block first, often with the oil baffles already in place on the rods. The cylinder block is then brought down onto the crankcase, usually with a gasket in between.
- Alternative Method (often favoured for easier access): Some prefer to assemble the crankshaft, bearings, and conrods into the crankcase first. The pistons are then fitted to the conrods, and the cylinder block is carefully lowered onto the assembled crankshaft and pistons. This method can sometimes make it easier to manage the conrod orientation and ensure correct oil feed alignment.
Regardless of the method chosen, meticulous attention to detail, correct lubrication, and careful alignment are paramount. Ensure all oilways are aligned and free-flowing before final assembly.
Frequently Asked Questions (FAQs)
Q1: What is the biggest challenge when rebuilding an Austin 7 engine?
A1: Often, the biggest challenge is achieving consistent accuracy in measurements and ensuring all components are within tolerance. Attention to detail, especially with oilways and bearing clearances, is critical.
Q2: Can I use modern sealants on my Austin 7 engine?
A2: Yes, but choose wisely. Products like ThreeBond TB1215 Grey are designed for engine applications and offer superior sealing compared to older types of gasket goo. Always follow manufacturer instructions.
Q3: How important is balancing the engine components?
A3: Very important for longevity and smooth running. Unbalanced rotating and reciprocating masses create vibrations that can lead to premature wear and component failure over time. Professional balancing is recommended if possible.
Q4: What if my crankshaft is slightly bent?
A4: Minor bending can often be corrected by a skilled machinist. However, severe bending or any signs of fatigue (indicated by crack testing) mean the crankshaft should be replaced.
Q5: Should I use castellated nuts or Nyloc nuts for the big ends?
A5: The consensus among experienced builders is to use new quality big end bolts and new Nyloc nuts. These provide a more reliable and consistent clamping force without the risk of over-tightening associated with split pins and castellated nuts, which can also damage the bolt threads.
Conclusion
Rebuilding an Austin 7 engine is a journey of discovery, requiring patience, precision, and a willingness to learn. By arming yourself with the right knowledge, acquiring essential skills, and paying meticulous attention to every check and measurement, you can build an engine that is not only period-correct but also reliably serves you for many years to come. Remember, there's always more to learn, and sharing experiences with fellow enthusiasts is a vital part of the process. Happy rebuilding!
