Rebuilding a Cylinder Head: A Comprehensive Guide

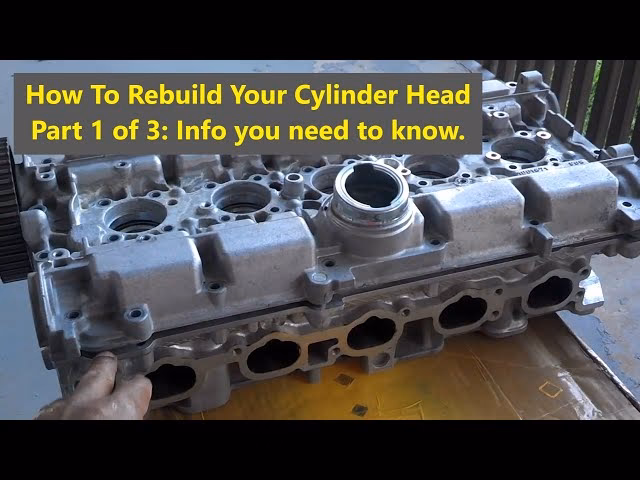

Can a Cylinder Head Be Rebuilt? The Definitive Answer

The question of whether a cylinder head can be rebuilt is a common one among car enthusiasts and DIY mechanics. The short answer is a resounding yes, a cylinder head can absolutely be rebuilt. In fact, rebuilding a cylinder head is a standard procedure in automotive repair, offering a cost-effective alternative to purchasing a brand-new unit. This process involves meticulously disassembling, cleaning, inspecting, repairing, and reassembling the various components of the cylinder head to restore it to optimal working condition. While it requires a good degree of mechanical aptitude, patience, and the right tools, the satisfaction and savings can be significant. This guide will walk you through the essential steps to successfully rebuild a cylinder head, ensuring your engine runs smoothly and efficiently.

Understanding the Cylinder Head's Role

Before diving into the rebuilding process, it's essential to understand what a cylinder head is and why it's so critical to your engine's performance. The cylinder head is a detachable plate that seals the top of the cylinder bore in an internal combustion engine. It houses vital components such as valves, spark plugs (in petrol engines), fuel injectors (in diesel engines), and often the camshafts. Its primary functions include controlling the flow of air and fuel into the combustion chamber and expelling exhaust gases. A properly functioning cylinder head is paramount for efficient combustion, power delivery, and overall engine health. Issues with the cylinder head, such as cracks, warped surfaces, or leaking valves, can lead to a multitude of problems, including overheating, loss of power, poor fuel economy, and rough idling.

The Rebuilding Process: A Step-by-Step Breakdown

Rebuilding a cylinder head, while potentially time-consuming and requiring concentration, is a rewarding task. Proper organization and attention to detail are key to a successful outcome. Here’s a detailed look at each stage:

Step 1: Disassembly and Part Removal

The first crucial step is to carefully remove all existing components from the cylinder head. This typically includes the rocker arm assembly, valves, valve keepers, oil seals, valve springs, and any other associated valve train components. The essential tools for this stage are a good quality ratchet and socket set, a reliable valve spring compressor, and a pair of needle-nose pliers. As you remove each part, it is highly recommended to place them into individual plastic bags and label them clearly. This meticulous approach will not only help you keep track of each specific part but will also ensure you can reassemble the head correctly, remembering the precise location of each valve and its corresponding components.

Step 2: Thorough Cleaning of the Cylinder Head

Once all the parts have been removed, the next critical phase is cleaning the cylinder head itself. This involves removing all traces of old gasket material, accumulated sludge, stubborn carbon deposits, and any other debris that may have settled on the head’s surfaces. Pay particular attention to cleaning out any blockages within the coolant and oil passages. For this task, you will likely need a good quality solvent, a gasket scraper for stubborn residue, and a wire brush for more robust cleaning. If you encounter particularly difficult or hardened deposits, it might be advisable to take the cylinder head to a professional auto shop for specialist cleaning, often using ultrasonic cleaning methods, which can effectively remove even the most ingrained contaminants.

Step 3: Comprehensive Inspection of the Cylinder Head

After a thorough cleaning, the next vital step is a detailed inspection of the cylinder head. This is where you identify any potential issues that might require repair. Carefully examine the entire cylinder head for any signs of cracks. These can often be very fine and may require magnification to spot. Check the valve seats for any signs of burning, cracks, or pitting, as these can significantly impact sealing and engine performance. Furthermore, it's crucial to inspect the camshaft (if it's integrated or removable) for any signs of wear or damage. Using a micrometer to measure the camshaft journals and lobes against the manufacturer's specifications, which can be found in your vehicle's service manual, is essential to ensure it's within acceptable tolerances.

Step 4: Damage Assessment and Verification

This stage is arguably the most critical in the entire rebuilding process. Thoroughly checking for any damage will determine the scope of the work required and whether you have the capability to perform the necessary repairs yourself or if professional assistance is needed. Inspect the rocker arms, pushrods, valve guides, studs, and valve stems for any signs of bending, wear, or damage. If any of these components show excessive wear or damage, it is strongly recommended to take them to a reputable auto repair shop for professional assessment and repair or replacement. Trying to use damaged parts can lead to premature failure of the rebuilt head.

Step 5: Reassembly of the Cylinder Head

With all inspections and necessary repairs completed, you can now proceed with reassembling the cylinder head. This is essentially the reverse of the disassembly process. Carefully refit all the components in the correct order and orientation. It is imperative to use a new oil seal for each valve stem during reassembly to ensure proper lubrication and prevent oil leaks. The precise location of each valve is critical; installing them incorrectly will result in the cylinder head not functioning as intended and can cause severe engine damage. Torque specifications for all bolts and nuts must be followed precisely as per the manufacturer's service manual to ensure proper sealing and prevent distortion.

Common Cylinder Head Problems and Solutions

Here's a table outlining common cylinder head issues and how they are typically addressed during a rebuild:

Tools You'll Need for a Cylinder Head Rebuild

Successfully rebuilding a cylinder head requires a specific set of tools. Having the right equipment on hand will make the process smoother and more efficient. Essential tools include:

• Socket Set and Ratchet: For removing and tightening bolts.
• Torque Wrench: Crucial for tightening head bolts to the manufacturer's precise specifications.
• Valve Spring Compressor: A specialized tool to safely compress valve springs for valve removal and installation.
• Pliers (Needle-nose and Regular): For handling small parts and removing keepers.
• Gasket Scraper: To remove old gasket material without scratching the metal surfaces.
• Wire Brush (Brass and Steel): For cleaning carbon and sludge.
• Solvent or Degreaser: For cleaning the head and parts.
• Micrometer and Calipers: For precise measurements of camshafts and other components.
• Feeler Gauges: For checking valve clearances.
• Dial Indicator: To check for head warpage.
• Magnifying Glass: For inspecting for fine cracks.
• Safety Glasses and Gloves: Essential for personal protection.

When to Seek Professional Help

While many aspects of a cylinder head rebuild can be undertaken by a determined DIY mechanic, there are times when professional expertise is invaluable, or even necessary. If you discover significant cracking, severe warping that exceeds the limits of machining, or extensive damage to valve seats or guides, it's often best to consult a professional machine shop. They have specialized equipment and the experience to perform complex repairs like welding cracks or replacing valve seats accurately. Additionally, if you are uncomfortable with any stage of the process, particularly the precise measurements and torque specifications, a professional mechanic can ensure the job is done correctly, saving you potential headaches and costly mistakes down the line.

Frequently Asked Questions

Q1: How long does it take to rebuild a cylinder head?

The time required can vary significantly depending on your experience level, the complexity of the engine, and the extent of the repairs needed. For an experienced mechanic, it might take a few hours. For a DIYer tackling it for the first time, it could take a full weekend or more, especially when accounting for thorough cleaning and inspection.

Q2: What is the cost of rebuilding a cylinder head?

The cost can range from a few hundred pounds for parts and machining at a specialist shop to significantly more if extensive repairs or new components are required. Doing the labour yourself will save a considerable amount compared to having a garage perform the entire job.

Q3: Do I need to replace the head gasket when rebuilding?

Yes, absolutely. A new head gasket is essential when reassembling a cylinder head. The old gasket will be damaged during removal and is not designed for re-use. A new, high-quality head gasket is crucial for ensuring a proper seal between the cylinder head and the engine block.

Q4: Can I just replace the valves instead of rebuilding the whole head?

While you can replace individual valves, if the cylinder head has other issues like cracks, warping, or damaged valve seats, simply replacing the valves will not solve the underlying problems and the engine will likely continue to perform poorly or fail again.

In conclusion, rebuilding a cylinder head is a feasible and often economical solution for restoring engine performance. By following these steps carefully, using the correct tools, and paying close attention to detail, you can successfully bring your cylinder head back to life.
