Crafting a Reliable Engine: Your Ultimate Guide

Embarking on an engine build is a significant undertaking, often driven by the desire for enhanced performance, improved durability, or to rectify existing issues. However, navigating the myriad of options and understanding what truly constitutes a reliable engine build can be a complex journey. It's not simply about throwing the most expensive parts at it; it's about a carefully considered, balanced approach tailored to your specific driving needs and aspirations. This guide aims to demystify the process, drawing on years of practical experience to help you make informed decisions for your vehicle.

Before diving into the specifics of different build stages, it’s crucial to establish a baseline: the current health of your engine. The packages discussed below assume your engine is currently in good working order – meaning you could turn the key today and confidently embark on a long journey without any concerning knocks, rattles, or performance issues. If your engine is already exhibiting signs of distress, such as knocking or rattling, a different approach is required, which we will detail further down. Remember, all prices mentioned are guides; the true health of your engine is only fully revealed once it's stripped down. Should any unexpected issues arise during the strip-down, you will be contacted immediately to discuss the implications for cost and project timelines. Our philosophy is always to perform the work correctly, not quickly, ensuring lasting quality.

The 'Light Forged' Build: Rod Only – Up to 450bhp for Regular Road Use

For the vast majority of GT86 or BRZ owners seeking a significant boost in performance without compromising daily drivability, a 'light forged' build focusing on the connecting rods often represents the sweet spot. This approach is designed for engines regularly used on the road, providing a substantial power increase (typically up to 450bhp) with impressive longevity. In fact, this is the very package we utilise in our own daily driver test car, which confidently runs an Avo Stage 5 turbo kit, 1.6bar of boost, and methanol injection, achieving over 500bhp on stock gearbox and drive shafts – a testament to its robust nature, though we are certainly pushing the limits of the ancillary components!

A cornerstone of reliability in these engines, especially when boosting power, is a meticulously upgraded oiling system. Our modifications to the oiling system are designed to achieve almost double the factory oil pressure above 7000rpm, even when using a relatively light 5w40 oil. This critical enhancement ensures consistent lubrication under high-stress conditions, safeguarding the engine's internals. Crucially, this build retains the factory cast pistons. This decision avoids the common issues associated with forged pistons, such as increased engine rattle during warm-up and accelerated bore wear, allowing us to confidently project over 100,000 miles of reliable service from an engine at this build level. Our overarching advice for anyone modifying their car is simple: don't over build and ruin your car. Choose a package that genuinely suits your needs.

Key Components for a Light Forged Build:

• Upgraded Connecting Rods: These are the primary focus, chosen for their superior strength to handle increased cylinder pressures.
• Performance Rod Bearings: Essential for supporting the upgraded rods and maintaining optimal lubrication.
• Multi-Layer Steel (MLS) Head Gaskets: Provides a more robust seal under higher boost pressures and temperatures.
• ARP Head Studs: Replaces factory head bolts with stronger studs, ensuring consistent clamping force on the cylinder head.
• ARP Main Studs: Reinforces the main bearing caps, crucial for crankshaft stability.
• Full Oiling System Modifications: Includes precision machining and enhancement of the oil pump, baffling, and other elements to optimise oil flow and pressure.
• Upgraded Oil Pickup Pipe: Prevents oil starvation during aggressive driving or high G-force manoeuvres.

Including our full menu of oiling system modifications, an upgraded oil pickup pipe, all necessary fluids, removal and refit labour, strip and build labour, plus a few required gaskets, the total cost comes in at a very reasonable figure, offering exceptional value for the performance and reliability gained.

Project Timelines:

We typically don't keep all the specialised parts for these builds in stock, so we need to allow at least 4-8 weeks to gather all necessary components. Once the parts are assembled, your car will be required for 1-2 weeks to complete all the intricate work. It's imperative to allow ample time when planning your build, as our priority is always precision and correctness over speed.

The 'Fully Forged' Build: 450bhp - 600bhp and Beyond for Track Use

For those with serious performance aspirations, particularly for regular track use or high-horsepower race applications (450bhp to 600bhp and beyond), a 'fully forged' engine build is the ultimate solution. This package is very similar to what powers our 600bhp+ race car, engineered for extreme durability and performance under the most demanding conditions.

While a fully forged engine can technically be driven on the road, we generally recommend against it for regular daily use. There's a common misconception that a forged engine is a 'silver bullet' – infinitely reliable, fixes all problems, and will last forever. This could not be further from the truth. A fully forged engine demands greater respect and a more rigorous maintenance schedule than either a stock engine or the 'rod only' package. It requires proper warm-up and cool-down cycles, and servicing must be far more frequent. Taking on a forged engine is not a decision to be made lightly; it's crucial to properly consider if it aligns with your driving habits and commitment to maintenance.

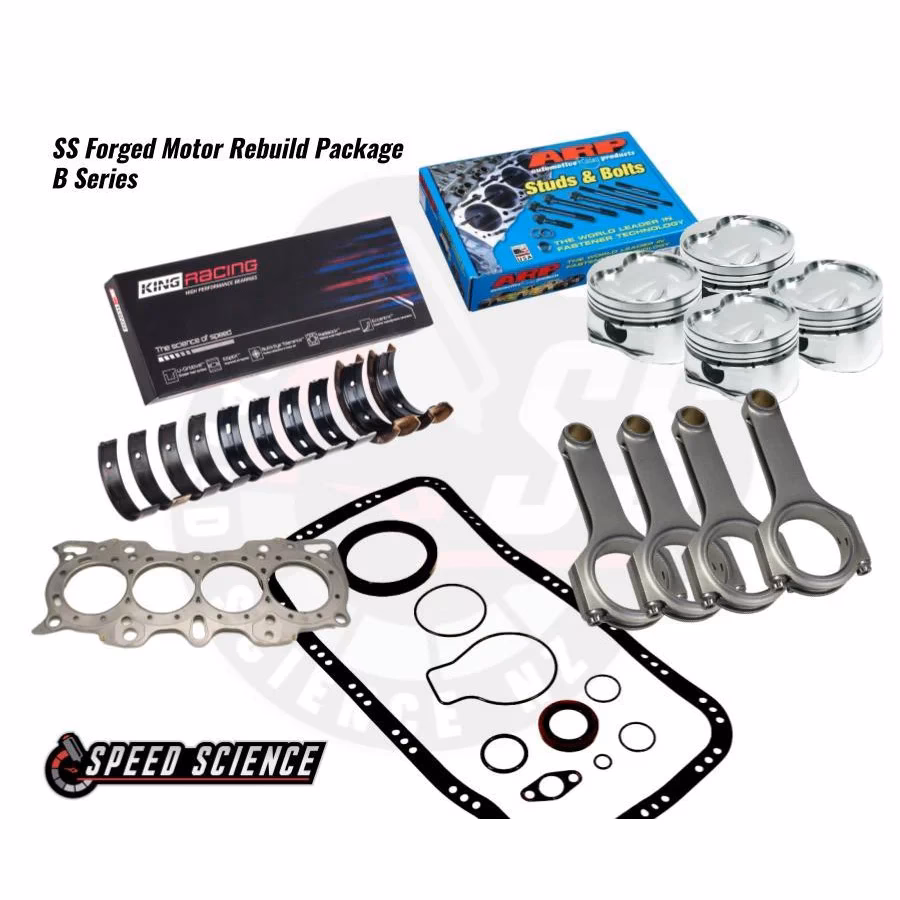

Key Components for a Fully Forged Build:

• Forged Pistons: Lighter and stronger than cast pistons, designed to withstand extreme cylinder pressures and temperatures.
• Upgraded Connecting Rods: Matched to the forged pistons for ultimate strength.
• Performance Rod Bearings: Engineered for high-load applications.
• Performance Main Bearings: Supports the crankshaft under extreme conditions.
• Multi-Layer Steel (MLS) Head Gaskets: Essential for a robust seal.
• ARP Head Studs: Provides superior clamping force.
• ARP Main Studs: Enhances crankshaft stability.
• Full Oiling System Modifications: Comprehensive upgrades to ensure optimal lubrication.
• Upgraded Oil Pickup Pipe: Prevents oil starvation.

This package includes our full menu of oiling system modifications, an upgraded oil pickup pipe, all necessary fluids, removal and refit labour, strip and build labour, engine machining, and running-in costs, all culminating in a comprehensive total cost.

Project Timelines:

Similar to the light forged build, we require 4-8 weeks to gather all the specialised parts. However, due to the additional machining required for forged components and the more intricate assembly process, your car will be needed for a longer duration, typically 3-4 weeks, to complete all the work. Again, planning with ample time is key.

The 'Hybrid Tune' Fully Forged Engine Build

A 'Hybrid Tune' fully forged engine build represents the pinnacle for those looking to progress their car to the next level, combining the mechanical strength of a fully forged engine with a precisely calibrated, bespoke engine map. This synergistic approach ensures that the engine's robust hardware can be fully exploited through optimised software, unlocking its true potential.

We approach this process with meticulous care. Firstly, a concise series of checks are performed to ensure your power plant is in impeccable health before any work commences. Once we are satisfied, the build begins. The engine is carefully removed and transferred to our dedicated engine clean room, a sterile environment crucial for precision assembly. We then meticulously source the best connecting rods and pistons for your specific build, taking into account your budget and performance requirements. We have extensive experience performing forged builds on a wide array of popular engines, including the Mini B48 and N18, as well as a multitude of Zetec, Duratec, K-series, and 2L TFSI engines.

The assembly process is a testament to precision engineering. Every component is carefully measured, balanced, and fitted to perfection. This attention to detail, combined with the subsequent hybrid tune, ensures that your engine not only performs exceptionally but also maintains its reliability under the increased demands of its new power output.

Addressing Engine Issues: When Your Engine is Already Rattling or Knocking

If your engine is currently suffering from a rattling bottom end, a distinct knock, or other significant internal issues, the approach to a reliable build changes dramatically. In such scenarios, it is entirely impossible to provide an accurate quote without first stripping the engine down and thoroughly inspecting the damage. While the price guides above offer a baseline for healthy engines, an ailing engine introduces a significant element of uncertainty.

We have encountered engines that, once stripped, were so severely damaged that virtually nothing useful remained. If the problem has been caught early – perhaps a light rattle that hasn't yet caused damage to the cylinder heads or front cover – the most effective course of action often involves replacing the short block with a new unit from the manufacturer (e.g., Toyota for GT86/BRZ). Once a healthy foundation is established, the chosen build components can then be integrated.

Our advice in these challenging situations is to "assume the worst, and anything else is a bonus." If you're experiencing a bottom end rattle, it's prudent to prepare for the likelihood of needing at least a replacement short block. However, we absolutely cannot provide fixed quotes or solid prices for unknown damage until the engine has been stripped down and inspected in detail. Based on past experiences, the average cost to upgrade a rattling stock engine to a 'rod only' stage can be a considerable investment, reflecting the need for extensive repairs and the core build components.

Important Considerations for Your Engine Build

When embarking on any engine build, it's vital to keep several key points in mind to manage expectations and ensure satisfaction:

• Price Guides: All prices provided are strictly guides. The final cost will depend on the exact condition of your engine once stripped, and any additional parts or machining found necessary during inspection.
• Engine Health: We pride ourselves on transparency. Should we uncover anything unexpected during the strip-down, you will be contacted immediately with a detailed explanation of associated costs and potential time setbacks.
• "Race" Engines: It is important to understand that all "built" engines, particularly those with forged internals, are considered "race" engines due to their enhanced performance capabilities. As such, they typically carry no warranty or guarantee, reflecting their intended use in high-stress environments.
• Quality Over Speed: Our unwavering commitment is to perform all work correctly and to the highest standards. This meticulous approach sometimes requires a little extra time, but it guarantees the longevity and reliability of your engine build.

Choosing the right engine build for your car is a deeply personal decision, influenced by your driving style, performance goals, and budget. Whether you opt for the robust 'light forged' build for spirited road use or the uncompromising 'fully forged' package for track dominance, understanding the intricacies and demands of each option is paramount. Always prioritise a strong foundation, a robust oiling system, and a commitment to proper maintenance to ensure your enhanced engine delivers reliable, exhilarating performance for years to come. For further discussion or to book a consultation on any of the above, please do not hesitate to reach out to our team.

Comparative Table: Light Forged vs. Fully Forged Builds

Frequently Asked Questions (FAQs) About Engine Builds

Q1: Why is an upgraded oiling system so important for a performance engine build?

A1: An upgraded oiling system is absolutely critical because increased horsepower and higher engine RPMs place significantly more stress on internal components. Enhanced oil pressure and flow ensure that all moving parts, particularly bearings and piston skirts, receive adequate lubrication and cooling, preventing premature wear and catastrophic failure. It's the lifeblood of a high-performance engine.

Q2: Can I use a fully forged engine as my daily driver?

A2: While technically possible, we generally advise against using a fully forged engine as a regular daily driver. Forged components, especially pistons, often have larger clearances than factory cast parts, which can lead to increased noise (piston slap) when cold and potentially faster bore wear over extended periods of short-journey driving. More importantly, forged engines demand a more rigorous warm-up and cool-down routine, along with much more frequent servicing, which can be impractical for daily commuting.

Q3: What's the difference between ARP head studs and standard head bolts?

A3: ARP (Automotive Racing Products) head studs are a significant upgrade over standard head bolts. Studs provide a more consistent and even clamping force on the cylinder head, which is crucial for maintaining the head gasket seal under higher cylinder pressures, especially with forced induction. They also allow for more accurate torque readings during assembly and reduce stress on the block threads compared to repeatedly torquing bolts.

Q4: Why does an engine with a rattle or knock cost more to build?

A4: An engine with an existing rattle or knock indicates internal damage, usually to the crankshaft, connecting rods, or bearings. This damage is an unknown quantity until the engine is completely stripped down and inspected. The additional cost comes from the need to repair or replace these damaged core components, which can range from simply replacing bearings to requiring a complete new short block, plus the labour involved in assessing and rectifying the damage before the performance build can even begin.

Q5: What does 'running in' an engine involve, and why is it necessary?

A5: Running in, or breaking in, an engine is a critical post-build process that allows new components, particularly piston rings and cylinder bores, to seat correctly. It typically involves a period of varied engine loads and RPMs (avoiding sustained high RPM or heavy load) to ensure a proper seal and minimise wear. This is often followed by an early oil change to remove any initial wear particles. Proper running in is essential for the longevity and optimal performance of your freshly built engine.
