Powerline Adapters: Setup and Troubleshooting

Powerline adapters have revolutionised how we extend our home networks, offering a convenient and often faster alternative to traditional Wi-Fi extenders or lengthy Ethernet cables. By leveraging your home's existing electrical wiring, these devices create a robust network connection that can be established with minimal fuss. However, like any piece of technology, you might encounter situations where they don't perform as expected straight out of the box. This guide delves into the intricacies of setting up and managing your Powerline adapters, addressing common queries and providing solutions to ensure a smooth and efficient networking experience.

Understanding Powerline Adapter Functionality

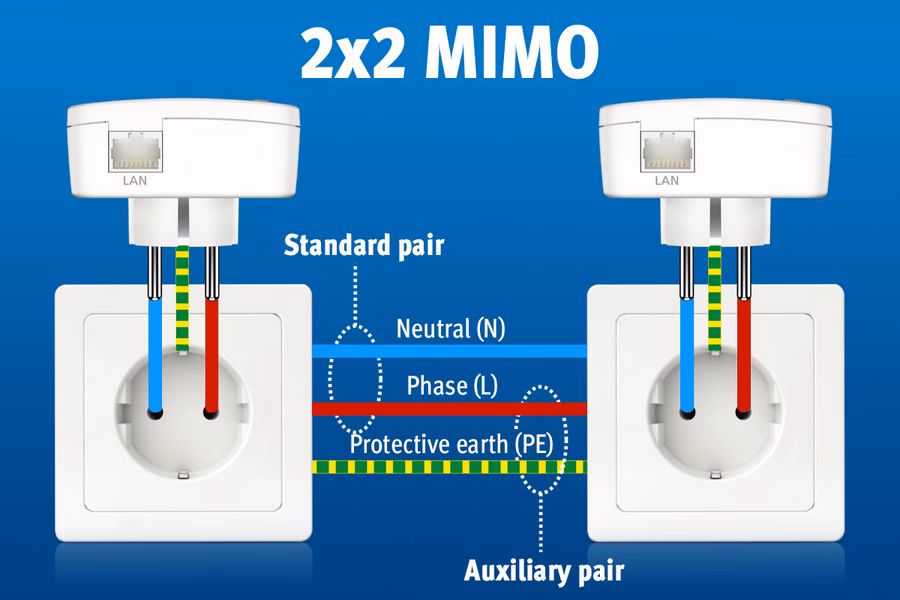

At its core, a Powerline adapter works by transmitting network data over your home's electrical circuits. You connect one adapter to your router and a nearby power outlet, and another adapter to your device or a power strip in another room. The adapters then communicate with each other through the wiring, effectively creating a wired network connection without the need for new cables. This technology is particularly useful for reaching areas of your home where Wi-Fi signals are weak or non-existent.

The performance of Powerline adapters has significantly improved over the years. Early iterations offered speeds suitable for basic internet browsing. However, the latest generations boast speeds of up to 200Mbps and even 500Mbps. These higher speeds are more than capable of handling demanding tasks such as streaming high-definition video, online gaming, and transferring large files simultaneously, providing a high-performance backbone for your connected devices.

Initial Setup and Pairing

Most Powerline adapters are designed for a simple 'plug and play' experience. Upon plugging them into power outlets and connecting them to your devices, they should automatically pair and establish a network. However, if they don't connect automatically, several troubleshooting steps can be taken:

Automatic Pairing Issues

If your Powerline adapters fail to pair automatically, the most common solution is to manually initiate the pairing process. This typically involves pressing a 'pair' or 'sync' button on each adapter within a specific timeframe. For detailed instructions on how to do this for your specific model, consult the user manual or the manufacturer's support resources.

Using the Powerline Utility

For a more controlled and feature-rich setup, many manufacturers provide dedicated software, often referred to as a 'Powerline Utility' or through a web interface. This utility allows you to:

• Pair adapters: Manually pair new adapters to your existing Powerline network.
• Manage devices: View connected adapters, their status, and speeds.
• Secure your network: Encrypt the Powerline connection to prevent unauthorised access.
• Configure Wi-Fi settings: For wireless Powerline extenders, you can clone your router's Wi-Fi name (SSID) and password to create a seamless Wi-Fi network throughout your home.

It's important to note that these utilities are often designed for Windows operating systems. While some manufacturers may offer utilities for macOS, support for Linux distributions like Ubuntu can be limited. In such cases, you might need to configure the adapters on a Windows machine or rely on the pairing buttons and the web interface for wireless Powerline extenders.

Adding New Adapters to an Existing Network

Expanding your Powerline network is straightforward. To add a new adapter, you can generally use the same methods as the initial pairing: either by pressing the pair buttons on the new and an existing adapter, or by using the Powerline Utility to add the new device to the network.

Wi-Fi Cloning and Configuration

For Powerline adapters that also function as Wi-Fi extenders, replicating your existing Wi-Fi network is a key feature. This allows devices to seamlessly roam between your main router's Wi-Fi and the Powerline extender's Wi-Fi.

WPS Button Method

The easiest way to clone your Wi-Fi settings is by using the Wi-Fi Protected Setup (WPS) button. Typically, you would press the WPS button on your router and then, within a short timeframe, press the Wi-Fi button on your Powerline extender. This synchronises the Wi-Fi name and password. However, this method relies on your router having a WPS button and it being enabled.

Manual Wi-Fi Configuration

If your router lacks a WPS button or the WPS method fails, you can manually configure the Powerline extender's wireless settings. This involves accessing the extender's configuration interface – usually through the Powerline Utility or a web interface – and manually entering your router's Wi-Fi SSID and password. This ensures your devices connect to the extender with the same credentials they use for your main router.

Troubleshooting Common Issues

While Powerline adapters are generally reliable, occasional issues can arise. Here are some common problems and their solutions:

Adapters Not Working

If your Powerline adapters are not working as expected, first check the indicator lights. Typically, a solid green light on the Powerline adapter indicates a good connection. The Ethernet port lights should be blinking, signifying data activity. If any lights are off, it could indicate a problem with the adapter, the power outlet, or the connection.

Key troubleshooting steps include:

• Ensure adapters are plugged directly into wall sockets, avoiding surge protectors or extension cords, as these can interfere with the signal.
• Try different power outlets in your home.
• Reset the adapters to factory defaults and re-pair them.
• Update the firmware of your Powerline adapters using the manufacturer's utility.

Network Not Detected

If your computer or device isn't detecting the Powerline network, ensure the Ethernet cable is securely connected between the adapter and the device. Also, verify that the Powerline adapters are properly paired.

Changing Routers

If you replace your existing router, you generally do not need to reset your Powerline adapters. Simply reconnect the primary adapter to the new router. If you wish to update the Wi-Fi settings of your Powerline extenders to match the new router's Wi-Fi name and password, you can use the WPS method (if available) or manually reconfigure the wireless settings via the Powerline Utility or web interface.

Compatibility and Performance

Powerline adapters perform best when connected to outlets on the same electrical circuit. While they can often work across different circuits, performance may be degraded. Avoid plugging adapters into power strips with surge protection or uninterruptible power supplies (UPS), as these can filter out the data signal. High-power electrical appliances connected to the same circuit can also sometimes cause interference.

Managing Powerline Adapters on Different Operating Systems

As mentioned, managing Powerline adapters, especially for advanced configuration, often relies on dedicated software utilities. For users on macOS, specific versions of the Powerline Utility may be available. However, for older macOS versions or Linux distributions like Ubuntu, direct utility support might be absent. In these scenarios:

• Windows OS: Utilise the manufacturer's Powerline Utility for full control.
• macOS (supported versions): Download and use the specific macOS Powerline Utility.
• Ubuntu/Older macOS: Configure adapters on a Windows PC first. For wireless extenders, you can often use the pairing buttons for basic connectivity and then access the web interface to manage Wi-Fi settings.

When is a Powerline Adapter Bad?

Determining if a Powerline adapter has failed is usually straightforward. Observe the indicator lights:

• Power Light: Should be solid, indicating the adapter is receiving power.
• Powerline/Link Light: This light indicates the quality of the connection between adapters. A solid light typically signifies a good connection. If it's off or blinking erratically, there might be a pairing or connection issue.
• Ethernet Light: Should be blinking, showing data activity between the adapter and your connected device.

If an adapter's power light is off, or if the Powerline/Link light remains off even after attempting pairing, it strongly suggests that the adapter is not functioning correctly. In such cases, testing the adapter in a different known-working outlet or trying a different adapter in its place can help isolate the problem.

Frequently Asked Questions

Q1: Can I use Powerline adapters with surge protectors?

A: It is generally not recommended to plug Powerline adapters into surge protectors or extension cords. These devices often contain filters that can block or degrade the high-frequency data signals used by Powerline adapters, preventing them from working correctly.

Q2: Do Powerline adapters affect my electricity bill?

A: Powerline adapters consume a small amount of electricity, similar to other small electronic devices. The impact on your electricity bill is typically negligible.

Q3: How do I reset my Powerline adapters to factory settings?

A: Most Powerline adapters have a small reset button, often recessed, that you need to press and hold for about 10-15 seconds with a paperclip or similar tool while the adapter is plugged in. Consult your specific model's manual for exact instructions.

Q4: Can Powerline adapters work across different electrical phases or circuit breakers?

A: Powerline adapters work best on the same electrical circuit. While they may sometimes work across different circuits or phases, performance can be significantly reduced or they might not work at all. It's best to keep them on the same circuit for optimal results.

Q5: How secure are Powerline networks?

A: Powerline networks can be secured using encryption. Most adapters allow you to set a unique password or use a pairing process that encrypts the communication between adapters. Always ensure your Powerline network is secured, especially if you live in a multi-unit dwelling.

By understanding how Powerline adapters function and following these setup and troubleshooting guidelines, you can effectively extend your home network and enjoy a more stable and faster internet connection throughout your property.
