Toyota's Ingenious Dual Fuel Injection System

When discussing modern automotive engineering, few topics are as intricate and crucial as a vehicle's fuel delivery system. For decades, manufacturers have sought the perfect balance between power, fuel efficiency, and environmental responsibility. Toyota, a brand renowned for its innovation and reliability, has consistently pushed the boundaries in this area. Unlike many manufacturers who opt for a singular fuel injection method, Toyota has embraced a sophisticated, blended approach: combining both port fuel injection (PFI) and direct fuel injection (GDI) in many of its contemporary engines. This dual system, often referred to as D-4S (Direct Injection 4-stroke gasoline engine Superior version), represents a significant leap forward, aiming to deliver the best possible performance, minimise emissions, and maximise economy across the entire operating range of the engine.

The decision to utilise both types of injectors is a testament to Toyota's commitment to engineering excellence. It’s a dynamic system, meaning that the activation of the port injector, the direct injector, or indeed both simultaneously, is not fixed. Instead, it is continuously modulated by the engine's sophisticated electronic control unit (ECU). This intelligent management system considers a multitude of variables, including throttle position, engine load, engine speed (RPM), and even critical factors like engine temperature. Understanding this complex interplay is key to appreciating the brilliance behind Toyota's engine design.

Understanding Fuel Injection: A Primer

Before delving into the intricacies of Toyota's D-4S system, it's essential to understand the two primary types of fuel injection methods it employs.

Port Fuel Injection (PFI)

Historically, port fuel injection, also known as multi-port fuel injection (MPFI), has been the standard for petrol engines. In a PFI system, the fuel injector is located in the intake manifold, just upstream of the intake valve. Fuel is sprayed into the intake runner, where it mixes with air before entering the combustion chamber when the intake valve opens. This pre-mixing of fuel and air creates a homogeneous charge, which is crucial for smooth combustion.

Advantages of PFI:

• Excellent Fuel/Air Mixing: The fuel has more time to vaporise and mix thoroughly with air before entering the cylinder, leading to a more complete and cleaner burn, especially at lower engine speeds and loads.
• Intake Valve Cleaning: The fuel sprayed into the intake port washes over the intake valves, helping to prevent carbon deposits from building up on the valve stems and seats. This is a significant maintenance advantage.
• Cost-Effective: Generally, PFI systems are simpler and less expensive to manufacture than GDI systems.
• Lower Pressure: Operates at lower fuel pressures, reducing stress on fuel system components.

Disadvantages of PFI:

• Volumetric Efficiency: The fuel spray can displace some air in the intake manifold, slightly reducing volumetric efficiency, particularly at higher RPMs.
• Less Precise Control: Due to the indirect nature of injection, there's less precise control over the fuel's exact entry into the cylinder and its interaction with the combustion process compared to direct injection.
• Emissions Challenges: While good for homogeneous mixing, meeting stringent modern emissions standards for particulate matter can be more challenging without additional measures.

Direct Fuel Injection (GDI)

Direct fuel injection, also known as Gasoline Direct Injection (GDI), is a more modern approach where the fuel injector is positioned directly inside the combustion chamber. Fuel is sprayed at very high pressure directly into the cylinder, typically during the intake stroke or compression stroke, depending on the engine's operating strategy. This allows for a much more precise and immediate delivery of fuel.

Advantages of GDI:

• Improved Fuel Economy: GDI allows for stratified charge combustion at light loads, where a richer air-fuel mixture is concentrated around the spark plug, while the rest of the cylinder contains a leaner mixture. This can significantly improve fuel economy.
• Increased Power Output: The cooling effect of the fuel evaporating directly in the cylinder reduces the charge temperature, allowing for a higher compression ratio and/or more aggressive ignition timing, leading to greater power and torque.
• Precise Fuel Control: Direct injection offers superior control over the timing and quantity of fuel injected, optimising combustion for various engine conditions.
• Reduced Emissions: GDI can produce fewer hydrocarbon emissions during cold start and transient conditions due to precise fuel targeting.

Disadvantages of GDI:

• Carbon Build-up: Since fuel is injected directly into the cylinder, it no longer washes over the intake valves. This can lead to significant carbon deposits accumulating on the intake valves over time, potentially impacting engine performance and requiring costly cleaning.
• Particulate Emissions: GDI systems can sometimes produce more particulate matter (soot) emissions, especially during cold starts or at high loads, due to less complete fuel vaporisation. This often necessitates the use of gasoline particulate filters (GPFs) in some regions.
• Higher Pressure: GDI systems operate at much higher fuel pressures, requiring more robust and expensive fuel pumps and injectors.
• Increased Noise: The high-pressure injection events can sometimes lead to a noticeable ticking noise from the engine.

Toyota's D-4S: The Best of Both Worlds

Recognising the strengths and weaknesses of both PFI and GDI, Toyota engineered its D-4S system to leverage the benefits of each while mitigating their drawbacks. The core idea is to use the right injection method for the right situation, creating a highly adaptable and efficient engine.

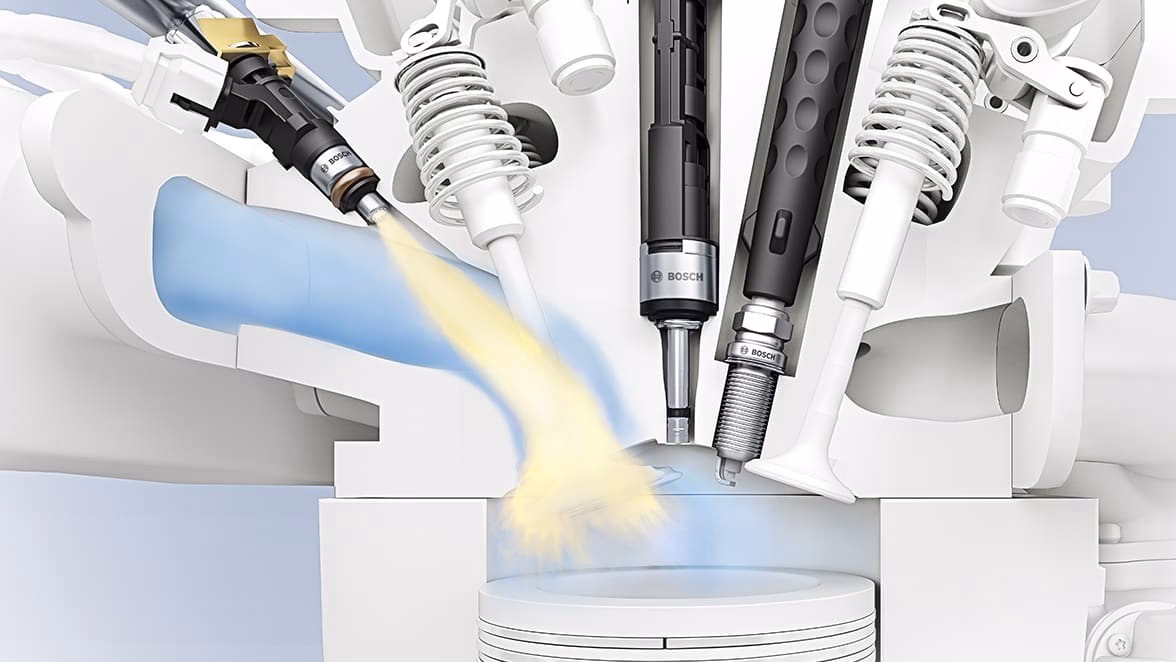

The D-4S system incorporates two fuel injectors per cylinder: one traditional port injector in the intake manifold and one direct injector inside the combustion chamber. The engine's ECU intelligently determines which injector (or both) to use based on the real-time demands of the engine.

How D-4S Operates in Practice: The Dynamic Blend

The beauty of Toyota's D-4S lies in its dynamic operation. Here’s a simplified breakdown of how the system typically functions under different conditions:

• Cold Start and Low Load (e.g., Idling, Light Cruising): In these scenarios, the engine often primarily utilises the port fuel injectors. This ensures excellent fuel atomisation and mixing, leading to a stable idle, reduced emissions during warm-up, and effective cleaning of the intake valves. The PFI's ability to create a homogeneous mixture is beneficial for precise control at light loads.
• Medium Load and Acceleration: As engine load and speed increase, the system often switches to a combination of both port and direct injectors. The direct injectors provide the immediate, precise fuel delivery needed for increased power and torque, while the port injectors continue to contribute to charge homogenisation and intake valve cleaning. This dual injection helps to achieve optimal combustion efficiency and power delivery.
• High Load and High RPM (e.g., Hard Acceleration, WOT - Wide Open Throttle): Under demanding conditions, the system predominantly relies on the direct fuel injectors. The cooling effect of the direct injection significantly lowers the temperature of the air-fuel mixture in the cylinder, allowing the engine to run with a higher compression ratio and/or more aggressive ignition timing without knocking. This maximises power output and throttle response when it’s most needed. The precise control of GDI is paramount here for peak performance.

It's crucial to reiterate that this is a simplification. The actual blend and switching points are incredibly complex and continuously adjusted by the ECU based on hundreds of data points collected from various sensors. This continuous optimisation is what allows Toyota engines to achieve their impressive balance of attributes.

Key Benefits of Toyota's D-4S System

The blended approach of Toyota's D-4S system offers several compelling advantages over engines that utilise only PFI or GDI:

1. Mitigation of Carbon Build-up: This is arguably one of the most significant benefits. By regularly using the port injectors, fuel is periodically sprayed onto the intake valves, effectively washing away carbon deposits that are a notorious issue in pure GDI engines. This helps maintain long-term engine efficiency and reduces the need for costly de-carbonisation services.
2. Superior Fuel Economy: The ability to utilise GDI for stratified charge combustion at light loads, combined with the overall optimisation of fuel delivery across all conditions, leads to excellent fuel economy figures.
3. Enhanced Power and Torque: GDI's ability to cool the intake charge and allow for higher compression ratios translates directly into more power and torque, especially at higher engine speeds and loads. The combination ensures robust performance throughout the RPM range.
4. Reduced Emissions: The precise control offered by D-4S, particularly at cold start and low loads, helps to minimise harmful exhaust emissions, allowing Toyota vehicles to meet stringent global emission standards.
5. Smoother Operation: The blend of injection methods contributes to a more refined and smoother engine operation across all speeds and loads, reducing NVH (Noise, Vibration, and Harshness).
6. Flexibility in Fuel Usage: The system is designed to handle various fuel qualities more effectively, though using the recommended fuel is always advisable.

Comparative Table: Fuel Injection Methods

Frequently Asked Questions (FAQs)

Q1: Is Toyota's D-4S system available on all models?

While Toyota has progressively rolled out D-4S across many of its contemporary petrol engines, particularly in models like the Camry, RAV4, Corolla, and Lexus vehicles, it's not present on every single engine variant. Older or entry-level engines might still utilise only PFI. Always check the specific engine specifications for the model you are interested in.

Q2: How does D-4S affect long-term reliability and maintenance costs?

The D-4S system is designed to enhance reliability by mitigating the common GDI issue of carbon build-up on intake valves. This can potentially reduce the need for expensive de-carbonisation services that are often required for pure GDI engines. However, like any complex system, it has more components (two sets of injectors, a high-pressure fuel pump for GDI) which could theoretically lead to more potential points of failure, though Toyota's engineering standards aim to keep these occurrences rare.

Q3: Can I use any type of petrol with a D-4S engine?

Toyota engines are designed to run on the recommended octane fuel as specified in your owner's manual. While the D-4S system is robust, adhering to the recommended fuel type (e.g., RON 95 unleaded) is crucial for optimal performance, fuel economy, and engine longevity. Using higher octane fuel than recommended typically offers no benefit and can be a waste of money.

Q4: How does the engine decide when to use which injector?

The engine's Electronic Control Unit (ECU) is the 'brain' behind this decision. It constantly monitors numerous parameters, including engine speed (RPM), engine load (how much power is being demanded), throttle position, coolant temperature, air intake temperature, oxygen sensor readings, and even ambient air pressure. Based on these inputs, the ECU calculates the optimal fuel delivery strategy to achieve the desired balance of power, efficiency, and emissions at that precise moment. It's a continuous, real-time calculation.

Q5: Does D-4S eliminate carbon build-up entirely?

While D-4S significantly reduces the likelihood and severity of carbon build-up on intake valves compared to pure GDI engines, it does not entirely eliminate it. Over very high mileages, some minimal deposits might still occur. However, the regular washing action of the port injectors makes it a far less prevalent and problematic issue than what is typically observed in engines lacking port injection.

Q6: Are there any specific maintenance tips for D-4S engines?

Beyond adhering to the manufacturer's recommended service intervals, using high-quality engine oil is always important. Some mechanics might suggest periodic fuel system cleaners, but for D-4S engines, the inherent design already addresses the primary carbon build-up concern. Following your Toyota service schedule and using genuine parts will ensure the system operates as intended.

Conclusion

Toyota's adoption of a blended port and direct fuel injection system (D-4S) exemplifies its pragmatic and innovative approach to automotive engineering. By intelligently combining the strengths of both PFI and GDI, Toyota has created engines that offer a remarkable balance of high performance, impressive fuel economy, and reduced emissions, all while addressing the common pitfalls associated with pure direct injection systems, particularly concerning intake valve carbon deposits. This sophisticated technology showcases Toyota's commitment to delivering reliable, efficient, and environmentally conscious vehicles that perform optimally across a diverse range of driving conditions. It's a testament to the fact that sometimes, the best solution isn't one extreme or the other, but a carefully calibrated blend of the two.
