Mercedes Electronic Parking Brake Faults

Mercedes Electronic Parking Brake: When It Stops Working

The electronic parking brake (EPB) in your Mercedes-Benz is a sophisticated piece of engineering designed to offer convenience and enhanced safety. It’s not just about holding your car stationary when parked; it plays a vital role in your driving experience, particularly in modern vehicles with advanced driver-assistance systems. However, like any complex system, it can develop faults. When your Mercedes EPB starts to malfunction, it can manifest as intermittent operation or complete failure, both of which can be incredibly dangerous. Imagine being parked on an incline, only for the brake to intermittently disengage – the thought alone is enough to send a shiver down any driver's spine.

Recognising the Warning Signs

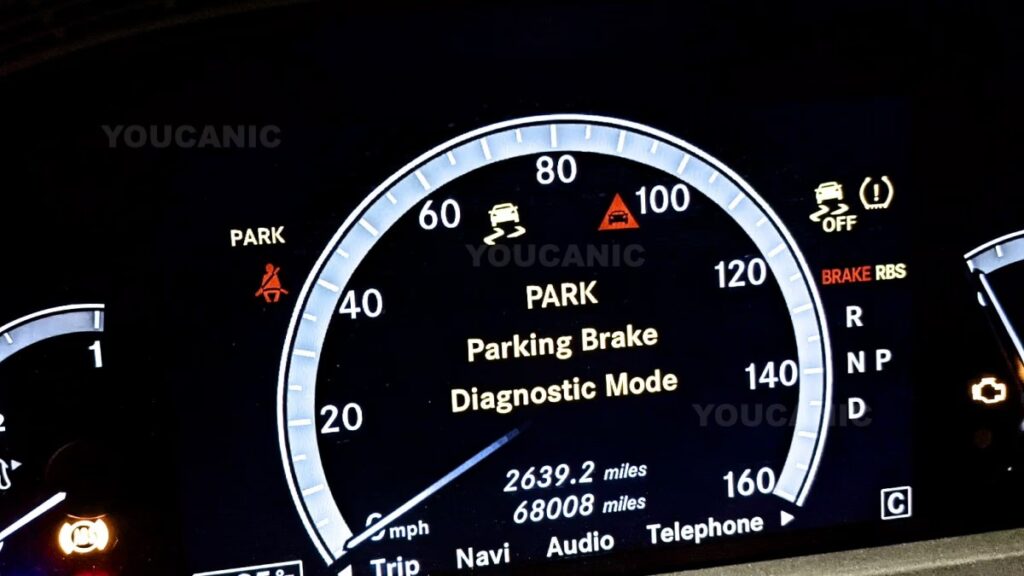

Your Mercedes is designed to alert you to potential issues. When your electronic parking brake is heading towards failure, a variety of messages and dashboard indicators may appear. A common trigger for these warnings is washing the car, driving through deep water puddles, or even the onset of rain. You might also see a message pop up simply when the car is in motion or if the driver's door is opened. Before a complete breakdown, several warning signs can appear, either individually or in combination:

• Red parking brake warning light on the dashboard: This is the most immediate and universally understood signal that something is amiss.
• Both red and yellow parking brake symbols illuminated: This dual illumination often indicates a more serious or persistent fault.
• Flashing parking brake icon in the instrument cluster: A flashing light suggests an active fault that requires immediate attention.
• "Parking Brake – See Operator’s Manual" message: This is a standard prompt directing you to consult your vehicle's manual for specific guidance.
• "Parking Brake Nonfunctional – Visit Workshop" message: This is a clear instruction that professional diagnosis and repair are necessary.
• "Electronic parking brake malfunction: see owner’s manual" message: Similar to the above, this indicates a system-wide electronic fault.
• Audible noise when operating the parking brakes: Unusual sounds, such as grinding or screeching, are a strong indicator of mechanical issues within the EPB system.

Initial Troubleshooting: A Simple Reset

Before delving into complex diagnostics, there's a simple procedure that can sometimes resolve temporary glitches. This is a good first step to try if you encounter a parking brake warning:

1. Pull over to a safe location and ensure the transmission is in the 'Park' position.
2. Turn off the ignition completely.
3. Wait a few moments, then turn the ignition back on.
4. Pull the parking brake switch and hold it in the engaged position for approximately 10 seconds, then release it.
5. Start the engine. Observe the dashboard to see if the parking brake warning light has extinguished.

If this reset procedure doesn't clear the fault, it's time to explore the more common causes and troubleshooting steps.

Common Culprits Behind Mercedes Parking Brake Problems

Several components can contribute to a malfunctioning electronic parking brake in a Mercedes-Benz. Understanding these common causes can help you or your mechanic pinpoint the issue more effectively.

1. Faulty Electric Parking Brake Module / Actuator

This is arguably the most frequent cause of EPB failure, especially in models like the S-Class (W221) and CL-Class (W216). The electronic parking brake relies on electric actuators, typically located at each rear wheel caliper, to physically apply the brake. These actuators can seize or stick due to corrosion, especially if the parking brake isn't used regularly or if the vehicle has been exposed to moisture. If you press the parking brake button and hear no sound from the rear wheels, or if you hear a loud, screeching noise when attempting to engage or disengage the brake, a faulty actuator is a prime suspect.

Potential Solutions for Actuator Issues:

• Manual Actuation: A Mercedes-Benz diagnostic scanner can often be used to manually cycle the parking brake actuators. Performing this operation fifteen or more times can sometimes free up a sticking actuator.
• Lubrication: In some cases, removing the rear wheels and applying a high-quality, lithium-based spray penetrating lubricant to the parking brake mechanism within the caliper can help. Ensure you use a lubricant specifically designed for brake components.
• Actuator Replacement: If lubrication and manual cycling fail, the actuator itself may need to be replaced. Before replacing, it's crucial to diagnose the specific actuator that is failing. You can do this by listening for the motor sound when the parking brake is activated – the one that remains silent is likely the culprit.

Important Note on Diagnosis: Always read fault codes from the Electronic Parking Brake (EPB) module using a compatible diagnostic scanner before replacing any parts. Fault codes can provide invaluable information. For instance, codes related to implausible component positions or open circuits in one of the brake calipers point directly to an actuator issue.

2. Damaged ABS Module

The Anti-lock Braking System (ABS) module is intricately linked with the EPB system. Corrosion or a loss of connection at the ABS unit, often located in the engine bay, can directly impact the parking brake's functionality. If the ABS module is faulty, you'll likely experience other symptoms alongside the parking brake malfunction, such as the ABS warning light, traction control light, and brake warning light remaining illuminated on the dashboard.

Solution for ABS Module Problems:

• Professional Diagnosis: Issues with the ABS module typically require diagnosis with a specialised Mercedes-Benz scanner. While some enthusiasts may attempt DIY diagnosis, the complexity of these systems often makes professional assistance the most efficient route.
• Repair or Replacement: Depending on the nature and severity of the damage, the ABS module may be repairable or require complete replacement. This is a task best left to certified Mercedes-Benz technicians.

3. Faulty Parking Brake Switch

The switch itself, usually located on the centre console near the headlight switch, can also fail. If the switch becomes sticky, it might not fully disengage, or it could trigger a constant "pressed" signal to the EPB control module, leading to a warning message. Sometimes, debris or dirt can obstruct the switch, causing it to remain depressed.

Solution for Switch Issues:

• Inspect and Clean: Check the parking brake switch for any obvious debris or obstructions. Use a soft brush or compressed air to clean the area around the switch. Ensure that when you release the button, it physically springs back out and doesn't remain in the 'pressed' position.
• Switch Replacement: If cleaning doesn't resolve the issue, the parking brake switch itself may be faulty and require replacement.

4. Weak or Dead Battery

The electronic parking brake is an electrically powered system. A weak, aging, or faulty main car battery can lead to insufficient voltage being supplied to the EPB's electric motors. This can result in the parking brake failing to engage or disengage properly, or triggering malfunction messages. A compromised charging system, such as a failing alternator, can also indirectly lead to low battery voltage and EPB issues.

Solution for Battery/Charging System Issues:

• Battery Test: Have your car battery tested at an auto parts store (many offer this service for free) or use a dedicated 12-volt battery tester. Charge or replace the battery if it's found to be weak or faulty.
• Charging System Inspection: Use a multimeter to test the voltage output of your alternator's terminals while the engine is running. The voltage should be within the manufacturer's specified range. If the charging system is faulty, it will need to be repaired or replaced.

5. Faulty Wiring or Blown Fuse

As with any electrical system, issues with the wiring harness or blown fuses can interrupt the flow of power or signals to the EPB module or actuators. Loose connections, corroded wires, or damaged insulation can all lead to intermittent or complete failure.

Solution for Wiring/Fuse Issues:

• Fuse Check: Locate the fuse box(es) for your Mercedes and check the fuses specifically designated for the parking brake system. Replace any blown fuses with new ones of the correct amperage.
• Wiring Inspection: Carefully inspect the wiring loom connected to the EPB module and actuators for any signs of damage, chafing, or loose connections. Clean and secure any suspect connections.
• Professional Assistance: If you're not comfortable working with automotive electrical systems, it's best to enlist the help of a qualified mechanic.

6. Damaged Brake Pads

While less common for electronic parking brake malfunctions specifically, severely worn or damaged brake pads, particularly those integrated into the rear caliper for the EPB function, can prevent the system from engaging correctly. The actuators may not be able to achieve the necessary clamping force.

Solution for Brake Pad Issues:

• Inspection: Visually inspect the brake pads on the rear axle. Look for excessive wear or physical damage.
• Replacement: If the pads are worn or damaged, they will need to be replaced. After replacing brake pads on a vehicle with an EPB, a system reset or recalibration might be necessary, often performed with a diagnostic scanner. Refer to your owner's manual or consult a professional.

Using a Scanner to Read Error Codes

Diagnostic scanners are indispensable tools for troubleshooting modern vehicle systems like the EPB. They communicate with the various control modules, including the EPB module, to retrieve stored fault codes. These codes provide specific information about the nature of the problem. For example:

When reading codes, pay close attention to those marked as 'CURRENT' or 'PRESENT', as these indicate active faults. 'STORED' codes can provide historical context and help identify the root cause of a recurring problem. A good scanner will also allow you to perform actuator tests, enabling you to check the operation of the EPB motors and switches without physically removing them.

Other Potential Causes

Beyond the most common issues, several other factors can contribute to EPB malfunctions:

• Faulty SAM or Central Gateway Module: These are central communication hubs within the vehicle; a fault here can affect multiple systems, including the EPB.
• Software Issues: Sometimes, the EPB control module may require a software update from the dealership to correct bugs or improve performance.
• Loose, Broken, or Corroded Connectors: Similar to faulty wiring, issues at the connection points to the EPB actuators or control module can cause problems.
• Faulty Brake Light Switch: While primarily for the brake lights, a malfunctioning brake light switch can sometimes send incorrect signals that interfere with the EPB system.
• ABS Wheel Speed Sensor: A dirty or defective ABS wheel speed sensor can provide incorrect data to the vehicle's computer, potentially triggering EPB warnings.
• Brake Cables Needing Adjustment: If the EPB uses traditional cables alongside the electronic actuation, these may require adjustment if they are not pulling evenly.

When to Seek Professional Help

While some issues, like a blown fuse or a dirty switch, can be addressed by a diligent DIYer, many electronic parking brake problems require specialised knowledge and equipment. If you're unsure about any diagnostic step, uncomfortable working with electrical systems, or if basic troubleshooting fails, it is always best to consult a certified Mercedes-Benz technician. They have the specific tools, training, and access to technical bulletins that can ensure your EPB is repaired correctly and safely.

Remember, the electronic parking brake is a critical safety feature. Ignoring warning signs or attempting complex repairs without the proper expertise can lead to further damage or compromised safety. Don't hesitate to seek professional assistance when needed.
