Decoding the BMW P052B: Cold Start Camshaft Timing Issues

Encountering a warning light on your BMW's dashboard can be a source of considerable anxiety for any owner. Among the myriad of diagnostic trouble codes (DTCs) your vehicle might present, the P052B code is one that specifically points towards an issue with the engine's camshaft timing during cold start conditions. For BMW vehicles, this code translates to "Cold Start ‘A’ Camshaft Position Timing Over-Retarded Bank 1." This signifies that the engine's control module has detected that the camshaft on Bank 1 is positioned too far advanced (or 'retarded' in diagnostic terms) when the engine is first started from a cold state. This precise timing is critical for optimal engine performance, especially during the initial moments of operation. If this timing is off, it can lead to a cascade of drivability issues, from rough idling to a noticeable loss of power. Understanding the P052B code is the first step towards diagnosing and rectifying the problem, ensuring your BMW continues to perform as expected.

What Exactly Does the P052B Code Mean for Your BMW?

The P052B code is a specific indicator that the Powertrain Control Module (PCM), often referred to as the Engine Control Unit (ECU), has identified an abnormality in the camshaft's rotational position relative to the crankshaft during a cold engine start. Specifically, the "over-retarded" description means the camshaft is timed later than the manufacturer's specified parameters for cold operation. Bank 1 designates the side of the engine that houses cylinder number one, which is a crucial detail for engines with multiple cylinder banks (like V6, V8, or V12 configurations). In essence, the system responsible for adjusting the camshaft's timing, often a variable valve timing (VVT) system, is not performing its function correctly under cold conditions. This can result in inefficient combustion, leading to the symptoms you might experience.

Unveiling the Symptoms of a P052B Code

When the P052B code is active, your BMW will likely exhibit a range of symptoms that can impact its drivability and performance. Recognizing these signs is vital for prompt diagnosis and repair.

• Illuminated Check Engine Light: This is the most common and often the first indication that a fault has been detected by the vehicle's onboard diagnostics (OBD-II) system.
• Rough Idling: The engine may shake or vibrate noticeably when the vehicle is stationary and the engine is running. This is due to the imbalanced combustion caused by incorrect valve timing.
• Reduced Engine Performance: You might experience a significant drop in acceleration, power output, and overall responsiveness. The engine may feel sluggish, particularly when trying to accelerate.
• Engine Misfires: Incorrect camshaft timing can lead to the engine's cylinders not firing in the correct sequence, resulting in misfires. This can manifest as a sputtering or hesitating engine.
• Difficulty Starting: Especially in cold weather, the engine might crank for longer than usual before starting, or it may require multiple attempts to get it to turn over.
• Poor Fuel Economy: The engine's inefficiency due to improper timing can lead to an increase in fuel consumption, meaning you'll be visiting the petrol station more frequently.

It's important to note that not all of these symptoms may be present simultaneously, and the severity can vary depending on the extent of the timing deviation.

Common Culprits: What Causes the P052B Code in BMWs?

Several factors can contribute to the P052B code appearing in your BMW. Identifying the root cause is crucial for an effective repair.

1. Camshaft Position Sensor Issues

The camshaft position sensor is responsible for relaying the exact position of the camshaft to the ECU. If this sensor is faulty, dirty, or has a damaged connector or wiring, it can send incorrect data, triggering the P052B code. A worn or damaged sensor can lead to inaccurate timing readings.

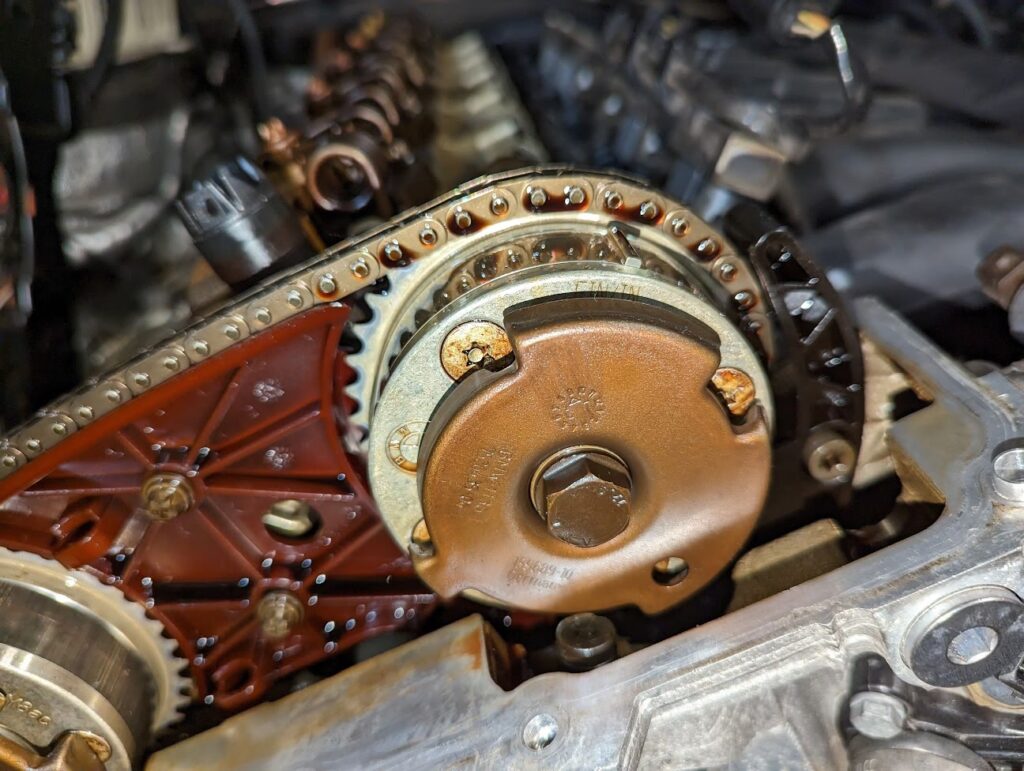

2. Timing Chain or Belt Problems

The timing chain (or belt in some older models) synchronises the rotation of the crankshaft and camshafts. If the timing chain is stretched, worn, or has jumped a tooth, it will throw off the engine's timing, including the critical cold start timing. This is a more serious mechanical issue that requires immediate attention.

3. Variable Valve Timing (VVT) System Malfunctions

Modern BMW engines extensively use VVT systems to optimise performance and efficiency across different engine speeds and loads. The VVT system typically uses oil pressure controlled by solenoids (also known as VVT solenoids or camshaft actuators) to adjust camshaft timing. If a VVT solenoid is clogged with debris, malfunctioning, or receiving incorrect signals, it can cause the camshaft timing to become over-retarded during cold starts.

4. Low Engine Oil Pressure or Poor Oil Quality

The VVT system relies on adequate oil pressure to function correctly. Low oil pressure, caused by a worn oil pump, a clogged oil pickup screen, or simply a low oil level, can prevent the VVT system from adjusting the camshaft timing properly. Additionally, using the wrong type of oil or oil that has degraded significantly can also impact the VVT system's operation.

5. Worn Camshafts

While less common, excessive wear on the camshaft lobes themselves can alter the valve lift and timing, potentially leading to DTCs like P052B.

6. ECU Software Glitches

In some instances, the issue might not be mechanical but rather a software-related problem within the Engine Control Module (ECM). An outdated or corrupted ECU software can misinterpret sensor data or improperly control the VVT system.

Troubleshooting and Fixing the P052B Code

Diagnosing and repairing the P052B code requires a systematic approach. Here’s a breakdown of the typical steps involved:

Step 1: OBD-II Scan and Data Review

Begin by connecting an OBD-II scanner to your BMW. Read the P052B code and any other associated codes. Crucially, check the freeze frame data associated with the P052B code. This data captures the engine parameters (like RPM, engine temperature, speed, etc.) at the moment the code was set, offering valuable clues about the operating conditions when the fault occurred.

Step 2: Visual Inspection

Perform a thorough visual inspection of the relevant components. This includes:

• Camshaft Position Sensor: Check for physical damage, secure connections, and inspect the wiring harness for any signs of fraying, corrosion, or damage.
• VVT Solenoids: Inspect the solenoids for any leaks or obvious damage. Ensure their electrical connectors are clean and securely attached.
• Timing Chain/Belt Area: Look for any signs of oil leaks around the timing cover, which could indicate a failing seal or gasket.

Step 3: Checking Engine Oil

Verify the engine oil level and condition. Ensure it is at the correct level and that you are using the manufacturer-recommended oil viscosity and type. If the oil is old, dirty, or appears contaminated, an oil and filter change is a good starting point.

Step 4: Testing the Camshaft Position Sensor

Using a multimeter or an oscilloscope, you can test the camshaft position sensor's output signal. Compare the readings to the manufacturer's specifications. A faulty sensor will need to be replaced.

Step 5: Testing VVT Solenoids

VVT solenoids can often be tested for proper operation. This may involve applying voltage to them to see if they actuate correctly or checking their resistance values. If a solenoid is found to be faulty, it should be replaced. It's often recommended to replace VVT solenoids in pairs for the affected bank.

Step 6: Inspecting Timing Components

If the above steps don't reveal the cause, a more in-depth inspection of the timing chain or belt may be necessary. This can involve removing the timing cover to check for slack in the chain, wear on tensioners and guides, or verifying the timing marks are correctly aligned. This is a more complex procedure that often requires specialised tools and significant labour.

Step 7: Checking Oil Pressure

If low oil pressure is suspected, it can be measured using a mechanical oil pressure gauge. If the pressure is below specification, further investigation into the oil pump, oil filter, or oil passages is required.

Step 8: ECU Software Update

Consult with a BMW dealership or a qualified independent BMW specialist to see if there are any outstanding ECU software updates for your specific model that address timing-related issues.

Step 9: Clearing Codes and Test Drive

After performing any necessary repairs, clear the DTCs using the OBD-II scanner. Then, perform a test drive, ideally under cold start conditions, to see if the P052B code reappears. Monitor for any lingering symptoms.

Cost of Repair: What to Expect

The cost to repair the P052B code can vary significantly based on the underlying cause and your location. Here's a general breakdown:

Minor Repairs:

• Camshaft Position Sensor Replacement: £100 - £300 (parts and labour)
• VVT Solenoid Replacement: £150 - £400 per solenoid (parts and labour), often replaced in pairs.
• Oil and Filter Change: £75 - £150

Major Repairs:

• Timing Chain Replacement: This is a labour-intensive job and can range from £800 to £2,500+, depending on the BMW model and engine. This often includes replacing tensioners, guides, and the sprockets.
• ECU Software Update: Typically £80 - £200 at a dealership or specialist.

It's always advisable to get a detailed quote from a reputable mechanic before authorising any work.

Preventing the P052B Code

Proactive maintenance is key to preventing many engine issues, including the P052B code. Follow these tips:

• Adhere to Regular Maintenance Schedules: This includes timely oil changes with the correct specification of oil and filters.
• Use High-Quality Fluids: Always use the manufacturer-recommended engine oil and ensure it's changed at the recommended intervals. Using a good quality oil is crucial for the VVT system.
• Address Minor Issues Promptly: Don't ignore other warning lights or subtle changes in engine performance. Early detection of issues can prevent more significant problems down the line.
• Regular Inspections: Periodically have your BMW inspected by a qualified technician, especially if you notice any unusual noises or behaviour.

How Serious is the P052B Code?

The P052B code should be considered a serious issue. While your BMW might still be drivable, the incorrect camshaft timing, especially during cold starts, can lead to:

• Increased Wear: The engine components are not operating under optimal conditions, leading to accelerated wear.
• Catastrophic Engine Damage: In severe cases, severely incorrect timing could potentially lead to piston-to-valve contact, causing significant internal engine damage.
• Reduced Lifespan: Consistently running an engine with timing issues will shorten its overall lifespan.

Therefore, it is highly recommended to have this code diagnosed and repaired as soon as possible by a qualified professional.

Can You Drive with a P052B Code?

While it's generally not advisable to drive extensively with a P052B code illuminated, the decision often depends on the severity of the symptoms. If the engine is running very rough, misfiring severely, or stalling frequently, it's best to avoid driving the vehicle to prevent further damage. If the symptoms are mild, short, and infrequent trips might be possible, but it's crucial to get the vehicle to a mechanic promptly. Driving with this code could lead to increased fuel consumption, poor performance, and potentially more severe engine damage.

Frequently Asked Questions (FAQ)

Q1: What does "Cold Start ‘A’ Camshaft Position Timing Over-Retarded Bank 1" mean?
A1: It means that during a cold engine start, the camshaft on the side of the engine containing cylinder 1 is timed too late (advanced) relative to the crankshaft, as detected by the engine control module.

Q2: What are the most common symptoms of the P052B code?
A2: Common symptoms include a rough idle, reduced engine power and acceleration, difficulty starting, and the illumination of the check engine light.

Q3: What are the most frequent causes of the P052B code in a BMW?
A3: The most common causes are a faulty camshaft position sensor, issues with the variable valve timing (VVT) system (solenoids or actuators), or problems with the timing chain or belt.

Q4: How is the P052B code typically diagnosed?
A4: Diagnosis usually involves an OBD-II scan, checking freeze frame data, visual inspections of sensors and wiring, testing sensor and solenoid resistance/output, and potentially inspecting the timing chain alignment.

Q5: Is it safe to drive my BMW with the P052B code?
A5: It's not recommended to drive for extended periods. While some minor symptoms might allow for limited driving, it's best to address the issue promptly to prevent further damage and ensure safety.

Q6: What is the estimated cost to fix the P052B code?
A6: Costs can range from approximately £100 for a simple sensor replacement to over £2,500 for a timing chain replacement, depending on the specific issue and model.

Q7: How can I prevent the P052B code from occurring?
A7: Regular maintenance, using high-quality oil and adhering to change intervals, and promptly addressing other engine issues are key preventive measures.

Conclusion

The BMW P052B code, indicating a cold start camshaft position timing over-retard on Bank 1, is a significant diagnostic trouble code that warrants immediate attention. Understanding its meaning, recognising the associated symptoms, and knowing the potential causes—ranging from sensor failures to critical timing component wear—is essential for any BMW owner. While some issues might be relatively straightforward to fix, such as replacing a camshaft position sensor, others, like timing chain repairs, are more complex and costly. Prioritising regular maintenance, using the correct fluids, and seeking professional diagnosis and repair from a qualified BMW specialist will help ensure your vehicle's longevity and optimal performance, keeping that distinctive BMW driving experience alive and well.
