Understanding the P0012 Engine Code

The illumination of the 'Check Engine' light can be a cause for concern for any motorist. When this warning appears, and your diagnostic scanner reveals a P0012 trouble code, it's natural to want to understand what's going on under the bonnet. This code, specifically "A" Camshaft Position – Timing Over-Retarded (Bank 1), points to an issue with your engine's camshaft timing. Ignoring this code is not advisable, as it can lead to a host of drivability problems and, in severe cases, significant engine damage. This article will delve into the intricacies of the P0012 code, exploring its meaning, common culprits, symptoms, and a step-by-step guide to diagnosis and repair.

What Exactly Does the P0012 Code Signify?

The P0012 code is a generic powertrain diagnostic trouble code (DTC). It tells you that the Engine Control Module (ECM) has detected that the timing of the intake camshaft on 'Bank 1' is significantly retarded (delayed) compared to the position commanded by the ECM. Bank 1 refers to the side of the engine that contains cylinder number one. 'Sensor A' typically refers to the camshaft that controls the intake valves.

Here's a breakdown of how the ECM arrives at this conclusion:

• The ECM precisely knows the crankshaft's position thanks to the Crankshaft Position Sensor (CKP).
• It also knows the camshaft's position via the Camshaft Position Sensor (CMP).
• Based on various driving conditions and driver input, the ECM commands adjustments to the camshaft timing (advancing or retarding) by controlling the oil flow through the Variable Valve Timing (VVT) system, usually via an oil control solenoid.
• The ECM then monitors the actual camshaft position using the CMP sensor.
• If the actual camshaft position does not match the commanded position within a specified tolerance, the ECM flags a P0012 code, indicating the engine's timing is out of sync.

Essentially, the P0012 code means that the crankshaft and camshaft are not in their expected relative positions.

Common Causes of a P0012 Trouble Code

Several factors can contribute to a P0012 code. Understanding these potential causes is the first step towards an accurate diagnosis:

1. Engine Oil Issues

The Variable Valve Timing (VVT) system relies heavily on the quality, level, and pressure of the engine oil. Any compromise in these areas can lead to incorrect camshaft timing:

• Low Oil Level: Insufficient oil means the VVT system may not receive adequate pressure to operate correctly.
• Dirty or Sludgy Oil: Contaminated oil can clog the narrow passages within the VVT system, including the oil control solenoid and camshaft phaser, hindering proper operation.
• Incorrect Oil Viscosity: Using oil with a viscosity that is too thick or too thin for your vehicle's specifications can impede the VVT system's ability to adjust timing accurately.

2. Clogged or Malfunctioning VVT Solenoid

The VVT solenoid, also known as an Oil Control Valve (OCV), is responsible for regulating the flow of oil to the camshaft phaser. If its internal filter screen becomes clogged with sludge or debris, it cannot control oil flow effectively. Additionally, the solenoid itself can fail due to electrical issues or internal wear.

3. Worn or Malfunctioning Camshaft Phaser

The camshaft phaser (or cam actuator) is a mechanical component that uses oil pressure to alter the camshaft's timing. If it's not receiving the correct oil pressure or flow, or if it has suffered internal wear over time, it can fail to adjust the timing as commanded, leading to a P0012 code. A worn phaser might also produce a rattling or ticking sound, particularly on startup or during acceleration.

4. Stretched or Worn Timing Chain/Belt

Over time and mileage, the timing chain or belt that synchronises the crankshaft and camshafts can stretch or wear. This elongation can throw off the engine's mechanical timing, causing the camshaft and crankshaft to be out of sync. Neglected oil changes and high mileage are significant contributing factors to this issue.

5. Incorrect Timing Chain Installation

If the timing chain or belt has been recently replaced but installed incorrectly, the camshaft and crankshaft will not be aligned properly. This is a common oversight after engine rebuilds or significant timing service work and will almost certainly result in a P0012 or similar timing-related code.

6. Faulty Camshaft or Crankshaft Position Sensors

While less common than oil or VVT system issues for a P0012 code, faulty CMP or CKP sensors can also be the culprit. If these sensors provide inaccurate data to the ECM, it might falsely interpret the camshaft timing as being retarded. However, these sensors often trigger their own specific codes.

7. ECM or Wiring Problems

In rare instances, a malfunctioning ECM or damaged wiring leading to the VVT solenoids or position sensors can cause timing correlation errors. Corroded connectors, frayed wires, or internal shorts within the wiring harness should be considered if all other mechanical and electrical components appear to be functioning correctly.

Symptoms of a P0012 Code

The most obvious symptom is the illumination of the Check Engine Light. However, you might also experience other performance issues:

• Rough idling
• Reduced engine power and acceleration
• Poor fuel economy
• Engine stalling
• Difficulty starting the engine
• Misfires (often accompanied by other codes like P0300-P0308)
• Knocking or rattling sounds from the engine
• Failure to pass an emissions test

The severity of these symptoms can vary depending on the extent of the timing deviation.

Diagnosing and Fixing the P0012 Code: A DIY Approach

If you're comfortable with basic automotive repair, you can tackle the diagnosis of a P0012 code. Here's a systematic approach:

Step 1: Scan for Additional Codes

Use an OBD-II scanner to read all stored trouble codes. If you find codes related to both camshafts (e.g., P0011, P0014, P0015, P0016, P0017), it might indicate a more widespread timing system issue or a problem with the timing chain itself.

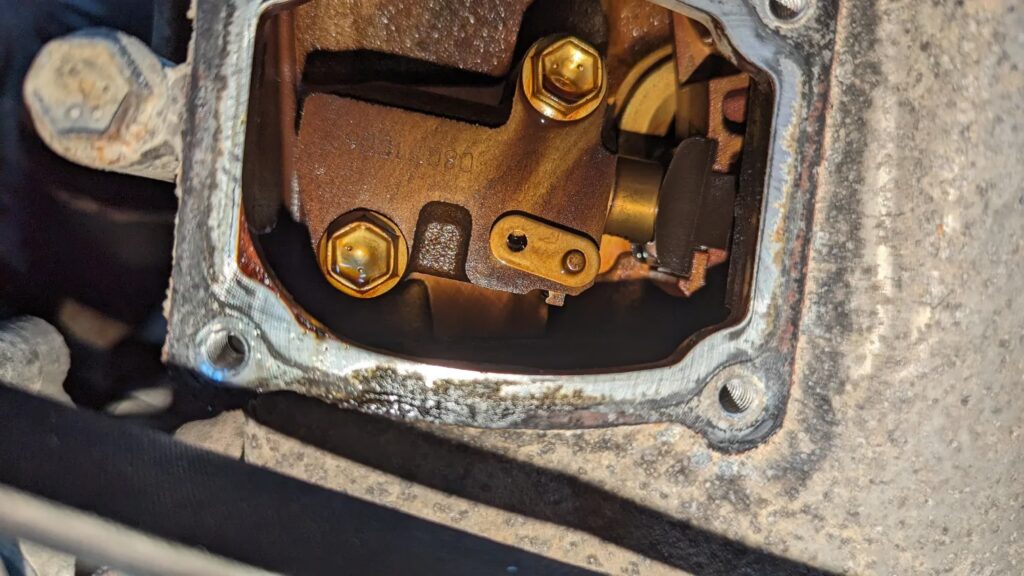

Step 2: Inspect the Engine Oil

This is a crucial first step:

• Check the oil level: Ensure it's within the recommended range on the dipstick. Top up if necessary.
• Check oil condition: Look for signs of contamination, sludge, or if the oil appears unusually dark or degraded.
• Oil change: If the oil is due for a change or appears dirty, perform an oil and filter change using the manufacturer's recommended oil viscosity. Clear the codes and see if the P0012 code reappears after a test drive.

Step 3: Inspect the VVT Solenoid and Oil Passages

• Locate the VVT solenoid(s): These are typically found on the cylinder head, near the camshaft sprockets.
• Check for leaks: Some vehicles have an oil pressure sensor integrated with or near the VVT solenoid. Check for any oil leaks around these components.
• Remove and inspect the solenoid: Carefully remove the VVT solenoid. Inspect its intake screen for any blockages caused by sludge or debris. If clogged, clean the screen thoroughly. Also, check the solenoid's electrical connector for corrosion or damage.

Step 4: Test the VVT Solenoid's Electrical Connections

Using a multimeter and a wiring diagram for your vehicle:

• Check for power and ground: With the ignition on (engine off), test the electrical connector for the VVT solenoid to ensure it's receiving battery voltage and has a good ground connection.
• Check solenoid resistance: Disconnect the solenoid and measure its internal resistance across the terminals. Compare this reading to the manufacturer's specifications. An open circuit (infinite resistance) or a short circuit (very low resistance) indicates a faulty solenoid.
• Check for shorts to ground: Test each terminal of the solenoid against the engine block. There should be no continuity (infinite resistance).

Step 5: Test VVT Solenoid Operation (Optional, requires advanced scanner)

Some professional-grade scan tools allow you to activate the VVT solenoids directly. With the engine running, commanding the solenoid on and off should cause a noticeable change in engine idle speed or a response in the engine's operation. If the engine doesn't react or hesitates when the solenoid is activated, it further points to a faulty solenoid or a problem with oil flow.

Step 6: Inspect the Camshaft Phaser

A failing camshaft phaser can sometimes be identified by a distinct rattling noise, especially during engine start-up or when revving the engine. You can use a mechanic's stethoscope to listen closely to the phaser for any abnormal sounds.

Step 7: Check Timing Chain/Belt and Marks

If the above checks don't reveal the issue, the problem might lie with the timing chain or belt:

• Visual Inspection: If accessible, inspect the timing chain or belt for signs of wear, fraying, or damage. Check the tensioner and guides for looseness or wear.
• Timing Marks: This is a more involved procedure, often requiring removal of the valve cover and possibly the timing cover. The engine's timing marks on the camshaft and crankshaft sprockets must be aligned perfectly according to the manufacturer's specifications. If they are off, it indicates a stretched chain/belt or incorrect installation.

Step 8: Consider Sensors and ECM

If all mechanical components and oil-related issues have been ruled out, investigate the camshaft and crankshaft position sensors and their wiring harnesses for any damage, corrosion, or loose connections. As a last resort, consider the possibility of an ECM failure or software glitch, though this is rare.

When to Seek Professional Help

While many P0012 issues can be diagnosed and repaired by a competent DIYer, some problems, like verifying mechanical timing or diagnosing complex electrical faults, are best left to professionals. If you've performed the basic checks and the code persists, or if you're uncomfortable with any of the diagnostic steps, it's time to consult a qualified mechanic. Issues like internal engine wear, bent valves, or a severely damaged timing chain can be costly and require specialised tools and expertise.

Common P0012 Diagnosis Mistakes to Avoid

One of the most frequent errors is jumping to conclusions and replacing parts without a thorough diagnosis. For instance, immediately replacing a camshaft position sensor without checking the oil or VVT solenoid can be a waste of money and time. Always follow a logical diagnostic flow, starting with the simplest and most common causes.

Frequently Asked Questions

Can a faulty oxygen sensor trigger a P0012 code?

No, a faulty oxygen sensor is not directly related to camshaft timing and will not trigger a P0012 code. However, a malfunctioning oxygen sensor can cause poor engine performance, which might indirectly lead to the ECM detecting a timing issue.

Will a P0012 code always trigger the Check Engine Light?

While a P0012 code typically illuminates the Check Engine Light, the exact behaviour can depend on the severity and duration of the fault, as well as the specific vehicle manufacturer's programming. However, even if the light isn't constantly on, the underlying issue still affects engine performance.

Is it safe to drive with a P0012 code?

It is generally not recommended to drive with a P0012 code, especially for extended periods. The symptoms such as rough idling, reduced power, and potential stalling can compromise vehicle safety and lead to further, more severe engine damage. It's best to address the issue as soon as possible.

Can a tune-up or spark plug replacement fix a P0012 code?

A general tune-up or spark plug replacement is unlikely to resolve a P0012 code, as the issue is specifically related to camshaft timing and the VVT system. While a healthy ignition system is important for overall engine performance, it doesn't directly address the cause of this particular code.

Will a P0012 code reset itself over time?

No, a P0012 code will not typically reset itself without addressing the underlying mechanical or electrical fault. The ECM will continue to detect the timing deviation and keep the code active until the problem is rectified.

Conclusion

The P0012 code is a clear indication that your engine's camshaft timing is off, specifically over-retarded on Bank 1. While it might sound complex, the most common culprits often relate to engine oil condition and the proper functioning of the VVT system. By systematically checking the oil, VVT solenoids, and other related components, you can often pinpoint the cause and restore your engine's optimal performance and efficiency. Remember, addressing such codes promptly can save you from more significant and costly repairs down the line.
