Replacing Your Car's Worn Oil Pump: A UK Guide

The oil pump is the unsung hero of your car's engine, tirelessly circulating vital lubrication to every moving part. Without it, your engine would quickly seize, turning a finely tuned machine into an expensive paperweight. When this critical component begins to wear out or fails entirely, the consequences can be catastrophic, leading to extensive and costly engine damage. Understanding the signs of a failing oil pump and knowing how to replace it is paramount for any car owner looking to maintain their vehicle's health and avoid hefty garage bills.

This guide will walk you through the essential steps and considerations for replacing a worn-out oil pump. While the specific procedure can vary significantly between different makes and models, the underlying principles remain consistent. Always consult your vehicle's specific service manual for detailed instructions and torque specifications, as this article provides a general overview designed to inform and prepare you for the task ahead.

Understanding the Role of Your Oil Pump

At its core, the oil pump is responsible for maintaining adequate oil pressure throughout the engine. It draws oil from the oil sump (or oil pan) and forces it through the oil filter, then into the engine's various galleries, bearings, and moving components. This constant flow of oil serves multiple critical functions:

• Lubrication: Reducing friction between moving parts like crankshaft bearings, camshafts, and piston rings.
• Cooling: Dissipating heat generated by friction and combustion.
• Cleaning: Carrying away contaminants and sludge to the oil filter.
• Sealing: Helping piston rings create a seal against cylinder walls.

A healthy oil pump ensures these functions are performed effectively, prolonging the life of your engine. A failing pump, however, compromises all of them.

Symptoms of a Worn or Failing Oil Pump

Identifying the symptoms early can prevent irreversible damage. Pay close attention to these warning signs:

• Low Oil Pressure Warning Light: This is often the most direct and alarming indicator. If this light illuminates on your dashboard, especially while driving, it means oil pressure has dropped below a safe threshold. Do not ignore it. Pull over safely and switch off the engine immediately.
• Engine Knocking or Tapping Noises: A lack of lubrication to critical components like crankshaft or connecting rod bearings can cause metallic knocking or tapping sounds, particularly noticeable at idle or low RPMs. This is a severe symptom of impending engine damage.
• Overheating Engine: While many factors can cause overheating, insufficient oil flow can contribute, as oil also plays a role in cooling.
• Hydraulic Lifter Noise: Ticking or clattering noises from the top of the engine, especially on start-up, can indicate that hydraulic lifters aren't receiving enough oil pressure to pump up properly.
• Stiffer Steering or Braking (on some power steering/brake booster systems): Though less common, some older systems might rely on engine oil pressure for certain functions.

Diagnosing the Issue: Is It Really the Oil Pump?

Before embarking on an oil pump replacement, it's crucial to confirm that the pump is indeed the culprit. Other issues can mimic oil pump failure:

• Low Oil Level: The simplest cause of low oil pressure. Check your dipstick!
• Clogged Oil Filter: A severely clogged filter can restrict oil flow.
• Incorrect Oil Viscosity: Using oil that's too thin for your engine can lead to low pressure.
• Worn Engine Bearings: Severely worn bearings create excessive clearances, allowing oil to escape and pressure to drop. This is a more serious underlying engine issue.
• Faulty Oil Pressure Sensor: A common cause of a misleading warning light.

How to Confirm:

The most reliable way to confirm is by using a mechanical oil pressure gauge. This gauge is temporarily connected to the engine where the oil pressure sender unit normally sits. Compare the readings to your vehicle's specifications (usually found in the service manual). If the pressure is consistently low, even with sufficient and correct oil, a failing oil pump is highly probable.

Tools and Materials Required

This job requires a comprehensive set of tools. Ensure you have everything before you begin:

Safety First: Crucial Precautions

Working under a car can be dangerous. Always prioritise safety:

• Secure the Vehicle: Park on a flat, level surface. Engage the parking brake. Use wheel chocks on the wheels not being lifted.
• Proper Support: Lift the vehicle using a hydraulic jack and immediately support it with sturdy jack stands. Never rely solely on a jack. Give the car a good shake to ensure it's stable.
• Disconnect Battery: Disconnect the negative terminal of the car battery to prevent accidental starting or electrical shorts.
• Hot Engine Precautions: Allow the engine to cool down completely before starting work to avoid burns from hot oil or engine components.
• Personal Protective Equipment (PPE): Always wear safety glasses and gloves.
• Ventilation: Ensure good ventilation if using solvents or working in an enclosed space.

The Oil Pump Replacement Process: A General Guide

This procedure is complex and time-consuming. It often requires significant disassembly of the front of the engine. The exact steps vary massively depending on whether your oil pump is external, internal (chain-driven), or integrated into the timing cover.

Step 1: Prepare the Vehicle

1. Safely lift and support the vehicle on jack stands.
2. Place a large drain pan underneath the engine.
3. Disconnect the negative terminal of the battery.

Step 2: Drain the Engine Oil

1. Locate the oil sump drain plug.
2. Carefully remove the drain plug and allow all the engine oil to drain into the pan.
3. Once drained, replace the drain plug and tighten it to the manufacturer's specified torque specifications.

Step 3: Remove Obstacles to Access the Sump

The oil sump (oil pan) usually needs to be removed to access the oil pump pickup tube and, in many cases, the pump itself. This often involves:

• Removing the exhaust downpipe (if it runs under the sump).
• Removing any cross-members or engine mounts that obstruct the sump.
• In some front-wheel-drive (FWD) vehicles, you might need to support the engine from above with an engine support bar or hoist, then remove the lower engine mounts.

Step 4: Remove the Oil Sump

1. Remove all the bolts securing the oil sump to the engine block. Note their positions, as some may be longer than others.
2. Carefully pry the sump away from the engine block. It might be sealed with a gasket or RTV silicone. Be gentle to avoid damaging the mating surfaces.
3. Once loose, carefully lower the sump, minding the oil pump pickup tube. Remove any remaining oil.
4. Scrape off all old gasket material or RTV sealant from both the engine block and the sump mating surfaces. This is a crucial step for a leak-free seal. Use a plastic scraper or gasket remover tool to avoid scratching the metal.

Step 5: Accessing and Removing the Oil Pump

This is where vehicle-specific procedures differ significantly:

• Internal (Chain-Driven) Pumps: Many modern engines have the oil pump located behind the timing cover, driven by the timing chain or a separate chain. This requires:
1. Draining the coolant.
2. Removing the auxiliary drive belt(s).
3. Removing the crankshaft pulley (often requires a special puller and a holding tool to prevent the crankshaft from turning).
4. Removing the timing cover bolts. This can be challenging, as the timing cover often extends down to the sump.
5. Carefully prying off the timing cover.

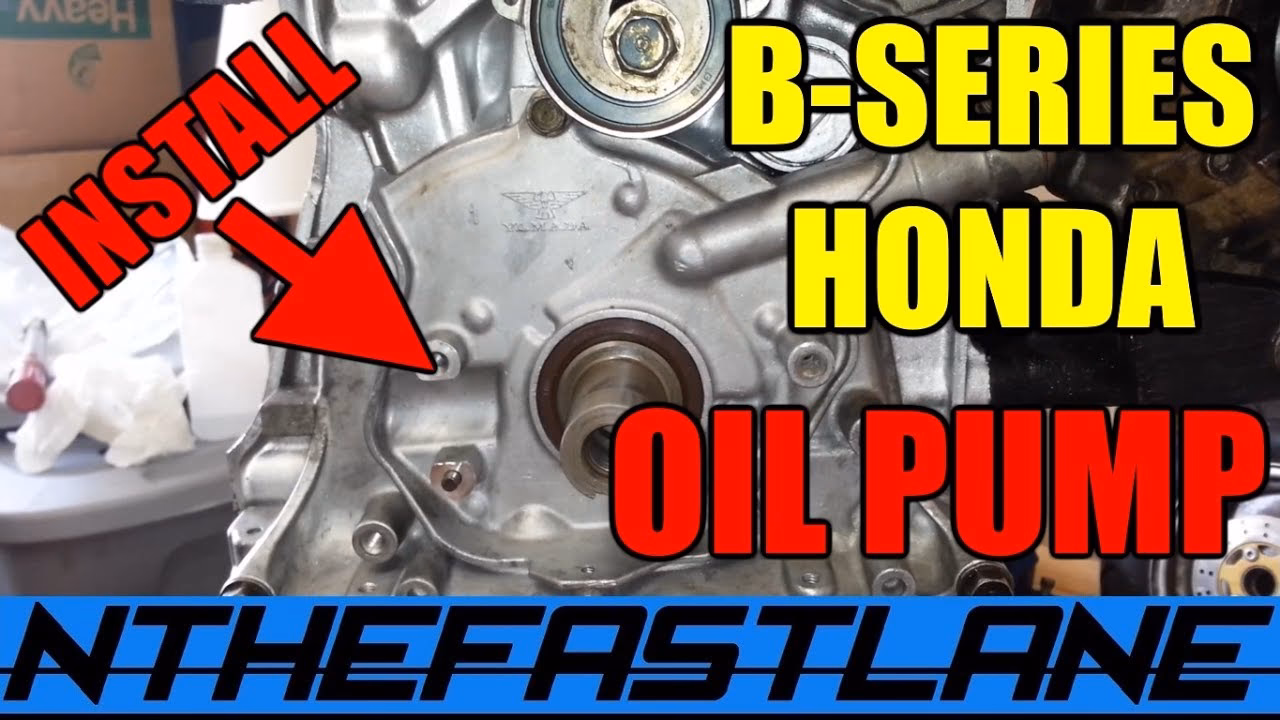

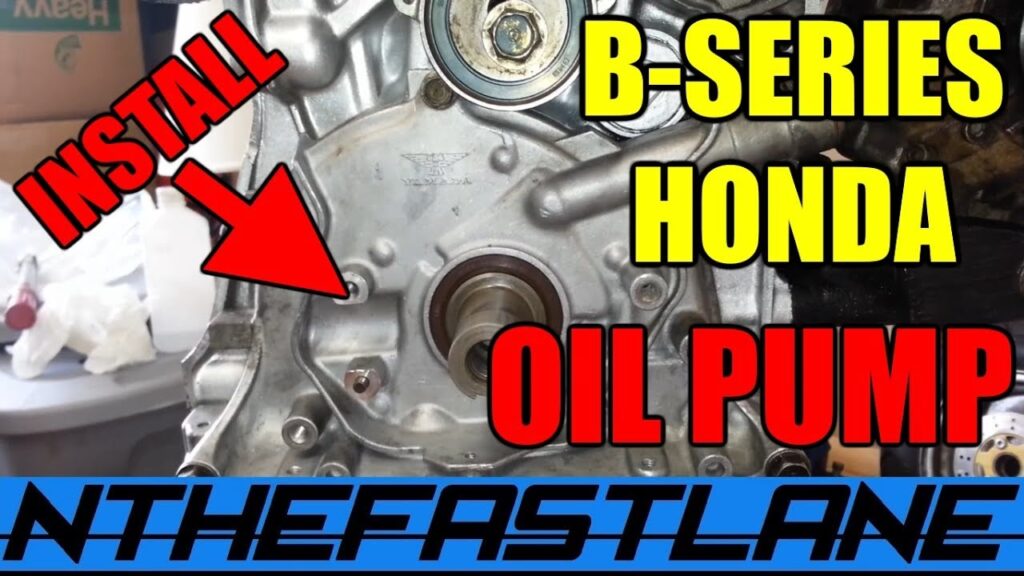

6. Once the timing cover is off, the oil pump will be visible, usually bolted to the engine block or integrated into the cover itself. Disconnect the oil pump chain (if applicable) and remove the mounting bolts.
• External Pumps: Some older or simpler designs might have the oil pump bolted directly to the engine block, accessible once the sump is removed.
• Integrated Pumps: Some pumps are integrated into the front cover of the engine. In these cases, the entire front cover assembly is replaced.

Regardless of type, remove the bolts securing the oil pump and carefully detach it. Pay attention to any O-rings or seals.

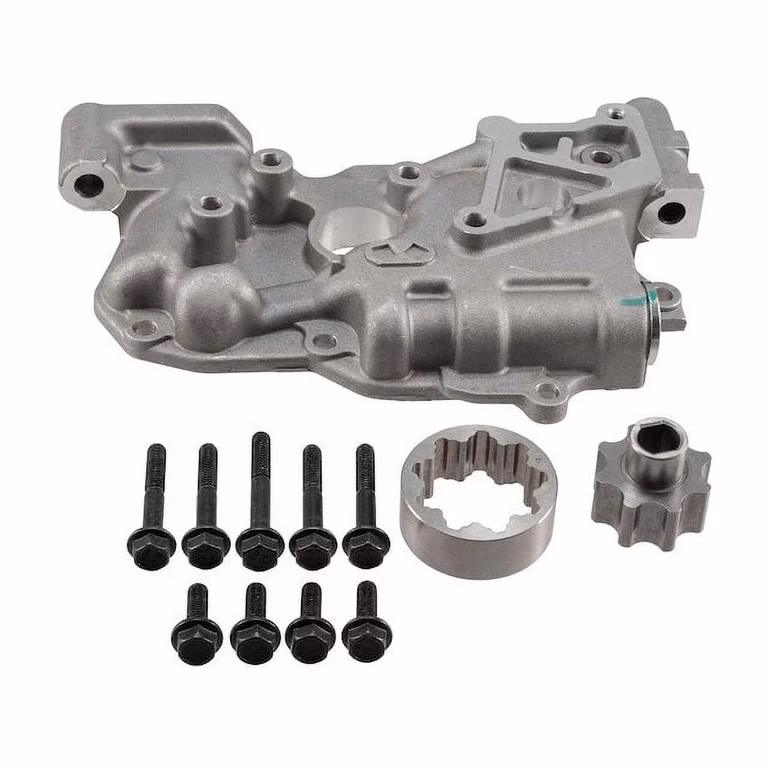

Step 6: Installing the New Oil Pump

1. Priming the New Pump: This is a critical step. Before installation, it's highly recommended to prime the new oil pump. Fill the pump's inlet and outlet ports with clean engine oil. Rotate the pump's gears or rotor by hand (if possible) to draw oil into the pump. This helps ensure it builds pressure quickly on initial start-up and prevents a dry start.
2. Install any new gaskets or O-rings supplied with the new pump.
3. Carefully position the new oil pump and secure it with its mounting bolts. Tighten to the manufacturer's specified torque specifications.
4. Reattach the oil pump pickup tube to the new pump, using a new gasket or O-ring if required. Ensure it's properly seated and tightened.

Step 7: Reassembly

Reverse the disassembly process, paying close attention to these details:

1. Timing Cover & Sump Sealing: Apply a thin, even bead of RTV silicone sealant (if specified for your vehicle) to the clean mating surfaces of the timing cover and/or oil sump, or use a new gasket. Allow the RTV to skin over for a few minutes before installation.
2. Install the timing cover (if removed), ensuring the timing chain/belt is correctly aligned if it was disturbed.
3. Install the crankshaft pulley, tightening its bolt to the extremely high torque specifications required. You'll likely need the crankshaft holding tool again.
4. Reinstall any removed auxiliary belts, engine mounts, cross-members, and the exhaust downpipe.
5. Carefully position and install the oil sump, tightening the bolts in the specified pattern and to torque specifications.
6. Install a new oil filter.

Step 8: Refill Fluids and Test

1. Refill the engine with the correct type and quantity of engine oil.
2. If you drained coolant, refill the cooling system.
3. Reconnect the battery.
4. Start the engine. Immediately watch the oil pressure warning light. It should extinguish within a few seconds. If it stays on, switch off the engine immediately and investigate.
5. Listen for any unusual noises.
6. Check thoroughly for any oil leaks around the sump, timing cover, and oil filter.
7. Allow the engine to reach operating temperature, then check the oil level again and top up if necessary. Take the car for a short test drive, paying close attention to any warning lights or unusual behaviour.

Common Challenges and Tips

• Stuck Bolts: Especially common on older vehicles. Use penetrating oil and allow it to soak. Heat (carefully) can also help.
• Damaged Gasket Surfaces: Be meticulous when cleaning old gasket material. Any scratches or remaining debris will lead to leaks.
• Crankshaft Pulley Bolt: This bolt is often extremely tight. You'll need a long breaker bar, a sturdy socket, and a way to prevent the crankshaft from turning (e.g., a flywheel locking tool or specific crankshaft holding tool).
• Timing Alignment: If the timing chain/belt was disturbed or removed with the timing cover, ensure correct timing marks are aligned before reassembly. Incorrect timing will prevent the engine from running or cause severe damage.
• Cleanliness: Maintain absolute cleanliness. Any dirt or debris entering the engine during this process can lead to future problems.

Preventative Maintenance

While an oil pump can wear out over time, good maintenance practices can prolong its life:

• Regular Oil Changes: Adhere strictly to the manufacturer's recommended oil change intervals. Old, dirty oil can become sludgy and put extra strain on the pump.
• Use the Correct Oil: Always use the oil type and viscosity specified in your vehicle's owner's manual.
• Quality Oil Filter: Don't skimp on oil filters. A good quality filter ensures proper filtration without restricting flow.

DIY vs. Professional Repair: Cost and Complexity

Replacing an oil pump is a significant undertaking. Here's a comparison to help you decide:

Frequently Asked Questions (FAQs)

Q1: Can I drive my car with a bad oil pump?

Absolutely not. Driving with a failing oil pump is one of the quickest ways to cause catastrophic and irreversible engine damage. The moment the low oil pressure light comes on, or you hear suspicious engine noises, pull over safely and switch off the engine. Towing the vehicle to a repair shop or your home is the only safe option.

Q2: How long does an oil pump typically last?

Oil pumps are generally designed to last the lifetime of the engine. However, they can fail prematurely due to manufacturing defects, prolonged use of incorrect oil, lack of maintenance (sludge build-up), or very high mileage. It's not uncommon for them to last well over 100,000 miles.

Q3: Is it possible to repair an oil pump instead of replacing it?

While some older, simpler oil pumps might be theoretically repairable (e.g., replacing worn gears), for most modern vehicles, it's not practical or recommended. The cost of individual components and the labour involved in disassembly and reassembly often outweigh the cost of a new pump. A new pump also offers peace of mind that all wear components are fresh.

Q4: What happens if I don't prime the new oil pump?

If you don't prime the new oil pump, it may take a significant amount of time to build initial oil pressure after starting the engine. During this critical period, the engine's internal components will be running with insufficient lubrication, leading to excessive wear and potential damage to bearings and other moving parts. Priming ensures immediate oil flow upon start-up.

Q5: Do I need to replace the oil pickup tube when replacing the pump?

It's highly recommended to inspect the oil pickup tube and its screen. If the screen is clogged with sludge or debris, it should be thoroughly cleaned or replaced. Often, a new pickup tube gasket or O-ring is supplied with the new pump and should always be used.

Q6: Will I need to replace the timing chain or belt at the same time?

If your oil pump is located behind the timing cover and requires the removal of the timing chain or belt, it is an excellent opportunity, and highly recommended, to replace the timing chain/belt, tensioners, and guides at the same time. These components have a finite lifespan, and the labour to access them is the most expensive part of the job. Doing it all at once saves significant future labour costs.

Q7: How do I know which oil pump to buy?

Always purchase an oil pump that is specifically designed for your vehicle's make, model, year, and engine code. Provide your vehicle's registration number (VRN) or VIN to your parts supplier to ensure you get the correct part. Opt for reputable brands or OEM (Original Equipment Manufacturer) quality parts.

Replacing an oil pump is undoubtedly one of the more challenging DIY automotive repairs, but for the mechanically inclined, it is a rewarding one that can save a substantial amount of money. By understanding the process, gathering the right tools, and approaching the task with patience and precision, you can successfully restore your engine's vital lubrication system and ensure many more miles of reliable motoring. Remember, when in doubt, consult a professional mechanic, but with careful preparation, this is a job you can often tackle yourself.
