Engine Oil Cooler Installation Guide

When it comes to high-performance engines, maintaining the right operating temperature is critical. Overheating can lead to severe engine damage, reduced efficiency, and premature wear. One of the most effective ways to keep engine oil within optimal temperature ranges is through the use of an engine oil cooler. Proper installation and hose routing are essential to ensure that the oil cooler functions effectively, keeping the engine lubricated and cooled even during demanding driving conditions.

In this blog post, we’ll discuss the key considerations for engine oil cooler installation and hose routing, helping you ensure a smooth and efficient setup that maximizes engine longevity. We'll delve into the 'how' of these vital components and guide you through the 'what' and 'where' of their integration into your vehicle's system.

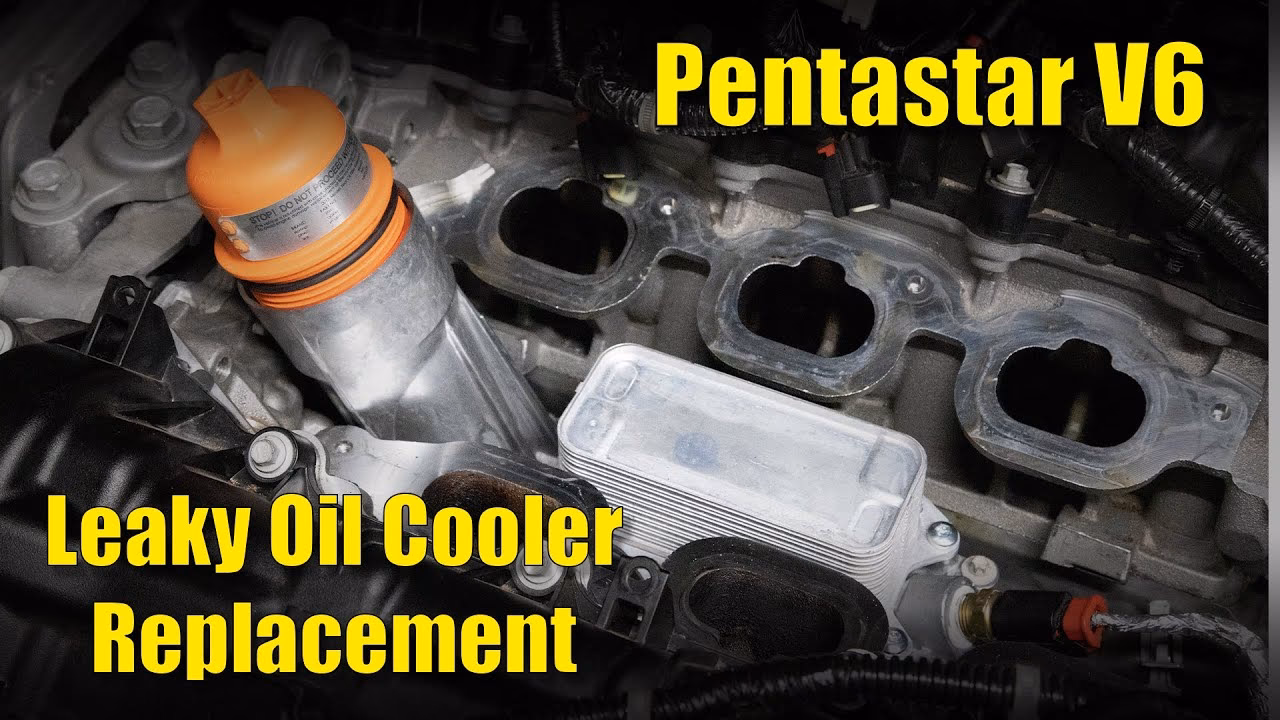

Understanding How Oil Coolers Work

At its core, an engine oil cooler is a heat exchanger. It functions by diverting hot engine oil away from the oil pan, through the cooler, and then back to the engine. The cooler itself is designed to dissipate the heat absorbed by the oil into the surrounding air or coolant. This process effectively lowers the oil's temperature, preventing it from reaching damaging levels during strenuous operation. This is crucial because oil not only lubricates but also cools engine components. If the oil gets too hot, its viscosity can decrease, reducing its lubricating properties and its ability to absorb and transfer heat.

1. Choosing the Right Engine Oil Cooler

Before we dive into the installation and routing process, it’s important to select the right oil cooler for your engine. There are two main types of oil coolers:

Air-to-Oil Coolers

These are the most common for aftermarket applications. They are mounted in a location where they can receive a direct flow of air, typically in front of the main radiator or in the lower grille area of the vehicle. As air passes over the fins of the cooler, it absorbs heat from the oil flowing within. They are favoured in motorsport and street performance builds where maximum cooling is needed and integrating with the existing coolant system might be too complex.

Water-to-Oil Coolers

These are more frequently found in OEM (Original Equipment Manufacturer) setups. In this design, the engine's coolant is circulated through a separate chamber within the cooler. Heat is transferred from the engine oil, through the cooler's internal walls, to the circulating coolant, which then carries the heat away to the main radiator. While often more compact, they can require more intricate plumbing and rely on the engine's cooling system to function effectively.

For most aftermarket applications, air-to-oil coolers are generally easier to install and offer excellent cooling performance for most performance builds. However, selecting the right size and capacity based on your engine’s power output and intended use is crucial. An undersized cooler won't be effective, while an oversized one might be unnecessarily bulky and could even lead to the oil running too cool in certain conditions, which can also be detrimental.

2. Location, Location, Location: Strategic Cooler Placement

The placement of the oil cooler is absolutely critical for its efficiency. Here are some key considerations for optimal positioning:

• Clear Flow of Air: Ideally, the oil cooler should be placed in a location where there’s a constant flow of cool air. This is typically in front of the radiator, where airflow is highest, especially when the vehicle is moving. If the cooler is placed too far from the airflow, perhaps behind other components or in a sheltered area, it won’t dissipate heat efficiently.
• Avoid Heat Sources: The cooler should not be positioned near other components that generate a lot of heat, like the exhaust manifold or turbocharger. Placing it in a heat-absorbing location can cause the oil to warm up unnecessarily, defeating the purpose of the cooler and potentially leading to hotter oil returning to the engine.
• Accessibility for Maintenance: Choose a spot that makes the cooler and its connections easy to access for maintenance. This includes checking the oil lines for wear or leaks and ensuring there’s room to clean the cooler's fins or replace it if needed in the future.
• Protection from Debris: While airflow is key, consider how exposed the cooler will be to road debris. Some mounting locations might require a protective mesh or shield to prevent damage to the fins.

3. Oil Cooler Mounting: Securing the Heat Exchanger

Once you’ve chosen the ideal location, the next step is mounting the oil cooler securely. Most aftermarket oil coolers come with brackets and mounting hardware for relatively straightforward installation. However, if you’re fabricating your own mounts, ensure the cooler is rigidly attached to prevent vibrations or movement that could damage the cooler or the oil lines over time.

• Secure and Vibration-Free: The oil cooler should be securely mounted, ideally with rubber grommets or isolators between the cooler and its mounting points. This helps to minimize vibrations transmitted from the engine and chassis. Excessive vibrations can cause the cooler or lines to crack over time, leading to costly leaks.
• Allow Room for Expansion: Ensure there’s enough space around the cooler for unimpeded airflow. Also, consider future upgrades or changes to the engine bay that might require more space.
• Mount with Ports Facing Up: Although not an absolute requirement for proper operation, it is highly recommended to mount the oil cooler with the oil inlet and outlet ports facing upwards. This ensures that the oil cooler does not completely drain back to the engine when the engine is off. If the oil cooler drains during engine shutdown, it may require the cooler to fill completely before oil reaches the engine internals on the next start. This means that for those crucial first few seconds of engine start, the engine may not have adequate oil pressure, potentially leading to increased wear on critical components.

4. Proper Hose Routing: The Lifeline of the System

The next crucial step in oil cooler installation is the correct routing of the hoses. The goal here is to ensure smooth, unrestricted oil flow while avoiding sharp bends, kinks, or excessive pressure drops. The quality and routing of these lines are as important as the cooler itself.

• Use High-Quality Hoses: Choose oil-resistant, high-quality hoses that are specifically designed to handle the high temperatures and pressures present in an engine oil system. Stainless steel braided hoses are very popular due to their exceptional durability, resistance to abrasion, and excellent heat protection. Ensure the fittings are also of high quality and compatible with your cooler and engine ports.
• Avoid Sharp Bends: When routing hoses, avoid sharp angles or tight bends that can significantly restrict oil flow. Excessive bends act like a choke point, causing the oil to move sluggishly, reducing the cooling efficiency of the system and increasing the load on the oil pump. Aim for smooth, sweeping curves where possible.
• Minimize Hose Length: Try to keep the hoses as short as practically possible. Longer hoses increase the surface area for heat absorption from the environment and can also cause a slight pressure drop due to increased friction. If longer lines are absolutely required, ensure they are of adequate diameter and have smooth internal surfaces to allow for proper oil flow.
• Secure the Hoses: Use appropriate clamps or zip ties to secure the hoses along their route, ensuring they are firmly held in place and do not rub against other engine components, sharp edges, or moving parts. This is especially important in high-heat environments or areas with significant vibration, where friction can cause hoses to wear out rapidly, leading to leaks.
• Insulate if Necessary: If hoses must pass near hot engine components, such as exhaust manifolds, turbochargers, or hot exhaust pipes, use heat sleeves or protective insulation to shield the hoses from extreme heat. This will ensure that the oil stays at a stable temperature and won’t be adversely affected by surrounding hot surfaces, preventing premature hose degradation and potential oil breakdown.

5. Oil Flow Direction: The Engine's Arteries

Most oil coolers are designed with a specific internal flow path to maximize heat dissipation. It's essential to ensure you are connecting the hoses correctly according to the cooler's intended flow direction. Double-check the cooler’s inlets and outlets to confirm which port is for oil entering from the engine and which is for oil returning to the engine.

The standard setup is:

• Engine to Cooler to Engine: Oil is typically drawn from the engine's oil pump (or a modified oil filter housing/sandwich plate), sent to the inlet of the oil cooler, flows through the cooler where it is cooled, and then exits the cooler to be returned to the engine's oil system. This setup ensures that the oil is properly cooled before returning to the engine’s vital lubrication system. Improper flow direction can result in ineffective cooling, increased pressure drop, and in some extreme cases, it could even damage the cooler or the engine itself.

6. Testing the System: Ensuring a Leak-Free Operation

Once the oil cooler is installed and the hoses are routed correctly, it’s time to rigorously test the system for leaks and proper function. This is a critical step that should not be rushed.

• Leak Testing: Before running the engine at full operating temperature or putting it under heavy load, perform a dry run. Start the engine and let it idle, carefully inspecting all connections, fittings, and hoses for any signs of leaks. It's crucial to catch any small leaks at this stage, as they can quickly become larger, more problematic issues. Tighten any fittings that appear to be weeping.
• Monitor Oil Temperature: After ensuring there are no leaks, run the engine at operating temperature and monitor the oil temperature using a dedicated oil temperature gauge. It should stay within the recommended range for your engine, which for most performance engines is typically between 180°F and 220°F (82°C to 104°C). If the temperature rises significantly above this range, or if it doesn't seem to drop at all, it could indicate that the cooler is not installed correctly, the hoses are restricted, the airflow is insufficient, or the cooler may be undersized for the application.

7. Regular Maintenance: Keeping the Cooler Performing

Lastly, it’s important to periodically inspect your oil cooler, hoses, and fittings as part of your regular vehicle maintenance. Over time, the constant exposure to heat, pressure, and engine bay vibrations can take their toll, leading to potential wear and tear on the components.

• Regularly check for any signs of leaks around the fittings or along the hoses.
• Inspect the hoses for any signs of cracking, swelling, or abrasion.
• Ensure that the cooler's fins are clean and free of debris, such as leaves, dirt, or insects, as a blocked cooler cannot dissipate heat effectively.
• Check that all mounting hardware remains secure and that the cooler is not vibrating excessively.

Keeping the cooler clean and the lines in good condition will ensure optimal airflow and consistent cooling performance, contributing to the overall health and longevity of your engine.

Conclusion

Proper engine oil cooler installation and hose routing are vital to keeping your engine running smoothly, especially in high-performance or heavy-duty applications. By carefully selecting the right cooler, mounting it securely in an optimal location, routing the hoses with attention to detail, and ensuring everything is sealed and functioning correctly, you can significantly improve your engine’s ability to maintain an optimal operating temperature. This translates directly to better performance, enhanced engine longevity, and a substantial reduction in the risk of catastrophic engine failure due to overheating.

Whether you’re building a dedicated track car, a robust tow rig, or a high-performance street machine, investing the time and effort into the proper installation and ongoing maintenance of your engine oil cooler will undoubtedly pay off in the long run, safeguarding your valuable engine investment.

Frequently Asked Questions (FAQs)

Q1: Do I need an oil cooler if I don't track my car?
A1: For most standard road vehicles, the factory-equipped cooling system is sufficient. However, if you frequently drive in very hot climates, tow heavy loads, or drive aggressively, an aftermarket oil cooler can still offer benefits by keeping oil temperatures more stable, potentially reducing wear.

Q2: Can an oil cooler make my engine run too cold?
A2: Yes, it's possible, especially with very aggressive air-to-oil coolers in cold climates or with shorter driving cycles. This is why using a thermostat-controlled cooler or ensuring proper airflow management is important. Oil needs to reach a certain operating temperature to function optimally.

Q3: What kind of hoses are best for an oil cooler?
A3: High-quality, oil-resistant hoses are essential. Stainless steel braided hoses are highly recommended for their durability, heat resistance, and resistance to abrasion. Ensure they are rated for the temperatures and pressures involved.

Q4: How often should I check my oil cooler and lines?
A4: It’s a good practice to inspect them during your regular oil changes. Look for any signs of leaks, damage to the hoses, or debris blocking the cooler fins.

Q5: What is the ideal oil temperature for a performance engine?
A5: For most performance engines, the ideal operating oil temperature range is typically between 180°F and 220°F (82°C to 104°C). Temperatures significantly above this can degrade the oil, while temperatures consistently below this may indicate insufficient warm-up or an over-cooling issue.
