Chrysler Pacifica Oil Change Guide

Changing the oil and filter in your Chrysler Pacifica is a fundamental maintenance task that, when performed correctly, can significantly contribute to the longevity and optimal performance of your vehicle's 3.6L Pentastar V6 engine. This guide is specifically tailored for owners of the first generation Pacifica (model years 2017, 2018, and 2019), but the principles and many of the steps will be applicable to subsequent models and other FCA vehicles utilising the robust Pentastar engine. Undertaking this yourself can be a rewarding experience, saving you money and providing peace of mind knowing the job has been done right. We will walk you through the process, ensuring you have the right tools, materials, and knowledge to complete the job efficiently and safely.

Essential Tools and Materials

Before you begin, it's crucial to gather all the necessary tools and supplies. Having everything on hand will make the process smoother and prevent interruptions. For the Chrysler Pacifica with the 3.6L Pentastar V6 engine, you will typically need the following: * Floor Jack: To safely lift the front of the vehicle. * Jack Stands (x2): Essential for securely supporting the vehicle once it's lifted. Never work under a vehicle supported only by a jack. * Wheel Chocks: To prevent the vehicle from rolling. * Flathead Screwdriver: Used for releasing the oil access panel. * 13mm Socket and 3/8" Drive Ratchet: For removing the oil drain plug. * 24mm Socket and 1/2" Drive Ratchet: For removing the oil filter housing cap. * Used Oil Catch Container: A receptacle large enough to hold at least 5 quarts of old oil. * Automotive Funnel: For adding the new oil cleanly. * New Oil Filter: Compatible with the Pentastar 3.6L V6. Recommended part numbers include Fram CH11665, Chrysler 68191349AB, Wix WL10010, EcoGard X10040, and Purolator L36296. * New Engine Oil: 5 US quarts (4.7 litres) of SAE 0W-20 synthetic oil. Always consult your owner's manual for the precise specification. * New Drain Plug Gasket/Crush Washer (Recommended): While not always included with the filter, it's good practice to replace this to ensure a proper seal. * Rags or Paper Towels: For cleaning up spills. * Gloves: To protect your hands.

Step-by-Step Oil Change Procedure

1. Prepare the Vehicle

• Warm Up the Engine: Start the engine and let it run for a few minutes until it reaches near operating temperature. Warm oil flows more easily and carries more contaminants with it. Be cautious, as the oil and engine components will be hot.
• Park on a Level Surface: Ensure the vehicle is parked on a flat, stable surface. This is crucial for accurate oil level readings and safe jacking.
• Engage Parking Brake and Chock Wheels: Apply the parking brake firmly and place wheel chocks behind the rear wheels to prevent any movement.

• Open the Hood: Locate and open the bonnet. Remove the oil filler cap (twist counter-clockwise) and pull out the yellow dipstick an inch or two. This helps to break any vacuum and allows the oil to drain more freely.

  2. Safely Lift the Vehicle

• Position the Floor Jack: Consult your owner's manual for the correct jacking points. Typically, you'll use the front jacking point.

• Raise the Vehicle: Jack up the front of the Pacifica until there is sufficient clearance to comfortably work underneath.

• Secure with Jack Stands: Place the jack stands securely under the designated support points on the vehicle's frame. Slowly lower the vehicle onto the jack stands. Never get under the vehicle until you are absolutely sure it is stable and safely supported.

  3. Drain the Old Engine Oil

• Locate the Oil Access Panel: Slide under the front of the vehicle. You'll find a black plastic service access cover with an oil can icon. Use your flathead screwdriver to rotate the round fastener clockwise to unlock and open this cover.

• Position the Drain Pan: Place your used oil catch container directly beneath the oil drain plug, which is located on the oil pan.
• Remove the Drain Plug: Using the 13mm socket and ratchet, loosen the drain plug by turning it counter-clockwise. Be prepared for the oil to start draining as soon as the plug is loose. Exercise caution, as the oil may be hot.
• Allow Oil to Drain: Let the oil drain completely. This typically takes at least five to ten minutes, or until the flow reduces to a slow drip.
• Inspect and Replace Drain Plug Gasket: While the oil is draining, inspect the drain plug gasket. If it looks worn, damaged, or is missing, it's highly recommended to replace it with a new one to prevent leaks.
• Reinstall the Drain Plug: Once the oil has finished draining, clean the drain plug and the area around the drain hole. Screw the drain plug back in by hand, turning clockwise, to avoid cross-threading. Once snug, tighten it further with the 13mm socket and ratchet. The specified torque is approximately 20 lb-ft. Over-tightening can damage the oil pan.

• Close the Access Panel: Swing the service access cover shut and rotate the fastener 1/4 turn counter-clockwise to lock it in place.

  4. Replace the Oil Filter

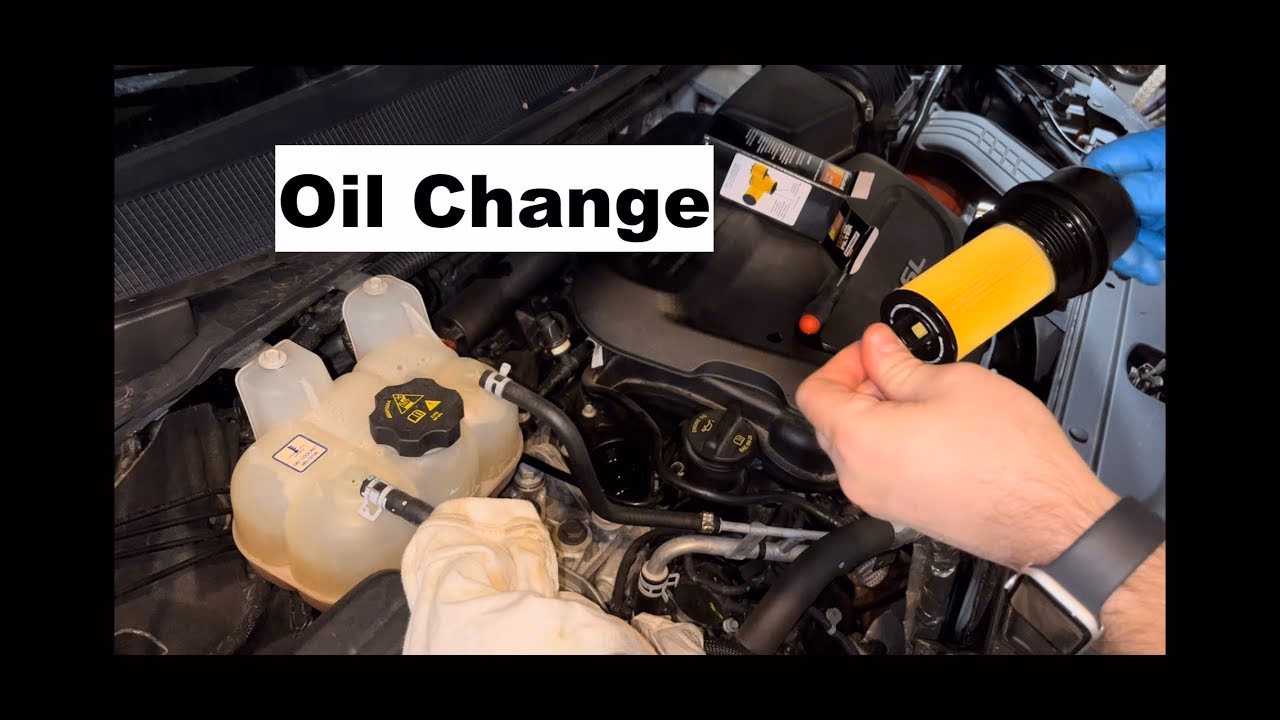

• Locate the Oil Filter Housing: The oil filter on the Pentastar 3.6L V6 is a cartridge-style filter housed within a plastic cap. It's typically located on the left side of the engine cover, behind the oil filler cap and to the right of the coolant reservoir.

• Remove the Filter Cap: Use the 24mm socket and 1/2" drive ratchet to loosen the oil filter cap by turning it counter-clockwise. Once loosened, carefully unscrew and remove the cap. The old filter will be attached to it.
• Remove the Old Filter and O-ring: Pull the old oil filter element straight out of the cap. Dispose of it responsibly. Locate the old rubber O-ring on the filter cap. Carefully pry it off and discard it.
• Install the New O-ring: Take the new rubber O-ring provided with your new filter. Lubricate it with a thin film of new engine oil. This helps create a good seal and makes future removal easier. Slide the new O-ring into the groove on the filter cap.
• Install the New Filter: Push the new oil filter element firmly into the filter cap.

• Reinstall the Filter Cap: Carefully lower the filter cap with the new filter back into the housing. Screw the cap back in by hand, turning clockwise, to prevent cross-threading. Once it's snug, use the 24mm socket and ratchet to tighten it. Be careful not to overtighten, as this can crack the plastic housing or damage the O-ring. Tighten until it's snug, then give it a slight turn.

  5. Add New Engine Oil

• Insert the Funnel: Place the automotive funnel into the oil filler hole.
• Add New Oil: The Pentastar 3.6L V6 typically requires 5 US quarts (4.7 litres) of SAE 0W-20 oil. However, it's often best to add slightly less initially, around 4.5 to 4.75 quarts, to avoid overfilling. Overfilling can be detrimental to the engine.

• Replace Filler Cap and Dipstick: Temporarily replace the oil filler cap and ensure the dipstick is fully seated.

  6. Final Checks and Lowering the Vehicle

• Start the Engine: Start the engine and let it run for a few minutes. Check for any leaks around the drain plug and oil filter housing.

• Shut Off Engine and Wait: Turn off the engine. Allow the oil to settle back into the oil pan for at least 5-10 minutes.
• Check Oil Level: Remove the dipstick, wipe it clean, reinsert it fully, and then pull it out again to check the oil level. Add more oil incrementally if needed to bring the level up to the "Full" mark on the dipstick. Do not overfill.
• Lower the Vehicle: Carefully raise the vehicle slightly with the floor jack, remove the jack stands, and then slowly lower the vehicle back to the ground.

• Final Inspection: Give the drain plug and filter housing one last check for any leaks.

  Frequently Asked Questions (FAQ)

• Q: How often should I change the oil in my Chrysler Pacifica?A: Consult your owner's manual for the recommended oil change interval. Generally, for synthetic oil, this can range from 7,500 to 10,000 miles, or every 6-12 months, depending on driving conditions.

• Q: Can I use a different weight of oil?A: It's strongly recommended to use the oil weight specified in your owner's manual (SAE 0W-20 for the Pentastar 3.6L V6). Using the wrong oil can affect performance and potentially damage the engine.
• Q: My new oil filter didn't come with an O-ring. What should I do?A: Most cartridge-style filters for this application will include a new O-ring and sometimes a new sealing washer for the filter cap. If yours doesn't, it's best to purchase one separately or use a filter kit that includes it.
• Q: Is it okay to overfill the oil slightly?A: No, it is not okay. Overfilling the engine with oil can cause issues like increased oil pressure, foaming, and damage to seals and the catalytic converter. It's always better to be slightly under than over.
• Q: How do I dispose of the old oil and filter?A: Used motor oil and filters are hazardous waste. Take them to an auto parts store, a recycling centre, or a local service station that accepts used oil for proper disposal. Never pour old oil down drains or onto the ground. Changing your own oil and filter is a straightforward process that empowers you to maintain your Chrysler Pacifica. By following these steps carefully and using the correct parts and fluids, you can ensure your Pentastar V6 engine remains healthy and reliable for years to come. Remember to always prioritise safety when working under your vehicle.
