ZF 8HP Gearbox Guide

The ZF 8HP automatic transmission is a marvel of modern automotive engineering, renowned for its smooth shifts, impressive efficiency, and robust performance. Developed by ZF Friedrichshafen AG, this 8-speed automatic transmission has become a staple in a wide array of vehicles from numerous manufacturers. Its versatility and advanced design have made it a popular choice for everything from compact sedans to high-performance sports cars and heavy-duty SUVs. This guide will delve into the various ZF 8HP transmissions available, with a particular focus on the repair and maintenance of first and second-generation mechatronics found in vehicles produced up to 2020. We'll cover the common models, their applications, and what you need to know to keep these sophisticated gearboxes running optimally.

Understanding the ZF 8HP Transmission Family

ZF's 8HP is not a single, monolithic gearbox; rather, it's a family of transmissions designed to cater to different power outputs and vehicle requirements. The core design principles remain consistent, but specific variants are tailored for various applications. This modular approach allows ZF to offer a high degree of customization and efficiency across a broad spectrum of automotive needs.

Key ZF 8HP Models and Their Characteristics

The ZF 8HP series encompasses a range of models, each designed to handle different torque capacities and vehicle types. The numbering system generally indicates the torque handling capability and intended application. Here are some of the most common models encountered, particularly those with mechatronics that were subject to repair and refinement in their earlier generations:

• 8HP45: This is one of the most widely used variants, often found in rear-wheel-drive and all-wheel-drive applications with smaller to mid-range engines. It's known for its excellent fuel economy and smooth shifting, making it ideal for everyday driving.
• 8HP50: An evolution of the 8HP45, the 8HP50 typically offers slightly higher torque capacity and improved efficiency. It's a common fitment in many premium sedans and SUVs.
• 8HP55: Similar in application to the 8HP50, this model often features in slightly more powerful configurations or specific vehicle platforms.
• 8HP65: Stepping up in torque capacity, the 8HP65 is designed for more powerful engines and heavier vehicles, including larger SUVs and performance sedans.
• 8HP70: This variant is engineered for higher torque applications, commonly found in performance-oriented vehicles and larger luxury SUVs. It provides a robust solution for demanding powertrains.
• 8HP75: An enhancement of the 8HP70, offering increased torque capacity and durability for even more potent applications.
• 8HP76: This model represents a further advancement, often incorporating newer technologies or specific tuning for enhanced performance and efficiency in high-torque scenarios.
• 8HP90: A high-performance variant designed for the most powerful engines, often seen in flagship luxury cars and high-performance models. It boasts significant torque handling capabilities.
• 8HP95: The pinnacle of the 8HP series for many applications, the 8HP95 is built to handle extreme torque levels, typically found in top-tier performance vehicles and heavy-duty applications where maximum power delivery is paramount.

The 7-Speed Transmission Variant

While the 8-speed transmissions are more prevalent, it's worth noting ZF also produced a 7-speed gearbox that was equipped on compact and medium-sized vehicles under brands like BMW, MINI, and Renault. This transmission was typically designed for longitudinally mounted engines, offering a blend of efficiency and performance suitable for these vehicle classes. Its internal design and repair considerations might differ from the 8-speed counterparts.

Mechatronic Repair: First and Second Generation ZF 8HP (Up to 2020)

The mechatronic unit is the brain and nervous system of an automatic transmission. It combines the hydraulic control unit (valve body) with the electronic control unit (TCU). For the ZF 8HP transmissions produced up to approximately 2020, the first and second generations of mechatronics are commonly encountered. Repairing these units is a specialised task, often requiring specific knowledge and tools.

Common Mechatronic Issues

Over time and with mileage, certain components within the mechatronic unit can wear or fail. Some common issues include:

• Solenoid Malfunctions: The solenoids control the flow of transmission fluid to engage different gears. If they become clogged, worn, or electrically faulty, shifting problems can occur.
• Sensor Failures: Integrated sensors within the mechatronic unit monitor various parameters like speed, temperature, and pressure. A faulty sensor can lead to incorrect operation or limp-mode engagement.
• Connector Issues: Corrosion or damage to the electrical connectors linking the mechatronic unit to the TCU or the vehicle's main ECU can disrupt communication and cause transmission faults.
• Valve Body Wear: The intricate passageways and bores within the valve body can develop wear over time, leading to pressure leaks and erratic shifting.
• Mechatronic Sleeve Leaks: A common failure point in many ZF 8HP mechatronics is the mechatronic sleeve (also known as the connector tube or adapter sleeve). This component seals the electrical connections between the mechatronic unit and the transmission harness. If it leaks, transmission fluid can migrate into the TCU, causing severe electrical damage. This is a critical failure that requires immediate attention.

The Importance of a Mechatronic Sleeve Replacement

Given the severity of mechatronic sleeve leaks, replacing this component is often a standard procedure during a comprehensive mechatronic repair or even as a preventative measure. A high-quality replacement sleeve ensures proper sealing and prevents fluid ingress into the expensive electronic control unit. It's a relatively small part but its failure can have catastrophic consequences for the entire transmission control system.

Repair vs. Replacement

When a mechatronic unit fails, the decision often comes down to repair versus replacement.

Repair:

• Pros: Can be significantly more cost-effective than a new unit. Allows for the replacement of specific faulty components, potentially restoring the unit to its original performance. Specialists can often upgrade or reinforce known weak points.
• Cons: Requires specialised knowledge, tools, and expertise. The quality of the repair is heavily dependent on the technician and the parts used. May not always come with the same warranty as a new unit.

Replacement:

• Pros: Typically comes with a manufacturer's warranty. Guarantees a brand-new, fully functional unit. Less downtime if a readily available replacement is in stock.
• Cons: Considerably more expensive. May not address underlying design weaknesses if the replacement is the same generation.

For vehicles up to 2020, many specialists focus on repairing the first and second-generation mechatronics, often replacing common failure items like solenoids, sensors, and crucially, the mechatronic sleeve. This approach offers a good balance between cost and reliability.

Maintenance and Longevity

Proper maintenance is key to ensuring the longevity and optimal performance of your ZF 8HP transmission. While these gearboxes are built to last, neglecting routine service can lead to premature wear and costly repairs.

Fluid Changes

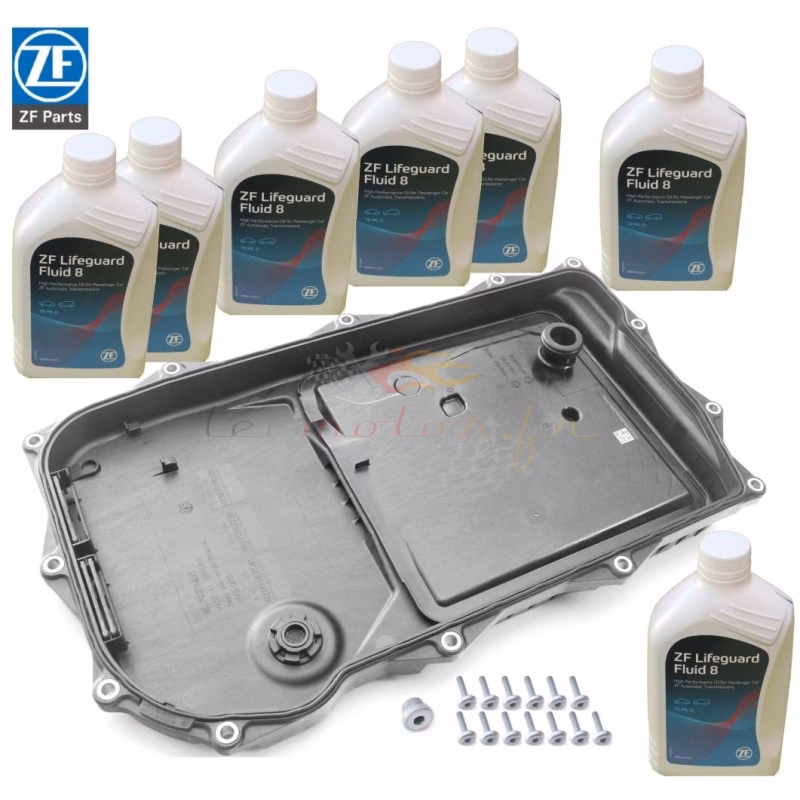

The transmission fluid is the lifeblood of your automatic gearbox. It lubricates moving parts, cools the transmission, and provides hydraulic pressure for shifting. ZF typically recommends specific fluids (often labelled as ZF Lifeguardfluid) and stipulates service intervals. For many ZF 8HP transmissions, a fluid and filter change is recommended every 60,000 to 100,000 miles, or as per the vehicle manufacturer's specific service schedule.

Filter Replacement

When the transmission fluid is changed, it's crucial to also replace the transmission filter. The filter removes debris and contaminants from the fluid, preventing them from circulating and causing damage. In many ZF 8HP designs, the filter is integrated into the mechatronic unit's sump pan, meaning it's typically replaced along with the mechatronic unit or during a more involved service.

Software Updates

Vehicle manufacturers sometimes release software updates for the transmission control unit (TCU). These updates can address shifting characteristics, improve efficiency, or resolve known software glitches. It’s worth checking with your dealer or a qualified independent specialist if any relevant software updates are available for your vehicle.

Common ZF 8HP Applications by Manufacturer

The ZF 8HP transmission is incredibly widespread. Here are some examples of manufacturers and models that commonly utilise these gearboxes:

Frequently Asked Questions

Q1: What is the most common ZF 8HP transmission?

The 8HP45 and 8HP50 are among the most commonly encountered ZF 8HP transmissions due to their widespread use in a vast range of vehicles from various manufacturers.

Q2: Can I use a different ZF fluid in my transmission?

It is strongly advised to only use the specific ZF Lifeguardfluid recommended for your particular transmission model and generation. Using the wrong fluid can lead to shifting issues, reduced performance, and long-term damage.

Q3: How often should the ZF 8HP transmission fluid be changed?

While ZF transmissions are often marketed as "filled for life," most specialists and even ZF itself recommend periodic fluid and filter changes. A common interval is between 60,000 and 100,000 miles, but always consult your vehicle's service manual or a qualified technician for the precise recommendation for your car.

Q4: What does "mechatronic sleeve leak" mean?

This refers to a failure in the rubber seal or connector where the mechatronic unit connects to the transmission wiring harness. If this seal fails, automatic transmission fluid can seep into the electronic control unit (TCU), causing electrical shorts and potentially destroying the TCU. It's a critical issue that needs prompt repair.

Q5: Is it better to repair or replace a faulty ZF 8HP mechatronic unit?

For first and second-generation units (up to around 2020), repairing the mechatronic unit by a specialist is often a more cost-effective solution than replacing it with a new one. Specialists can replace faulty solenoids, sensors, and the often-failing mechatronic sleeve, restoring the unit's functionality at a fraction of the cost of a new unit. However, the decision depends on the extent of the damage and the availability of quality repair services.

Conclusion

The ZF 8HP transmission family, including its 7-speed sibling, represents a significant advancement in automatic transmission technology. Their widespread adoption by leading automotive manufacturers is a testament to their performance, efficiency, and reliability. Understanding the different models, common failure points like the mechatronic sleeve, and the importance of regular maintenance, particularly fluid changes, is crucial for owners of vehicles equipped with these sophisticated gearboxes. Whether you're driving a BMW, Audi, Jaguar, or another marque, keeping your ZF 8HP transmission in top condition will ensure a smooth, efficient, and enjoyable driving experience for years to come.
