Optimising Your Nitro RC Car Engine: A Complete Guide

Owning a nitro RC car is an exhilarating experience, offering a thrilling blend of speed, power, and the satisfying roar of a miniature internal combustion engine. However, to truly get the most out of your miniature marvel, a deep understanding of its heart – the nitro engine – is absolutely essential. Unlike electric counterparts, nitro engines require meticulous care, precise tuning, and regular maintenance to ensure optimal performance and longevity. This comprehensive guide will walk you through the intricacies of your nitro engine, from its fundamental components and the art of tuning to various starting methods and the crucial signs indicating a much-needed rebuild. Master these aspects, and you'll transform your RC car into a finely-tuned, track-dominating machine.

Understanding Your Nitro Engine's Core Components

Before delving into the complexities of tuning and maintenance, it's vital to grasp the basic anatomy of your nitro RC car's engine. Each component plays a critical role in its operation, and understanding their functions is the first step towards effective troubleshooting and optimisation. The engine is a marvel of miniature engineering, comprising several key parts working in harmony to generate power.

• The Carburettor: This is arguably one of the most important components, as it meticulously controls the precise flow of air and fuel into the engine. Its settings, manipulated by various needles, dictate the engine's performance across its entire RPM range.
• The Piston: Moving rapidly up and down inside the cylinder, the piston is central to the engine's cycle, converting the force of combustion into mechanical energy.
• The Connecting Rod: This vital link connects the piston to the crankshaft, translating the piston's linear motion into the rotational motion of the crankshaft.
• The Crankshaft: The crankshaft is the backbone of the engine, receiving the power from the connecting rod and ultimately turning the wheels of your RC car.
• The Combustion Chamber: Located within the cylinder head, this is where the magic happens – the precise space where the fuel burns and creates the explosive energy required to power the engine.

All these components must work together flawlessly to achieve the best performance from your nitro RC car. Any imbalance or malfunction in one part can significantly impact the overall efficiency and power output of your engine.

Preparing for Engine Tuning

Tuning a nitro engine can seem daunting, but thorough preparation simplifies the process significantly. Before you even think about adjusting a needle, a few preparatory steps are crucial to ensure accuracy and prevent potential issues.

• Clean the Engine: A pristine engine allows you to clearly observe its running characteristics and easily pinpoint any anomalies. Dirt or grime can mask problems or interfere with adjustments.
• Gather the Right Tools: You'll need specific tools for precise tuning. Essential items include a screwdriver for adjustments, a tachometer or sound metre to measure RPMs, and ideally, a temperature gauge to monitor the engine's operating temperature. Other specialised tools may also prove beneficial.
• Familiarise Yourself with Your Car: Whether you're new to nitro RC cars or working with a new model, taking the time to thoroughly read your car's manual is invaluable. It provides model-specific information, recommended settings, and troubleshooting tips.

Beyond physical preparation, a wealth of online resources can provide guidance. Websites such as RC Universe, NitroRCX, and RC Car Action offer extensive information. Forums, YouTube videos, and social media groups dedicated to RC cars are excellent places to find advice, share experiences, and discover product recommendations. Additionally, dedicated tuning kits are available that can streamline the process, often including all necessary tools and step-by-step instructions.

The Art of Nitro Engine Tuning: A Step-by-Step Approach

Tuning a nitro engine demands patience, consistent practise, and a foundational understanding of how each adjustment affects performance. It's an iterative process of making small changes, observing the results, and refining until the engine runs optimally. The primary goal is to achieve a balance between maximum power, smooth operation, and a safe operating temperature.

1. Adjust the Low-Speed Needle: Begin by adjusting this needle until the engine idles smoothly and transitions cleanly to higher RPMs.
2. Adjust the High-Speed Needle: Run the engine at full throttle and carefully adjust the high-speed needle until the engine runs smoothly and powerfully at its top end.
3. Adjust the Idle Speed: Once the high and low-speed needles are roughly set, fine-tune the idle speed to ensure the engine idles consistently without stalling or racing.
4. Monitor Engine Temperature: After each significant adjustment, always check the engine's temperature. A temperature gauge is incredibly helpful for this, ensuring you stay within the safe operating range.
5. Repeat and Refine: This entire process is cyclical. You'll likely need to repeat these steps, making small, incremental adjustments until you achieve the desired performance, consistent operation, and optimal temperature.

Many online resources, such as rcuniverse.com and rcgroups.com, offer more detailed tuning guides. Hobby stores also provide tuning products like nitro fuel additives and temperature gauges that can aid your efforts.

Adjusting the High-Speed Needle

The high-speed needle is crucial for controlling the air/fuel mixture when your engine operates at high RPMs. Correctly setting this needle is paramount for achieving peak performance and preventing engine damage from running too lean (not enough fuel). The goal is to find the 'sweet spot' where the engine revs highest and runs most efficiently.

Here are the steps to adjust the high-speed needle:

It's important to remember that ideal RPMs can vary significantly based on your specific RC car model and environmental conditions like ambient temperature and altitude. You may find that periodic adjustments to the high-speed needle are necessary as these conditions fluctuate. If you encounter difficulties or feel uncertain about the process, numerous resources are available. RC car forums and YouTube videos are excellent places to find advice from seasoned nitro RC car enthusiasts. Additionally, tuning kits, such as the HSP Nitro Starter Kit, often provide all the necessary tools and detailed instructions to guide you through the process.

Adjusting the Low-Speed Needle

Just as the high-speed needle governs performance at speed, the low-speed needle precisely controls the air/fuel mixture when the engine is idling or operating at low RPMs. A correctly set low-speed needle ensures a stable idle, smooth acceleration from a standstill, and prevents the engine from bogging down or stalling. It's about finding the perfect balance for responsiveness.

Follow these steps to adjust your low-speed needle:

1. Start the engine and allow it to idle for a few minutes until it reaches its normal operating temperature.
2. Engage the brake and hold the car stationary with one hand. With your other hand, carefully adjust the low-speed needle.
3. Turn the low-speed needle clockwise by an eighth of a turn (1/8) and listen intently to the engine's sound. Then, turn the needle counter-clockwise by an eighth of a turn and note any changes in the engine's tone and stability.
4. Continue making small, incremental adjustments until you discover the point where the engine idles smoothly and consistently, and accelerates briskly without any hesitation or bogging.

Some nitro RC car models might incorporate an idle screw that requires adjustment in conjunction with the low-speed needle. Always consult your user manual or reputable online resources for specific guidance tailored to your particular model. If you're struggling with fine-tuning your low-speed needle or are unsure about proper adjustment, consider investing in a carburettor adjustment tool. Tools like the Hobbypark Carburettor Adjustment Tool are designed to make turning the low-speed needle easier and safer, minimising the risk of slipping or damaging the delicate components. Furthermore, many nitro RC car forums and dedicated websites provide excellent advice and troubleshooting guides, often specific to certain models or engine types, which can be immensely helpful.

Adjusting a Throttle Needle

While often part of the broader carburettor tuning, specifically adjusting the throttle needle can also be crucial for precise control over the engine's response. This adjustment fine-tunes the throttle's linearity and how the engine reacts to input.

To adjust a throttle needle, follow these steps:

1. Ensure your engine is warmed up to its operating temperature.
2. Adjust the idle screw until the engine is idling smoothly and consistently.
3. Turn the main throttle screw until it is completely closed. This provides a baseline for adjustment.
4. Turn the throttle needle one full turn clockwise to make the mixture leaner, or one full turn counter-clockwise to make it richer.
5. Restart the engine and continue to adjust the needle in small increments until the engine runs smoothly and responds optimally to throttle input.
6. Repeat this process as needed, testing the engine's response until you achieve the desired performance.

For more detailed information on adjusting a throttle needle, resources like CarBibles or your vehicle's owner's manual can provide specific instructions relevant to your setup.

Fine-Tuning the Mixture for Peak Performance

After making initial adjustments to both the high- and low-speed needles, the next critical phase is to fine-tune the nitro RC car engine's overall air/fuel mixture. The objective here is to achieve a perfect balance that ensures silky-smooth acceleration, consistent engine performance across all RPMs, and, crucially, maintains a safe operating temperature. Running the engine too lean can lead to overheating and severe damage, while running too rich can result in sluggish performance and excessive smoke.

Here are some key tips for precision fine-tuning:

• Use a Temperature Gun: Always employ a temperature gun (such as the Kizen Infrared Thermometer or the Etekcity Lasergrip 774) to vigilantly monitor the engine's temperature throughout the tuning process. This is your primary indicator of mixture health.
• Target Temperature Range: Aim to maintain the engine's temperature within a safe range, typically around 230-250°F (110-120°C). Consult your engine's manual for its specific recommended temperature.
• Enriching the Mixture: To make the fuel/air mixture richer (adding more fuel), turn the high-speed needle an eighth of a turn (1/8) counter-clockwise. This will generally lower the engine's temperature.
• Leaning the Mixture: To lean out the fuel/air mixture (reducing fuel), turn the high-speed needle an eighth of a turn (1/8) clockwise. This will typically increase the engine's temperature and power, but care must be taken not to go too far.
• Iterative Process: Repeat this fine-tuning process, making small adjustments and re-testing, until the engine runs consistently within the safe temperature range while delivering maximum performance.

If you're unsure about the correct temperature range for your specific type of nitro fuel or engine, always consult your user manual or experienced nitro RC car forums. Patience is paramount during this phase; avoid making large, drastic adjustments to the mixture all at once. Several RC car manufacturers provide detailed carburettor adjustment guides, and online forums like RC Universe and NitroRCX offer a wealth of helpful tuning guides and troubleshooting tips.

Making Your Nitro Engine Faster and More Powerful

While precise tuning is fundamental, there are also hardware upgrades and strategic choices you can make to extract even more speed and power from your nitro engine. These modifications can significantly enhance your RC car's performance on the track.

• Upgrade to a Higher Performance Air Filter: A less restrictive, higher-flow air filter can allow the engine to breathe more freely, leading to increased power.
• Install a Tuned Exhaust Pipe: A performance-oriented exhaust pipe, specifically designed for your engine, can optimise exhaust gas flow, scavenging, and back-pressure, resulting in noticeable power gains across the RPM range.
• Replace the Stock Nitro Engine with a High-Performance Engine: For a significant leap in power, upgrading to a higher cubic capacity or more advanced performance engine model is the most impactful modification.
• Tune the Carburettor and Adjust the Fuel Mixture for Optimum Performance: As extensively discussed, meticulous tuning is crucial. Even with upgraded components, proper carburettor adjustment ensures you're harnessing their full potential.
• Reduce the Weight of the Car: A lighter RC car requires less power to accelerate and maintain speed. Strategic weight reduction can provide a noticeable performance boost without directly modifying the engine.

For more in-depth information on nitro engine upgrades and performance parts, websites such as Rc-cars.org or NitroRCX.com are excellent resources. They often offer a wide selection of nitro engine parts and accessories designed to help you maximise your engine's power and speed. Similarly, Amain Hobbies and RC Planet provide a vast array of products and resources to further enhance your nitro RC car's capabilities.

Testing the Engine on the Track

Once you've completed your tuning adjustments, the real test comes on the track. Observing your engine's behaviour under load and varying conditions is essential for final refinement. This practical testing phase allows you to make subtle, real-world adjustments for peak performance.

Here are some crucial tips for testing and fine-tuning your nitro RC car engine while driving:

• Warm Up the Engine: Always allow the engine to reach its normal operating temperature before commencing serious testing. Avoid starting with an engine that's too hot or too cold.
• Start with Basic Adjustments: Begin by observing the engine's general performance and responsiveness. Note any hesitation, bogging, or excessive smoke.
• Make Small, Incremental Adjustments: While monitoring engine performance during test runs, make only small tuning adjustments to the high- and low-speed carburettor needles. Large changes can throw the tune off significantly.
• Gradually Increase Speed: Build up to higher speeds incrementally. Pay close attention to whether the engine cuts out, hesitates, or bogs down at high speeds, which can indicate an overly lean or rich mixture.
• Adjust as Needed: Continuously adjust the mixture and carburettor needles based on your observations to fine-tune the engine's performance and maintain a safe operating temperature.
• Monitor Exhaust Colour: The colour of your engine's exhaust smoke is a highly reliable indicator of the fuel mixture's richness or leanness. A consistent blue smoke or a bluish tint indicates the engine is running appropriately rich. Conversely, white smoke is a clear warning sign that the engine is running too lean, which can quickly lead to severe engine damage due to overheating. Clear exhaust with no smoke is also a sign of a dangerously lean condition.

If you encounter persistent issues such as overheating, difficulty starting, or frequent cutting out, consult dedicated troubleshooting guides or visit online forums for expert assistance. Many RC car manufacturers also offer online customer support or instructional videos that can help diagnose and resolve common problems. In addition to temperature guns, useful tools for trackside testing and tuning include tachometers for precise RPM readings, glow plug igniters for reliable starting, and starter boxes for convenient engine engagement.

Starting Your Nitro RC Engine: Methods Explained

Getting your nitro engine to fire up reliably is a fundamental skill. Regardless of the method, the initial steps are consistent: turn on the transmitter switch, then the receiver switch, add fuel to the tank, prime the engine (which involves getting fuel into the carburettor), ignite the glow plug, and finally, rotate the flywheel to initiate combustion. There are three primary methods for rotating the flywheel and starting the engine, each with its own advantages and considerations.

1. Pull Start (Recoil Starter)

Much like a lawnmower or small generator, a pull cord system is integrated into the nitro engine. You simply pull the T-handle attached to the starter cord assembly, which spins the flywheel and starts the engine. This method is often called a recoil starter.

Pros:

• Self-contained: No external starting equipment needed beyond the glow plug igniter.
• Convenient for casual use: Quick and easy to get going.

Cons:

• Can affect centre of gravity: The integrated mechanism causes the engine to sit slightly higher, which might be a concern in competitive RC racing where every millimetre matters.
• Less durable: The pull cord mechanism can wear out or break over time, especially with improper use.
• Less consistent: Can be harder to get a consistent start compared to electric methods.

Some manufacturers, like Tamiya, provide video tutorials demonstrating the proper use of a recoil starter.

2. Bump Start (Starter Box)

RC cars without a pull start system typically feature an opening in the chassis that provides direct access to the engine's flywheel. To start these models, the RC car is placed on top of a dedicated starter box. This box contains an electric-powered spinning rubber disk that makes contact with the vehicle's flywheel, rotating it to start the engine. This is known as a bump start system because the flywheel is 'bumped' against the disk in the starter box to initiate engine rotation.

Pros:

• Weight advantage: Engines designed for bump starting are often slightly lighter as they don't carry the weight of the pull start mechanism. This can be beneficial in racing.
• More consistent starts: Provides a powerful and consistent spin to the flywheel.

Cons:

• Requires extra equipment: You'll need to carry the starter box, along with its power source (typically a battery), to the track.
• Less convenient: Requires more setup time than a pull start.

3. Electric Start (Shaft Starter & Onboard Starter)

Electric start systems offer a modern and often more convenient way to ignite your nitro engine, typically replacing the pull start mechanism.

Shaft Starter

In this configuration, a special gearbox is integrated into the engine, allowing a shaft from a small handheld electric motor (much like a cordless drill or rotary tool) to be inserted. With the push of a button, this motor spins the engine, getting it started rapidly. Some nitro RC models come equipped with this system from the factory, while others can be retrofitted. Examples include the Losi Spin Start Handheld Starter and the HPI Roto Start Electric Start System.

Onboard Starter

An onboard electric starter system, such as the Traxxas EZ-Start, integrates the small electric motor directly onto the RC car itself. A battery-powered handheld tool then connects to this system to provide power and, in some advanced setups, automatically ignites the glow plug simultaneously.

Some nitro models with an electric start system may also be configured to work with a starter box, providing an alternative starting method. However, when using the bump start as an alternative, the automatic glow plug igniter (if equipped) cannot be used, so you'll still need a separate glow starter. As with the bump start method, having a non-pull start engine means carrying extra equipment – the electric starter as well as its batteries and charger. The onboard components of an electric start system also add a small amount of extra weight, a factor primarily of concern in serious RC racing. Traxxas provides comprehensive Engine FAQs covering their EZ-Start system, including installation guides and engine compatibility.

When Your Nitro Engine Needs a Rebuild

Even with the best tuning and care, your nitro engine will eventually wear out. At some point, usually after many litres of fuel have passed through it, a rebuild becomes necessary to restore its lost compression and performance. The engine's manual often provides guidance on rebuilding, though they can sometimes be vague.

Signs Your Engine Needs a Rebuild

The most definitive test for wear is checking the piston-to-sleeve fit. After removing the piston and sleeve, put some after-run oil on the sides of the piston and push it into the sleeve. It should go in most of the way and then stop with significant resistance. If the piston slides easily to the top, or even past the top of the sleeve, the piston and sleeve set is worn out, indicating a clear need for a rebuild.

Tearing Down a Nitro Engine for Rebuild

Disassembling your engine requires a few specific tools and a methodical approach to prevent damage. You'll typically need a 3mm hex driver for the head and backplate, a smaller hex driver or Phillips screwdriver for the starter (if present), and a 3mm or 3/32" (for American vehicles) hex driver to remove the engine from the vehicle.

Here’s a general sequence for engine teardown:

1. Remove from Vehicle: Begin by carefully removing the engine from your RC car, following your vehicle's specific instructions.
2. Remove Starter: Detach any starter mechanism that might be on the back of the engine.
3. Remove Backplate and Head: This is critical. Loosen the screws for the backplate and head in a criss-cross (X pattern for four bolts) or star pattern (for five or six bolts). Loosen each screw a little bit at a time, incrementally, until there is no pressure on the head or backplate. Then, remove them completely. Failing to do this properly risks warping these components.
4. Remove Header: The exhaust header is usually held on by a spring or two 3mm screws. Remove it carefully.
5. Inspect Discoloration: Don't be alarmed by discoloration on parts; it's normal. It might appear brown, similar to rust, or even blue if certain fuels are used.
6. Mark the Piston: Use a sharp tool like an exacto knife or screwdriver to scratch a small line on the top of the piston, aligning it with the pin for the sleeve. This helps ensure correct reinstallation if you reuse the piston.
7. Remove the Sleeve: This can sometimes be tricky. Try turning the crankshaft a few times; the sleeve might move out slightly, allowing you to pull it by hand. If the sleeve's lip isn't sunk into the block, you might gently pry it out with a small flathead screwdriver. If it's stubborn, insert a zip tie into the exhaust port and turn the crankshaft; this should push it out slightly. Remove the zip tie and try pulling it again. If still stuck, spray WD-40 around the edge, let it soak, and then try with a screwdriver or needle-nose pliers (using them to push up on the lip, never squeezing the sleeve). Crucially, never do anything that could scratch the top or inside of the sleeve, as these surfaces are vital for compression.
8. Remove Piston and Connecting Rod: Rotate the crankshaft until the connecting rod is positioned where it can be pulled off the crank without hitting the block (usually at Top Dead Centre - TDC). You might be able to pop it off with your fingers or gently with needle-nose pliers. Dental floss is an excellent trick: get it behind the rod and pull it off. The piston and connecting rod will then fall out if the engine is inverted.
9. Check Piston and Sleeve Wear: As mentioned previously, this is the definitive test for a rebuild.
10. Remove Clutch and Flywheel: You'll typically need a crankshaft locking tool that inserts where the backplate goes. If you have a pneumatic impact wrench, it can remove the clutch nut without a locking tool. Flywheels can be tough to remove; automotive battery terminal pullers are effective. Special wrenches that grip the flywheel pins also work. A rubber or plastic hammer tapping from behind can help, or for a ruined flywheel, a small section of steel pipe can be used.
11. Remove Crankshaft: With the clutch and flywheel off, the crankshaft should push out from the back of the engine with moderate effort.
12. Inspect Connecting Rod and Bearings: Place the connecting rod on the crankshaft journal and check for play. It should be fairly tight; if loose, a new connecting rod is needed. If a new connecting rod is also loose, the crankshaft itself is likely worn. Test the rear and front bearings by turning them with your fingers; they should feel perfectly smooth. If not, they require replacement.
13. Crankshaft Maintenance: If the crankshaft is deemed fine, use some fine sandpaper to remove any shine from the journal, then polish it with chrome polish. This simple step can significantly extend the life of the connecting rod.

Rebuild or Replace?

After assessing the wear, you'll face a decision: rebuild or replace the engine. Generally, if the crankshaft is significantly worn, it's often more cost-effective to replace the entire engine. Some manufacturers, such as Traxxas, offer engine exchange programmes where you can trade in your old engine for a completely new one at a reduced cost. Depending on current promotions and the extent of wear, it can sometimes even be cheaper to replace the engine if only a new piston and sleeve assembly is required. Always weigh the cost of new parts versus the cost of a new engine before committing to a rebuild.

Frequently Asked Questions About Nitro RC Car Engines

Here are some common questions and answers to further assist you in mastering your nitro RC car engine:

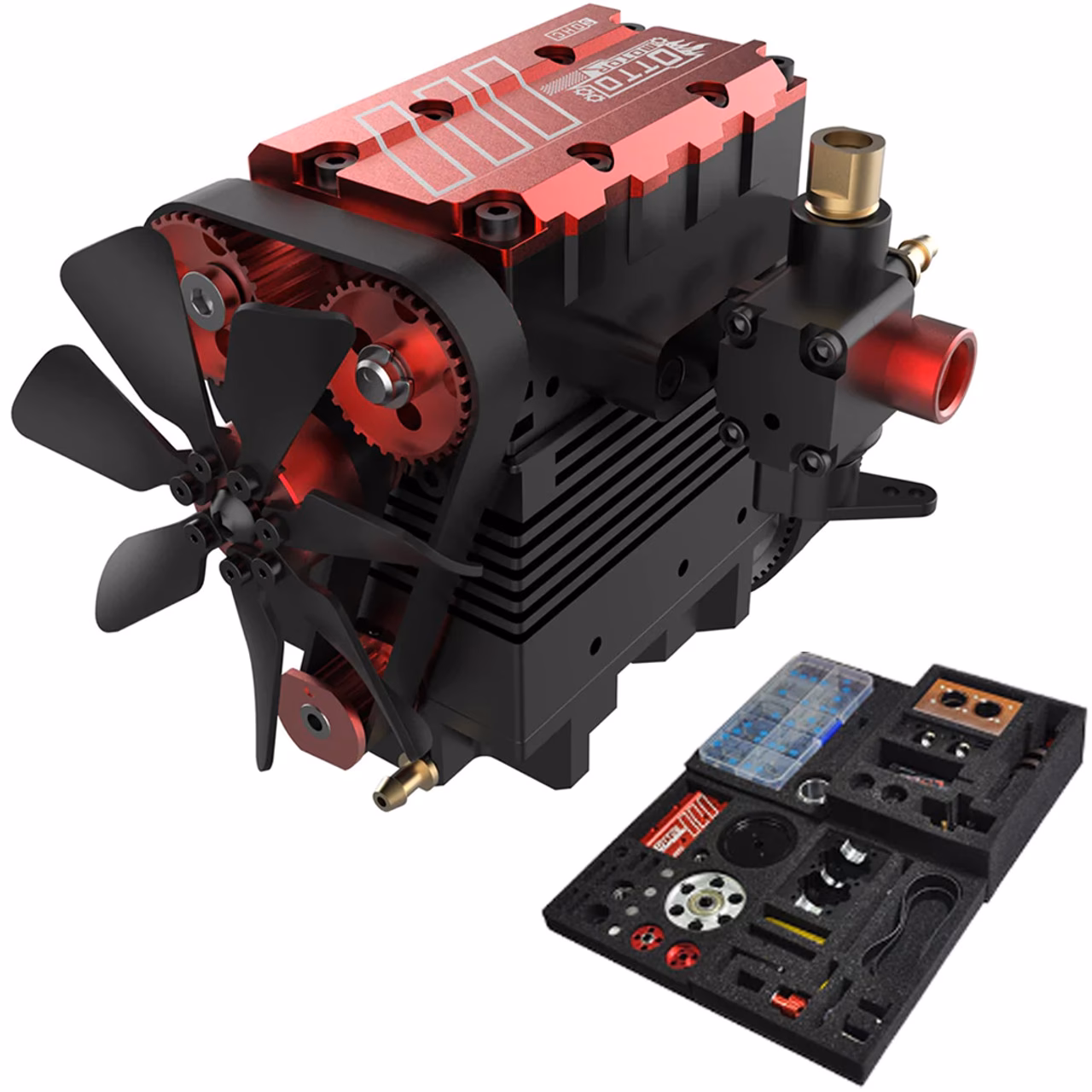

Q: How do you upgrade a nitro engine to be faster?
A: Upgrading a nitro engine for speed involves several key steps. You can install a higher performance air filter to improve airflow, fit a tuned exhaust pipe for optimised gas flow, or replace the stock engine with a more powerful, high-performance unit. Crucially, always ensure the carburettor is meticulously tuned and the fuel mixture is adjusted for optimum performance to fully leverage any upgrades. Additionally, reducing the overall weight of your RC car can significantly improve its speed-to-power ratio.

Q: How do you start a nitro RC engine?
A: To start a nitro RC engine, first turn on your transmitter switch, then the receiver switch on the car. Add fuel to the tank and prime the engine to ensure fuel reaches the carburettor. Next, ignite the glow plug to heat the combustion chamber. Finally, start the engine by rotating the flywheel using one of three common methods: a pull start mechanism, a starter box (bump start), or an electric start system (shaft or onboard).

Q: Where is the low speed needle on a nitro engine?
A: The low-speed needle on a nitro engine is almost always located on the carburettor itself. It's designed to adjust the air-fuel mixture specifically for idle and low-speed operation. Correct adjustment of this needle is vital for smooth idling, clean acceleration from a standstill, and preventing engine damage.

Q: Do nitro engines need a rebuild?
A: Yes, at some point, all nitro engines will wear out and require a rebuild. Signs include a noticeable loss of compression, difficulty holding a tune, and reduced power. The most reliable test for wear is checking the fit between the piston and sleeve; if the piston slides too easily into the sleeve, a rebuild is necessary.

Q: How do you adjust a throttle needle?
A: To adjust a throttle needle, first warm up your engine to operating temperature and ensure the idle screw is set for a proper idle. Turn the main throttle screw completely closed for a baseline. Then, turn the throttle needle clockwise (leaner) or counter-clockwise (richer) in one-turn increments. Restart the engine and make fine adjustments until it runs smoothly and responds optimally to throttle input.

Conclusion

Tuning your nitro RC car engine to achieve its absolute peak performance is an endeavour that demands time, unwavering patience, and a willingness to tinker. However, it is an incredibly satisfying journey that directly translates into getting the absolute maximum enjoyment and performance out of your RC car on the track.

It is crucial to remember that there isn't a universal, one-size-fits-all tuning solution. Nitro engines are highly sensitive to a myriad of factors, including the manufacturer's specific design, the type of fuel you're using, prevailing weather conditions (temperature, humidity, altitude), and even the characteristics of the track surface. Consequently, you will need to embrace experimentation, diligently trying different settings and working persistently to discover that perfect equilibrium between raw power, blistering speed, and crucial engine longevity.

By diligently following the comprehensive steps and advice outlined throughout this article, you can confidently and safely approach the task of tuning your nitro RC car engine, much like a seasoned professional. Always bear in mind that nitro RC car tuning is a continuous learning process. Even the most experienced drivers and dedicated hobbyists frequently find themselves needing to make subtle adjustments to their tuning techniques to maintain peak performance as conditions or engine wear evolve. Investing the necessary time and effort to correctly tune and maintain your nitro RC car engine will undoubtedly lead to a profoundly rewarding and thrilling driving experience every single time you hit the track!
