Upgrade Your Classic Ride: The MSD EFI Throttle Body Conversion

Are you the proud owner of a classic Ford Mustang, Bronco, or F-100, perhaps yearning for a touch more modern performance and reliability? If your beloved vehicle is still running on a carburettor, you're likely familiar with the quirks and occasional frustrations that come with such older technology. Enter the world of Electronic Fuel Injection (EFI), and specifically, the highly regarded MSD EFI throttle body conversion kits. This guide will delve into what an MSD EFI throttle body is, why you'd want one, and what makes the MSD kit a standout choice for enthusiasts looking to modernise their classic powerplant.

What Exactly is an EFI Throttle Body?

At its core, a throttle body is the gateway for air to enter your engine. In a carburetted system, the carburettor itself handles both the mixing of fuel with this incoming air and the regulation of how much of that mixture enters the engine. An EFI throttle body, however, performs a more focused role. It primarily controls the volume of air entering the engine, much like a traditional throttle valve. The crucial difference lies in how the fuel is delivered. In an EFI system, fuel is precisely metered and injected directly into the intake manifold or even the combustion chamber by fuel injectors, orchestrated by an Electronic Control Unit (ECU).

When you opt for an MSD EFI throttle body conversion kit, you're essentially replacing your old carburettor with a sophisticated EFI system. The kit typically includes the throttle body itself, an ECU to manage the entire process, wiring harnesses, sensors (like a coolant temperature sensor), a fuel pump, fuel lines, and a handheld monitor for tuning and diagnostics. This comprehensive package allows for a complete transition from carburettion to a more efficient and responsive fuel delivery method.

Why Convert to Electronic Fuel Injection? The Advantages Over Carburettors

The move from a carburettor to EFI, particularly with a quality kit like MSD's, offers a wealth of improvements that significantly enhance the driving experience. Let's break down the key benefits:

1. Improved Performance

EFI systems deliver a much more precise air-fuel mixture to the engine under all operating conditions. This means that whether you're cruising at low speeds, accelerating hard, or idling, your engine receives the optimal amount of fuel. The result? Increased horsepower, better torque delivery, and a more responsive throttle. Unlike carburetors, which can be finicky with changes in altitude or temperature, EFI automatically adjusts, ensuring consistent performance.

2. Easier Startups

Cold starts with a carburettor can sometimes be a challenge, often requiring manual choking and a bit of coaxing. EFI systems, with their precise fuel control and temperature sensors, make cold starts a breeze. The system automatically enriches the mixture when the engine is cold, leading to quick and effortless ignition, every time. This means less time spent fiddling and more time enjoying your drive.

3. Modern Technology and Reliability

Carburettors are a tried-and-tested technology, but they are inherently mechanical and prone to wear and tear. EFI, on the other hand, is a sophisticated electronic system. This translates to greater long-term reliability. There are fewer moving parts to wear out, and the electronic control means less need for manual adjustments. The self-tuning capabilities of systems like the MSD Atomic EFI kit further enhance this, as the system learns and adapts to your specific engine's needs.

4. Less Hassle and More Convenience

One of the most significant advantages of EFI is the "set it and forget it" aspect. Carburettors often require periodic tuning and adjustment to compensate for atmospheric changes or wear. EFI systems, equipped with oxygen sensors, constantly monitor the exhaust gases and make real-time adjustments to the fuel delivery. This means no more fiddling with idle screws or adjusting jets when the weather changes. It’s a much more hands-off and user-friendly experience.

The MSD Atomic EFI Conversion Master Kit: A Closer Look

The MSD kit, specifically the (2900) Atomic Electronic Fuel Injection Conversion Master Kit, is designed to make the transition as straightforward as possible. Let's examine what it offers:

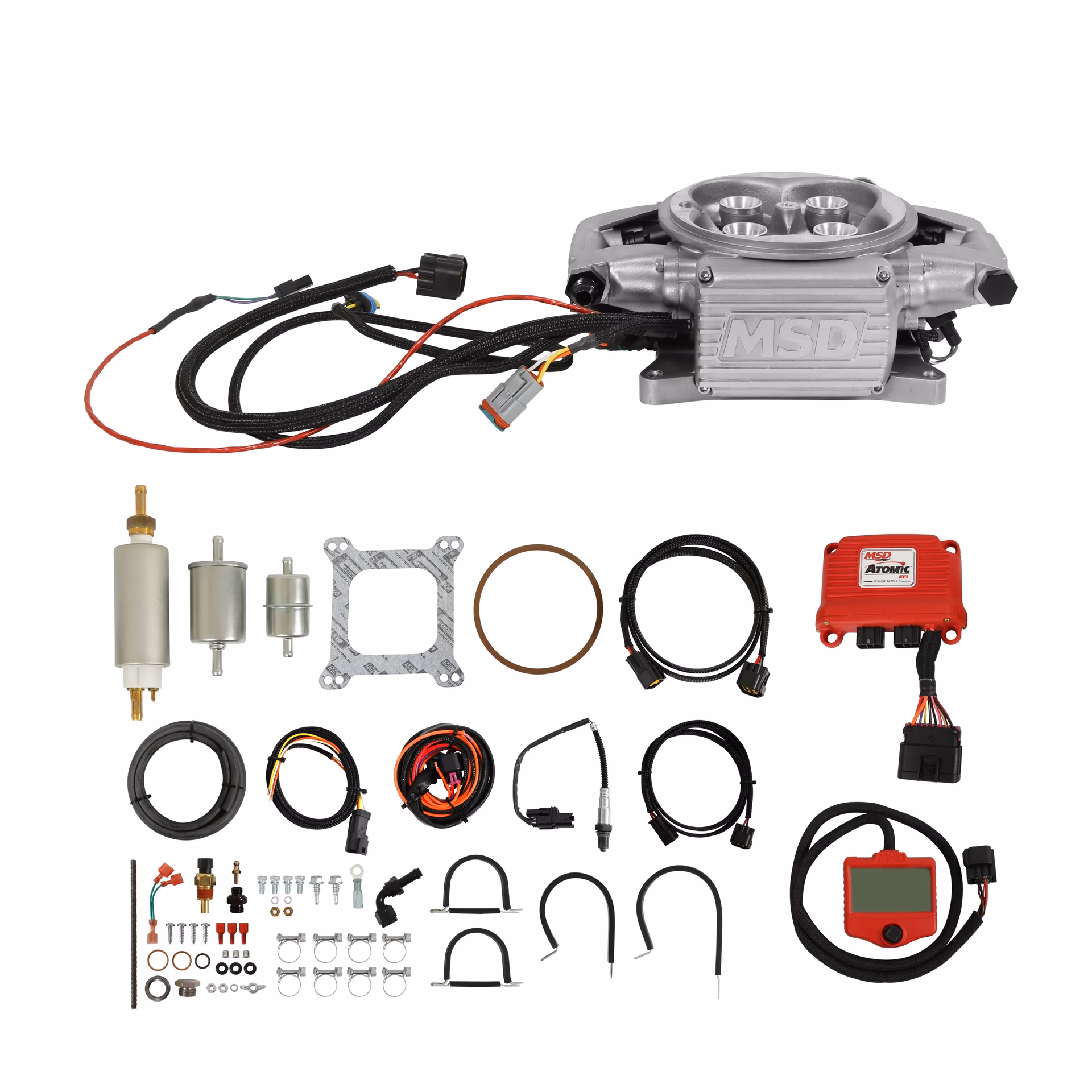

What's Included in the Kit?

A truly comprehensive package, the MSD kit typically includes:

• Throttle Body: The primary component that replaces your carburettor and controls airflow.
• ECU (Engine Control Unit): The brain of the operation, managing fuel injection and ignition timing.
• Throttle Body Harness: Connects the throttle body to the ECU.
• Power Module: Works in conjunction with the ECU and often houses the Wide Band O2 sensor.
• Power Module Harness: Connects the power module to the ECU and other components.
• Handheld Monitor: A user-friendly device for initial setup, monitoring engine parameters, and making adjustments.
• Coolant Temperature Sensor: Provides vital information to the ECU about engine temperature for optimal fuel delivery.
• Fuel Pump: A high-performance pump to supply the necessary fuel pressure.
• Fuel Line: Plumbing to connect the fuel system components.

Key Features and Benefits of the MSD Kit

• Complete Kit: Everything you need for the conversion is in one box, simplifying the purchasing process.
• CARB Approved (D-722): This is a significant advantage, especially for residents in California or other areas with strict emissions regulations. It means the system meets specific emissions standards.
• 8 Simple Connections: MSD has engineered the system for ease of installation, requiring only a few key electrical connections.
• Single Fuel Line: Simplifies plumbing compared to older return-style EFI systems.
• Supports 100-525 Horsepower at the Crank: This broad range makes the kit suitable for a wide variety of engine builds, from mild to moderately powerful.
• Self-Tuning: The system automatically calibrates itself based on initial setup questions and real-time sensor data, eliminating the need for a laptop for basic operation.
• No Laptop Required: While advanced tuning might be possible with a laptop, the core functionality and setup are designed to be managed via the handheld monitor, making it accessible for DIYers.

Product Fitment: What Vehicles Can Benefit?

The MSD Atomic EFI Conversion Master Kit is specifically designed for a range of popular classic American vehicles equipped with carburettors, including:

• Ford Mustangs: 1965-1985
• Ford Broncos: 1966-1977
• Ford F100s: 1957-1979
• Chevrolet C10s: 1960-1987

This broad fitment ensures that many classic truck and car owners can take advantage of this technology. The kit is applicable to vehicles manufactured up to 1987 that originally came with a carburettor.

Installation and Setup: What to Expect

MSD has prioritised user-friendliness in their EFI conversion kits. The installation process involves replacing the carburettor with the new throttle body, installing the fuel pump and lines, and making the electrical connections. With only eight main connections required, the wiring is significantly less daunting than some other aftermarket EFI systems. Once installed, the initial setup on the handheld monitor takes approximately 5 minutes. You'll be prompted to answer a few basic questions about your engine (such as displacement, camshaft type, and desired idle RPM), and the system will then begin its self-tuning process.

Initial Setup vs. Ongoing Monitoring

The handheld monitor isn't just for setup; it serves as your engine's dashboard. You can monitor vital parameters like air-fuel ratio, engine RPM, coolant temperature, and manifold absolute pressure (MAP). This allows you to keep an eye on your engine's health and performance and make minor adjustments if necessary, all without needing to connect a computer. This accessibility is a major selling point for those who prefer a more straightforward approach to engine management.

MSD's Reputation: Quality and Performance

MSD has built a strong reputation in the automotive performance industry for producing high-quality, reliable, and performance-enhancing components. Their commitment to innovation and customer satisfaction is evident in their EFI conversion kits. When you choose an MSD product, you're investing in a system developed by a company with decades of experience in ignition and fuel systems.

Comparing EFI to Carburettors: A Summary Table

To further illustrate the advantages, here's a quick comparison:

Frequently Asked Questions (FAQs)

Q1: Is this kit difficult to install for a DIYer?
MSD has designed this kit with ease of installation in mind, featuring only 8 simple electrical connections and a straightforward setup process managed by the handheld monitor. While any automotive work requires care, this kit is considered one of the more accessible EFI conversions on the market.

Q2: Will I need a laptop to tune the system?
No, the MSD Atomic EFI system is self-tuning and can be monitored and managed via the included handheld device. You won't require a laptop for basic operation and setup.

Q3: Can this system handle more aggressive engine modifications?
The kit supports 100-525 horsepower, which covers a wide range of performance levels. For significantly higher horsepower applications or highly custom builds, you might consider more advanced EFI systems or specific tuning by a professional.

Q4: Does the kit include a new fuel tank?
No, this kit typically replaces your carburettor and fuel lines but assumes you have a suitable fuel tank. You will need to ensure your existing fuel tank is clean and compatible or consider an upgrade if necessary.

Q5: What is the CARB approval for?
CARB (California Air Resources Board) approval signifies that the system has met specific emissions standards set by California. This is crucial for vehicle registration and legality in states that follow California's emissions regulations.

Conclusion: Embrace Modern Performance

Converting your classic vehicle from a carburettor to an Electronic Fuel Injection system, particularly with a comprehensive and user-friendly kit like the MSD Atomic EFI Conversion Master Kit, is a significant upgrade. You'll experience enhanced performance, improved reliability, easier starting, and a more enjoyable driving experience overall. If you're looking to unlock the full potential of your classic Mustang, Bronco, or F-100 and want a hassle-free, modern solution, an MSD EFI throttle body conversion is an excellent choice. It’s a way to blend the timeless appeal of your classic with the efficiency and power of modern automotive technology.
