The Essential Guide to MOT Type 1 Crushed Stone

In the world of construction and landscaping, certain materials form the unsung heroes, silently underpinning the durability and longevity of our most vital structures. Among these, MOT Type 1 crushed stone stands out as a fundamental and indispensable aggregate. Often referred to simply as 'Type 1', this material is far more than just a pile of rocks; it's a meticulously engineered sub-base designed to provide exceptional stability and drainage for a vast array of applications, from humble garden paths to heavily trafficked roadways.

Understanding what MOT Type 1 is, why it's so widely specified, and its critical role in construction projects is essential for anyone embarking on a building or landscaping endeavour. Whether you're a homeowner planning a new driveway, a sole trader laying a patio, or a developer constructing a new road, selecting the correct sub-base material is paramount to the success and longevity of your project. This comprehensive guide will delve into the specifics of MOT Type 1, exploring its composition, benefits, common uses, and how it compares to other aggregates, ensuring you're well-equipped to make informed decisions for your next build.

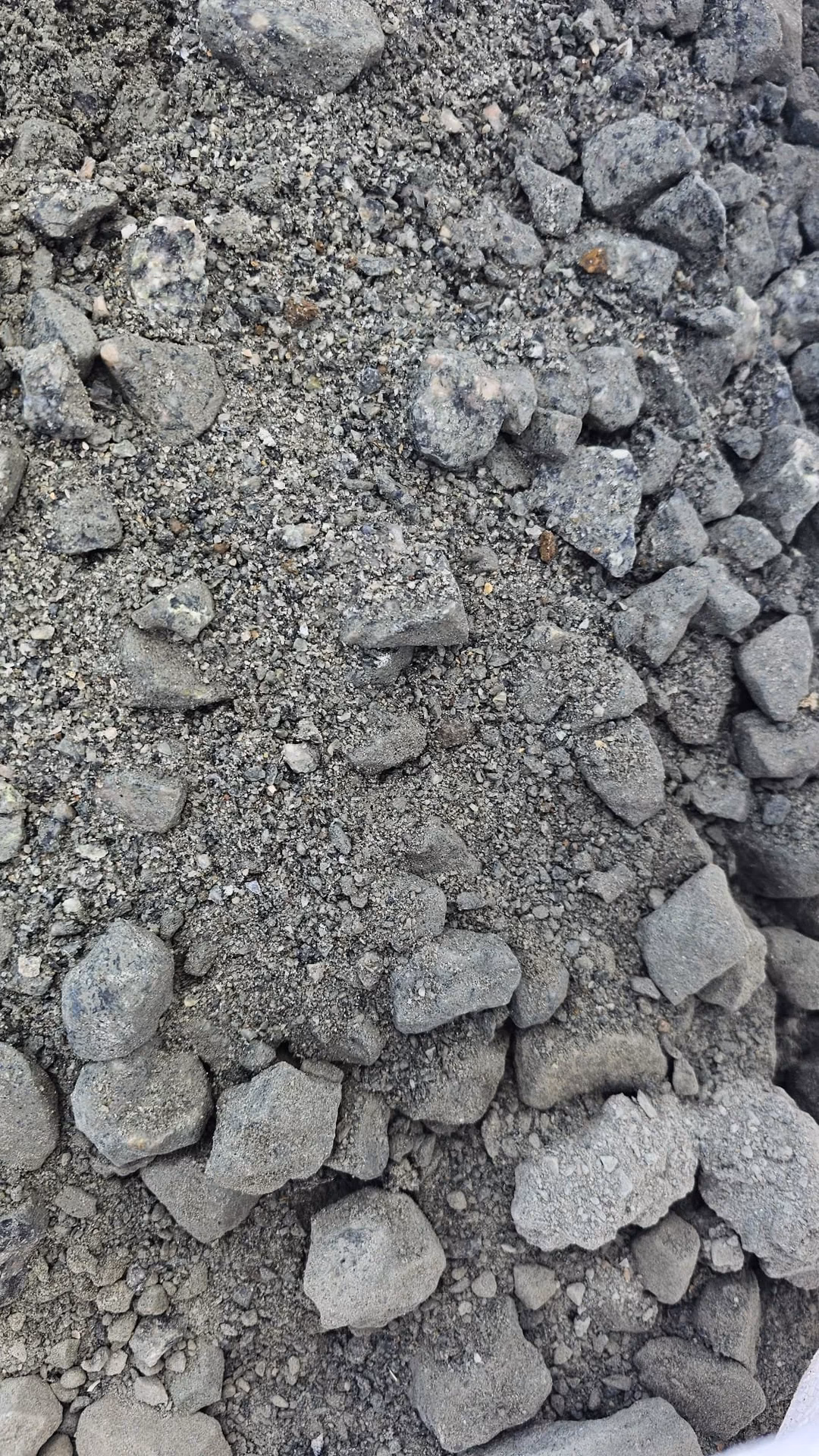

What Exactly is MOT Type 1 Crushed Stone?

MOT Type 1 is a high-quality granular material, typically made from crushed granite, limestone, basalt, or a blend of other hard, durable rocks. The 'MOT' in its name refers to the Ministry of Transport, indicating that the material meets a stringent specification set by the Department for Transport for use as a sub-base in road construction. This specification ensures a consistent standard of quality, grading, and performance, making it suitable for applications where load-bearing capacity and stability are critical.

The key characteristic of MOT Type 1 is its specific grading. It's a 'well-graded' aggregate, meaning it contains a carefully controlled mix of particle sizes, from fine dust up to larger stones (typically 40mm down to dust). This range of sizes allows the aggregate to interlock tightly when compacted, creating a dense, stable, and strong sub-base with excellent load-spreading capabilities. The angular nature of the crushed stone, as opposed to rounded gravel, further enhances this interlocking effect, preventing movement and settlement over time.

The Significance of the 'MOT' Specification

The Ministry of Transport specification, now largely overseen by Highways England in the UK, is not merely a formality; it's a guarantee of performance. When an aggregate is certified as MOT Type 1, it means it has undergone rigorous testing and meets specific criteria for:

• Particle Size Distribution: Ensuring the correct blend of fines and coarser materials for optimal compaction and stability.
• Strength and Durability: The parent rock must be robust enough to withstand significant loads and environmental stresses without breaking down.
• Cleanliness: Minimal organic matter or contaminants that could compromise performance.
• Frost Susceptibility: Resistance to damage from freeze-thaw cycles, which can be particularly destructive in sub-bases.
• Compaction Characteristics: The ability to achieve a high degree of compaction, which is vital for preventing future settlement.

Adhering to this specification ensures that the sub-base will perform as expected, providing a reliable and long-lasting foundation for whatever is laid above it. For critical applications like public roads, the use of MOT Type 1 is often mandatory due to these stringent quality controls.

Key Characteristics and Unrivalled Benefits

The popularity and widespread use of MOT Type 1 stem directly from its exceptional characteristics and the numerous benefits it offers to construction projects:

• Superior Load-Bearing Capacity: Thanks to its dense, interlocking structure, MOT Type 1 can distribute heavy loads evenly, preventing localised stress points and ensuring the stability of the surface above. This makes it ideal for areas subject to vehicular traffic.
• Excellent Drainage Properties: While it compacts tightly, the specific grading allows for efficient water percolation, preventing water from accumulating beneath the surface. This is crucial for preventing frost heave in winter and maintaining the integrity of the base.
• Outstanding Compaction: The mix of particle sizes allows for very high levels of compaction, creating an extremely stable and virtually unyielding base. Proper compaction is key to preventing future subsidence and cracking in the overlying surface.
• Versatility: Its robust nature and reliable performance make it suitable for an incredibly diverse range of applications, from small domestic projects to large-scale infrastructure.
• Durability and Longevity: Once correctly laid and compacted, an MOT Type 1 sub-base is incredibly durable, resisting degradation over time even under heavy use and varying weather conditions. This significantly extends the lifespan of the entire structure.
• Cost-Effectiveness: While not the cheapest aggregate per tonne, its superior performance often leads to long-term savings by reducing the need for repairs or early replacement of the finished surface.

Common Applications of MOT Type 1

MOT Type 1 is the go-to material for any project requiring a stable, well-draining, and robust sub-base. Its applications are extensive and varied:

• Driveways and Car Parks: It forms the essential foundation for both domestic driveways and commercial car parks, providing the strength needed to support vehicle weight without rutting or sinking.
• Roads and Highways: As its name suggests, it's a primary material for the sub-base layer of public roads, ensuring their structural integrity and longevity.
• Patios and Pathways: For paved areas around homes and in gardens, Type 1 provides a stable, non-moving base that prevents pavers from shifting or sinking.
• Building Foundations: Often used as a blinding layer or compactable fill beneath concrete slabs or ground beams, providing a firm and level base.
• Hard Standings: Ideal for creating stable areas for sheds, greenhouses, or temporary structures.
• Sports Pitches and Arenas: Can be used as a base layer for synthetic sports surfaces where good drainage and a firm base are required.

Primary vs. Secondary Aggregates: An Environmental Consideration

When sourcing aggregates, it's important to distinguish between primary and secondary materials, especially if environmental sustainability is a key concern. Shaw Haulage, for instance, offers both, providing choice and flexibility.

Secondary aggregates, such as those recycled from muckaway and land restoration projects, offer a fantastic environmentally friendly alternative. When processed to meet the MOT Type 1 specification, they provide comparable performance while significantly reducing the environmental impact associated with new quarrying. For many projects, especially domestic ones, recycled MOT Type 1 is an excellent and sustainable choice.

Laying Your MOT Type 1 Sub-Base: A Brief Overview

While this article focuses on the material itself, it's worth noting that proper installation is crucial for MOT Type 1 to perform optimally. The general process involves:

1. Excavation: Digging out the area to the required depth, ensuring a stable and level formation.
2. Geotextile Membrane: Often laid down to prevent the sub-base from mixing with the underlying soil and to aid drainage.
3. Laying the Aggregate: Spreading the MOT Type 1 evenly across the prepared area, typically in layers of no more than 100-150mm.
4. Compaction: This is perhaps the most critical step. Each layer must be thoroughly compacted using a plate compactor or roller to achieve maximum density and stability. This process expels air and locks the particles together, creating a solid, unyielding base.

Failure to adequately compact the MOT Type 1 will result in an unstable base prone to settlement, which can lead to cracks or unevenness in your finished surface.

Choosing Your Aggregate Supplier

When it comes to sourcing MOT Type 1, the choice of supplier can significantly impact your project's success. Look for a company with a strong track record, like Shaw Haulage in Kent, who boasts over 20 years of industry experience. Key considerations include:

• Quality Assurance: Ensure the supplier provides materials that genuinely meet the MOT Type 1 specification.
• Quantity Flexibility: Whether you need a single tonne for a small project or multiple loads for a large development, a good supplier will accommodate your needs.
• Delivery Options: Services like grab hire vehicles, with their large capacities and mechanical arms, make the delivery and offloading of heavy aggregates incredibly efficient and hassle-free, delivering directly to your site or doorstep.
• Competitive Pricing: While quality should never be compromised, competitive pricing ensures your project remains within budget.
• Customer Service: A knowledgeable team can help you determine the right quantity and type of aggregate for your specific requirements.

Frequently Asked Questions About MOT Type 1

How much MOT Type 1 do I need for my project?

The quantity required depends on the area of your project and the desired depth of your sub-base. As a general rule, MOT Type 1 is often laid at depths ranging from 100mm for light traffic areas (like patios) to 300mm or more for heavy-duty roads. Many aggregate suppliers offer online material calculators to help you accurately estimate your needs, taking into account the area (length x width) and desired depth.

Can MOT Type 1 be used for drainage?

While MOT Type 1 has excellent drainage properties due to its grading, it's primarily a sub-base material for load-bearing. For dedicated drainage layers, other aggregates like clean gravel or permeable aggregates might be more suitable, as they offer higher void ratios for water flow. However, as part of a well-designed sub-base, it certainly contributes to effective water management.

What's the difference between MOT Type 1 and general hardcore?

General hardcore is a much broader term referring to inert, hard, broken materials like rubble, broken concrete, or bricks. Unlike MOT Type 1, hardcore is not typically graded to a specific standard and can vary significantly in size and composition. While it can be used for bulk filling, it doesn't offer the same consistent load-bearing strength, compaction capabilities, or drainage properties as the precisely graded MOT Type 1. For any application requiring a stable, engineered sub-base, MOT Type 1 is always the superior choice.

How deep should my MOT Type 1 sub-base be?

The ideal depth depends entirely on the intended use and the expected load. For a pedestrian path or light patio, 100-150mm might suffice. For a domestic driveway, 150-200mm is commonly recommended. For roads or areas with heavy vehicle traffic, depths of 250-400mm or more are often specified to ensure adequate support and longevity.

Is MOT Type 1 permeable?

Yes, MOT Type 1 is considered permeable. Its specific grading allows water to drain through it, preventing saturation and hydrostatic pressure build-up. This characteristic is vital for preventing issues like frost heave and ensuring the stability of the overlying surface.

Can I lay paving directly on MOT Type 1?

While MOT Type 1 provides an excellent stable sub-base, you should not lay paving directly onto it. A layer of bedding material, typically sharp sand or a permeable bedding mortar, is required on top of the compacted MOT Type 1. This bedding layer allows for fine adjustments to the paving levels and provides a consistent, smooth surface for the pavers to sit on, ensuring proper alignment and preventing direct point loading on the aggregate.

Conclusion

MOT Type 1 crushed stone is unequivocally a cornerstone of modern construction. Its unique combination of precise grading, exceptional strength, and reliable drainage makes it the ultimate sub-base material for a vast array of projects. From the smallest garden path to the busiest motorway, the integrity and longevity of the finished surface often hinge on the quality and correct installation of its MOT Type 1 foundation. By choosing a reputable supplier and understanding the critical role this aggregate plays, you can ensure your project benefits from a stable, durable, and long-lasting base, truly building for the future.
