MOT Type 1 Sub Base: Your Foundation for Success

When embarking on any construction project, be it a new driveway, a sturdy patio, or even a public road, the foundation beneath the surface is paramount. It’s the unsung hero that dictates the longevity, stability, and overall performance of your finished work. In the United Kingdom, one material stands out as the gold standard for creating such a robust base: MOT Type 1 Sub Base. This comprehensive guide will delve into what MOT Type 1 is, why it's indispensable, and how it contributes to the success of countless construction endeavours.

What Exactly is MOT Type 1 Sub Base?

MOT Type 1 Sub Base is a high-quality, granular aggregate material that is widely used in construction as a foundational layer. The 'MOT' in its name historically refers to the Ministry of Transport, indicating that the material meets stringent specifications set by them, primarily for use in highways and roads. Today, it signifies compliance with the 'Specification for Highway Works' (SHW), ensuring a consistent and reliable product.

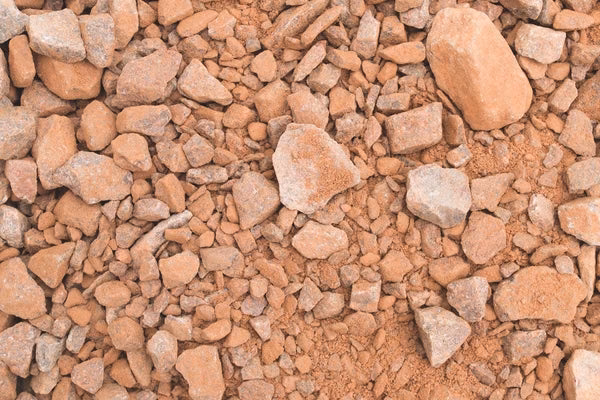

This material is typically composed of crushed rock, such as granite, limestone, or basalt, but can also include recycled materials like crushed concrete or asphalt, provided they meet the exacting standards. The defining characteristic of MOT Type 1 is its specific grading: it's an 'all-in' aggregate with particle sizes ranging from 0mm to 40mm. This particular grading is crucial because it allows the material to compact extremely well, creating a dense, stable, and load-bearing layer with minimal voids. The fine particles fill the gaps between the larger ones, ensuring a tightly interlocked structure once compacted. This unique composition is what gives MOT Type 1 its superior strength and resilience.

Why Choose MOT Type 1 for Your Project?

The choice of sub base material is critical, and MOT Type 1 is often the preferred option for a multitude of reasons, especially where strength and durability are non-negotiable. Its benefits are numerous and directly impact the success and longevity of any surface laid above it.

• Exceptional Stability and Load-Bearing Capacity: Due to its excellent compaction properties and interlocking aggregate structure, MOT Type 1 creates an incredibly stable base. This stability is vital for distributing weight evenly across the entire surface, preventing localised sinking, rutting, or cracking of the overlying layers, particularly under heavy traffic or significant loads.
• Superior Drainage Properties: While tightly compacted, the graded nature of MOT Type 1 still allows for effective water drainage. This is crucial for preventing water from accumulating beneath the surface, which can lead to problems like frost heave (where water freezes, expands, and damages the surface) or general waterlogging. Good drainage contributes significantly to the long-term durability of the surface.
• Reduced Risk of Subsidence: By providing a firm and stable foundation, MOT Type 1 drastically reduces the risk of subsidence, where parts of the ground sink over time. This ensures that your driveway, road, or patio remains level and structurally sound for many years.
• Versatility: Its robust characteristics make it suitable for a wide array of applications, from domestic driveways and garden patios to major public roads, car parks, and industrial hardstandings.
• Cost-Effectiveness in the Long Run: Although the initial cost might be slightly higher than some lesser-quality aggregates, the long-term benefits of using MOT Type 1 – reduced maintenance, extended lifespan of the surface, and prevention of costly repairs – make it a highly cost-effective choice.

Understanding the Granular Structure

The effectiveness of MOT Type 1 largely stems from its 'all-in' granular structure. Unlike single-sized aggregates, which have uniform particle sizes and thus more voids, MOT Type 1 contains a blend of particles from dust-fine up to 40mm. When this material is laid and subjected to mechanical compaction using a vibrating plate compactor or roller, these varied particle sizes interlock tightly. The smaller particles effectively fill the spaces between the larger ones, creating a dense, almost impermeable layer that is incredibly stable. This interlocking action is what allows the sub base to distribute applied loads over a wider area, thereby reducing the stress on the underlying ground and the overlying surface material.

MOT Type 1 vs. Other Sub Base Materials

While MOT Type 1 is a premium choice, it's not the only sub base material available. Understanding the differences between various aggregates is key to selecting the right one for your specific project. Here's a comparison with some common alternatives:

As the table illustrates, while other materials have their place, none offer the comprehensive blend of strength, stability, and drainage that MOT Type 1 provides for demanding applications.

The Installation Process: Laying a Solid Foundation

Proper installation of an MOT Type 1 sub base is just as important as the quality of the material itself. A poorly laid base will compromise the entire structure, regardless of the quality of the top surface. Here's a brief overview of the key steps:

1. Excavation: The first step involves excavating the area to the required depth, ensuring a firm and level sub-grade (the natural ground beneath the sub base). The depth will vary depending on the intended use and expected loads.
2. Geotextile Membrane: It's highly recommended to lay a geotextile membrane (also known as a weed membrane or ground stabilisation fabric) over the excavated area. This prevents the sub base from mixing with the underlying soil, improves stability, and acts as a weed barrier.
3. Laying the Sub Base: The MOT Type 1 material should be laid in layers, typically 100mm to 150mm 'lifts' (layers). Spreading it evenly is crucial for consistent compaction.
4. Compaction: This is arguably the most critical step. Each layer must be thoroughly compacted using appropriate machinery – a vibrating plate compactor (often called a 'wacker plate') for smaller areas, or a roller for larger projects. Proper compaction ensures maximum density and stability. It's often beneficial to slightly dampen the material before compaction, as this can aid in achieving optimal density.
5. Levelling: Throughout the process, regularly check the levels to ensure the sub base is uniform and meets the required gradients for drainage and surface finish.

Ensuring Quality and Compliance

For any significant project, ensuring that the MOT Type 1 sub base meets the required British Standards and specifications is paramount. Reputable suppliers will provide material that adheres to the 'Specification for Highway Works' (SHW) Series 800, which outlines the precise requirements for granular materials used in road construction. This adherence guarantees that the material has the correct grading, composition, and performance characteristics needed for a durable and long-lasting base.

Frequently Asked Questions About MOT Type 1 Sub Base

What does "MOT" stand for in MOT Type 1?

Historically, "MOT" stood for the Ministry of Transport. While the Ministry of Transport as a separate entity no longer exists in the same form, the term "MOT Type 1" has persisted as a widely recognised industry standard. It signifies that the material meets the strict specifications for granular sub bases as outlined in the current 'Specification for Highway Works' (SHW) for use on public roads and other demanding applications.

Is MOT Type 1 suitable for heavy traffic areas?

Absolutely. MOT Type 1 is specifically designed and graded to provide a highly stable and load-bearing foundation capable of withstanding heavy traffic loads, making it ideal for driveways, car parks, industrial yards, and public roads where vehicles of all sizes will be present.

How deep should my MOT Type 1 sub base be?

The required depth of your MOT Type 1 sub base depends heavily on the intended use and the expected load. As a general guide:

• Light footpaths/patios: 100-150mm
• Domestic driveways (cars): 150-200mm
• Heavy-duty driveways/light commercial areas: 200-300mm
• Public roads/heavy commercial areas: 300mm or more, often specified by engineers.

Always consult with a professional or structural engineer for precise depth recommendations for your specific project.

Can I use MOT Type 1 for drainage?

While MOT Type 1 has excellent drainage properties due to its graded nature allowing water to pass through, it is primarily a structural material designed for compaction and load bearing. It is not a substitute for dedicated drainage systems like French drains or permeable pipework. However, its ability to prevent water accumulation beneath the surface significantly contributes to the longevity and stability of the overlying surface.

How much MOT Type 1 do I need?

To calculate the amount of MOT Type 1 you need, you'll first determine the volume required. Measure the length, width, and desired depth of your area in metres. Multiply these three figures together to get the volume in cubic metres (m³). For example, a driveway 10m long, 4m wide, and 0.2m (200mm) deep would require 10 x 4 x 0.2 = 8m³. It's advisable to add an extra 10-20% to your calculation to account for compaction and any wastage, as the material will compact down to a denser volume. So, for 8m³, you might order 9-9.6m³.

Conclusion

MOT Type 1 Sub Base is far more than just a pile of crushed rock; it is the fundamental building block for any durable and long-lasting surface. Its unique graded composition, exceptional compaction capabilities, and superior load-bearing strength make it the preferred choice for a vast range of construction projects across the UK. By understanding its properties and ensuring proper installation, you are laying not just a sub base, but the very foundation for success, guaranteeing a robust and resilient surface that will stand the test of time.
