P0051 Code: Unravelling Your Check Engine Light

When that dreaded Check Engine Light illuminates on your dashboard, it often brings a wave of anxiety. While it can signify a myriad of issues, understanding the specific diagnostic trouble code (DTC) can empower you to tackle the problem head-on. One such code you might encounter is P0051. This guide aims to demystify the P0051 code, providing you with a thorough understanding of what it means, its implications for your vehicle, and a practical approach to diagnosis and repair.

The P0051 code is a common signal indicating a problem with your vehicle's oxygen sensor, a crucial component for managing your engine's fuel efficiency and emissions. Ignoring this warning could lead to more significant issues down the line, affecting your car's performance and potentially leading to costly repairs. Let's delve deeper into the specifics of P0051, ensuring you're well-equipped to address this automotive concern.

What Exactly is a P0051 DTC Trouble Code?

A P0051 DTC trouble code is officially defined as HO2S Heated O2 Sensor Control Circuit Low (Bank 2 Sensor 1). To break this down, let's look at the key components:

• HO2S: This stands for Heated Oxygen Sensor. Modern oxygen sensors are equipped with a heating element that helps them reach operating temperature quickly. This is vital because the sensor needs to be hot to provide accurate readings to the Engine Control Module (ECM) or computer.
• Control Circuit Low: This indicates that the ECM has detected a lower-than-expected voltage within the heater control circuit of the specified oxygen sensor. Essentially, the heating element isn't getting enough power to function correctly.
• Bank 2 Sensor 1: This pinpoints the exact location of the problematic sensor. In engines with multiple cylinder banks (V6, V8, etc.), Bank 1 is always the side of the engine that contains cylinder #1. Therefore, Bank 2 is the side of the engine that does not contain cylinder #1. Sensor 1 refers to the upstream oxygen sensor, which is located before the catalytic converter. There's also a Sensor 2, which is downstream, located behind the converter. So, P0051 specifically points to the oxygen sensor on Bank 2, positioned in front of the catalytic converter.

The primary function of the heated oxygen sensor is to monitor the oxygen content in the exhaust gases. This information is then sent to the ECM, which uses it to adjust the fuel-air mixture for optimal combustion. When the heater circuit voltage is low, the sensor takes longer to warm up, delaying its ability to provide accurate data. This delay can lead to inefficient engine operation and increased emissions.

Recognising the Symptoms of a P0051 Error Code

Your vehicle is designed to communicate problems through various signals, and a P0051 code is no exception. While the underlying issue is internal, there are several noticeable symptoms that can alert you to this specific problem. It's important to note that these symptoms are largely consistent across different vehicle makes and models, whether you drive a Nissan, Infiniti, Lexus, or Dodge.

The most common and immediate symptom you will observe is the illumination of the Check Engine Light on your dashboard. This light is your car's primary warning system for a wide array of engine and emissions-related issues, and its appearance should always prompt further investigation.

Beyond the warning light, you might also experience:

• Reduced Fuel Economy: Since the oxygen sensor plays a critical role in optimising the fuel-air mixture, a malfunctioning heater circuit can lead to the ECM making less accurate fuel delivery decisions. This often results in the engine running a richer (more fuel) mixture than necessary, directly translating to more frequent trips to the petrol station and higher running costs.
• The Vehicle's Engine Runs Rough: An improper fuel-air mixture can also manifest as noticeable changes in engine performance. You might experience the engine running less smoothly than usual, perhaps with slight hesitations, misfires, or a generally rough idle. While these symptoms might be subtle initially, they can worsen over time as the ECM struggles to compensate for the inaccurate sensor readings.

If you notice any combination of these symptoms, it's highly advisable to consult a qualified auto mechanic or address the issue yourself if you have the necessary tools and expertise. Timely intervention can prevent the problem from escalating.

Common Causes Behind the P0051 Error Code

The appearance of a P0051 code is not random; it stems from specific electrical or component failures within your vehicle's oxygen sensor system. Understanding these causes is crucial for accurate diagnosis and effective repair. Just like the symptoms, the causes of a P0051 code are generally consistent across various vehicle manufacturers.

Here are the most common culprits:

1. Blown or Defective Heater Circuit Fuse: The heater element within the oxygen sensor relies on a dedicated fuse for protection. If this fuse blows, the circuit loses power, leading to the "low voltage" detection by the ECM. A defective fuse, even if not fully blown, could also cause intermittent power issues.
2. Bank 2 Sensor 1 Failure: While the code specifically points to a low voltage in the heater circuit, the oxygen sensor itself can be defective. The heating element inside the sensor might have failed internally, preventing it from drawing power correctly, even if the fuse and wiring are intact.
3. Faulty or Poor Heater Circuit Connection or Wiring: The electrical wiring connecting the ECM to the oxygen sensor's heater element is susceptible to damage. This could include frayed wires, corroded connectors, loose terminals, or even short circuits. Any of these issues can disrupt the flow of power, resulting in a low voltage reading.
4. Defective Heated O2 Sensor: This is closely related to "Bank 2 Sensor 1 failure" but specifically highlights the internal heating element. Over time, due to heat cycles and vibrations, the heating element within the sensor can simply wear out or break, rendering it incapable of heating the sensor effectively.
5. Bad Engine Control Module (ECM): While less common, a faulty ECM can sometimes be the root cause. If the ECM itself is unable to correctly supply power to the oxygen sensor's heater circuit, or if its internal voltage monitoring system is compromised, it could incorrectly trigger a P0051 code. This is usually diagnosed after all other, more common, causes have been ruled out.

A thorough diagnostic process, as detailed later, will help pinpoint which of these causes is responsible for the P0051 code in your specific vehicle.

How Serious is the P0051 Error Code?

When the P0051 code displays, it's natural to wonder about the urgency and potential severity of the problem. Initially, a P0051 code may not immediately prevent your engine from running, and your vehicle might appear to function relatively normally, aside from the illuminated Check Engine Light and perhaps subtle performance issues. However, it is crucial not to underestimate its potential long-term impact.

The immediate symptoms, such as reduced fuel economy and a slightly rough-running engine, might seem manageable. You might be tempted to postpone addressing the issue. However, neglecting a P0051 code can lead to a cascade of more complicated and potentially severe problems. The oxygen sensor's primary role is to ensure optimal air-fuel mixture for efficient combustion and reduced emissions. When its heater circuit is faulty, the sensor cannot reach its operating temperature quickly enough, leading to inaccurate readings or delayed feedback to the ECM.

This prolonged inaccuracy forces the ECM to operate in a 'limp mode' or use default settings, which are often richer in fuel to prevent engine damage. This not only wastes fuel but can also cause:

• Increased Emissions: An improperly controlled air-fuel mixture can lead to higher levels of harmful pollutants being expelled from your exhaust, potentially causing your vehicle to fail emissions tests.
• Damage to the Catalytic Converter: Running a consistently rich fuel mixture can introduce unburnt fuel into the catalytic converter. The converter is designed to burn off residual pollutants, but excessive unburnt fuel can overheat and damage its internal structure, leading to an extremely costly replacement. A new catalytic converter can easily cost hundreds, if not thousands, of pounds.
• Further Engine Performance Degradation: Over time, the engine's performance may worsen beyond just rough running, potentially leading to noticeable power loss or more frequent misfires.

Therefore, while a P0051 code might not immediately strand you on the side of the road, it is a clear indicator of an underlying issue that demands prompt attention. Addressing it early can save you significant repair costs and prevent more serious damage to vital parts of your vehicle's engine and exhaust system.

Common Mistakes in P0051 Diagnosis

For many car owners, especially those new to DIY car maintenance, diagnosing a P0051 code can lead to a common, yet avoidable, mistake. The most frequent misstep is the premature replacement of the heated oxygen sensor without conducting a thorough diagnostic process first.

Seeing an oxygen sensor-related code like P0051 often leads individuals to assume the sensor itself is definitively faulty. While a defective oxygen sensor is indeed a possible cause, it's not the only one. Replacing the sensor without properly inspecting the wiring and connections can result in:

• Wasted Money: If the issue lies with a blown fuse or damaged wiring, a new oxygen sensor will not resolve the problem, and you will have spent money unnecessarily on a part that was not broken.
• Continued Symptoms: The Check Engine Light will likely return, and the vehicle's symptoms will persist, leaving you back at square one and potentially more frustrated.
• Overlooking the Real Problem: Focusing solely on the sensor can cause you to miss other critical issues, such as a damaged wiring harness or a failing ECM, which require different repair strategies.

A systematic and logical diagnostic approach, starting with the simplest and most common issues before moving to component replacement, is always the most cost-effective and efficient way to resolve a P0051 code.

Essential Tools for P0051 Diagnosis

Diagnosing a P0051 error code effectively requires a few fundamental tools. Having these readily available will streamline your troubleshooting process and help you accurately pinpoint the root cause without unnecessary guesswork.

The indispensable tools for P0051 diagnosis include:

1. OBD2 Scan Tool: This is your primary interface with your vehicle's computer system. An OBD2 scanner allows you to read diagnostic trouble codes (DTCs), view live data streams, and clear the Check Engine Light after repairs. For a P0051 code, it's essential for confirming the code and checking for any accompanying codes. Basic models are affordable and widely available.
2. Multimeter: A multimeter is an incredibly versatile electrical testing device that measures voltage, current, and resistance. For P0051, it will be used to check for continuity in wiring, measure resistance in the heater circuit, and verify proper voltage supply.
3. Voltmeter: While a multimeter incorporates a voltmeter function, a dedicated voltmeter can sometimes offer more precise readings or be simpler to use for specific voltage checks. Its primary use here will be to confirm the voltage supplied to the oxygen sensor's heater circuit.

These tools, when used correctly, provide the necessary data to accurately diagnose the electrical integrity of the oxygen sensor's heater circuit and determine if the sensor itself, its wiring, or a fuse is at fault.

Diagnosing and Fixing the P0051 Error Code: A Step-by-Step Guide

For those comfortable with basic DIY automotive repairs, diagnosing and fixing a P0051 code can be a straightforward process. Follow these steps to systematically troubleshoot and resolve the issue:

Step 1: Observe for Any Other Codes

Before diving deep, connect your OBD2 scan tool to your vehicle's diagnostic port. While P0051 is your primary concern, other codes may be present, indicating additional or related problems. Record all codes detected. Once you've noted them, use the OBD2 scanner to clear the Check Engine Light. This allows you to see if P0051 immediately returns or if other issues become more prominent after a short drive cycle.

Step 2: Inspect the O2 Sensor's Wiring

Locate the Bank 2 Sensor 1 oxygen sensor. This sensor will be on the engine bank without cylinder #1 and will be positioned before the catalytic converter. Carefully inspect the wiring harness leading to the sensor. Look for any visible signs of damage, such as:

• Frayed or exposed wires.
• Melted insulation.
• Pinched or cut wires.
• Corrosion or loose connections at the sensor's electrical connector.

Animal chewing is also a common cause of wiring damage. Any found damage should be repaired properly with heat-shrink connectors or by replacing the affected section of the harness.

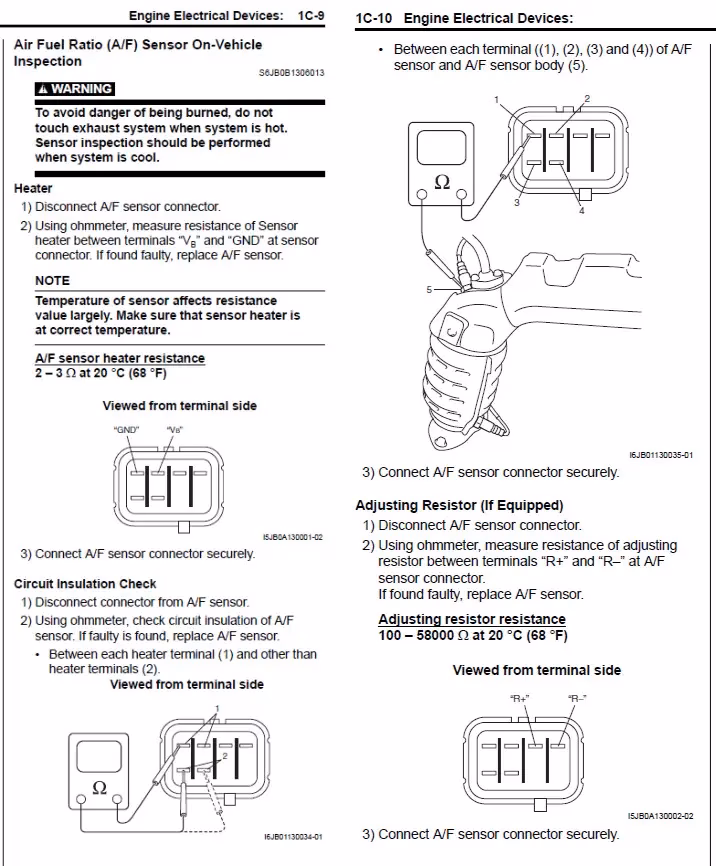

Step 3: Inspect the O2 Sensor's Heater Circuit Ground Side

With the multimeter set to measure continuity (often indicated by a beep or a low resistance reading), check the ground wire of the O2 sensor's heater circuit. You'll need a wiring diagram for your specific vehicle to identify the correct ground wire on the sensor's connector. Place one probe on the ground pin of the sensor connector and the other on a known good chassis ground point. You should see good continuity (very low resistance). If there's no continuity or high resistance, it indicates a break or poor connection in the ground circuit, which will need to be repaired.

Step 4: Check the O2 Sensor's Voltage

This is a critical step to determine if power is reaching the heater circuit. First, identify the power supply wire for the heater circuit using your vehicle's wiring diagram. Turn the ignition key to the "ON" position (do not start the engine). Using your voltmeter, measure the voltage between the power supply pin of the O2 sensor connector and a good chassis ground. You should ideally read approximately 12 volts.

• If you discover no voltage: This indicates a complete loss of power. Inspect the relevant fuse (again, consult your vehicle's manual or wiring diagram for the correct fuse location). If the fuse is blown, replace it. If the fuse is good, then the problem lies in the wiring leading from the fuse box to the sensor connector. You'll need to trace and repair this wiring.
• If the voltage is low (e.g., significantly less than 12 volts): This suggests excessive resistance somewhere in the power supply circuit. This could be due to corroded terminals, partially damaged wiring, or a faulty relay. You'll need to meticulously inspect the entire connection path for sources of high resistance.
• If 12 volts is registered on the voltmeter: This is a strong indicator that power is correctly supplied to the sensor, and the wiring and fuse are likely intact. In this scenario, the most probable cause is an internal failure of the heated O2 sensor itself, meaning the heating element within the sensor is defective. At this point, you will have to replace the O2 sensor with a new one.

Remember, addressing error codes at their initial stage is far easier and less costly than allowing them to develop into more complex problems. Timely diagnosis and repair are key to maintaining your vehicle's health.

Estimated Cost of Fixing a P0051 Error Code

The cost of resolving a P0051 error code can vary depending on the root cause, whether you perform the repair yourself, and where you source your parts. Generally, the expense comprises the cost of parts and, if applicable, labour fees from a professional mechanic.

Here's an estimated breakdown:

It's worth noting that the cost of fixing a P0051 code in a Jeep is not substantially different from fixing the same problem in a Hyundai Santa Fe, as the underlying components and diagnostic procedures are similar across most modern vehicles.

When you compare these figures to the potential cost of repairing a major engine problem, such as a damaged catalytic converter (which can easily run into thousands of pounds), the investment in addressing a P0051 code promptly is clearly worthwhile. Spending a few hundred pounds now to rectify the issue is a far more sensible approach than risking severe damage to vital parts of your vehicle later on.

Frequently Asked Questions About the P0051 Code

What does "Bank 2 Sensor 1" actually mean?

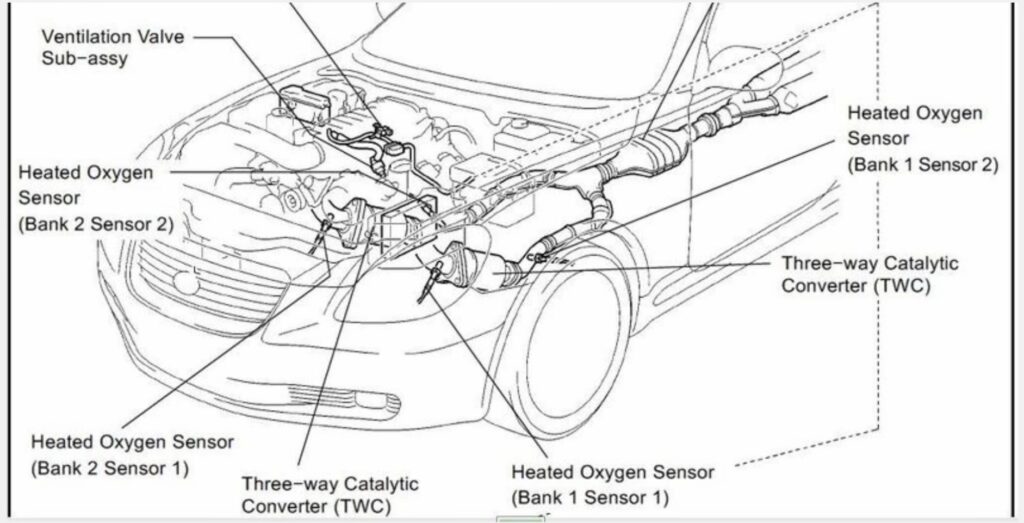

In engines with more than four cylinders, especially V-configurations (like V6 or V8), the cylinders are arranged in two 'banks'. Bank 1 is always the side of the engine that contains cylinder number one. Bank 2 is the opposite side, which does not contain cylinder number one. 'Sensor 1' refers to the upstream oxygen sensor, which is located before the catalytic converter in the exhaust stream. This sensor is crucial for measuring oxygen levels to help the Engine Control Module (ECM) adjust the air-fuel mixture for optimal combustion. Therefore, P0051 specifically points to the upstream oxygen sensor on the second bank of cylinders.

Can I continue driving my car with a P0051 code?

While a P0051 code might not immediately stop your car from running, it is not advisable to drive for an extended period with this error. The primary symptoms include reduced fuel economy and a rough-running engine. More importantly, neglecting the issue can lead to serious long-term damage, particularly to your catalytic converter, which is an expensive component to replace. It's best to address the P0051 code as soon as possible to prevent further complications and ensure your vehicle runs efficiently and safely.

Is the P0051 code always caused by a faulty oxygen sensor?

No, not always. While a defective heated O2 sensor (Bank 2 Sensor 1) is a common cause, the P0051 code specifically indicates a low voltage in the *heater control circuit*. This means the problem could also stem from a blown or defective heater circuit fuse, faulty or poor wiring/connections within the heater circuit, or, in rare cases, a problem with the Engine Control Module (ECM) itself. A thorough diagnostic process is essential to pinpoint the exact cause.

How does the heated oxygen sensor work, and why is the heater important?

Modern oxygen sensors are 'heated' because they need to reach a high temperature (around 300-600°C) to function accurately. At lower temperatures, the sensor is less effective at measuring oxygen content in the exhaust gases. The built-in heating element quickly brings the sensor up to its optimum operating temperature after the engine starts, allowing it to provide accurate feedback to the ECM much sooner. This rapid warm-up is crucial for efficient engine operation, reduced emissions, and better fuel economy, especially during cold starts. When the heater circuit has low voltage, the sensor takes longer to heat up, delaying its ability to send precise data to the ECM.

What tools do I need to diagnose a P0051 code myself?

To accurately diagnose a P0051 code, you will need a few essential tools. An OBD2 scan tool is necessary to read and clear the diagnostic trouble code. A multimeter (or a dedicated voltmeter) is crucial for testing voltage in the heater circuit, checking for continuity in the wiring, and measuring resistance. These tools will enable you to systematically troubleshoot the circuit and identify the precise point of failure.

Final Words

Encountering a P0051 error code, while concerning due to the illuminated Check Engine Light, is a manageable issue if addressed promptly. It signals a problem with the heater circuit of your Bank 2 Sensor 1 oxygen sensor, leading to symptoms like reduced fuel economy and a rough-running engine. While these symptoms might seem minor in the short term, neglecting this code can lead to more severe and costly damage, particularly to your catalytic converter.

By understanding the meaning of P0051, its potential causes, and following a systematic diagnostic approach using appropriate tools, you can effectively pinpoint and resolve the issue. Whether it's a simple fuse, damaged wiring, or a faulty sensor, timely repair is key to maintaining your vehicle's optimal performance, fuel efficiency, and emissions compliance. Treat every error code display as a matter of urgency, and you'll keep your car running smoothly for years to come.
