MOT Size and Trap Frequency: A Molecular Ballet

The Dance of Molecules: MOT Size and Trap Frequency Unveiled

The magneto-optical trap (MOT) is a cornerstone of modern atomic and molecular physics, enabling the cooling and trapping of particles to incredibly low temperatures. While atomic MOTs have been extensively studied, the extension of this technology to molecules opens up a new frontier of research, promising advancements in quantum simulation, information processing, and fundamental physics tests. This article explores a detailed experimental study of a DC MOT of CaF molecules, with a particular focus on the interplay between the physical size of the molecular cloud and the frequency at which it oscillates within the trap. Understanding this relationship is key to optimising molecular trapping and unlocking their full potential.

Understanding the Fundamentals of Molecular MOTs

A MOT operates by employing a combination of laser light and magnetic fields to cool and confine atoms or molecules. Specifically, counter-propagating laser beams, precisely tuned and crossing at the zero point of a magnetic quadrupole field, exert forces on the particles. This force is velocity-dependent, leading to cooling, and position-dependent, leading to trapping. For molecules, however, the process is significantly more complex than for atoms due to their intricate energy level structures. Molecules possess multiple vibrational and rotational states, often requiring several lasers to address all necessary transitions. Furthermore, spin-rotation and hyperfine interactions add further layers of complexity, increasing the number of energy levels involved. A critical aspect for efficient trapping is the selection of transitions that minimise decay into unwanted rotational states, typically requiring specific angular momentum relationships between the ground and excited states. The presence of 'dark states' – energy levels from which molecules do not readily absorb photons – can also be a significant challenge, diminishing the trapping force. Techniques like RF modulation or dual-frequency mechanisms are employed to mitigate these issues.

Experimental Setup and Methodology

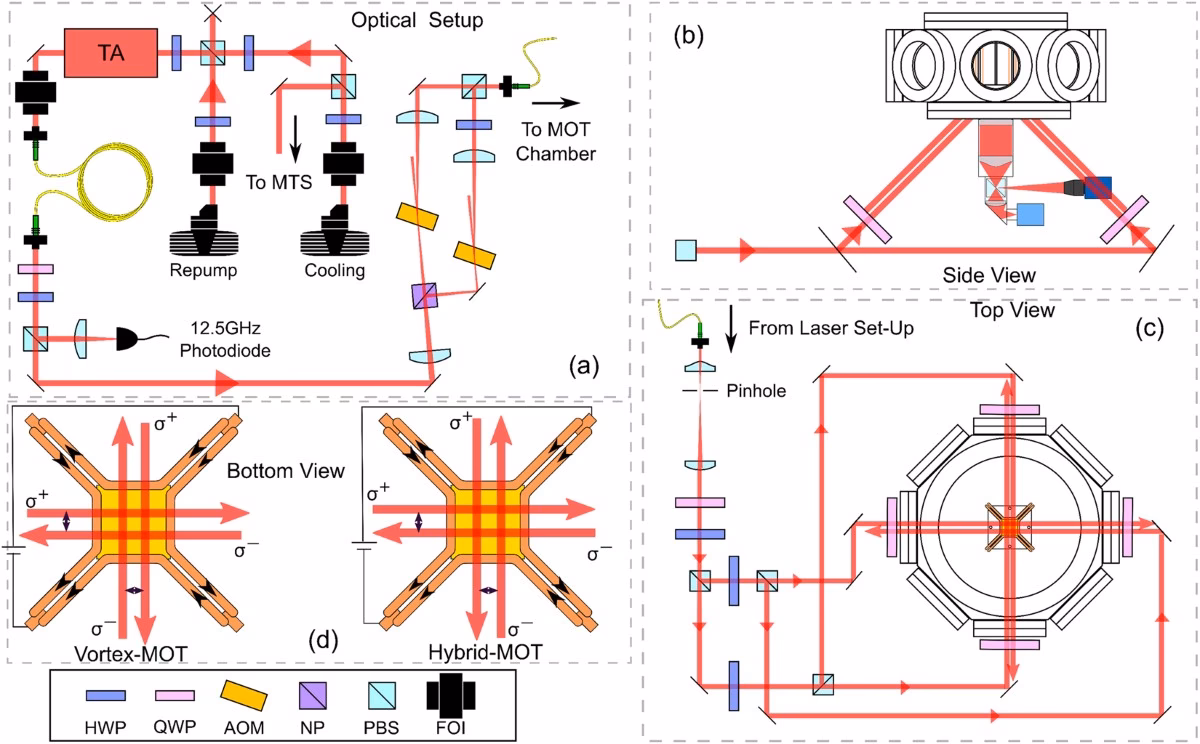

The study detailed herein utilises a sophisticated experimental setup to investigate the CaF MOT. The molecules are sourced from a cryogenic buffer gas cell, where calcium is ablated and reacts with SF₆ in a helium buffer gas. This process yields a beam of CaF molecules that are then slowed using frequency-chirped laser light. The core of the experiment involves a DC MOT, employing a specific set of lasers to address the molecular transitions. The MOT itself is created by a pair of anti-Helmholtz coils generating a magnetic quadrupole field. Fluorescence imaging, using a system of lenses and a sensitive camera or photomultiplier tube, allows for the observation and quantification of the molecular cloud. Crucially, bandpass filters are used to isolate the fluorescence signal at the specific wavelength of interest, minimising background noise and scatter. The experimental parameters, including laser intensity, detuning, and magnetic field gradient, are meticulously controlled and varied to study their impact on the MOT's properties.

Loading the MOT: The Crucial First Step

The efficiency of loading molecules into the MOT is paramount. The capture velocity of the MOT, the maximum speed at which molecules can be successfully trapped, plays a vital role here. To maximise loading, molecules need to reach this capture velocity precisely as they enter the MOT's capture volume. Premature slowing can lead to divergence and reduced capture probability. The study investigates the effect of the frequency chirp applied to the slowing laser. By adjusting the chirp rate and duration, researchers can optimise the velocity distribution of the incoming molecules. Simulations are used to validate experimental observations, providing insights into which molecules are most likely to be captured. The number of trapped molecules is found to be sensitive to the chirp parameters, with an optimal range identified for maximum loading. Fluctuations in the number of trapped molecules are also observed, highlighting the delicate nature of the slowing and capture process.

Key MOT Parameters and Their Influence

The behaviour of the MOT is governed by several key parameters, including the total peak intensity of the MOT light (I₀₀), the detuning of the cooling laser (Δ), and the axial magnetic field gradient (dB/dz). The study systematically varies these parameters to understand their effect on the number of trapped molecules, scattering rate, oscillation frequency, damping constant, temperature, cloud size, and lifetime.

Number of Molecules

The number of molecules loaded into the MOT is found to increase with the power of the slowing laser up to a certain point, after which it saturates. Similarly, the number of molecules trapped increases with the MOT light intensity (I₀₀) until it reaches a plateau. The detuning of the MOT laser exhibits a parabolic dependence, with a maximum number of molecules trapped at a specific detuning. The magnetic field gradient also influences the number of trapped molecules, with an optimal gradient observed for maximum loading. Beyond this optimum, increasing the gradient leads to a decrease in trapped molecules, likely due to a reduction in the trap's capture volume.

Scattering Rate

The photon scattering rate, a measure of how frequently molecules absorb and re-emit photons, is crucial for cooling and trapping. A simple rate model predicts the scattering rate based on laser intensity and detuning. Experimental measurements generally agree with these predictions, though some discrepancies are noted, potentially due to optical pumping into short-lived dark states. The scattering rate is found to increase with intensity and is optimised at a specific detuning.

Oscillation Frequency and Damping Constant

The oscillation frequency (ω) and damping constant (β) describe the dynamics of the molecules within the trap. These parameters are influenced by the laser intensity and magnetic field gradient. The oscillation frequency increases with intensity, reaching a maximum at a certain level. This behaviour is well-described by analytical models. The damping constant, which dictates how quickly oscillations decay, also varies with intensity. Interestingly, the measured damping constants are found to be significantly smaller than those predicted by simulations, a discrepancy tentatively attributed to polarisation gradient forces. The oscillation frequency is observed to be highest close to resonance, with a weaker dependence on detuning.

Temperature

The temperature of the molecular cloud is a direct measure of its kinetic energy. The study reveals that the MOT temperature is considerably higher than the Doppler limit, particularly at high laser intensities. As the intensity is reduced, the temperature decreases, reaching a minimum at a specific low intensity. This behaviour is linked to the interplay between the damping constant and diffusion processes. While reducing laser intensity generally leads to lower temperatures, a further reduction can cause the temperature to increase again. The relationship between temperature and detuning also shows a minimum at a specific detuning.

Cloud Size

The physical size of the molecular cloud, typically measured as its root-mean-square (rms) radius, is influenced by the interplay between temperature and oscillation frequency. At high intensities, as the temperature decreases and the oscillation frequency remains relatively high, the cloud size shrinks. However, at very low intensities, where the oscillation frequency decreases significantly while the temperature stabilises or increases, the cloud size begins to grow again. The cloud size also shows a dependence on detuning and magnetic field gradient, generally shrinking with increasing field gradient.

Loss Rate and Lifetime

Molecules are lost from the MOT over time. The loss rate is observed to increase approximately linearly with the scattering rate, suggesting a leak out of the cooling cycle. The typical lifetime of the CaF MOT is around 100 ms, which, while shorter than for atomic MOTs, is sufficient for many applications. Mechanisms for increased loss at high intensities are also considered, potentially related to molecules exceeding the trap depth.

Capture Velocity

Measuring the capture velocity directly is challenging. Researchers infer it by measuring the escape velocity, i.e., the fraction of molecules lost after being pushed from the trap. By analysing the motion of the molecules after the push and comparing it to a model, a capture velocity of approximately 11 m s⁻¹ is determined. This value is consistent with simulations and indicates the maximum speed at which molecules can be efficiently trapped.

The Interplay: MOT Size and Trap Frequency

The relationship between MOT size and trap frequency is elegantly described by the equipartition theorem, which states that the kinetic energy of the molecules is related to the curvature of the trapping potential. In this context, the oscillation frequency (ω) is directly related to the strength of the restoring force, and thus the curvature of the potential. The cloud size (σ) is related to both the temperature (T) and the oscillation frequency (ω) by the equation k_BT = mω²σ², where m is the molecular mass and k_B is the Boltzmann constant. This equation highlights a crucial trade-off: a higher oscillation frequency tends to lead to a smaller cloud size, assuming constant temperature. Conversely, if the temperature increases while the oscillation frequency remains constant, the cloud will expand.

The experimental data presented in Figure 14 illustrates this relationship. As the intensity I₀₀ is reduced, the temperature (T) decreases significantly, leading to a smaller cloud size. However, the oscillation frequency (ω) also decreases, albeit less dramatically. At very low intensities, the decrease in ω becomes the dominant factor, causing the cloud size to increase again, even as the temperature continues to fall or stabilise. This behaviour underscores the complex, non-monotonic relationship between these parameters.

Furthermore, the dependence of cloud size on detuning (Δ) directly reflects the behaviour of the oscillation frequency. Since the oscillation frequency is maximised near resonance, the cloud size is minimised in this region. As the detuning increases or decreases from resonance, the oscillation frequency drops, leading to an expansion of the cloud.

The magnetic field gradient also plays a role, as it directly influences the oscillation frequency. An increase in the magnetic field gradient strengthens the restoring force, increasing ω and consequently reducing the MOT size, as observed in Figure 14(c). The model σ ∝ 1/√(|dB/dz|) accurately describes this relationship, confirming that a stronger magnetic field gradient leads to tighter confinement and a smaller cloud.

Conclusion: A Step Towards Advanced Molecular Manipulation

This comprehensive study of a CaF molecular MOT reveals a complex but well-understood interplay between various experimental parameters. The relationship between MOT size and trap frequency is a direct consequence of the underlying physics of laser cooling and magnetic trapping, governed by fundamental thermodynamic principles and the specific properties of the CaF molecule. The ability to control and predict these parameters is essential for advancing applications in quantum science and technology. While significant progress has been made, further research into optimising slowing methods and understanding discrepancies between experimental results and theoretical models holds the promise of even greater control over ultracold molecules, paving the way for novel scientific discoveries and technological innovations.

Frequently Asked Questions (FAQs)

• What is a magneto-optical trap (MOT)? A device that uses laser light and magnetic fields to cool and trap atoms or molecules to very low temperatures.
• Why are molecular MOTs more complex than atomic MOTs? Molecules have more complex energy level structures, including vibrational and rotational states, and spin interactions, requiring more sophisticated laser cooling techniques.
• How does laser intensity affect MOT size and trap frequency? Higher laser intensity generally leads to a stronger restoring force (higher trap frequency) and can influence the cloud size by affecting temperature and the balance between cooling and heating.
• What is the relationship between MOT size and trap frequency? They are inversely related, often described by the equipartition theorem, where a higher trap frequency generally results in a smaller cloud size for a given temperature.
• What are the key parameters for optimising a molecular MOT? Laser intensity, laser detuning, magnetic field gradient, and the parameters of the molecular beam slowing process are critical.
